WW-36

FRONT WIPER AND WASHER SYSTEM

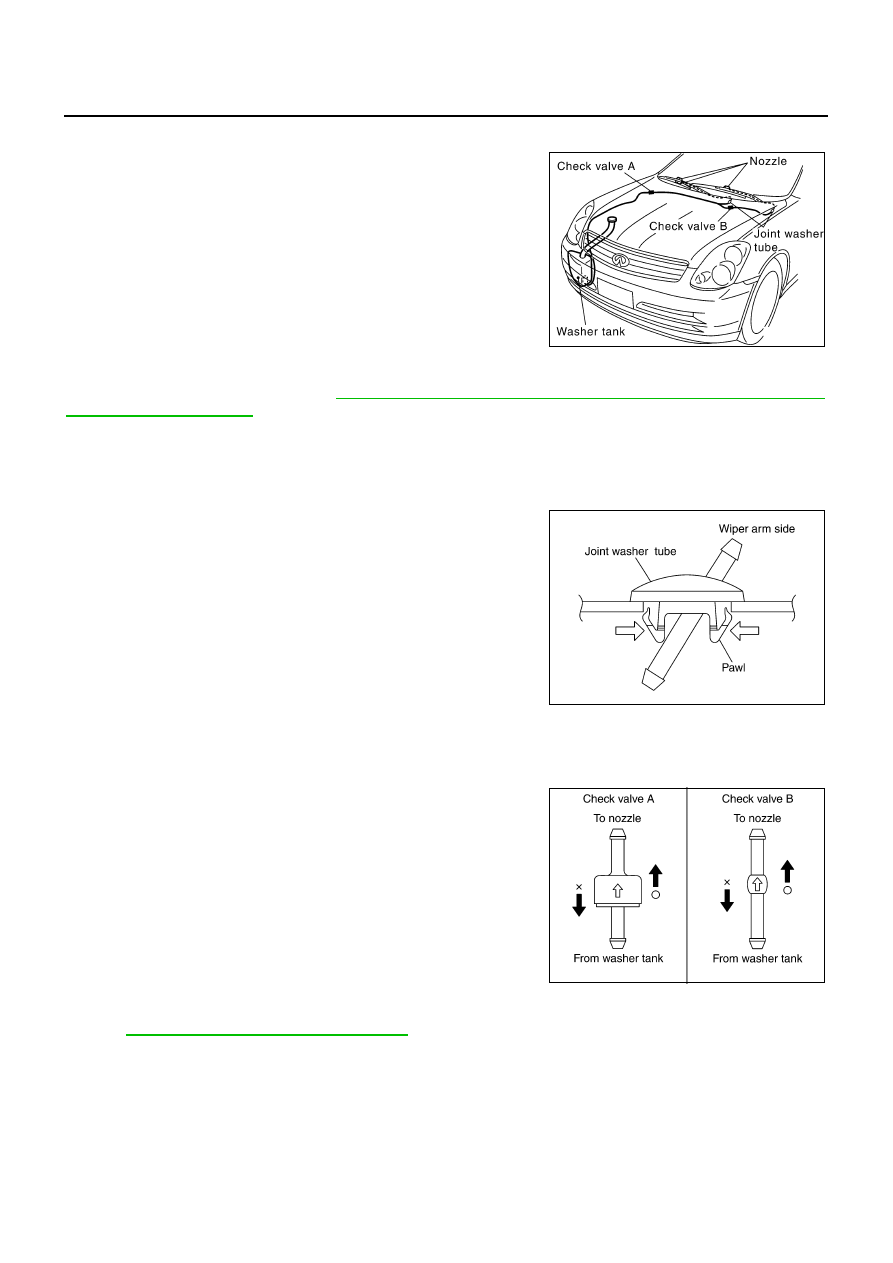

Washer Tube Layout

NKS000MK

Removal and Installation of Front Washer Nozzle

NKS000ML

Replace wiper arm assembly. Refer to

WW-32, "Removal and Installation of Front Wiper Arms, Adjustment of

Wiper Arms Stop Location"

 .

CAUTION:

Removal/installation of the washer nozzle as a unit must not be done.

Removal and Installation of Front Washer Joint

NKS000MM

REMOVAL

1.

Remove upwards while pressing the tab on reverse side.

2.

Remove washer tube.

INSTALLATION

Installation is the reverse order of removal.

CHECK VALVE INSPECTION

Blow check valve. Confirm that the air ventilates. Also confirm that
inhalation is impossible.

Inspection of Front Wiper and Washer Switch Circuit

NKS004OV

Refer to

LT-100, "Combination Switch Inspection"

 .

PKIA1145E

PKIA1900E

PKIA1901E

FRONT WIPER AND WASHER SYSTEM

WW-37

C

D

E

F

G

H

I

J

L

M

A

B

WW

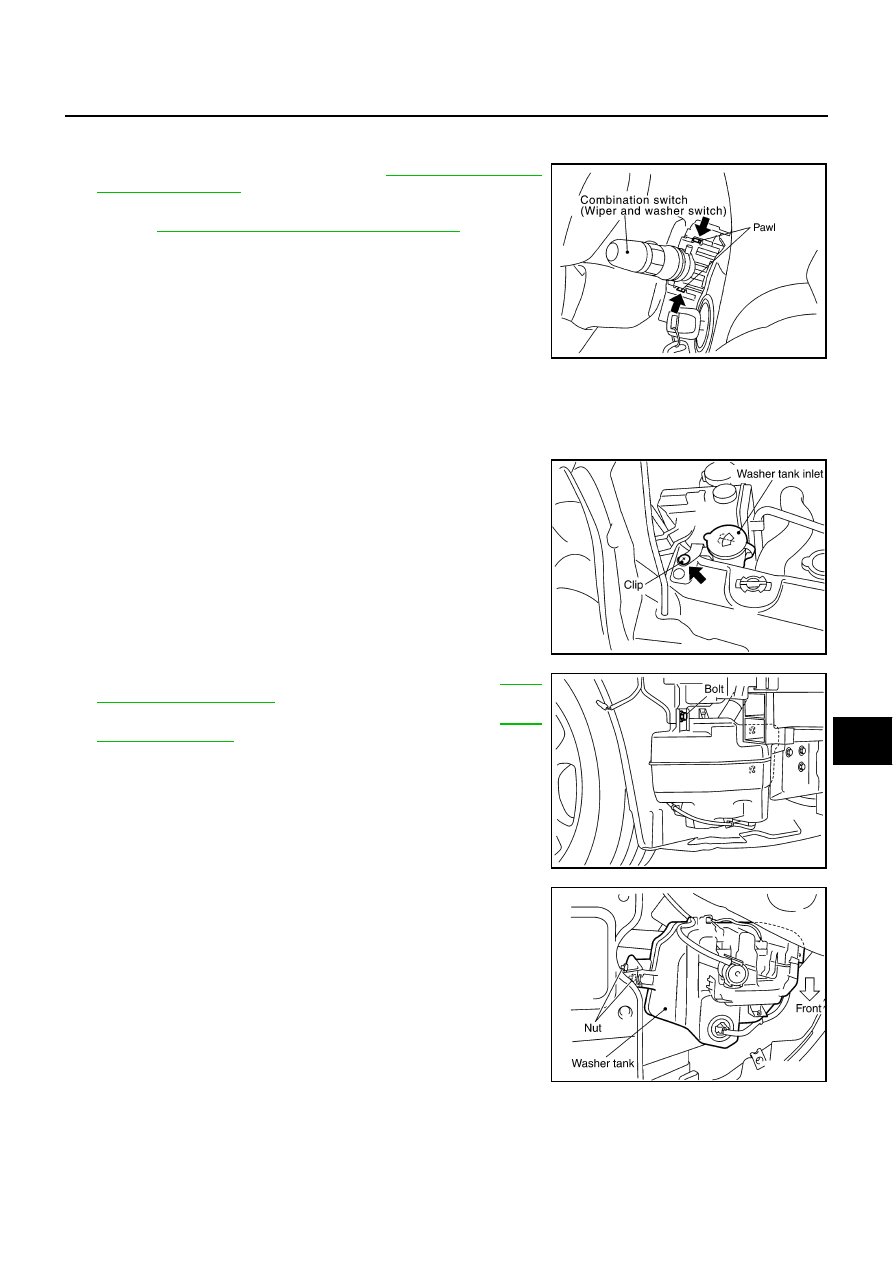

Removal and Installation of Front Wiper and Washer Switch

NKS000MO

REMOVAL

1.

Remove steering column cover. Refer to

IP-10, "INSTRUMENT

PANEL ASSEMBLY"

 .

2.

Remove mounting bolts of cluster lid A and combination meter.
Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

3.

Disconnect wiper and washer switch connector.

4.

Pull wiper and washer switch toward the passenger door while
pressing pawls in direction shown by the arrow in the figure, and
remove it from the base.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation of Washer Tank

NKS000MP

REMOVAL

1.

Remove clip and pull washer tank inlet out of washer tank.

2.

Remove fender protector in the right side. Refer to

EI-20,

"FENDER PROTECTOR"

 .

3.

Remove right half of front bumper fascia. Refer to

EI-14,

"FRONT BUMPER"

 .

4.

Disconnect washer pump connector.

5.

Remove bolts.

6.

Remove washer tube, and remove washer tank from the vehicle.

PKIB6130E

PKIA1147E

PKIB4170E

PKIA1149E

WW-38

FRONT WIPER AND WASHER SYSTEM

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.

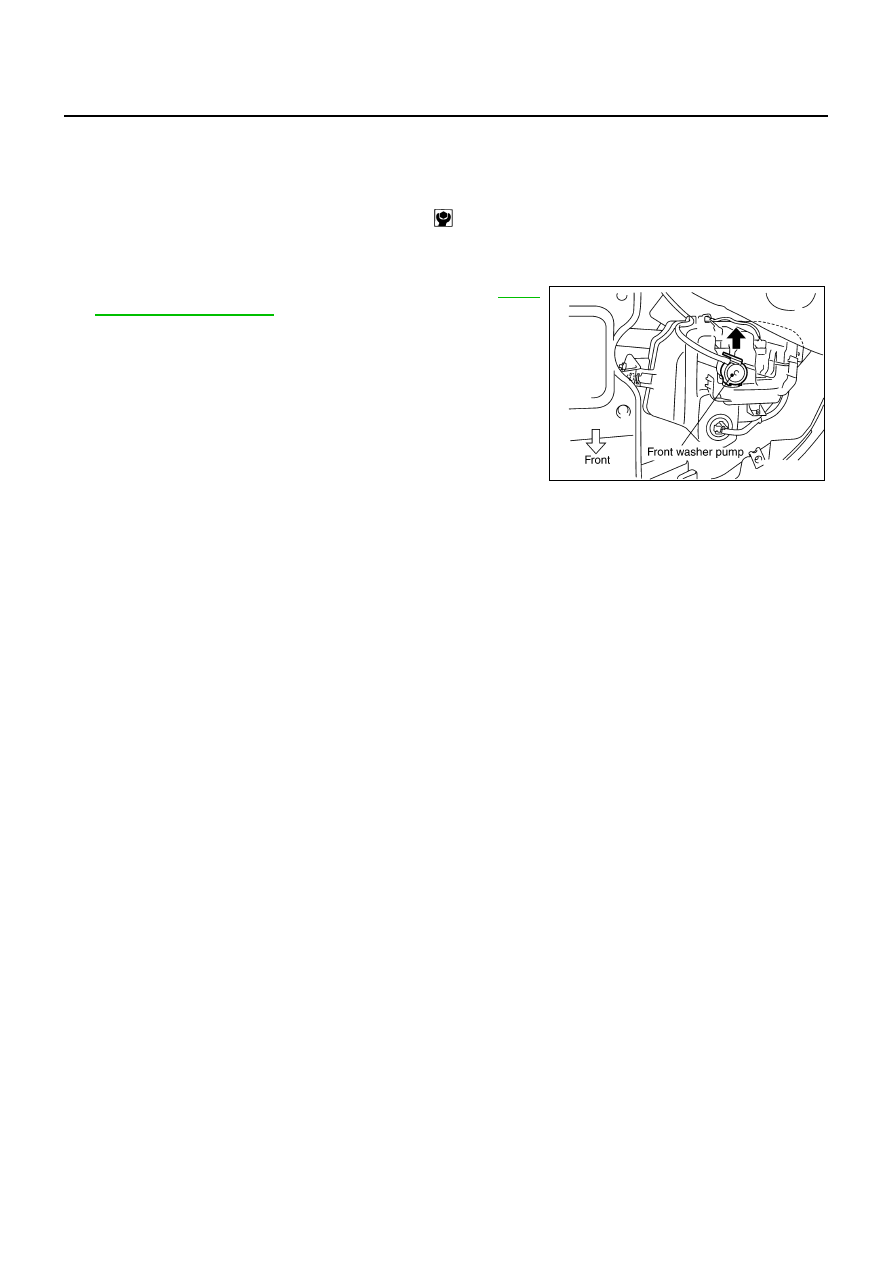

Removal and Installation of Front Washer Pump

NKS000MQ

REMOVAL

1.

Remove fender protector in the right side. Refer to

EI-20,

"FENDER PROTECTOR"

 .

2.

Disconnect front washer pump connector and remove washer
tube.

3.

Pull out front washer pump in direction shown by the arrow in
the figure. Remove front washer pump from washer tank.

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

When installing front washer pump, there should be no packing twists, etc.

Washer tank installation bolt and nuts

: 5.7 N·m (0.58 kg-m, 50 in-lb)

PKIC3092E

CIGARETTE LIGHTER

WW-39

C

D

E

F

G

H

I

J

L

M

A

B

WW

CIGARETTE LIGHTER

PFP:35330

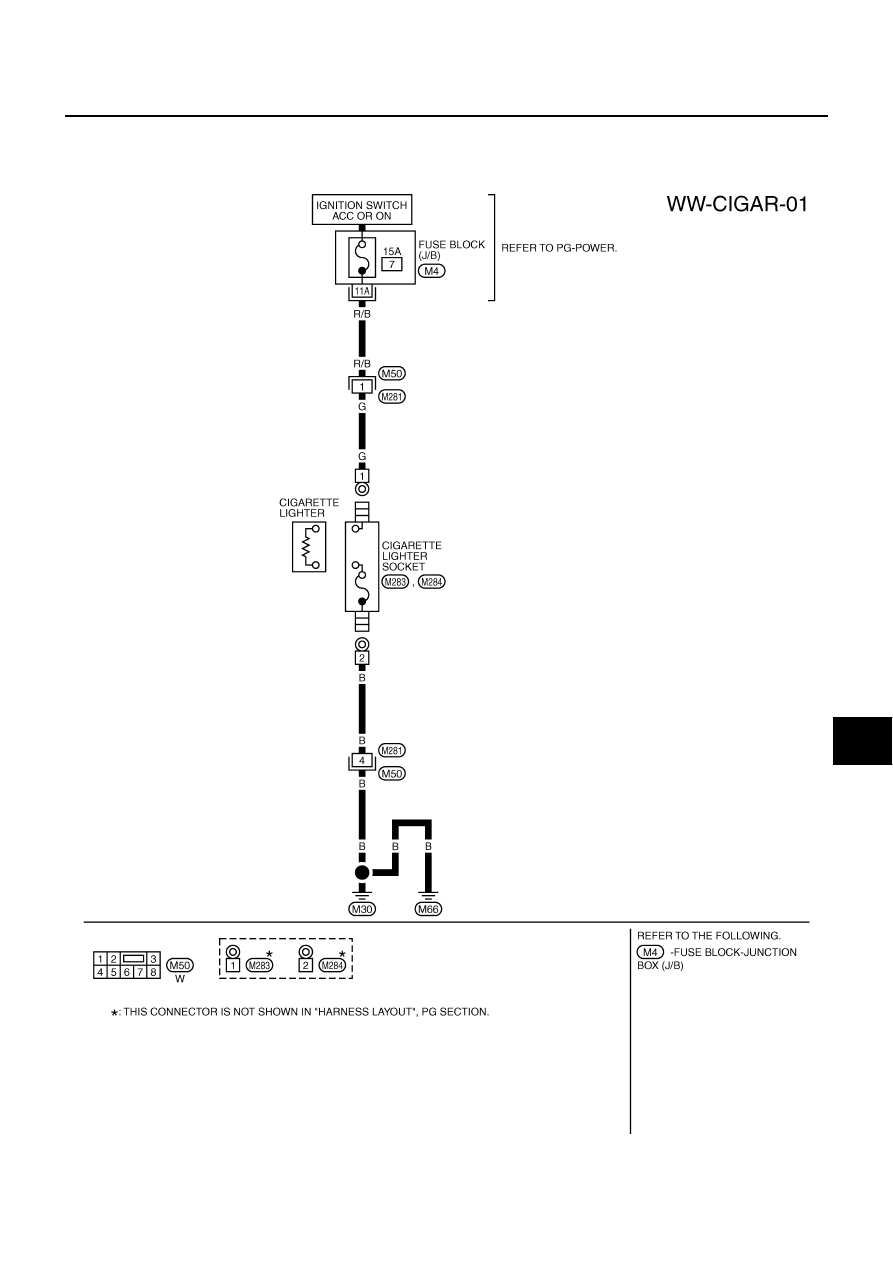

Wiring Diagram — CIGAR —

NKS000MR

WITH A/T

TKWM2108E
