WW-12

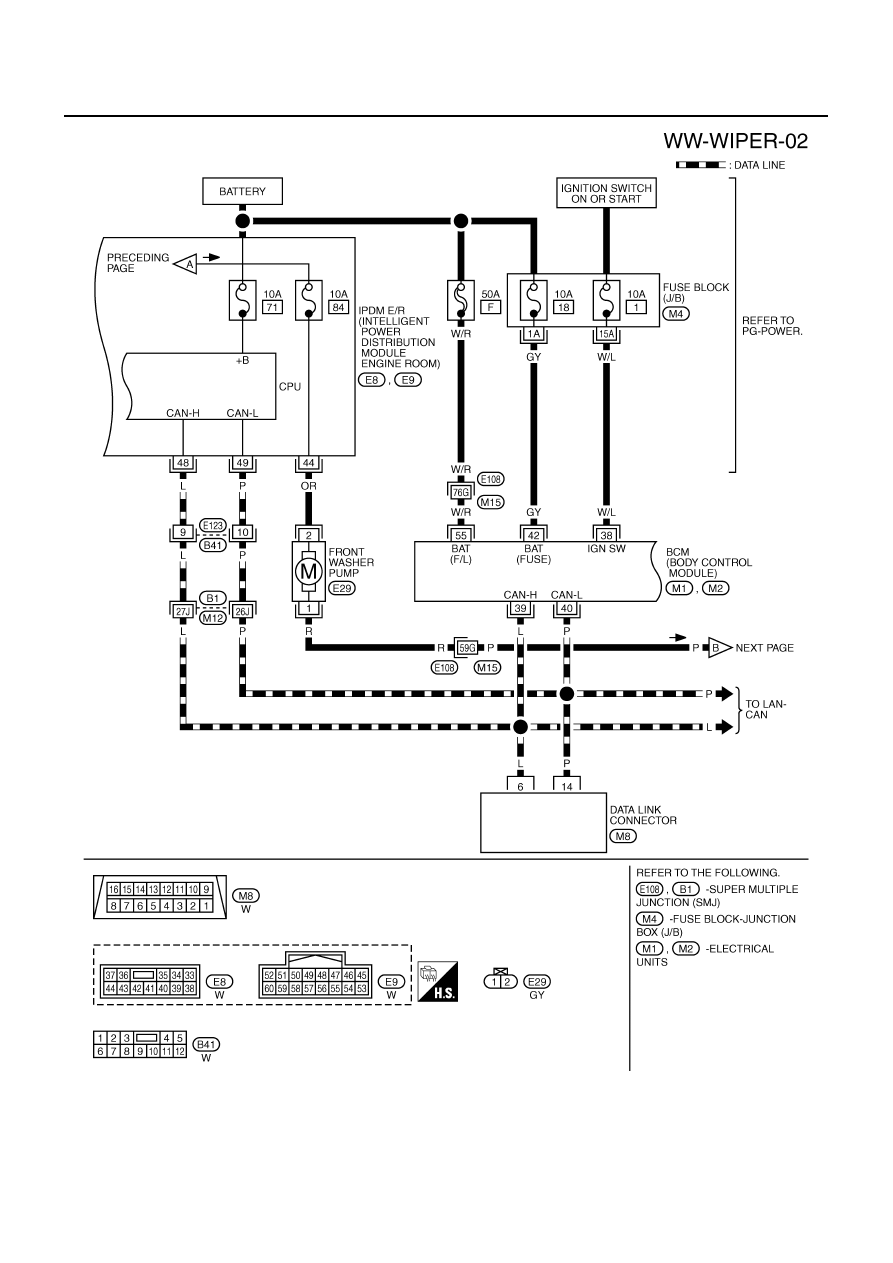

FRONT WIPER AND WASHER SYSTEM

TKWM3492E

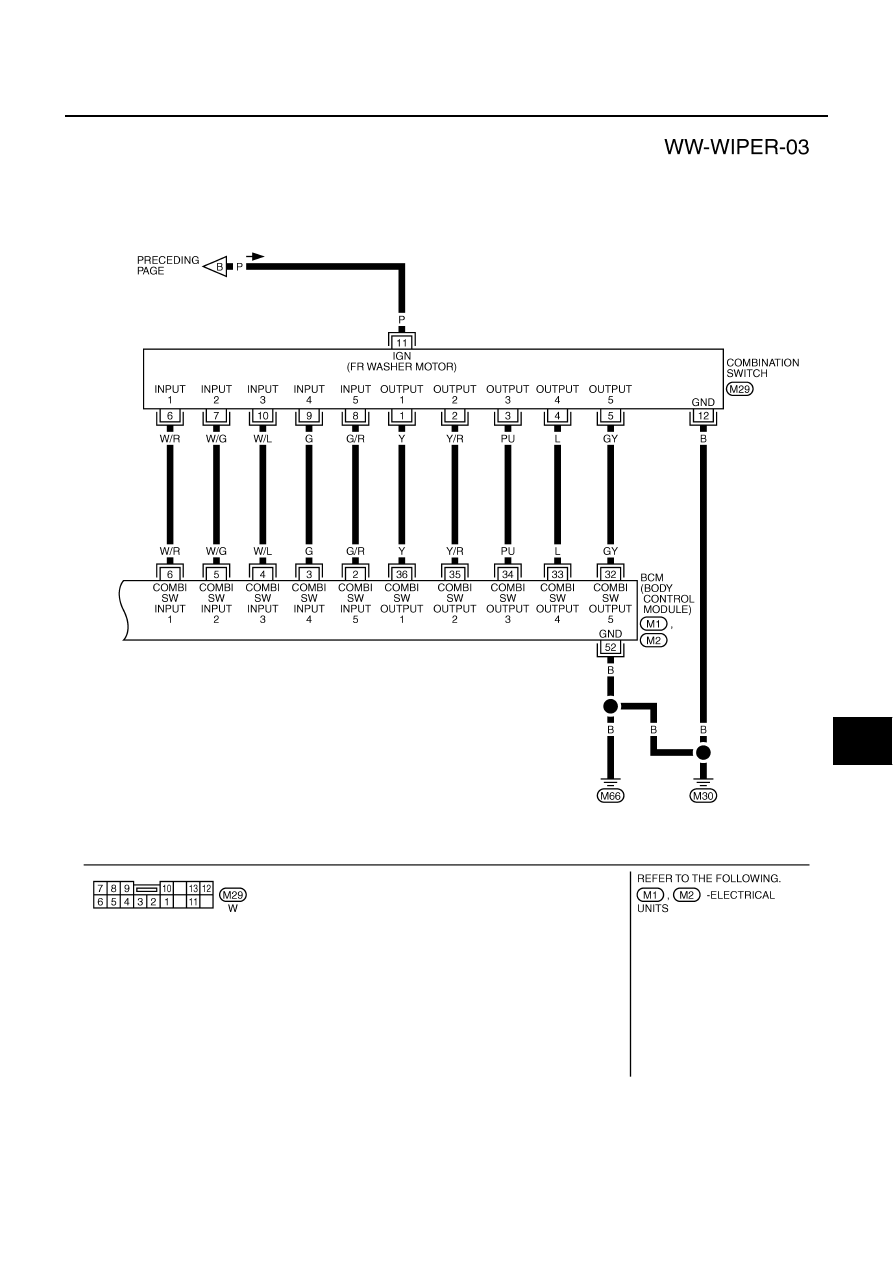

FRONT WIPER AND WASHER SYSTEM

WW-13

C

D

E

F

G

H

I

J

L

M

A

B

WW

TKWM2228E

WW-14

FRONT WIPER AND WASHER SYSTEM

Terminals and Reference Values for BCM

NKS000M0

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

4

W/L

Combination switch input 3

ON

Lighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)

OFF

Approx. 0 V

Any of the conditions
below

●

Front wiper switch
MIST

●

Front wiper switch
INT

●

Front wiper switch
LO

Approx. 1.0 V

5

W/G

Combination switch input 2

ON

Lighting,
turn, wiper
switch

OFF
(Wiper intermittent dial
position 4)

Approx. 0 V

Any of the conditions
below

●

Front washer switch
(Wiper intermittent
dial position 4)

●

Wiper intermittent
dial position 1

●

Wiper intermittent
dial position 5

●

Wiper intermittent
dial position 6

Approx. 1.0 V

PKIB4959J

PKIB4959J

FRONT WIPER AND WASHER SYSTEM

WW-15

C

D

E

F

G

H

I

J

L

M

A

B

WW

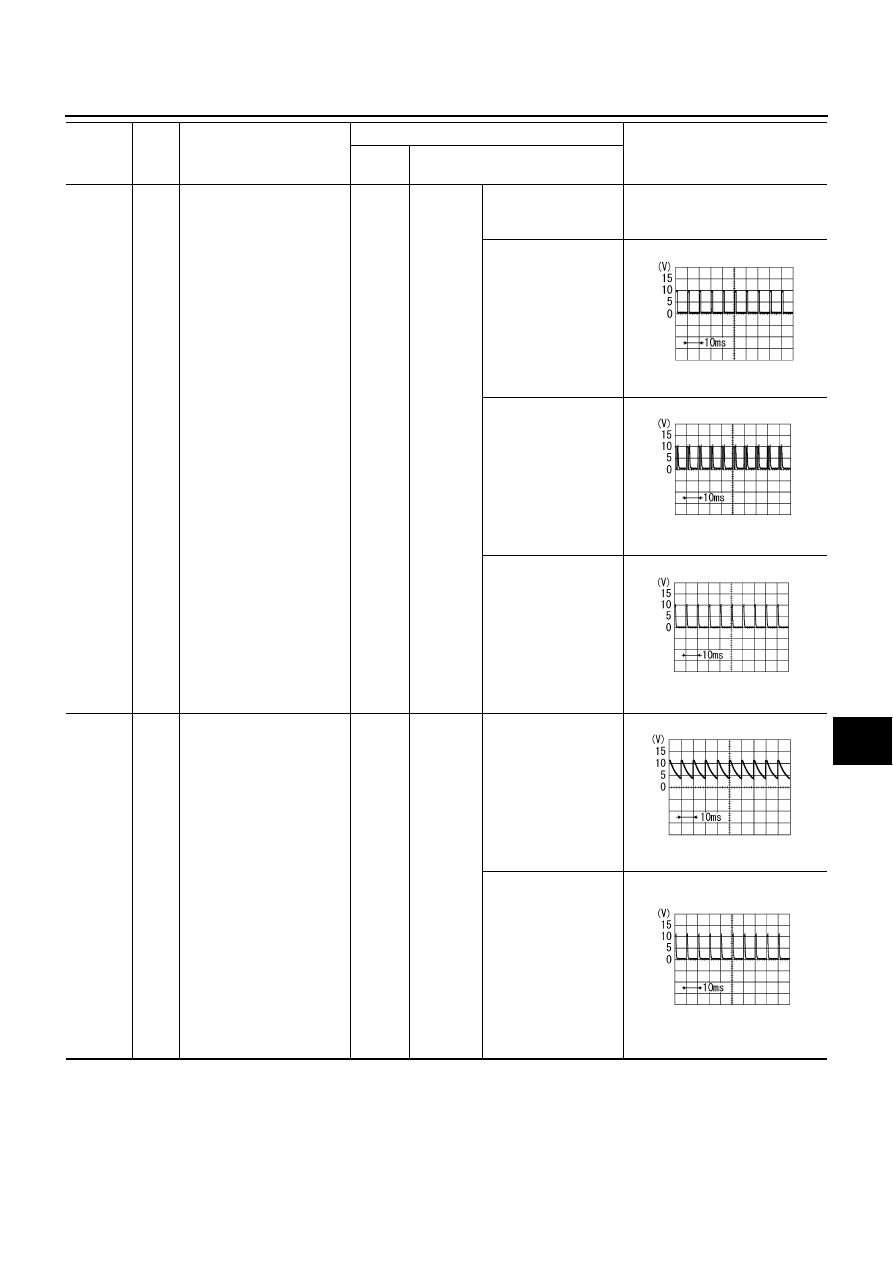

6

W/R

Combination switch input 1

ON

Lighting,
turn, wiper
switch

OFF
(Wiper intermittent dial
position 4)

Approx. 0 V

Any of the conditions
below

●

Front wiper switch
HI (Wiper intermit-
tent dial position 4)

●

Wiper intermittent
dial position 3

Approx. 1.0 V

Any of the conditions
below

●

Wiper intermittent
dial position 1

●

Wiper intermittent
dial position 2

Approx. 1.7 V

Any of the conditions
below

●

Wiper intermittent
dial position 6

●

Wiper intermittent
dial position 7

Approx. 0.8 V

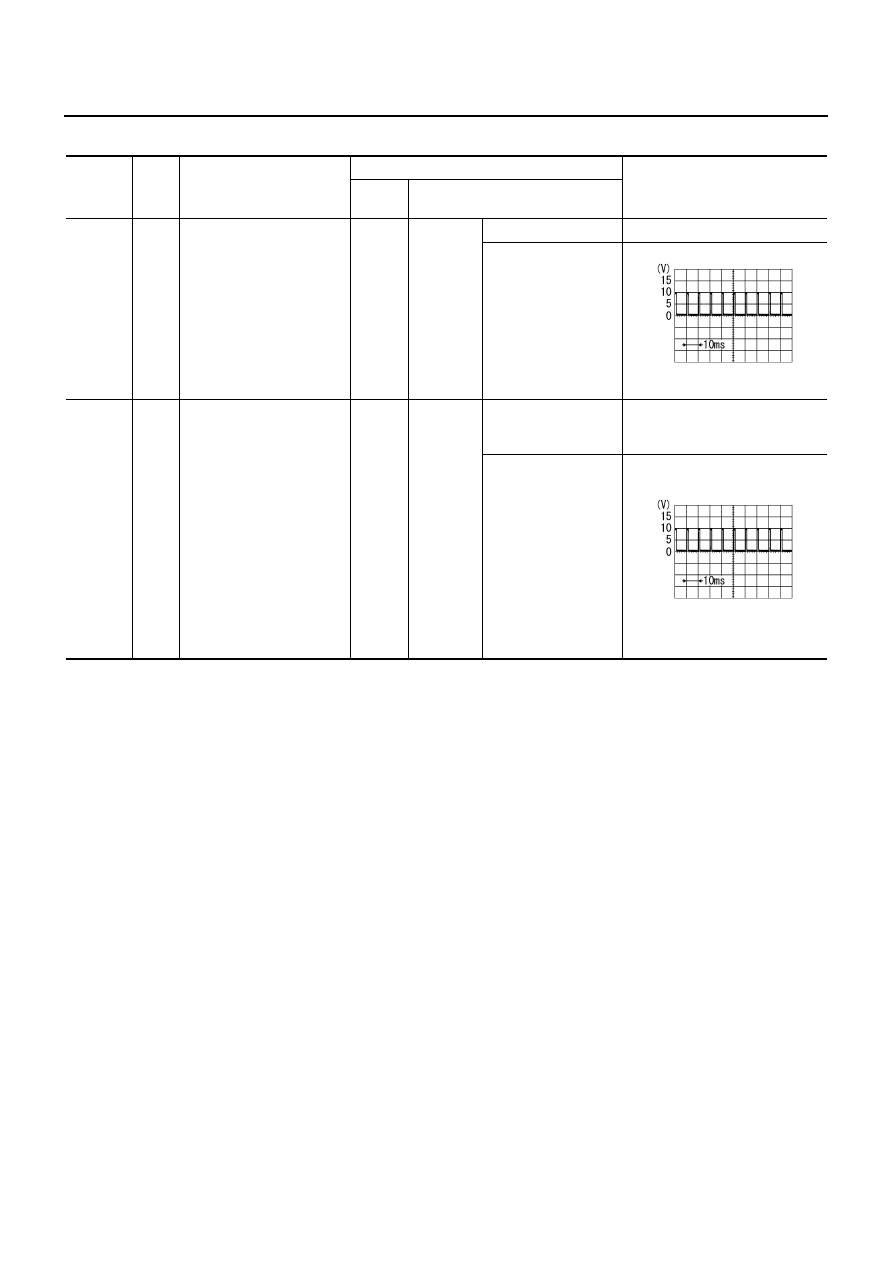

32

GY

Combination switch output
5

ON

Lighting,
turn, wiper
switch

OFF
(Wiper intermittent dial
position 4)

Approx. 7.2 V

Any of the conditions
below

●

Wiper intermittent
dial position 1

●

Wiper intermittent
dial position 2

●

Wiper intermittent
dial position 6

●

Wiper intermittent
dial position 7

Approx. 1.0 V

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition
