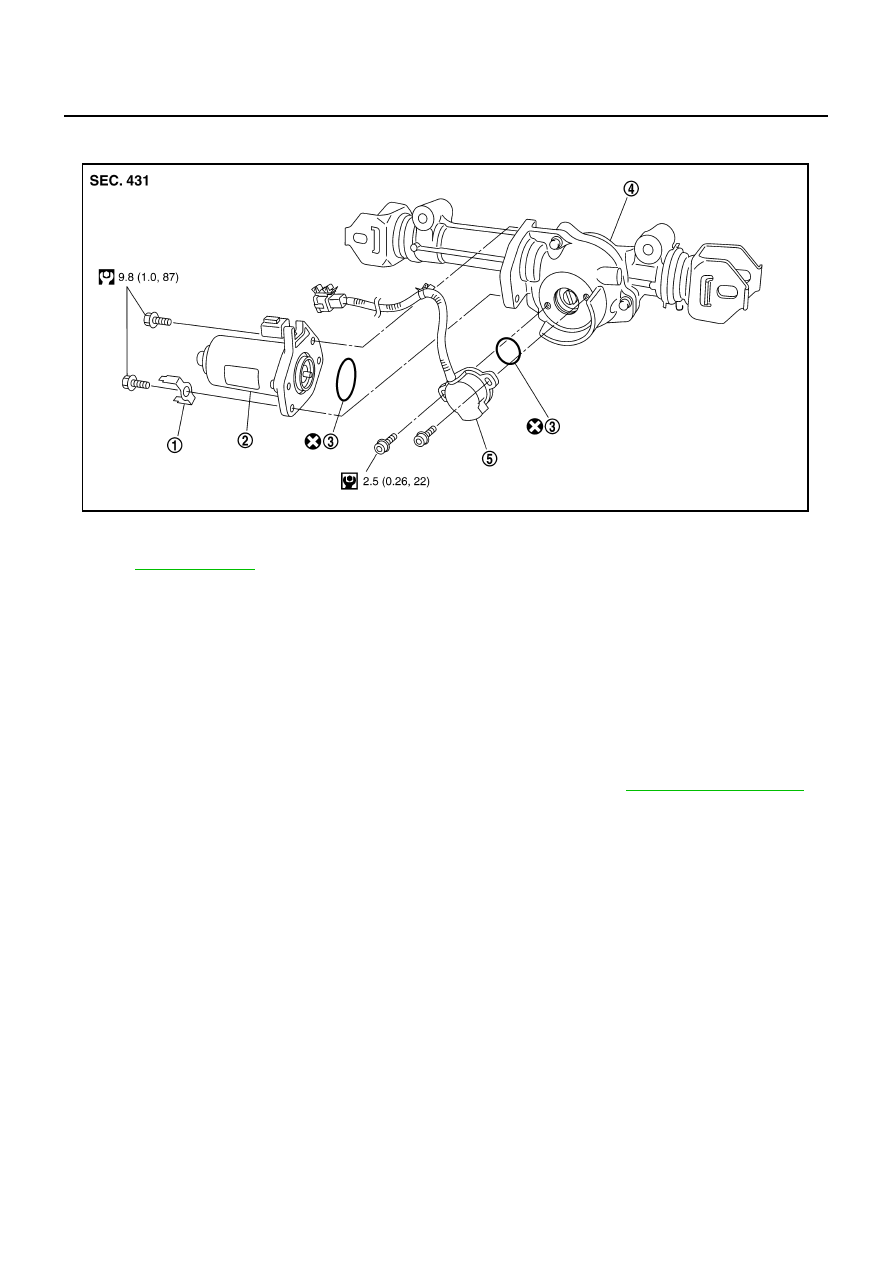

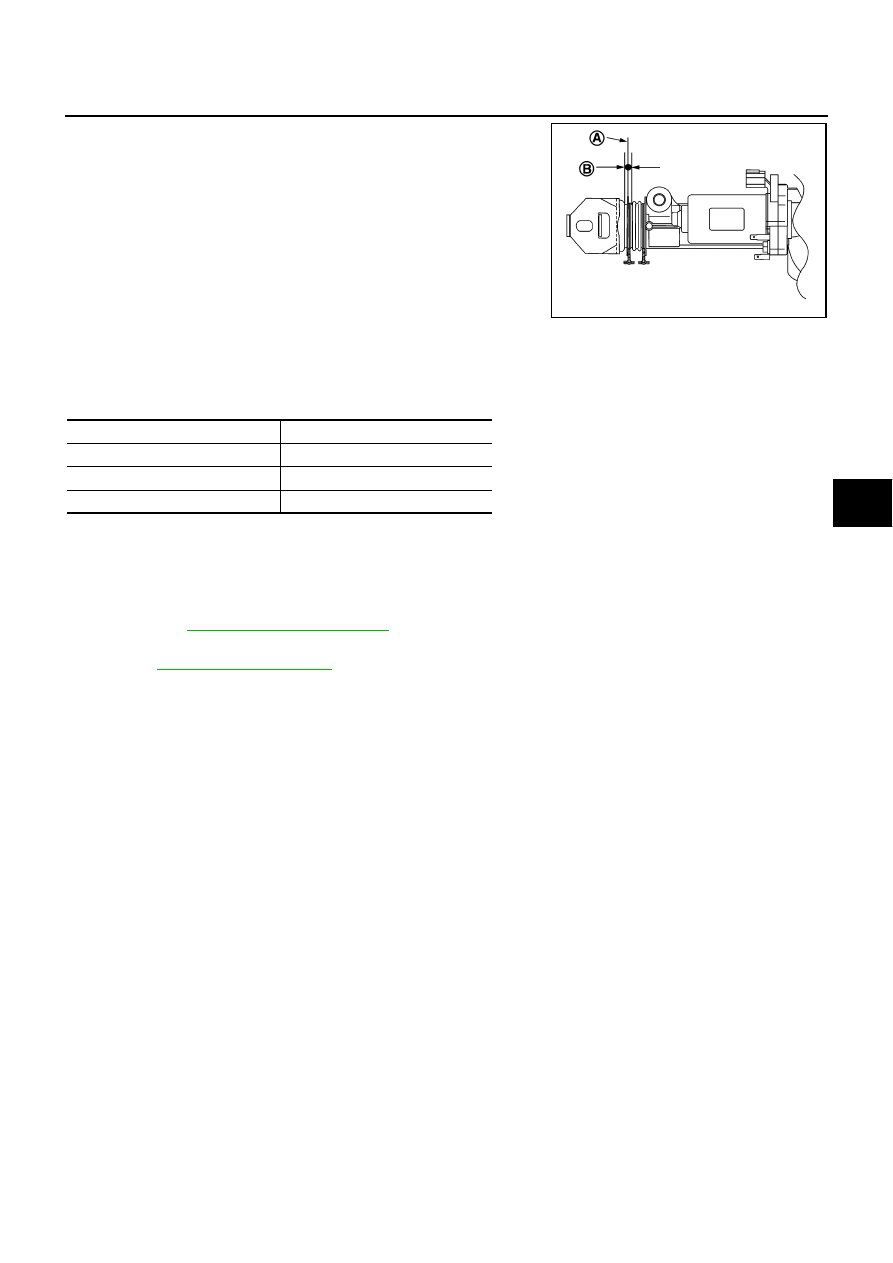

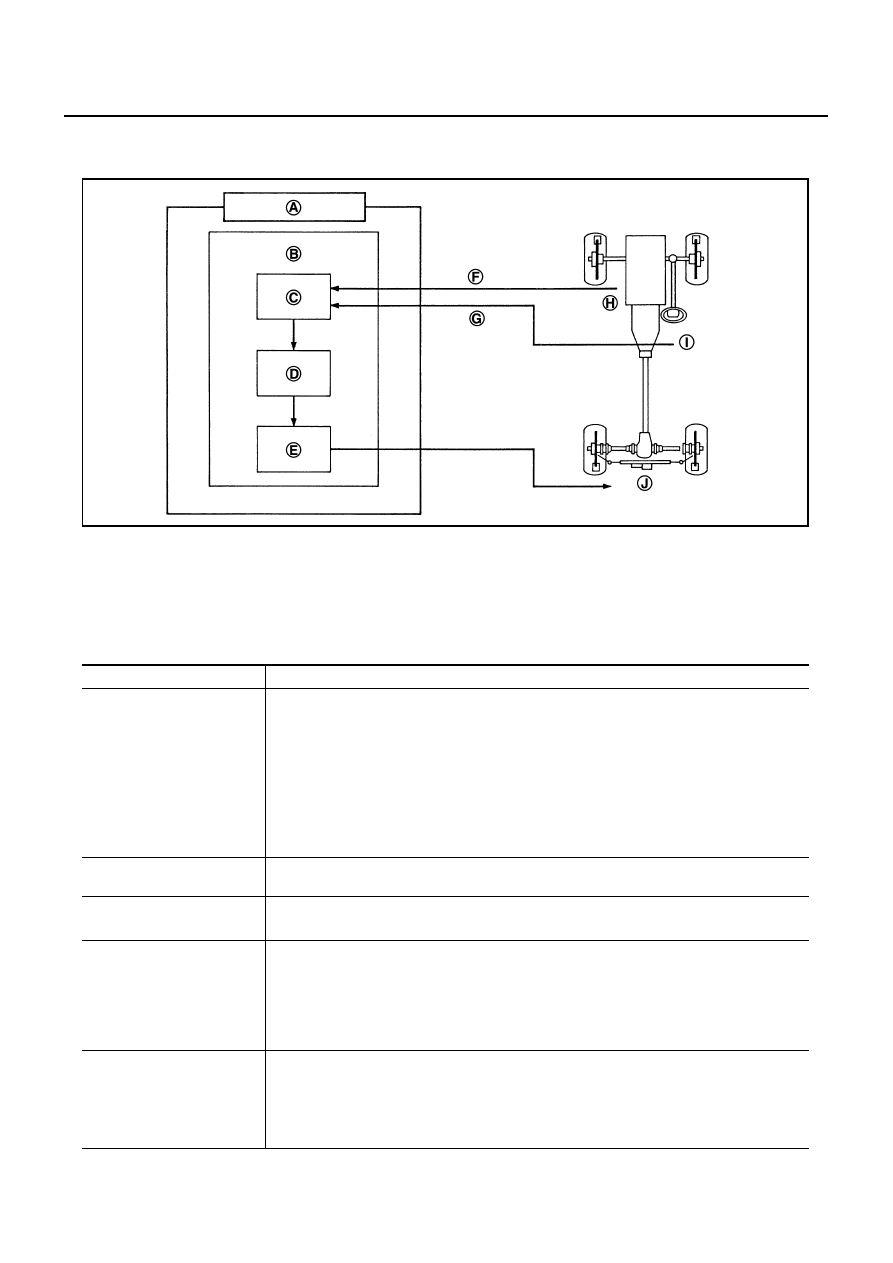

STC-8 [RAS] REAR ACTIVE STEER Disassembly and Assembly NGS00095 COMPONENTS DISASSEMBLY 1. Remove mounting bolts of RAS motor assembly, and then remove RAS motor assembly, ground terminal, 2. Remove mounting bolt of rear wheel steering angle sensor, and then remove rear wheel steering angle INSPECTION AFTER DISASSEMBLY Check RAS actuator bracket (rear wheel steering angle sensor mounting area) for crush, deformation, cracks, ASSEMBLY ● Assembly is the reverse order of disassembly. For tightening torque, refer to . ● After assembling RAS actuator assembly (after removing and installing rear wheel angle sensor and RAS Neutral Position Adjustment NGS00096 Adjust neutral position after performing the following procedure. ● Removing and installing or replacing the RAS actuator assembly ● Disassembling the RAS actuator assembly (when removing rear wheel steering angle sensor and RAS CAUTION: Perform the neutral position adjustment after installing the RAS actuator assembly to the vehicle. 1. Disconnect harness connector and remove rear wheel steering angle sensor from the RAS actuator 2. Disconnect RAS motor harness connector. 3. Turn ignition switch ON. 1. Ground terminal 2. RAS motor assembly 3. O-ring 4. RAS actuator 5. Rear wheel steering angle sensor , for the symbols in the figure. SGIA1052J |
