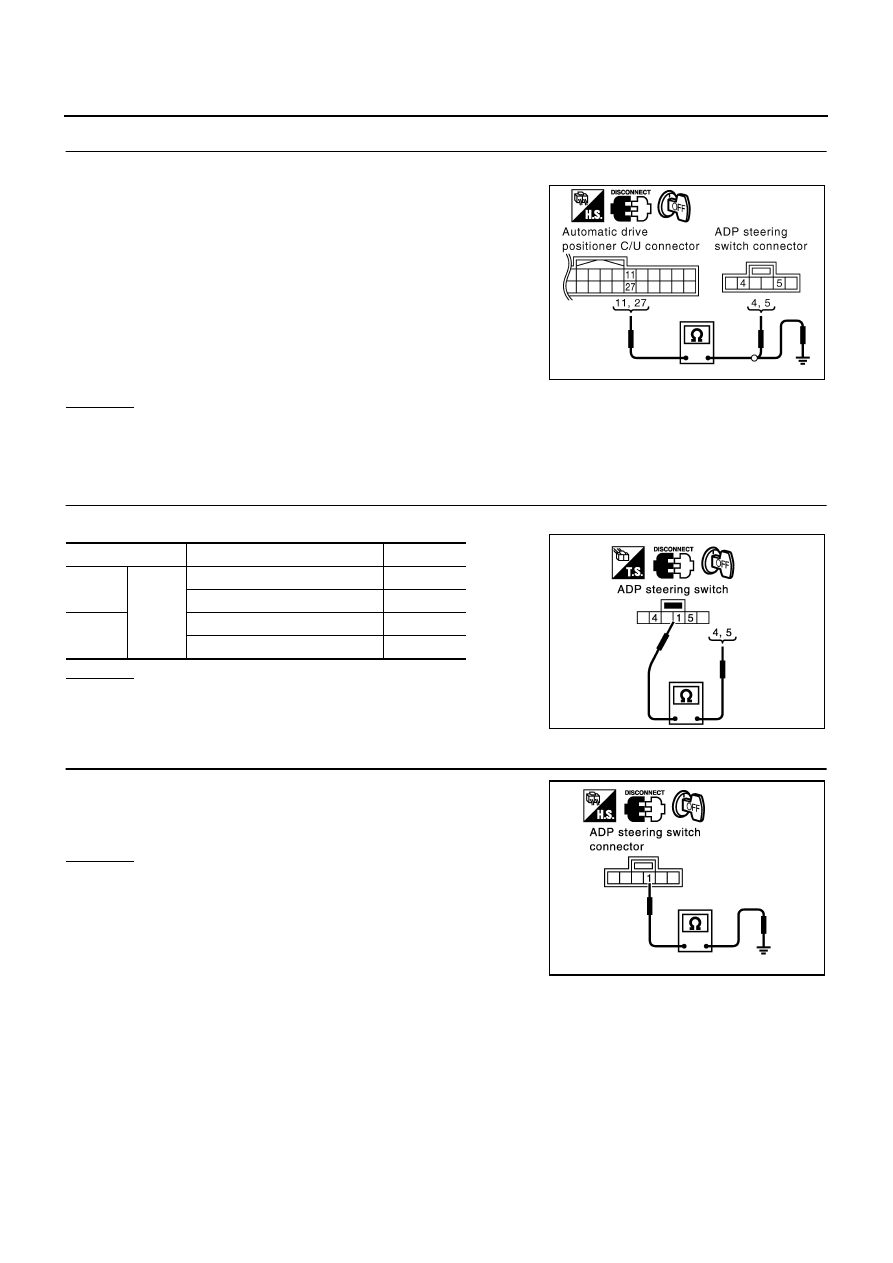

SE-66

AUTOMATIC DRIVE POSITIONER

2.

CHECK TELESCOPIC CIRCUIT HARNESS CONTINUITY

1.

Disconnect automatic drive positioner control unit connector and ADP steering switch connector.

2.

Check continuity between automatic drive positioner control unit
connector M96 terminals 11, 27 and ADP steering switch con-
nector M100 terminals 4, 5.

3.

Check continuity between automatic drive positioner control unit
connector M96 terminals 11, 27 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between automatic drive positioner control unit and ADP steering

switch.

3.

CHECK TELESCOPIC SWITCH

Check continuity between ADP steering switch as follows.

OK or NG

OK

>> GO TO 4.

NG

>> Replace ADP steering switch.

4.

CHECK ADP STEERING SWITCH GROUND CIRCUIT

Check continuity between ADP steering switch connector M100 ter-
minal 1 and ground.

OK or NG

OK

>> Check the condition of the harness and connector.

NG

>> Replace or replace harness between ADP steering

switch and ground.

11 (P/L) – 5 (P/L)

: Continuity should exist.

27 (G/W) – 4 (G/W)

: Continuity should exist.

11 (P/L) – Ground

: Continuity should not exist.

27 (G/W) – Ground

: Continuity should not exist.

PIIA5071E

Terminal

ADP steering switch condition

Continuity

5

1

FORWARD

Yes

Other than above

No

4

BACKWARD

Yes

Other than above

No

PIIA4481E

1 (B) – Ground

: Continuity should exist.

PIIA3308E

AUTOMATIC DRIVE POSITIONER

SE-67

C

D

E

F

G

H

J

K

L

M

A

B

SE

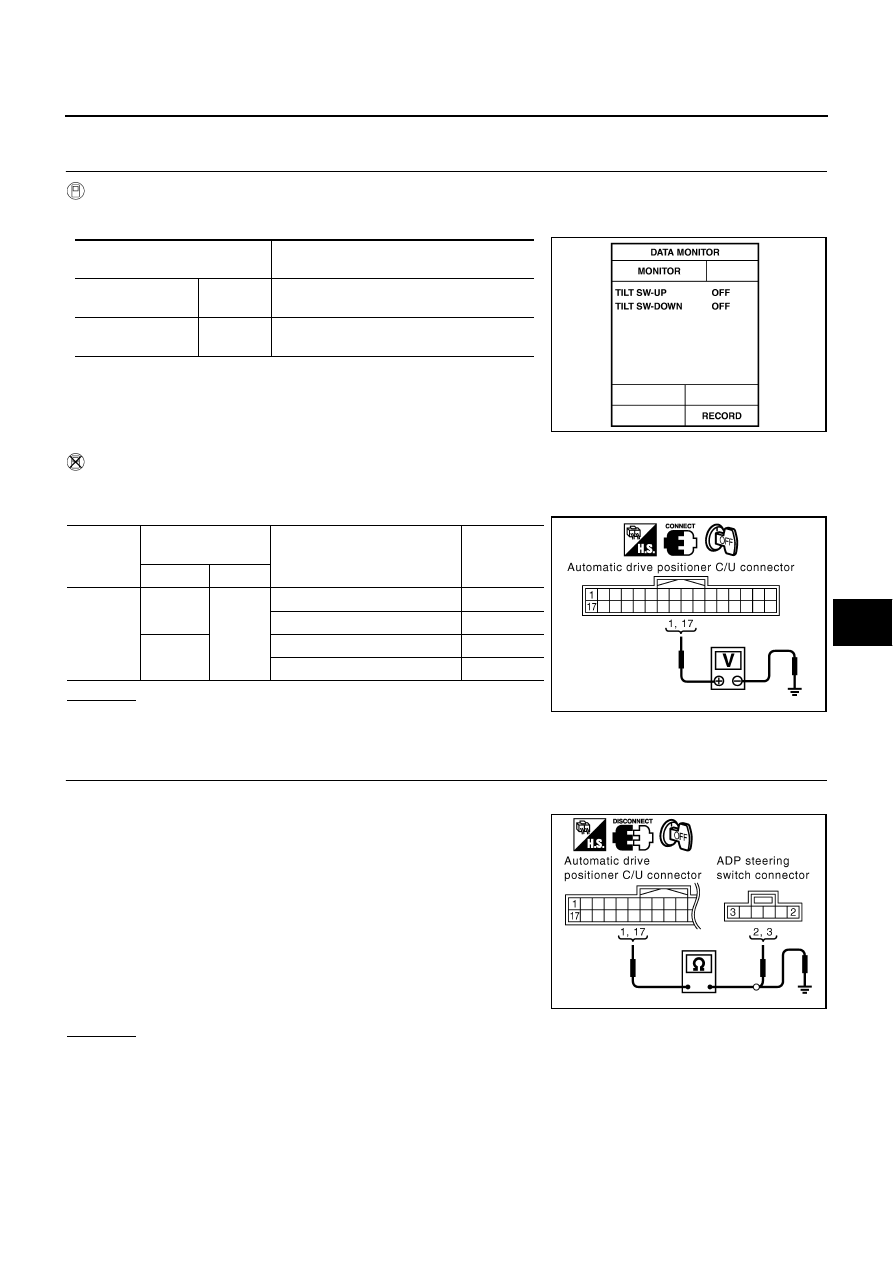

Check Tilt Switch Circuit

NIS001I8

1.

CHECK FUNCTION

 With CONSULT-II

With “TILT SW-UP,TILT SW-DOWN” on the DATA MONITOR, operate the ADP steering switch to check ON/
OFF operation.

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Tilt switch operate, check voltage between automatic drive positioner control unit connector and ground.

OK or NG

OK

>> Tilt switch circuit is OK.

NG

>> GO TO 2.

2.

CHECK TILT SWITCH CIRCUIT HARNESS CONTINUITY

1.

Disconnect automatic drive positioner control unit connector and ADP steering switch connector.

2.

Check continuity between automatic drive positioner control unit
connector M96 terminals 1, 17 and ADP steering switch connec-
tor M100 terminals 2, 3.

3.

Check continuity between automatic drive positioner control unit
connector M96 terminals 1, 17 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between automatic drive positioner control unit and ADP steering

switch.

Monitor item

 [OPERATION or UNIT]

Contents

TILT SW-UP

“ON/OFF”

 (ON/OFF) status judged from the tilt switch
(UP) signal is displayed.

TILT SW-DOWN

“ON/OFF”

(ON/OFF) status judged from the tilt switch
(DOWN) signal is displayed.

PIIB3410E

Connector

Terminals

 (Wire color)

Tilt switch condition

Voltage (V)

(Approx.)

(+)

(–)

M96

1 (Y/G)

Ground

UP

0

Other than above

5

17 (LG/B)

DOWN

0

Other than above

5

PIIA5074E

1 (Y/G) – 2 (Y/G)

: Continuity should exist.

17 (LG/B) – 3 (LG/B)

: Continuity should exist.

1 (Y/G) – Ground

: Continuity should not exist.

17 (LG/B) – Ground

: Continuity should not exist.

PIIA5072E

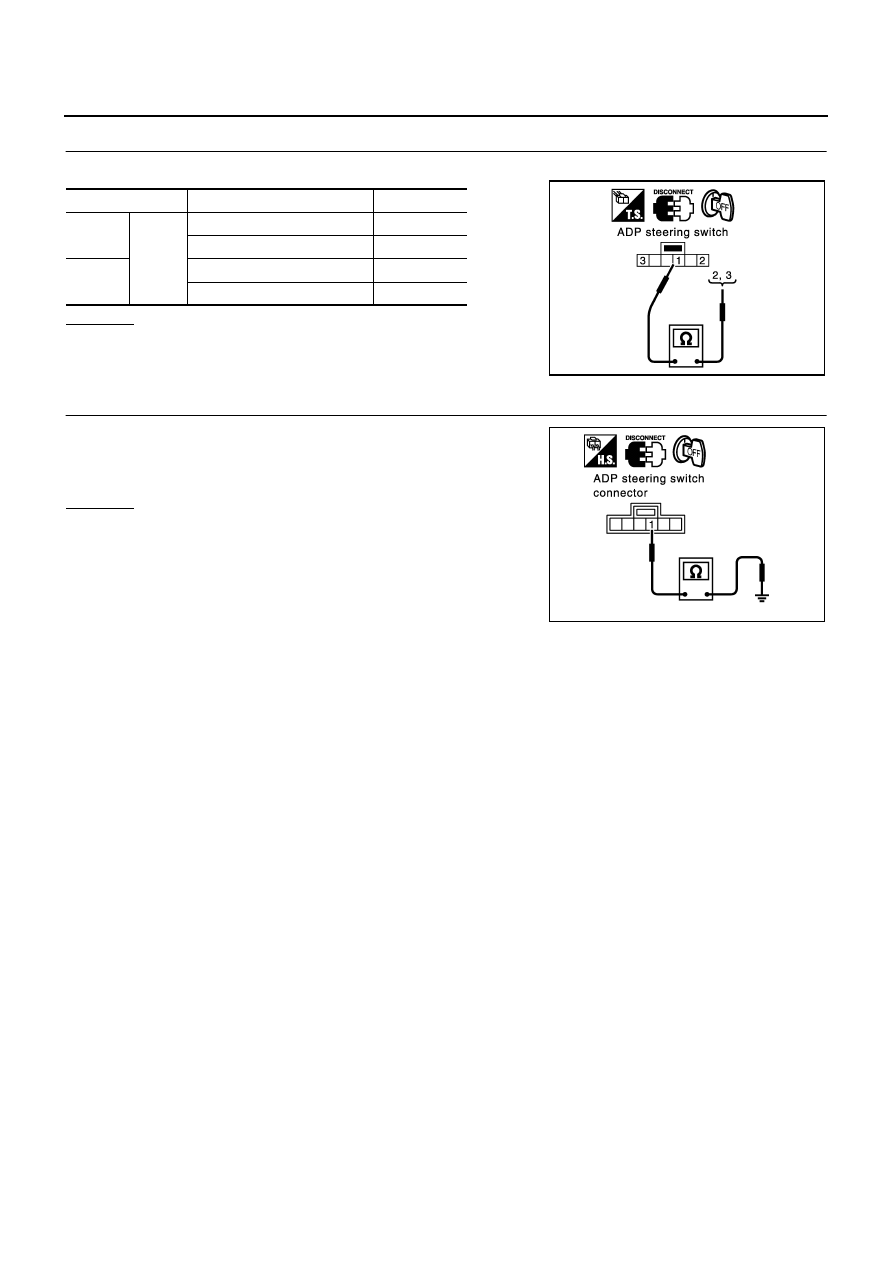

SE-68

AUTOMATIC DRIVE POSITIONER

3.

CHECK ADP TILT STEERING SWITCH

Check continuity between ADP steering switch as follows.

OK or NG

OK

>> GO TO 6.

NG

>> Replace ADP steering switch.

4.

CHECK ADP STEERING SWITCH GROUND CIRCUIT

Check continuity between ADP steering switch connector M100 ter-
minal 1 and ground.

OK or NG

OK

>> Check the condition of the harness and connector.

NG

>> Repair or replace harness between ADP steering switch

and ground.

Terminal

ADP steering switch condition

Continuity

2

1

UP

Yes

Other than above

No

3

DOWN

Yes

Other than above

No

PIIA4482E

1 (B) – Ground

: Continuity should exist.

PIIA3310E

AUTOMATIC DRIVE POSITIONER

SE-69

C

D

E

F

G

H

J

K

L

M

A

B

SE

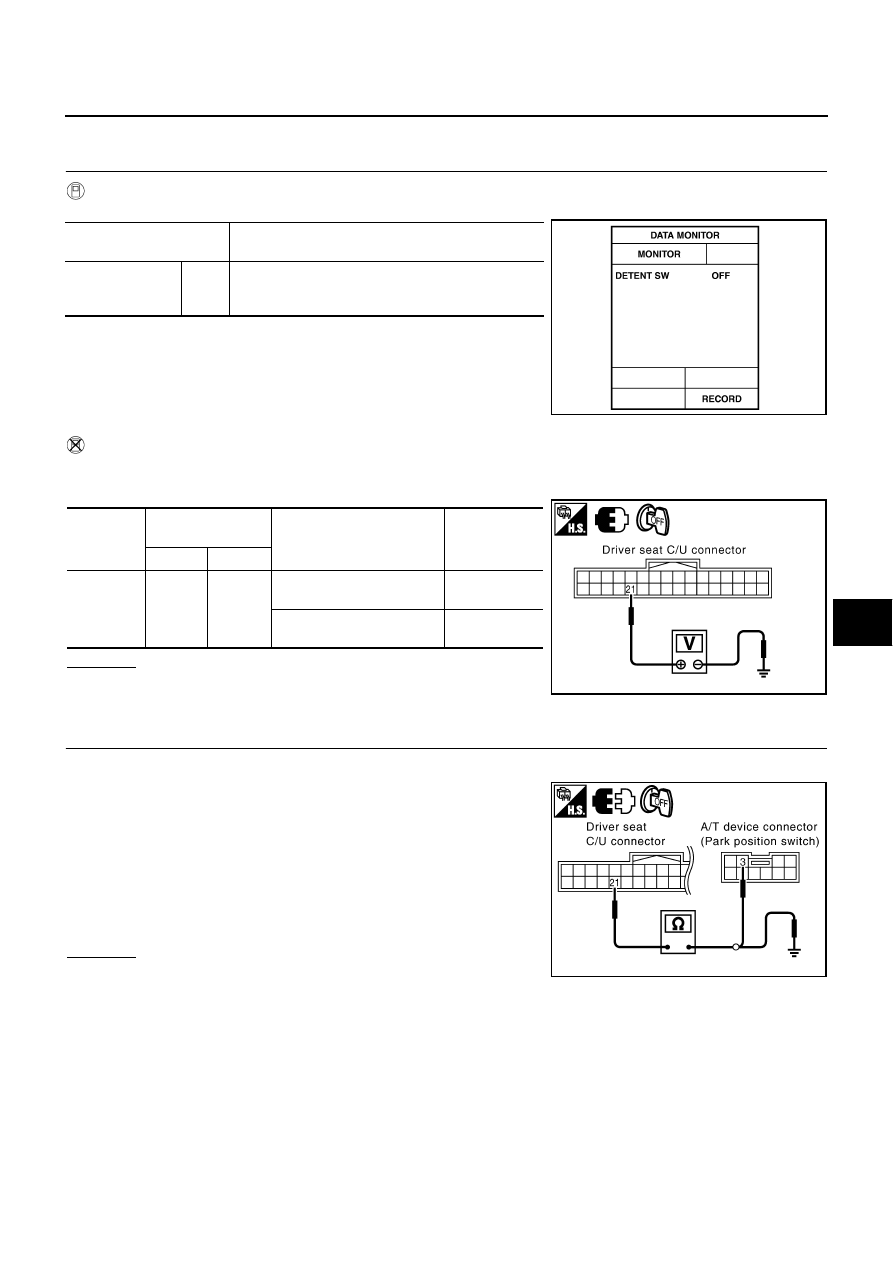

Check P Range Switch Circuit (A/T Models)

NIS001I9

1.

CHECK FUNCTION

 With CONSULT-II

Make sure when the A/T selector lever is in P position, “P POSI SW” on the DATA MONITOR becomes ON.

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Check voltage between driver seat control unit connector and ground.

OK or NG

OK

>> A/T device (park position switch) circuit is OK.

NG

>> GO TO 2.

2.

CHECK PARK POSITION SWITCH POWER SUPPLY CIRCUIT HARNESS

1.

Disconnect driver seat control unit connector and A/T device (park position switch) connector.

2.

Check continuity between driver seat control unit connector
B352 terminal 21 and A/T device (park position switch) connec-
tor M47 terminal 3.

3.

Check continuity between driver seat control unit connector
B352 terminal 21 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between driver seat control

unit and A/T device (park position switch).

Monitor item

 [OPERATION or UNIT]

Contents

DETENT SW

“ON/

OFF”

The selector lever position “P position (ON)/other than
P position (OFF)” judged from the detente switch sig-
nal is displayed.

PIIB2072E

Connector

Terminals

(Wire color)

Condition

Voltage (V)

(Approx.)

(+)

(–)

B352

21 (L/Y)

Ground

Selector lever sifted to P
position.

0

Selector lever other than P
position.

5

PIIB7366E

21 (L/Y) – 3 (PU/R)

: Continuity should exist.

21 (L/Y) – Ground

: Continuity should not exist.

PIIB7367E
