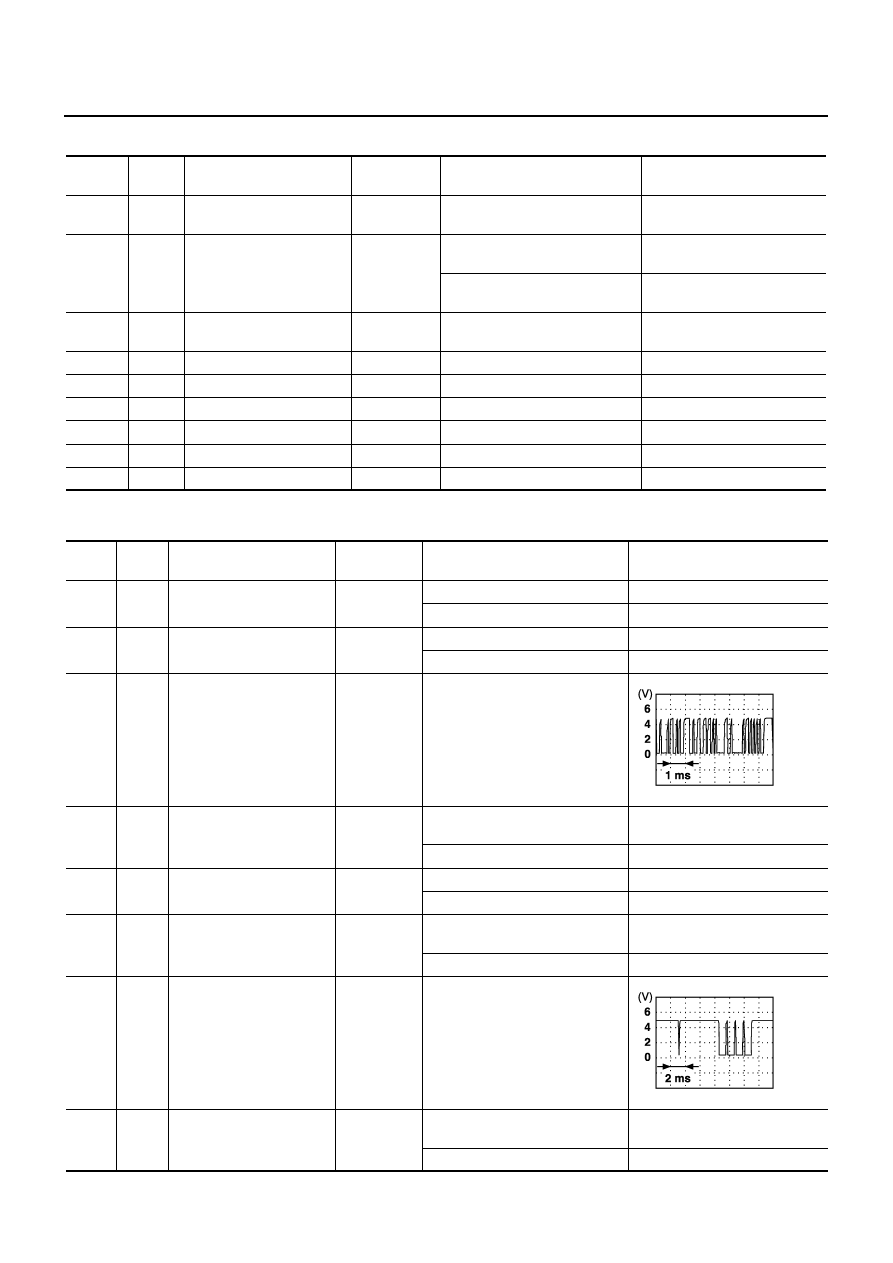

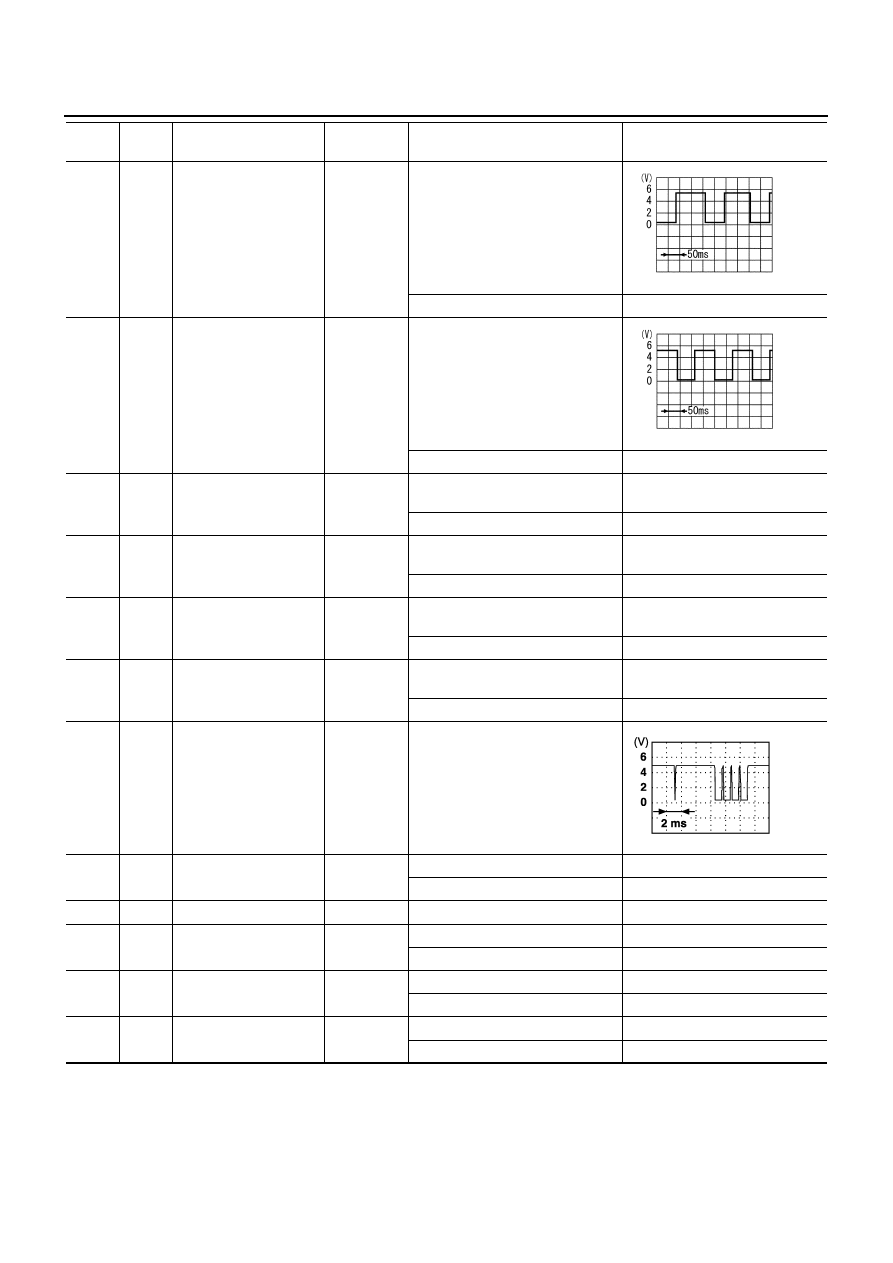

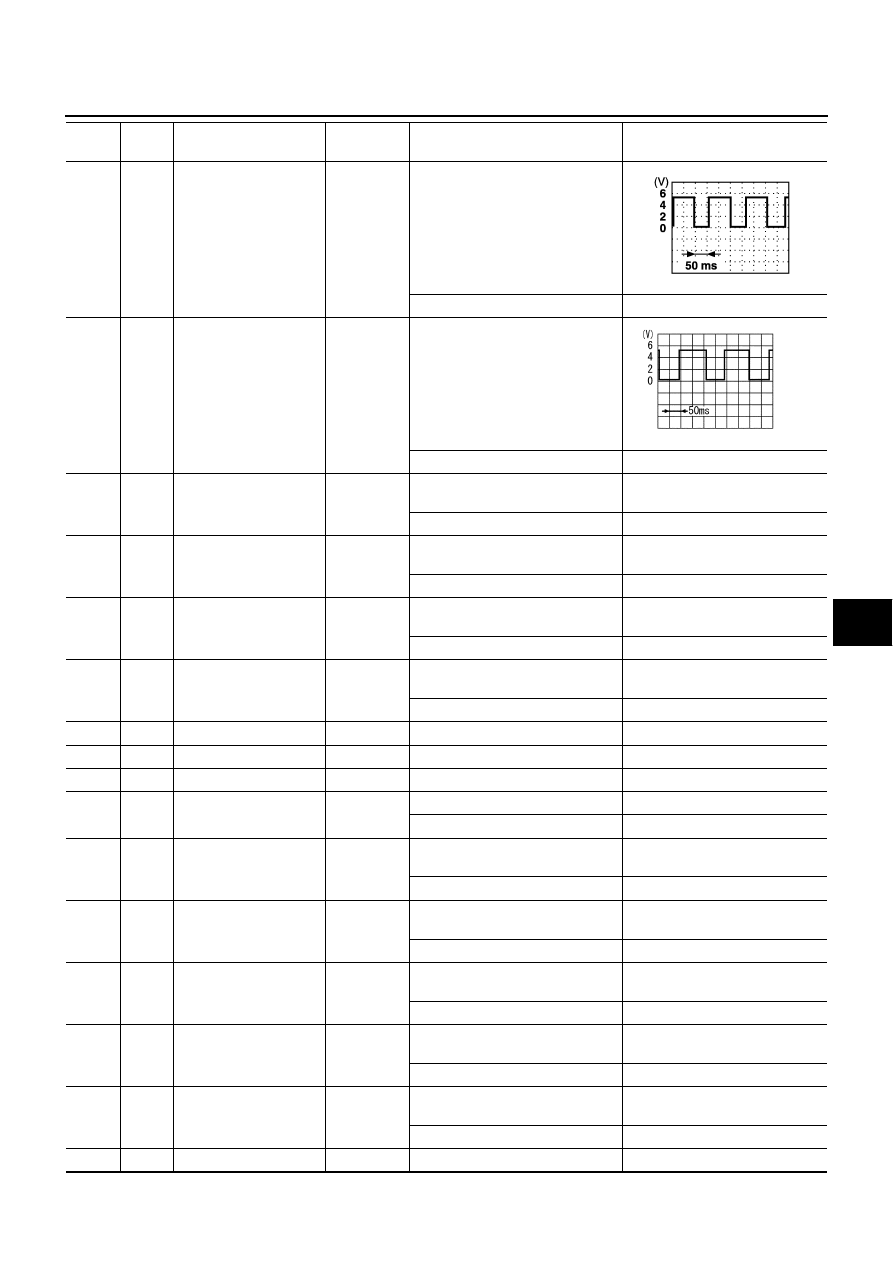

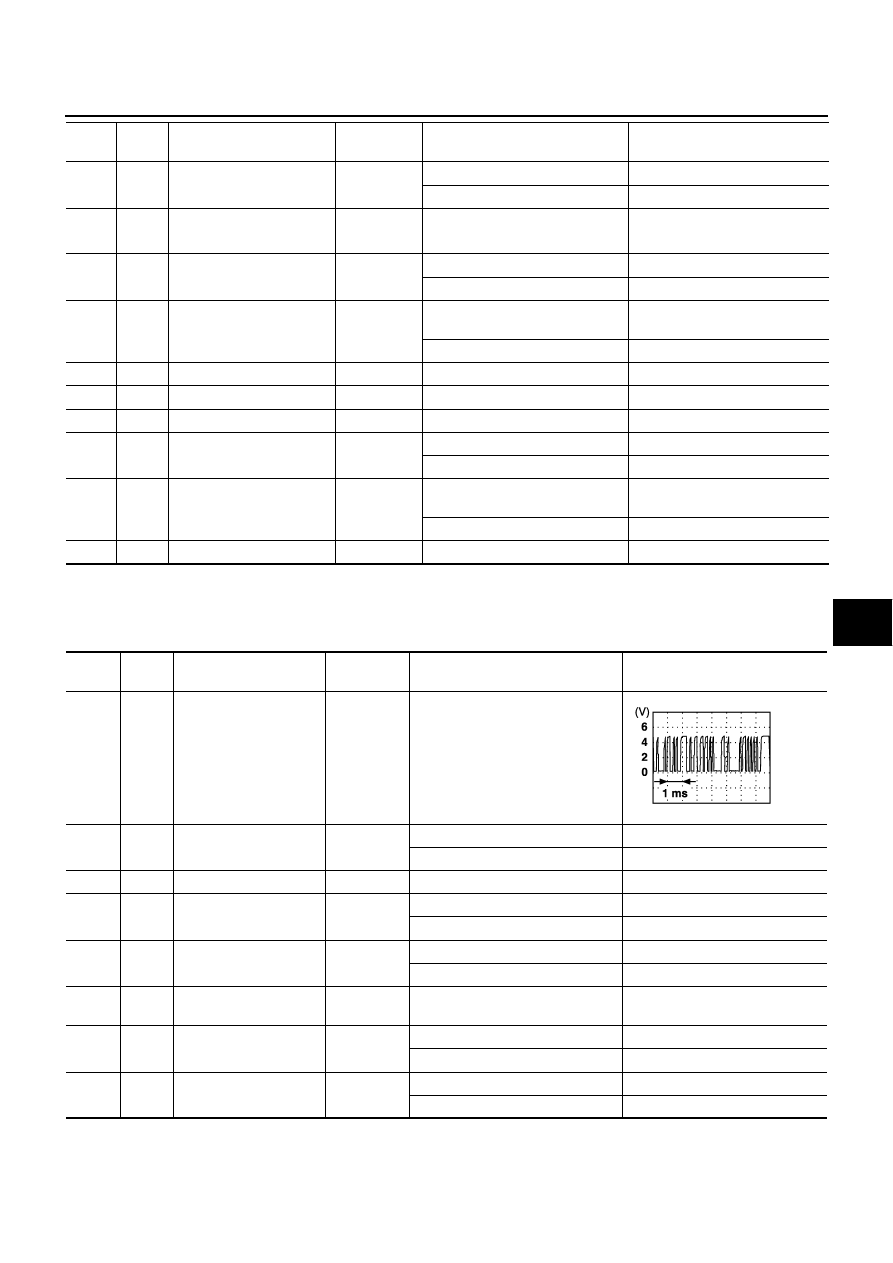

SE-30 AUTOMATIC DRIVE POSITIONER Terminals and Reference Values for BCM NIS001HF Terminals and Reference Values for Automatic Drive Positioner Control Unit NIS001HG Terminal Wire color Item Signal Input/Output Condition Voltage (V) (Approx.) 11 LG Ignition switch (ACC) Input Ignition switch Battery voltage 37 B/P Key switch signal Input Key switch ON (key is inserted in Battery voltage Key switch OFF (key is removed 0 38 W/L Ignition switch (ON) Input Ignition switch Battery voltage 39 L CAN-H Input/Output — — 40 P CAN-L Input/Output — — 42 GY Power source (Fuse) Input — Battery voltage 52 B Ground — — 0 55 W/R Power supply (Fusible link) Input — Battery voltage 62 Y Door switch (driver side) Input ON (Open) → OFF (Closed) 0 → Battery voltage Termi- nal Wire color Item Signal Input/Output Condition Voltage (V) (Approx.) 1 Y/G Tilt switch UPWARD signal Input Tilt switch turned to upward 0 Other than above 5 7 OR/L Tilt sensor signal Input Tilt switch operated (up ~ down) 2 ~ 4 Other than above 0 10 R/L UART LINE (TX) Output Memory switch 1 or 2 operated 11 P/L Telescopic switch Input Telescopic switch turned to 0 Other than above 5 17 LG/B Tilt switch DOWNWARD Input Tilt switch turned to downward 0 Other than above 5 23 R/Y Telescopic sensor signal Input Telescopic switch operated 2 ~ 4 Other than above 0 26 R/G UART LINE (RX) Input Memory switch 1 or 2 operated 27 G/W Telescopic switch Input Telescopic switch turned to back- 0 Other than above 5 PIIA4813E PIIA4814E |
