Infiniti G35 (V35). Manual - part 690





RF-16

SUNROOF

Work Flow

NIS000G2

1.

Check the symptom and customer's requests.

2.

Understand the outline of system. Refer to

RF-10, "System Description"

 .

3.

According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to

RF-17,

"Trouble Diagnosis Chart by Symptom"

 .

4.

Does sunroof system operate normally? If Yes, GO TO 5. If No, GO TO 3.

5.

INSPECTION END.

CONSULT-II Function (BCM)

NIS000G3

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II START PROCEDUCE (RETAINED PWR)

Refer to

GI-37, "CONSULT-II Start Procedure"

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

BCM diagnostic test item

Check item diagnostic test mode

Content

RETAINED PWR

Work support

Changes setting of each function.

Data monitor

Displays the input data of BCM in real time.

Active test

Gives a drive signal to a load to check the operation.

Monitored item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

DOOR SW-DR

Indicates [ON/OFF] condition of driver side door switch.

DDOR SW-AS

Indicates [ON/OFF] condition of passenger side door switch.

Test item

Description

RETAINED PWR

This test is able to supply RAP signal (power) from BCM to power window system,
power sunroof system. Those systems can be operated when turning on “RETAINED
PWR” on CONSULT-II screen even if the ignition switch is turned OFF.

NOTE:
During this test, CONSULT-II can be operated with ignition switch in OFF position.
“RETAINED PWR” should be turned ON or OFF on CONSULT-II screen when ignition
switch is ON. Then turn ignition switch OFF to check retained power operation. CON-
SULT-II might be stuck if “RETAINED PWR” is turned  to ON or OFF on CONSULT-II
screen when ignition switch is OFF.

Work item

Description

RETAINED PWR SET

RAP signal’s power supply period can be changed by mode setting. Selects RAP sig-
nal’s power supply period between two steps.

MODE 1 (45 sec.) / MODE 2 (OFF) / MODE 3 (2 min.)

SUNROOF

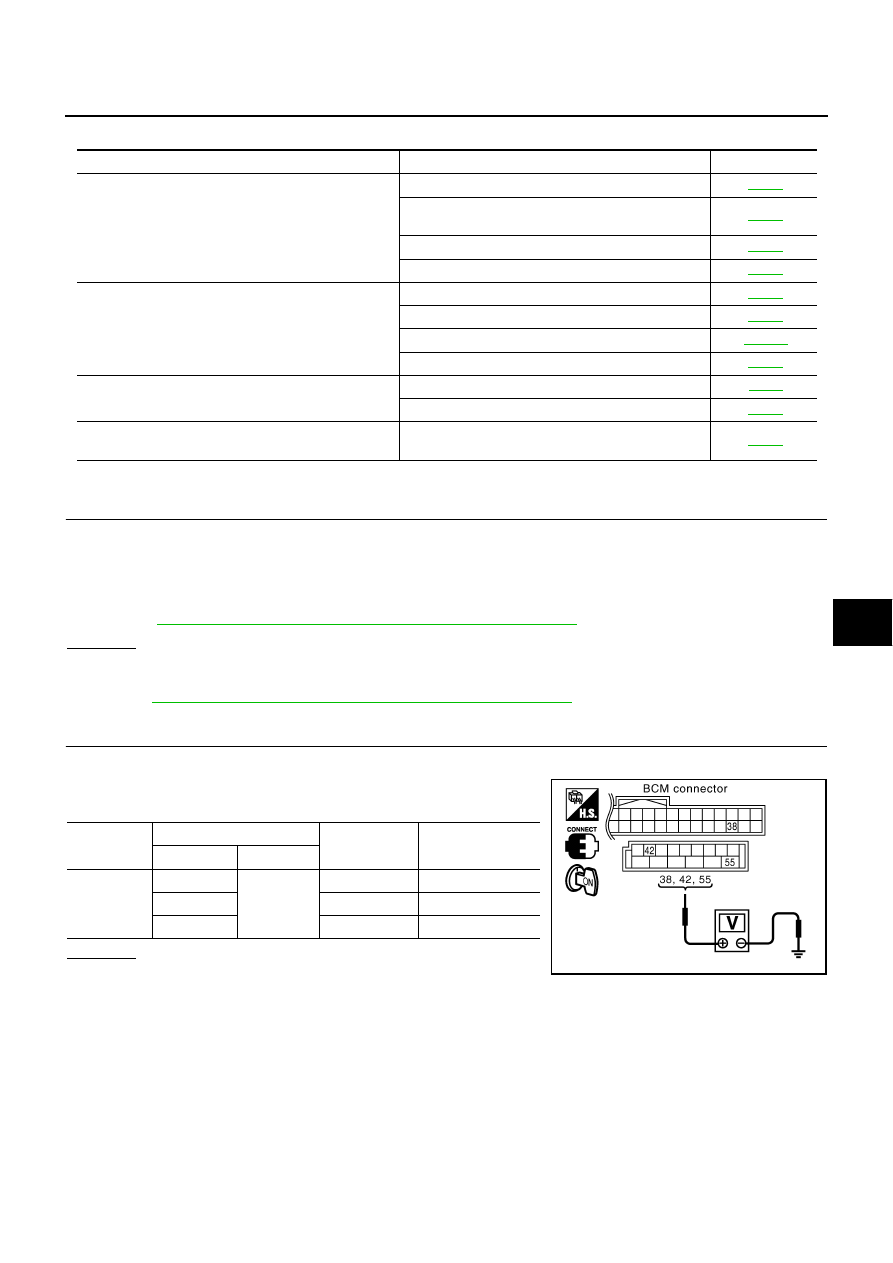

RF-17

C

D

E

F

G

H

J

K

L

M

A

B

RF

Trouble Diagnosis Chart by Symptom

NIS000G4

Check BCM Power Supply and Ground Circuit

NIS000G5

1.

CHECK FUSE

Check 10 A fuse [No.1, located in fuse block (J/B)]

Check 10 A fuse [No.18, located in fuse block (J/B)]

Check 50 A fusible link (letter F  located in the fuse and fusible link box).

NOTE:
Refer to

RF-10, "Component Parts and Harness Connector Location"

 .

OK or NG

OK

>> GO TO 2

NG

>> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to

RF-10, "Component Parts and Harness Connector Location"

 .

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between BCM connector M1, M2 terminal 38, 42,
55 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check BCM power supply circuit for open or short.

Symptom

Diagnostic procedure and repair order

Refer to page

Sunroof does not operate.

1. Check BCM power supply and ground circuit

RF-17

2. Check sunroof motor assembly power supply and
ground circuit

RF-18

3. Check sunroof switch system

RF-20

4. Replace sunroof motor assembly

RF-29

Retained power operation does not operate properly.

1. Check the retained power operation mode setting

RF-16

2. Check Door switch.

RF-21

3. Check BCM.

BCS-15

4. Replace sunroof motor assembly

RF-29

Motor does not stop at the sunroof fully -open or fully-
closed position.

1. Check initialization procedure

RF-11

2. Replace sunroof motor assembly

RF-29

Sunroof does not operate the interruption detection
function.

Replace sunroof motor assembly

RF-29

Connector

Terminals (Wire color)

Ignition switch

Voltage (V)

(+)

(-)

M1
M2

38 (W/L)

Ground

ON

Battery voltage

42 (GY)

OFF

Battery voltage

 55 (W/R)

OFF

Battery voltage

PIIA6160E

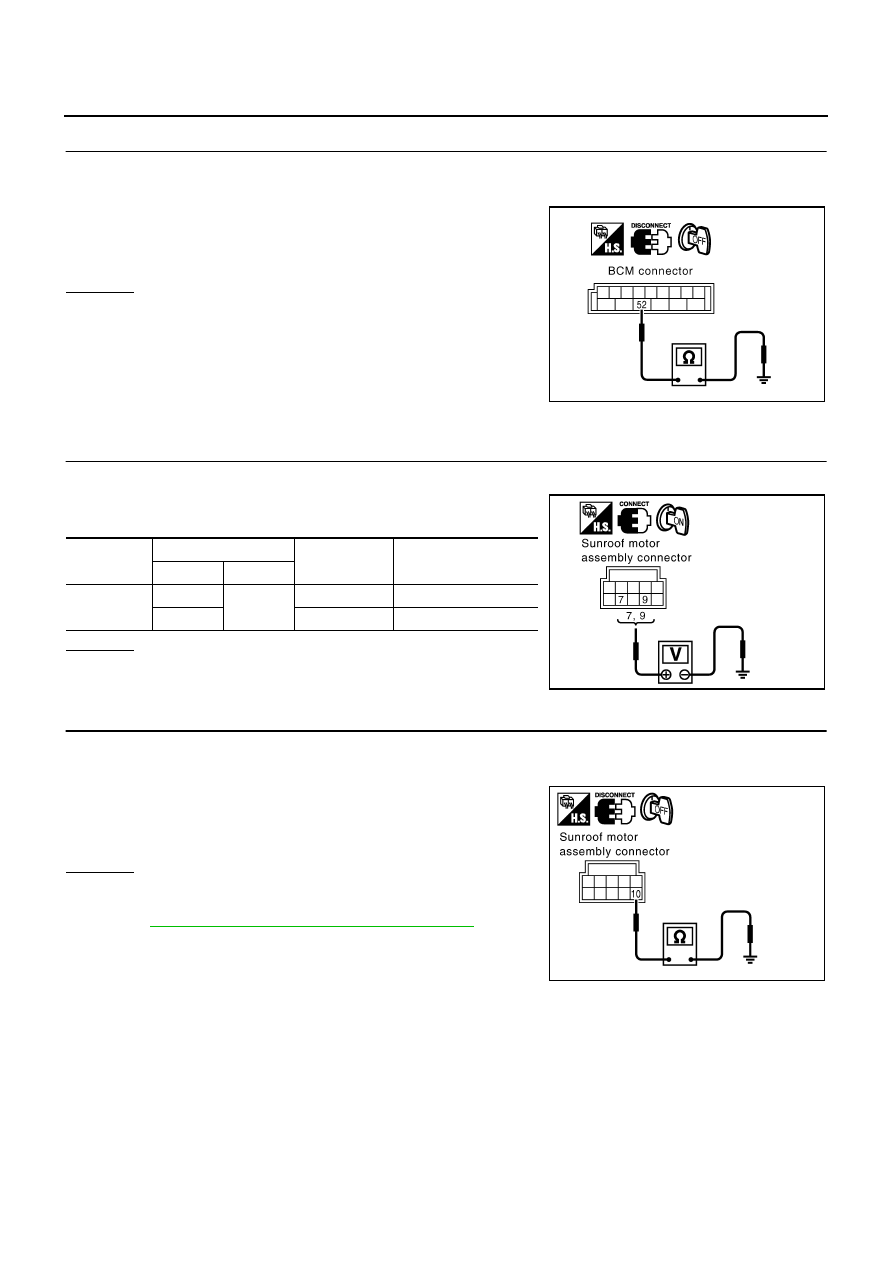

RF-18

SUNROOF

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between BCM connector M2 terminal 52 and
ground.

OK or NG

OK

>> Power supply and ground circuit is OK.

NG

>> Check BCM ground circuit for open or short.

Check Sunroof Motor Assembly Power Supply and Ground Circuit

NIS000G6

1.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between sunroof motor assembly connector R12
terminal 7, 9 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect sunroof motor assembly connector.

3.

Check continuity between sunroof motor assembly connector
R12 terminal 10 and ground.

OK or NG

OK

>> Sunroof motor assembly power supply and ground cir-

cuit are OK. Further inspection is necessary. Refer to

RF-17, "Trouble Diagnosis Chart by Symptom"

 .

NG

>> Repair or replace harness.

52 (B) – Ground

: Continuity should exist.

PIIA9131E

Connector

Terminals (Wire color)

Ignition switch

Voltage (V)

(+)

(-)

R12

7 (W)

Ground

OFF

Battery voltage

9 (V/B)

ON

Battery voltage

PIIA9482E

10 (B) – Ground

: Continuity should exist.

PIIA9483E

SUNROOF

RF-19

C

D

E

F

G

H

J

K

L

M

A

B

RF

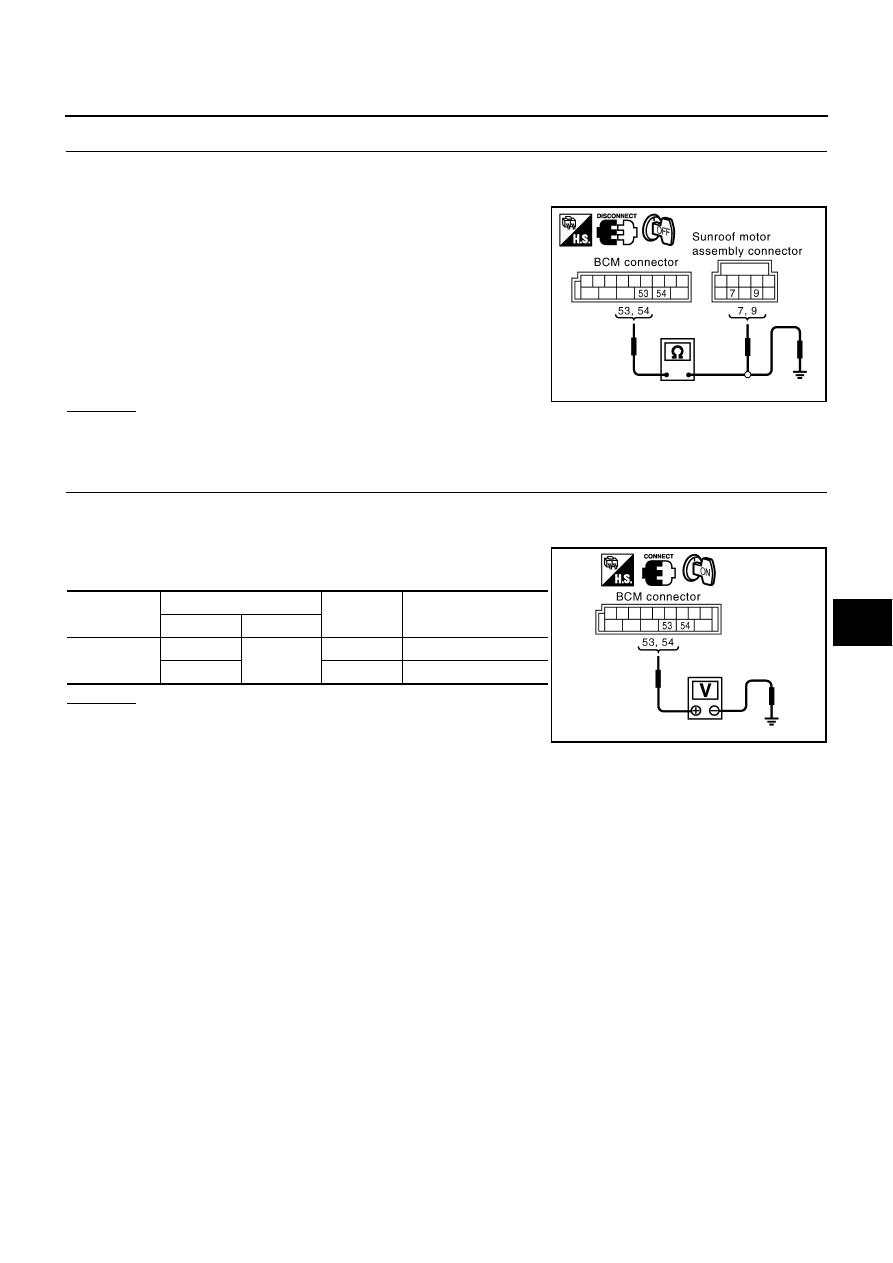

3.

CHECK SUNROOF MOTOR ASSEMBLY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM and sunroof motor assembly connector.

3.

Check continuity between BCM connector M2 terminal 53, 54
and sunroof motor assembly connector R12 terminal 7, 9.

4.

Check continuity between BCM connector M2 terminal 53, 54
and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK BCM OUTPUT SIGNAL

1.

Connect BCM connector.

2.

Turn ignition switch ON.

3.

Check voltage between BCM connector M2 terminal 53, 54 and
ground.

OK or NG

OK

>> Check condition of the harness and the connector.

NG

>> Replace BCM.

53 (Y/B) – 9 (Y/B)

: Continuity should exist.

54 (W) – 7 (W)

: Continuity should exist.

53 (Y/B) – Ground

: Continuity should not exist.

54 (W) – Ground

: Continuity should not exist.

PIIA9481E

Connector

Terminals (Wire color)

Ignition

switch

Voltage (V)

(+)

(-)

M2

53 (Y/B)

Ground

OFF

Battery voltage

54 (W)

ON

Battery voltage

PIIA6154E
