WHEEL HUB

Bushing

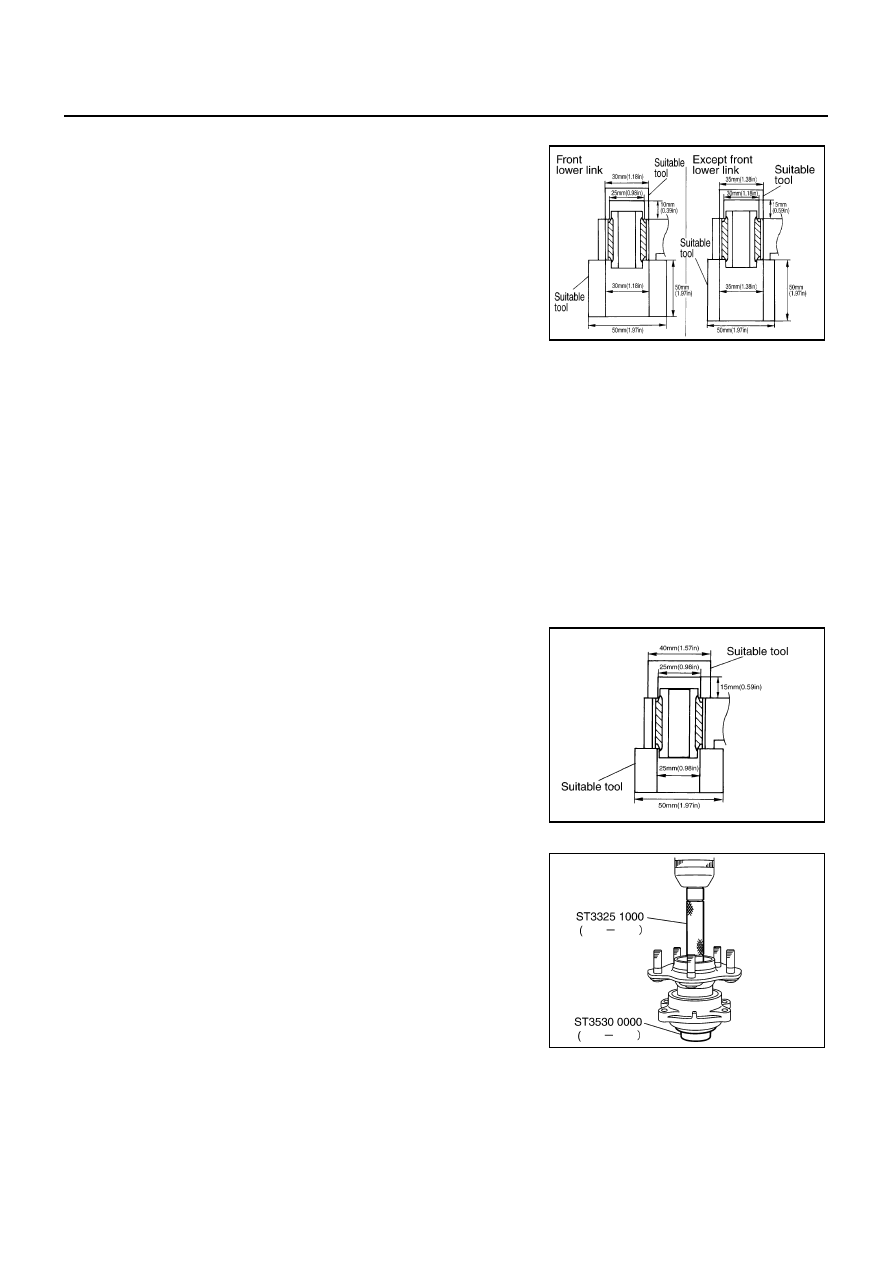

Using a suitable drift, remove each bushing from axle.

INSPECTION AFTER DISASSEMBLY

Check for deformity, cracks and damage of each parts, replace if necessary.

Wheel Hub

Inspect wheel hub for deformation, cracks, and other damage. If any irregular conditions are found, replace
wheel hub.

Axle Housing

Inspect axle for deformation, cracks, and other damage. If any irregular conditions are found, replace axle.

Back Plate

Inspect back plate for deformation, cracks, and other damage. If any irregular conditions are found, replace
back plate.

ASSEMBLY
Bushing

Using a suitable drift to install each bushing onto axle.

Wheel Bearing

1.

Press fit a wheel hub into wheel bearing with a drift (SST).

CAUTION:

●

Press fit a drift (SST) while holding it against wheel bear-
ing inner side inner race.

●

Wheel bearing cannot be reused. Do not attempt to reuse
it.

NOTE:
Final press load guideline 49,033 N (5, 000 kg, 11, 000 lb)

2.

Install back plate and wheel hub and bearing assembly.

3.

Install anchor block onto axle.

SDIA0819E

SDIA0820E

SDIA1120E

WHEEL HUB

RAX-9

C

E

F

G

H

I

J

K

L

M

A

B

RAX

INSPECTION AFTER ASSEMBLY

1.

With wheel bearing pressed into axle, apply 49,033 N (5, 000 kg, 11, 000 lb) to wheel hub and rotate both
clockwise and counterclockwise 10 times to minimize resistance.

2.

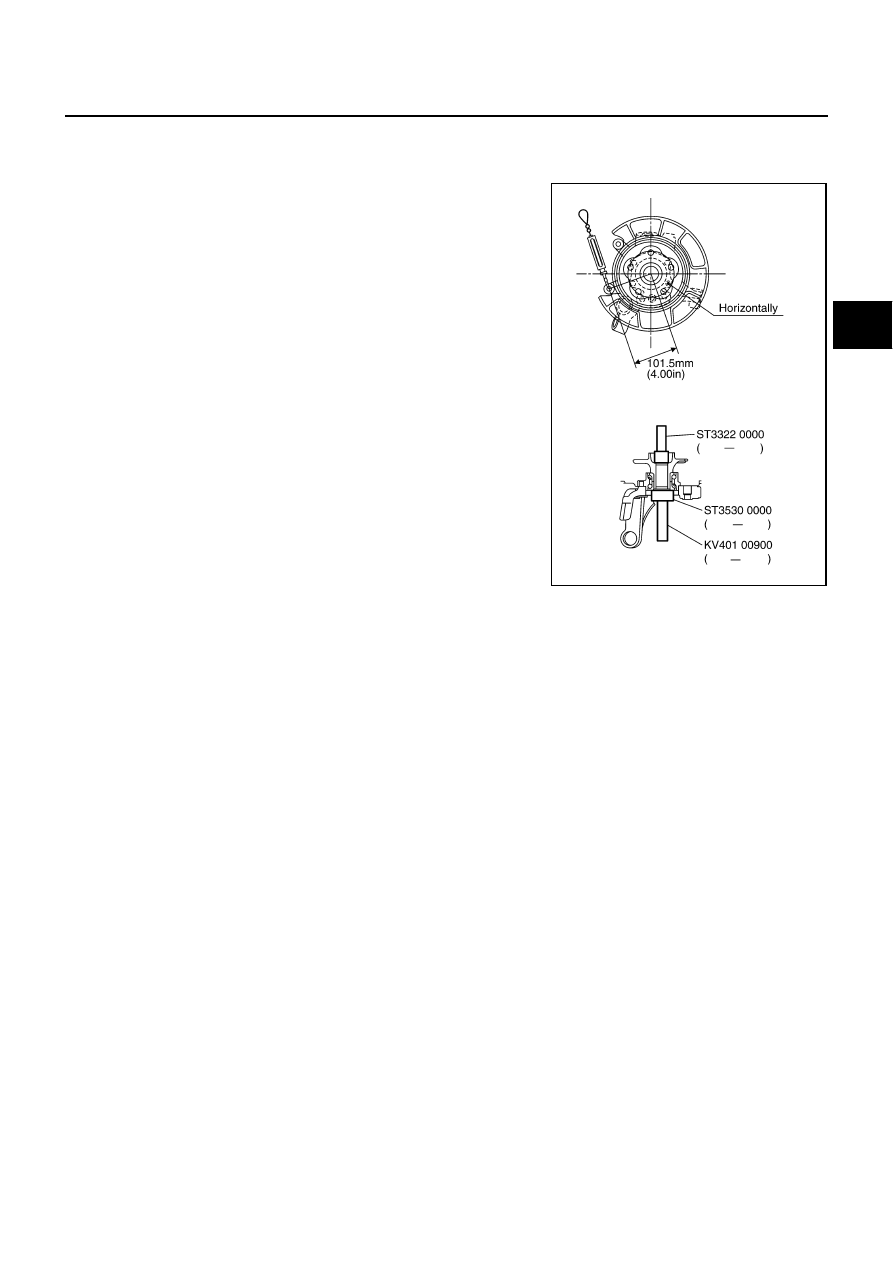

Attach spring balance in the position shown in illustration and
pull at a rate of 10

±

2 rpm to measure rotating torque.

Rotating torque:

      Less than 1.88 N·m (0.19 kg-m, 17 in-lb)

Spring balance reading:

      Less than 18.5 N (1.89 kg, 4.16 lb)

SDIA1131E

RAX-10

REAR DRIVE SHAFT

REAR DRIVE SHAFT

PFP:39600

Removal and Installation

NDS00026

COMPONENTS

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Remove cotter pin. then loosen hub lock nut with power tool.

3.

Remove stabilizer connecting rod mounting bracket mounting bolts and free stabilizer connecting rod.

4.

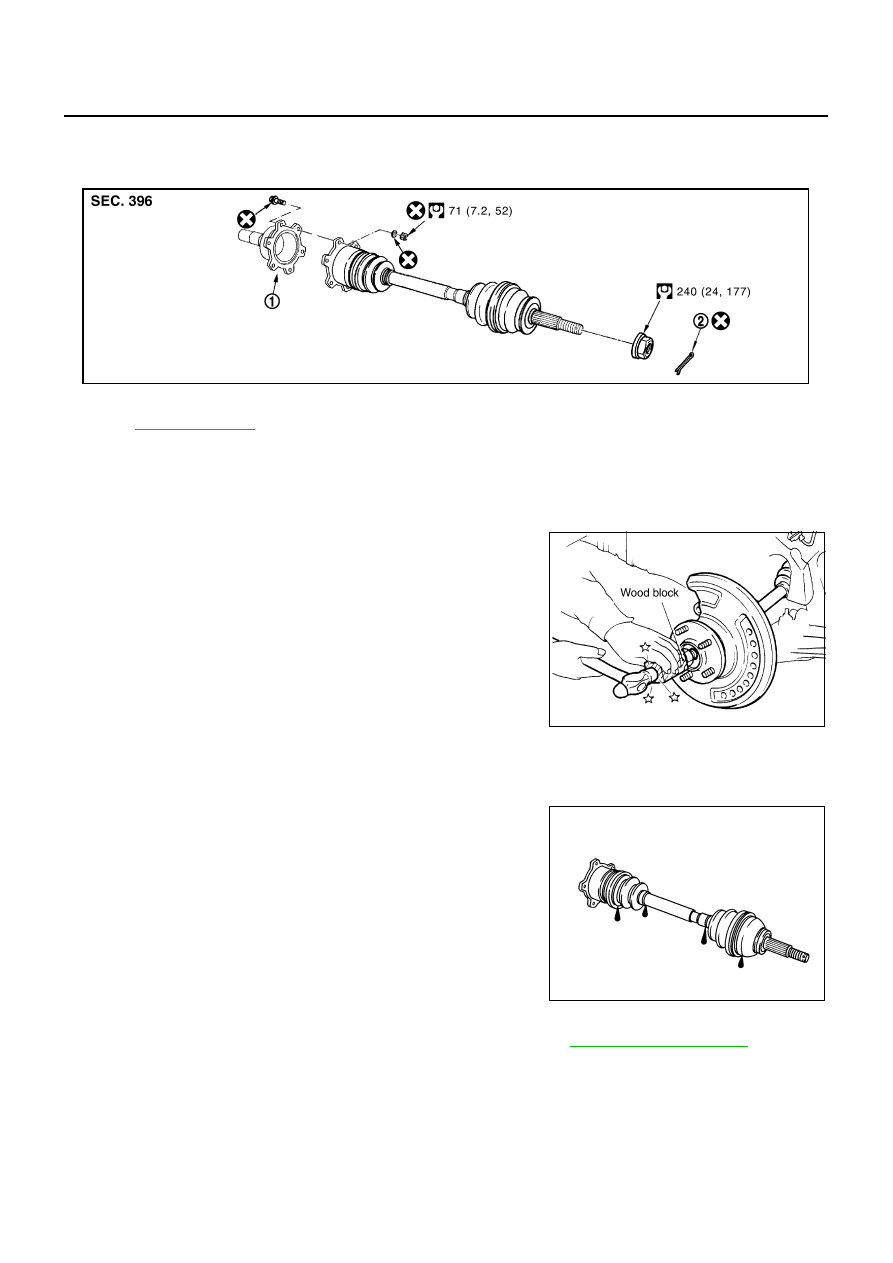

Separate the wheel hub and bearing assembly from drive shaft
by lightly tapping the end with a suitable tool hammer and wood
block, and then remove hub lock nut.

CAUTION:

●

Do not place drive shaft joint at an extreme angle. Also be
careful not to overextend slide joint.

●

Do not allow drive shaft to hang down without support for
counterpart such as joint sub-assembly, and other parts.

NOTE:
Using a puller (suitable tool) if the wheel hub and bearing
assembly and drive shaft cannot be separated even after per-
forming the above procedure.

5.

Remove mounting nuts and bolts between side flange and drive shaft with power tool.

INSPECTION AFTER REMOVAL

●

Move joint up/down, left/right, and in the axial direction. Check
for any rough movement or significant looseness.

●

Check boot for cracks or other damage, and also for grease
leakage.

●

If a trouble is found, disassemble drive shaft, and then replace
with new one.

INSTALLATION

Installation is the reverse order of removal. For tightening torque refer to

RAX-6, "COMPONENTS"

 .

SDIA3578E

1.

Side flange

2.

Cotter pin

Refer to

GI-10, "Components"

 , for the symbols in the figure.

SDIA1821E

RAA0030D

REAR DRIVE SHAFT

RAX-11

C

E

F

G

H

I

J

K

L

M

A

B

RAX

Disassembly and Assembly

NDS00027

COMPONENTS

DISASSEMBLY
Rear Final Drive Side

1.

Press shaft in a vise.

CAUTION:

When retaining drive shaft in a vise, always use copper or aluminum plates between vise and
shaft.

2.

Remove boot bands, and then remove boot from housing.

3.

If plug needs to be removed, move boot to wheel side, and drive it out with a plastic hammer.

4.

Put matching marks on housing and shaft.

CAUTION:

Use paint or similar substance for matching marks. Do not scratch the surface.

5.

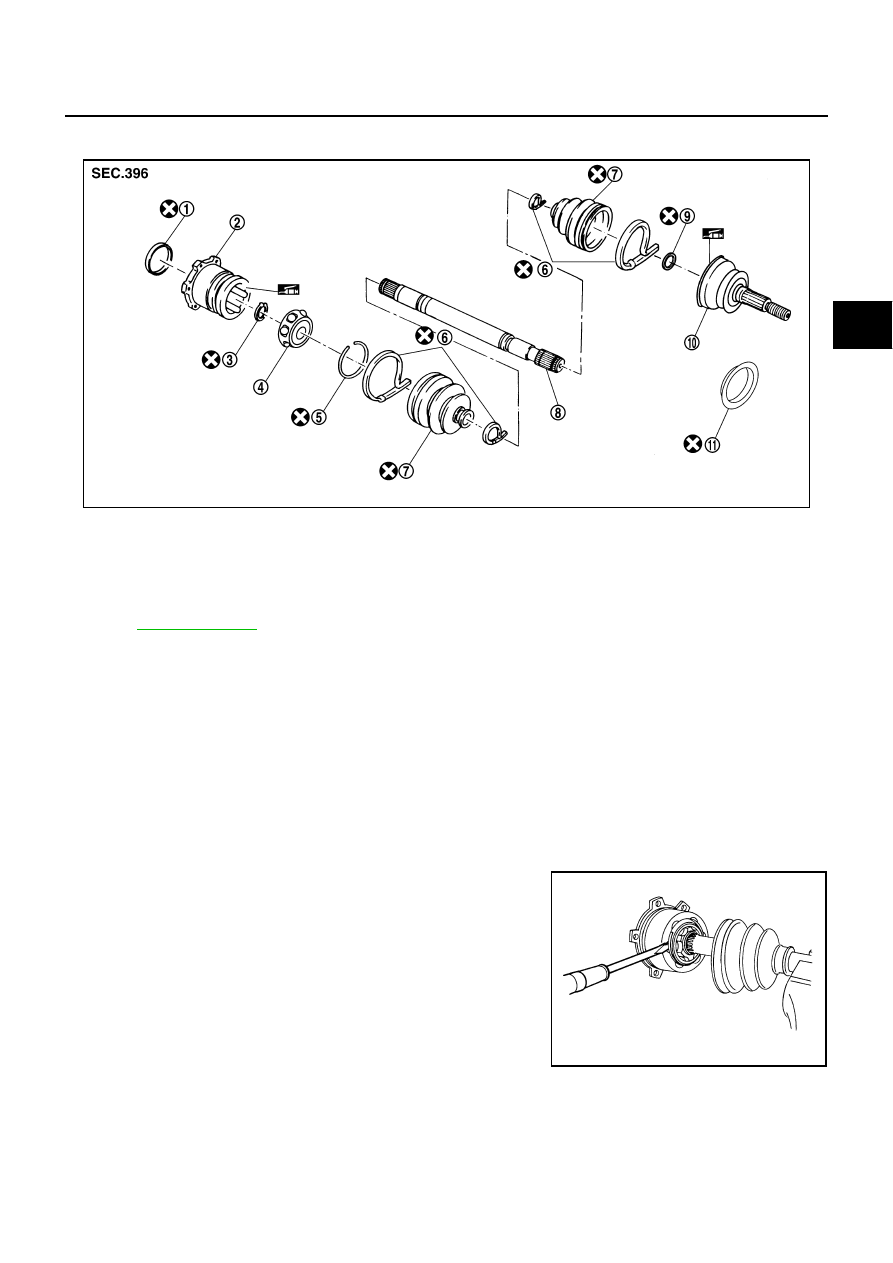

Remove stopper ring with a flat-bladed screwdriver, and pull out
housing.

SDIA3029J

1.

Plug

2.

Housing

3.

Snap ring

4.

Ball cage/Steel ball/Inner race
assembly

5.

Stopper ring

6.

Boot band

7.

Boot

8. Shaft

9.

Circular

clip

10. Joint sub-assembly

11.

Dust shield

Refer to

GI-10, "Components"

 , for the symbols in the figure.

SRA249A
