Infiniti G35 (V35). Manual - part 666





PG-58

HARNESS

Wiring Diagram Codes (Cell Codes)

NKS000QR

Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.

 Code

Section

 Wiring Diagram Name

A/C

ATC

Air Conditioner

AF1B1

EC

Air Fuel Ratio Sensor 1 Bank 1

AF1B2

EC

Air Fuel Ratio Sensor 1 Bank 2

AF1HB1

EC

Air Fuel Ratio Sensor 1 Heater Bank 1

AF1HB2

EC

Air Fuel Ratio Sensor 1 Heater Bank 2

APPS1

EC

Accelerator Pedal Position Sensor

APPS2

EC

Accelerator Pedal Position Sensor

APPS3

EC

Accelerator Pedal Position Sensor

ASC/BS

EC

Automatic Speed Control Device (ASCD) Brake Switch

ASC/SW

EC

Automatic Speed Control Device (ASCD) Steering Switch

ASCBOF

EC

Automatic Speed Control Device (ASCD) Brake Switch

ASCIND

EC

Automatic Speed Control Device (ASCD) Indicator

AT/IND

DI

A/T Indicator Lamp

AUDIO

AV

Audio

AUT/DP

SE

Automatic Drive Positioner

AUTO/L

LT

Automatic Light System

BACK/L

LT

Back-Up Lamp

BRK/SW

EC

Brake Switch

CAN

AT

CAN Communication Line

CAN

EC

CAN Communication Line

CAN

LAN

CAN System

CHARGE

SC

Charging System

CHIME

DI

Warning Chime

CIGAR

WW

Cigarette Lighter

COMBSW

LT

Combination Switch

COMM

AV

Audio Visual Communication Line

COMPAS

DI

Compass and Thermometer

COOL/F

EC

Cooling Fan Control

D/LOCK

BL

Power Door Lock

DEF

GW

Rear Window Defogger

DTRL

LT

Headlamp - With Daytime Light System

ECM/PW

EC

ECM Power Supply for Back-Up

ECTS

EC

Engine Coolant Temperature Sensor

ETC1

EC

Electric Throttle Control Function

ETC2

EC

Electric Throttle Control Motor Relay

ETC3

EC

Electric Throttle Control Motor

EVCB1

EC

Exhaust Valve Timing Control Magnet Retarder (Bank 1)

EVCB2

EC

Exhaust Valve Timing Control Magnet Retarder (Bank 2)

EVCSB1

EC

Exhaust Valve Timing Control Position Sensor (Bank 1)

EVCSB2

EC

Exhaust Valve Timing Control Position Sensor (Bank 2)

F/FOG

LT

Front Fog Lamp

HARNESS

PG-59

C

D

E

F

G

H

I

J

L

M

A

B

PG

F/PUMP

EC

Fuel Pump

FTS

AT

A/T Fluid Temperature Sensor Circuit

FTTS

EC

Fuel Tank Temperature Sensor

FUELB1

EC

Fuel Injection System Function (Bank 1)

FUELB2

EC

Fuel Injection System Function (Bank 2)

H/LAMP

LT

Headlamp

H/PHON

AV

Hands Free Telephone

HORN

WW

Horn

HSEAT

SE

Heated Seat

I/KEY

BL

Intelligent Key System

I/MIRR

GW

Inside Mirror (Auto Anti-Dazzling Mirror)

IATS

EC

Intake Air Temperature Sensor

IGNSYS

EC

Ignition System

ILL

LT

Illumination

INJECT

EC

Injector

IVCB1

EC

Intake Valve Timing Control Solenoid Valve Bank 1

IVCB2

EC

Intake Valve Timing Control Solenoid Valve Bank 2

KEYLES

BL

Remote Keyless Entry System

KS

EC

Knock Sensor

MAFS

EC

Mass Air Flow Sensor

MAIN

AT

Main Power Supply and Ground Circuit

MAIN

EC

Main Power Supply and Ground Circuit

METER

DI

Speedometer, Tachometer, Temp. and Fuel Gauges

MIL/DL

EC

MIL & Data Link Connector

MIRROR

GW

Door Mirror

MMSW

AT

Manual Mode Switch

NATS

BL

Nissan Anti-Theft System

NAVI

AV

Navigation System

NONDTC

AT

Non-Detective Items

O2H2B1

EC

Heated Oxygen Sensor 2 Heater Bank 1

O2H2B2

EC

Heated Oxygen Sensor 2 Heater Bank 2

O2S2B1

EC

Heated Oxygen Sensor 2 Bank 1

O2S2B2

EC

Heated Oxygen Sensor 2 Bank 2

P/SCKT

WW

Power Socket

PGC/V

EC

EVAP Canister Purge Volume Control Solenoid Valve

PHSB1

EC

Camshaft Position Sensor (PHASE) (Bank 1)

PHSB2

EC

Camshaft Position Sensor (PHASE) (Bank 2)

PNP/SW

AT

Park/Neutral Position Switch

PNP/SW

EC

Park/Neutral Position Switch

POS

EC

Crankshaft Position Sensor (CKPS) (POS)

POWER

PG

Power Supply Routing

PRE/SE

EC

EVAP Control System Pressure Sensor

PS/SEN

EC

Power Steering Pressure Sensor

RAS

STC

Rear Active Steer

 Code

Section

 Wiring Diagram Name

PG-60

HARNESS

ROOM/L

LT

Interior Room Lamp

RP/SEN

EC

Refrigerant Pressure Sensor

SEAT

SE

Power Seat

SEN/PW

EC

Sensor Power Supply

SHIFT

AT

A/T Shift Lock System

SROOF

RF

Sunroof

SRS

SRS

Supplemental Restraint System

START

SC

Starting System

STOP/L

LT

Stop Lamp

STSIG

AT

Start Signal Circuit

T/WARN

WT

Low Tire Pressure Warning System

TAIL/L

LT

Parking, License and Tail Lamps

TILTEL

STC

Electric Tilt and Telescopic Steering

TLID

BL

Trunk Lid Opener

TPS1

EC

Throttle Position Sensor (Sensor 1)

TPS2

EC

Throttle Position Sensor (Sensor 2)

TPS3

EC

Throttle Position Sensor

TRNSCV

BL

Homelink Universal Transceiver

TURN

LT

Turn Signal and Hazard Warning Lamp

VDC

BRC

Vehicle Dynamics Control System

VEHSEC

BL

Vehicle Security System

VENT/V

EC

EVAP Canister Vent Control Valve

VSSA/T

AT

Vehicle Speed Sensor A/T (Revolution Sensor)

W/ANT

AV

Audio Antenna

WARN

DI

Warning Lamps

WINDOW

GW

Power Window

WIPER

WW

Front Wiper and Washer

 Code

Section

 Wiring Diagram Name

ELECTRICAL UNITS LOCATION

PG-61

C

D

E

F

G

H

I

J

L

M

A

B

PG

ELECTRICAL UNITS LOCATION

PFP:25230

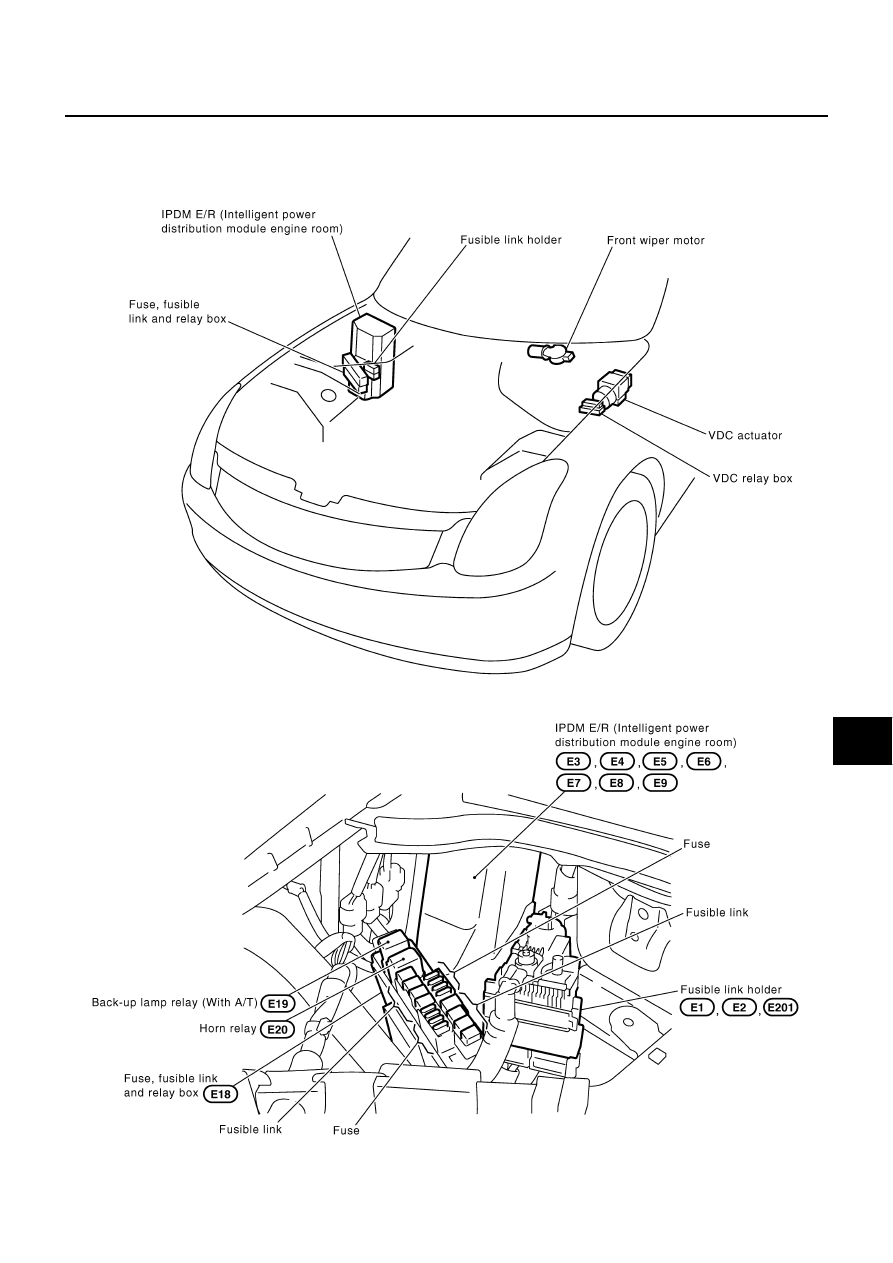

Electrical Units Location

NKS000QS

ENGINE COMPARTMENT

CKIM0581E
