MA-10

RECOMMENDED FLUIDS AND LUBRICANTS

PFP:00000

Fluids and Lubricants

NLS0001D

*1: For further details, see “Engine Oil Recommendation”.
*2: Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and
automatic transmission durability, and may damage the automatic transmission, which is not covered by the INFINITI new
vehicle limited warranty.

*3: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON

III/ MERCON

, or equivalent ATF may also be used.

*4: Available in mainland U.S.A. through your INFINITI dealer.
*5: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0

C (32

F).

Capacity (Approximate)

Recommended Fluids/Lubricants

US measure

Imp measure

Liter

Engine oil
Drain and refill

With oil filter
change

5 qt

4-1/8 qt

4.7

●

Engine oil with API Certification Mark*1

●

Viscosity SAE 5W-30

Without oil fil-
ter change

4-5/8 qt

3-7/8 qt

4.4

Dry engine (Overhaul)

5-3/4 qt

4-3/4 qt

5.4

Cooling sys-
tem

With reservoir
tank

9-1/4 qt

7-5/8 qt

8.7

Genuine NISSAN Long Life Antifreeze /Coolant
or equivalent

Reservoir tank

7/8 qt

3/4 qt

0.8

Manual transmission gear oil

3-1/8 qt

2-1/2 qt

2.9

Genuine NISSAN Manual Transmission fluid
(MTF) HQ Multi 75W-85 or API GL-4, Viscosity
SAE 75W-85 or 75W-90

Automatic transmission fluid

10-7/8 qt

9-1/8 qt

10.3

Genuine NISSAN Matic J ATF *2

Power steering fluid (PSF)

1-1/8 qt

7/8 qt

1.0

Genuine NISSAN PSF or equivalent*3

Brake fluid

—

Genuine NISSAN Super Heavy Duty Brake
Fluid*4 or equivalent DOT 3 (US FMVSS No.
116)

Differential gear oil

3 pt

2-1/2 pt

1.4

API GL-5, Viscosity SAE 80 W-90 *5

Multi-purpose grease

—

NLGI No. 2 (Lithium soap base)

Windshield washer fluid

—

Genuine NISSAN Windshield Washer Concen-
trate Cleaner & Antifreeze or equivalent

Fuel recommendation

—

Refer to

GI-6, "Precautions for Fuel (Unleaded

Premium Gasoline Required)"

RECOMMENDED FLUIDS AND LUBRICANTS

MA-11

Engine Oil Recommendation

NLS0008R

NISSAN recommends the use of an energy conserving oil in order to improve fuel economy.
Select only engine oils that meet the American Petroleum Institute (API) certification and International Lubri-
cant Standardization and Approval Committee (ILSAC) certification and SAE viscosity standard. These oils
have the API certification mark on the front of the container. Oils which do not have the specified quality label
should not be used as they could cause engine damage.

Anti-Freeze Coolant Mixture Ratio

NLS0001F

The engine cooling system is filled at the factory with a high-quality,
year-round, anti-freeze coolant solution. The anti-freeze solution
contains rust and corrosion inhibitors. Therefore, additional cooling
system additives are not necessary.

CAUTION:

When adding or replacing coolant, be sure to use only Genuine
NISSAN Long Life Antifreeze /Coolant or equivalent with the
proper mixture ratio of 50% anti-freeze and 50% demineralized
water/distilled water.
Other types of coolant solutions may damage your cooling sys-
tem.

API certification mark

API service symbol

SAIA1514E

SMA947CA

MA-12

ENGINE MAINTENANCE

PFP:00000

Checking Drive Belts

NLS0001G

WARNING:

Be sure to perform when the engine is stopped.
1.

Inspect belts for cracks, fraying, wear and oil. If necessary, replace.

Inspect drive belt deflection or tension at a point on the belt mid-
way between pulleys.

●

Inspection should be done only when engine is cold, or over
30 minutes after engine is stopped.

●

Measure the belt tension with belt tension gauge (commercial
service tool: BT3373-F or equivalent) at points marked
shown in the figure.

●

When measuring deflection, apply 98 N (10 kg, 22 lb) at the
marked point.

●

Adjust if belt deflection exceeds the limit or if belt tension is
not within specifications.

CAUTION:

●

When checking belt deflection or tension immediately after installation, first adjust it to the speci-
fied value. Then, after turning the crankshaft two turns or more, re-adjust to the specified value to
avoid variation in deflection between pulleys.

●

Tighten idler pulley lock nut by hand and measure the deflection or tension without looseness.

Belt deflection and tension

: If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on the belt.

Tension Adjustment

NLS0001H

CAUTION:

●

When belt is replaced with a new one, adjust it to value for “New belt” to accommodate for insuffi-
cient adaptability with pulley grooves.

●

When deflection or tension of belt being used exceeds “Limit”, adjust it to value for “After adjust-
ment”.

●

When checking belt deflection or tension immediately after installation, first adjust it to the speci-
fied value. Then, after turning crankshaft two turns or more, re-adjust to the specified value to
avoid variation in deflection between pulleys.

●

When installing belt, make sure that it is correctly engaged with pulley groove.

●

Keep oil and water away from belt.

●

Do not twist or bend belt excessively.

KBIA1731J

Deflection adjustment

Unit: mm (in)

Tension adjustment*

Unit: N (kg, lb)

Used belt

New belt

Used belt

New belt

Limit

After adjustment

Limit

After adjustment

Alternator and
power steering
oil pump belt

7 (0.28)

4 - 5

(0.16 - 0.20)

3.5 - 4.5

(0.138 - 0.177)

294 (30, 66)

730 - 818

(74.5 - 83.5,

164 - 184)

838 - 926

(85.5 - 94.5,

188 - 208)

A/C compressor
belt

12 (0.47)

9 - 10

(0.35 - 0.39)

8 - 9

(0.31 - 0.35)

196 (20, 44)

348 - 436

(35.5 - 44.5,

78 - 98)

470 - 559

(48 - 57,

106 - 126)

Applied pushing
force

98 N (10 kg, 22 lb)

—

Portion

Belt tightening method for adjustment

Alternator and power steering oil pump belt

Adjusting bolt on idler pulley

A/C compressor belt

Adjusting bolt on idler pulley

ENGINE MAINTENANCE

MA-13

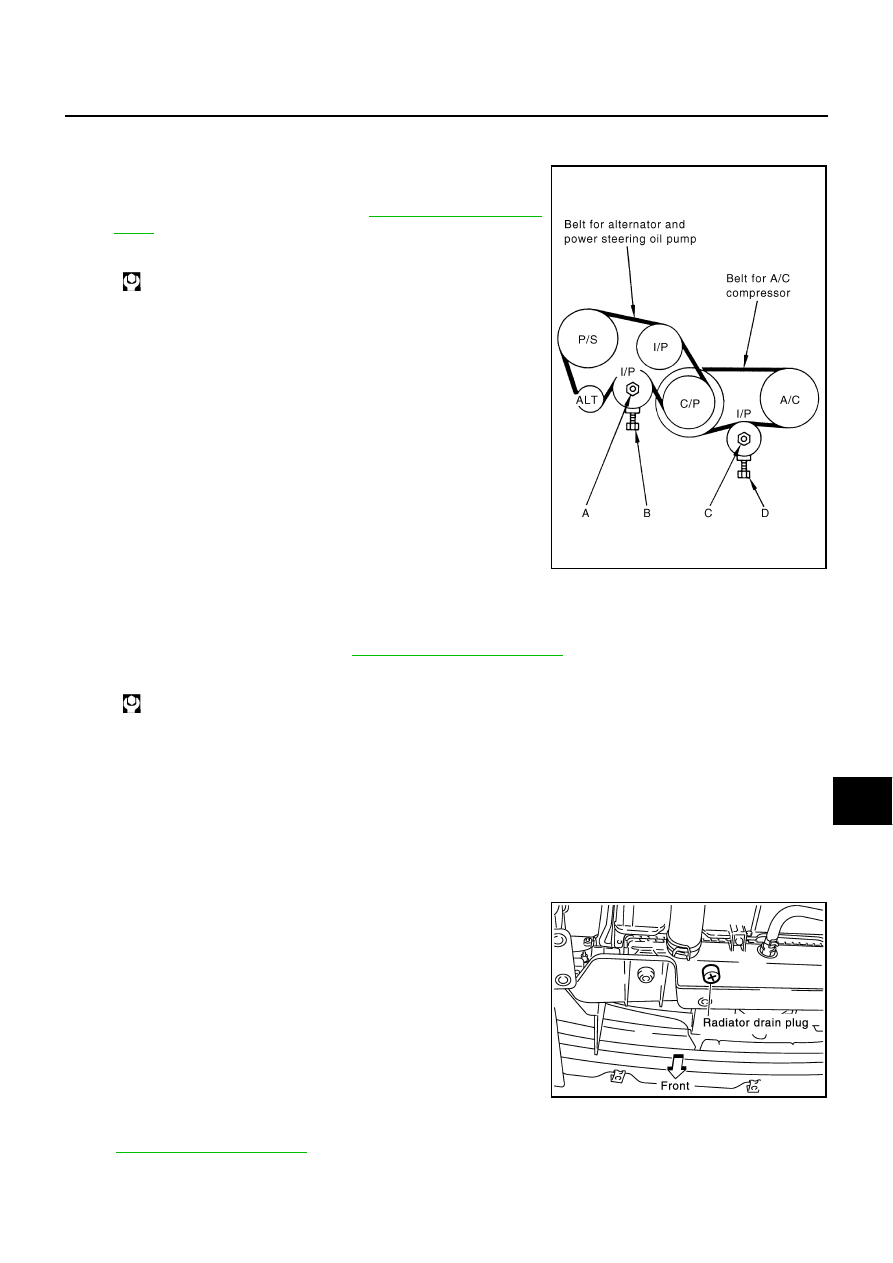

ALTERNATOR AND POWER STEERING OIL PUMP BELT

Remove undercover with power tool.

Loosen idler pulley lock nut (A) and adjust tension by turning
adjusting bolt (B).

●

For specified belt tension, refer to

MA-12, "Checking Drive

Belts"

Tighten nut (A).

A/C COMPRESSOR BELT

Remove undercover with power tool.

Loosen idler pulley lock nut (C) and adjust tension by turning adjusting bolt (D).

●

For specified belt tension, refer to

MA-12, "Checking Drive Belts"

Tighten nut (C).

Changing Engine Coolant

NLS0001I

WARNING:

●

To avoid being scalded, do not change engine coolant when engine is hot.

●

Wrap a thick cloth around radiator cap and carefully remove radiator cap. First, turn cap a quarter
of a turn to release built-up pressure. Then turn radiator cap all the way.

●

Be careful not to allow engine coolant to contact drive belts.

DRAINING ENGINE COOLANT

Remove undercover with power tool.

Open radiator drain plug at the bottom of radiator, and then
remove radiator cap.

When drain all of engine coolant in the system, open drain plugs on engine cylinder block. Refer
to

EM-138, "DISASSEMBLY"

Remove reservoir tank, drain engine coolant and clean tank before installing.

: 34.8 N·m (3.5 kg-m, 26 ft-lb)

PBIC1406E

: 34.8 N·m (3.5 kg-m, 26 ft-lb)

PBIC0893E
