PARKING, LICENSE PLATE AND TAIL LAMPS

Parking, License Plate, Side Marker and Tail Lamps Do Not Turn OFF (After
Approx. 10 Minutes)

NKS002PJ

●

This symptom indicates the malfunction of ignition relay in IPDM E/R. Refer to

PG-17, "Function of

Detecting Ignition Relay Malfunction"

 .

●

Select “BCM” on CONSULT-II. Select “HEADLAMP” on “SELECT TEST ITEM” screen and select “DATA
MONITOR” on “SELECT DIAG MODE” screen. If “LIGHT SW 1ST” is OFF when lighting switch is OFF,
replace IPDM E/R.

Bulb Replacement

NKS002PK

FRONT SIDE MARKER LAMP

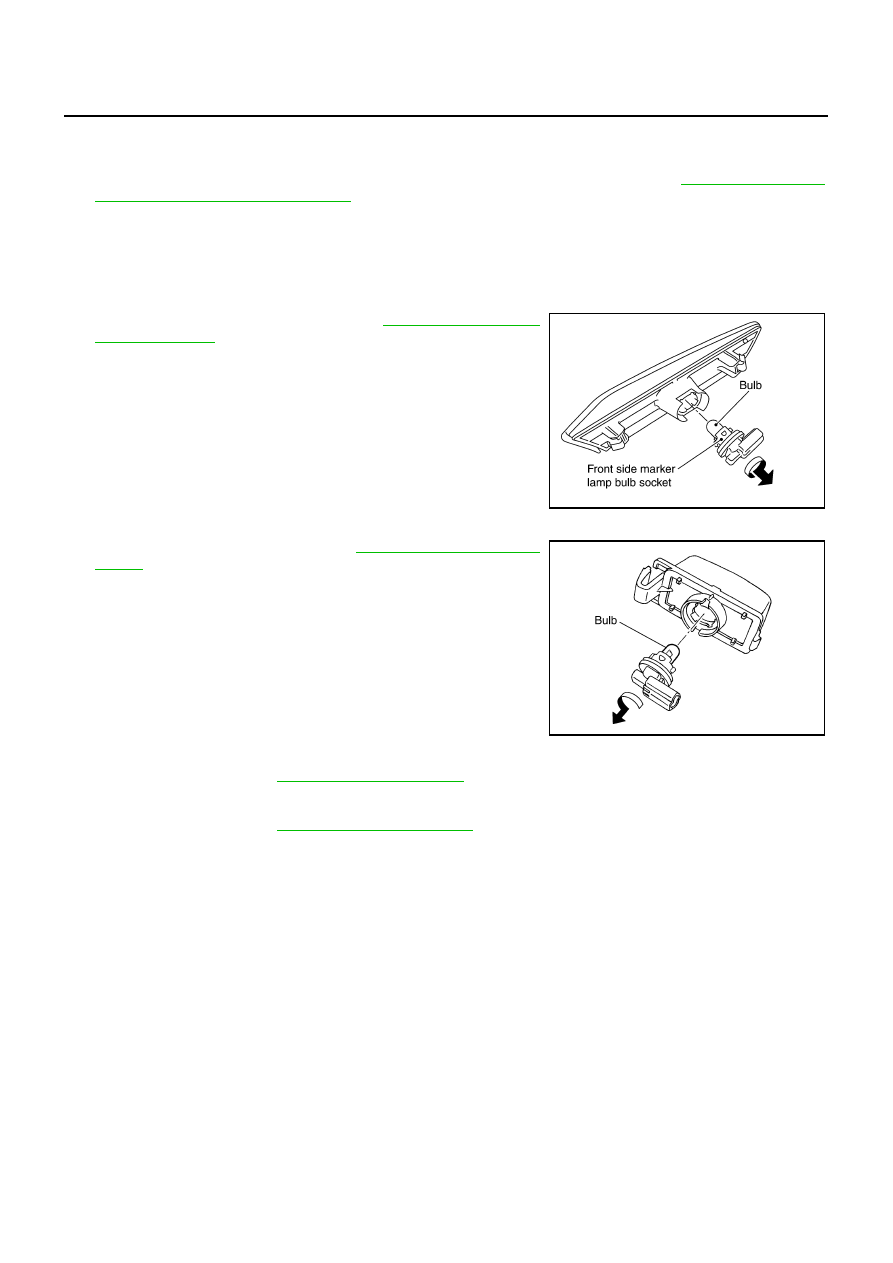

1.

Remove front side marker lamp. Refer to

LT-125, "FRONT SIDE

MARKER LAMP"

 .

2.

Turn bulb socket counterclockwise and unlock it.

3.

Remove bulb from it's socket.

4.

Installation is the reverse order of removal.

LICENSE PLATE LAMP

1.

Remove license plate lamp. Refer to

LT-125, "LICENSE PLATE

LAMP"

 .

2.

Turn bulb socket counter click wise and unlock it.

3.

Remove bulb from it's socket.

4.

Installation is the reverse order of removal.

PARKING LAMP

For bulb replacement, refer to

LT-30, "Bulb Replacement"

 .

TAIL LAMP

For bulb replacement, refer to

LT-126, "Bulb Replacement"

 .

Front side marker lamp

: 12 V - 3.8 W

PKIA2405E

License plate lamp

: 12 V - 5 W

PKIA1875E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-125

C

D

E

F

G

H

I

J

L

M

A

B

LT

Removal and Installation

NKS002PL

FRONT SIDE MARKER LAMP
Removal

1.

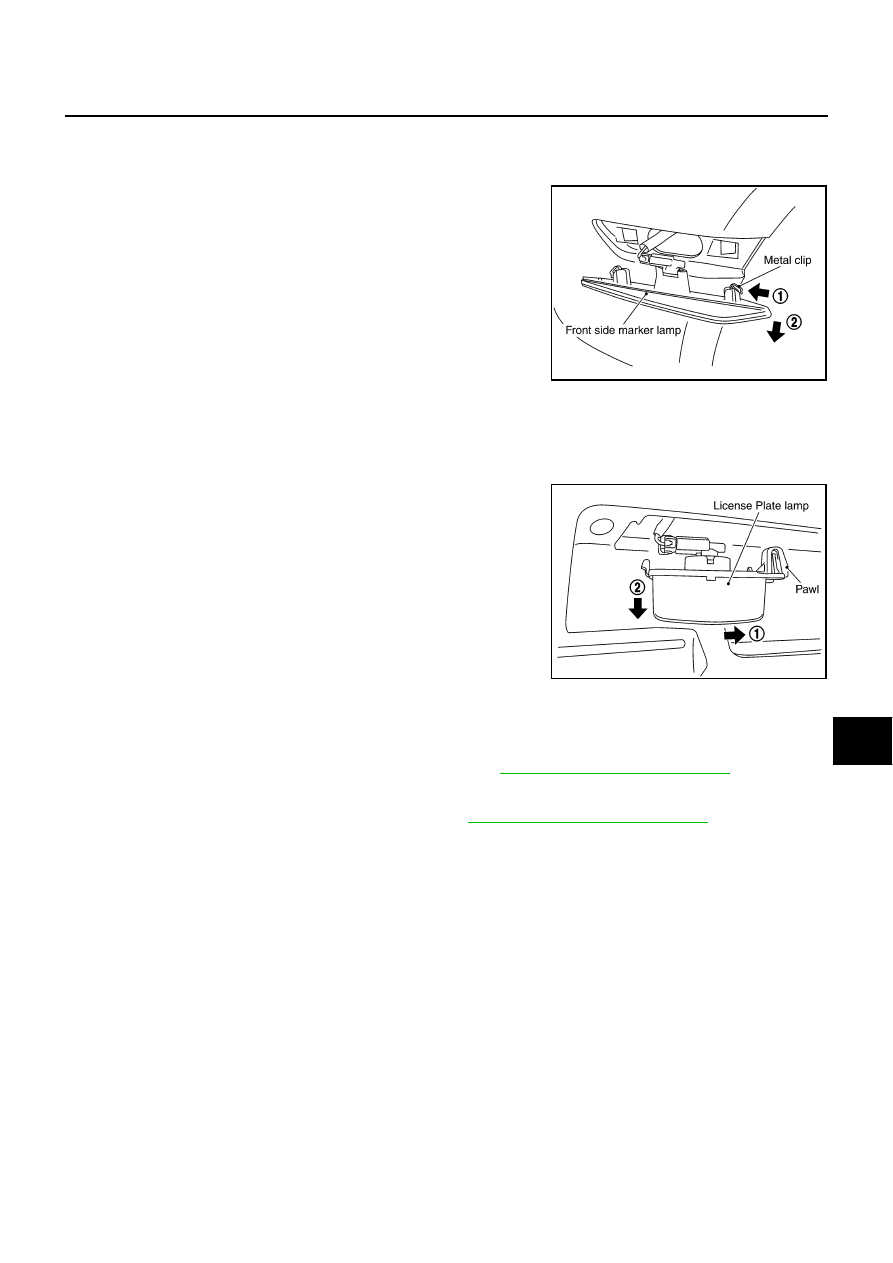

Insert a slotted screwdriver or similar tool into fender protector
gap to push front side marker lamp metal clip in direction 1 (see
figure) while pulling in direction 2. Remove front side marker
lamp from vehicle.

2.

Disconnect front side marker lamp connector.

Installation

Installation is the reverse order of removal.

LICENSE PLATE LAMP
Removal

1.

While pressing pawl on reverse side, push license plate towards
you to remove.

2.

Disconnect license plate lamp connector.

Installation

Installation is the reverse order of removal.

PARKING LAMP

For parking lamp removal and installation procedures, refer to

LT-32, "Removal and Installation"

 .

TAIL LAMP

For tail lamp removal and installation procedures, refer to

LT-126, "Removal and Installation"

 .

PKIA2407E

PKIA2403E

LT-126

REAR COMBINATION LAMP

REAR COMBINATION LAMP

PFP:26554

Bulb Replacement

NKS000JB

1.

Remove rear combination lamp. Refer to

LT-126, "Removal and

Installation"

 .

2.

Turn bulb socket counterclockwise and unlock it.

3.

Remove bulb.

4.

Installation is the reverse order of removal.

Removal and Installation

NKS000JC

REMOVAL

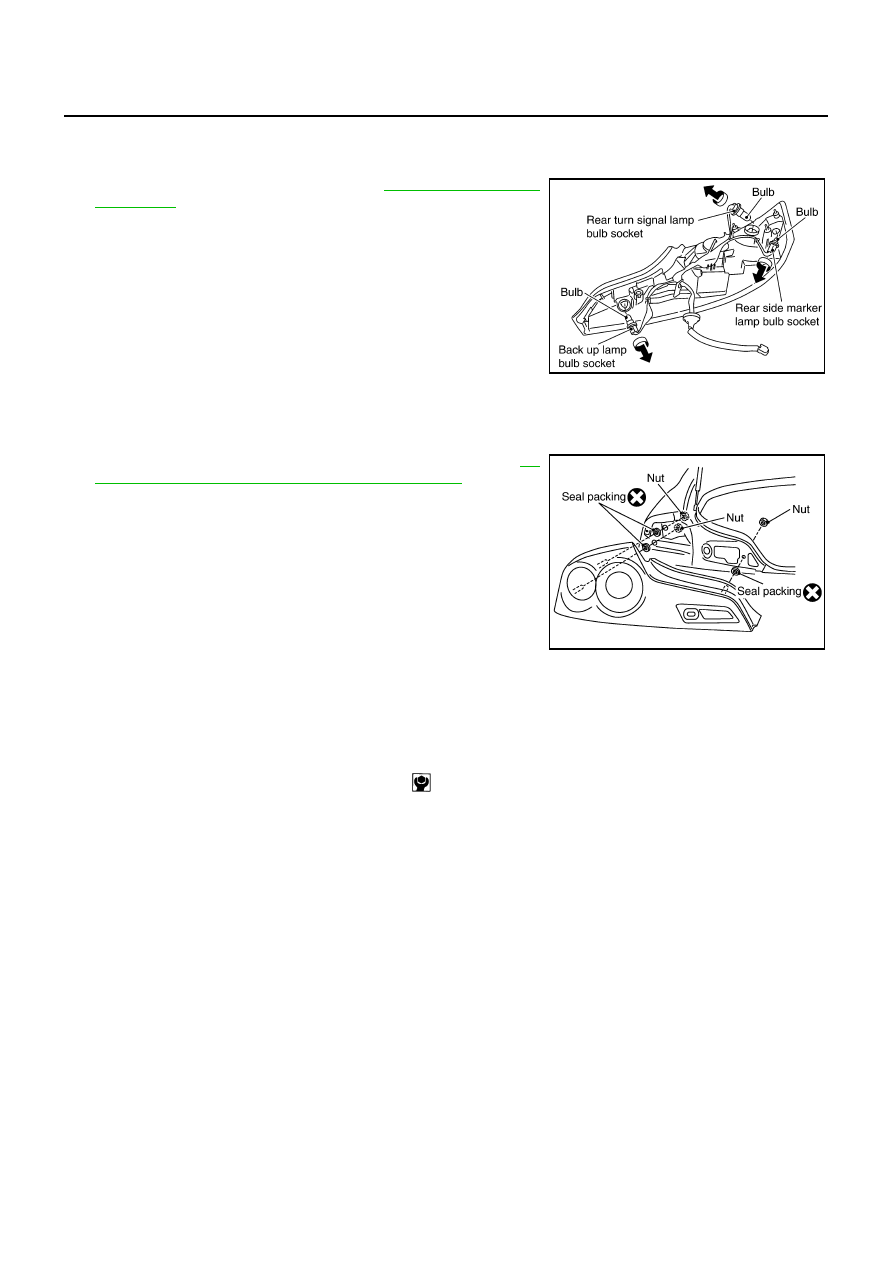

1.

Open trunk lid and remove trunk rear finisher (end). Refer to

EI-

38, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

 .

2.

Disconnect rear combination lamp connector.

3.

Remove rear combination lamp installation nuts.

4.

Pull the rear combination lamp toward rear of the vehicle and
remove from the vehicle.

5.

Remove seal packing from the vehicle.

INSTALLATION

Installation is the reverse order of removal.

●

Install a new seal packing to the rear combination lamp.

CAUTION:

Seal packing cannot be reused.

Stop/tail lamp

: LED (Replace together with rear
combination lamp assembly.)

Rear turn signal lamp

: 12 V - 21 W

Back-up lamp

: 12 V - 18 W

Rear side marker lamp

: 12 V - 3.8 W

PKIA2404E

PKIC5974E

Rear combination lamp mounting nut

: 3.2 N·m (0.33 kg-m, 28 in-lb)

INTERIOR ROOM LAMP

LT-127

C

D

E

F

G

H

I

J

L

M

A

B

LT

INTERIOR ROOM LAMP

PFP:26410

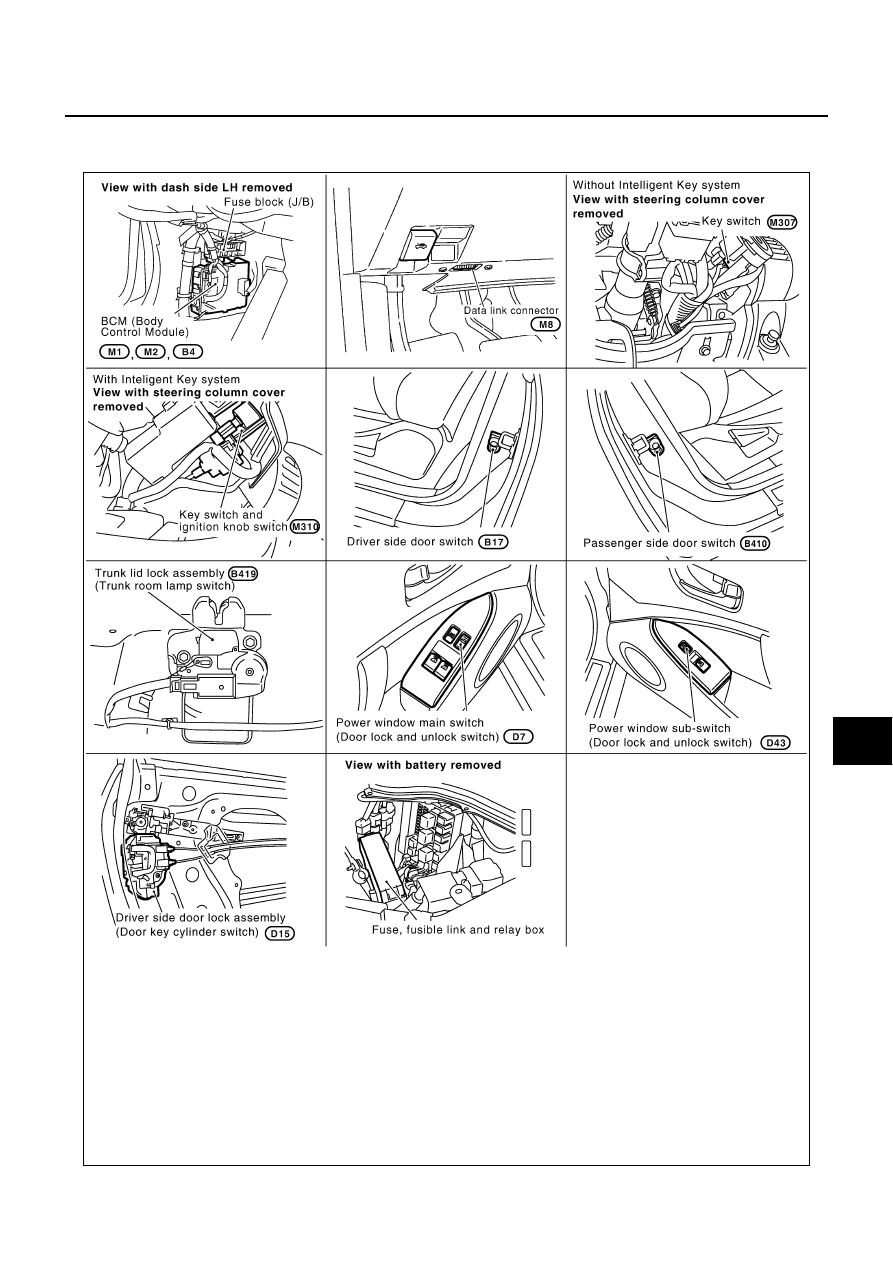

Component Parts and Harness Connector Location

NKS002PM

PKID0822E
