LAN-64

[CAN]

TROUBLE DIAGNOSIS

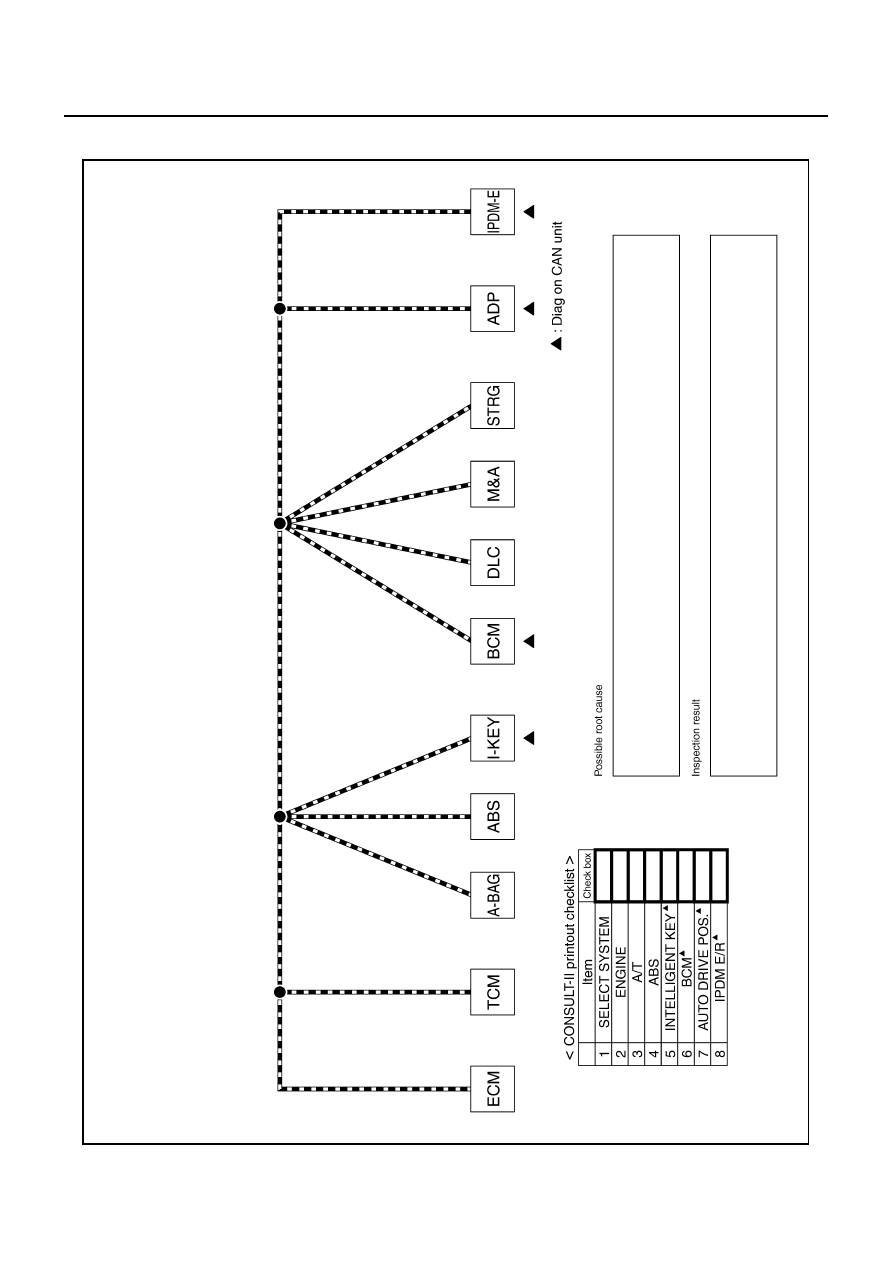

CAN System (Type 5)

NKS004J3

DIAGNOSIS SHEET

PKID0531E

TROUBLE DIAGNOSIS

LAN-65

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

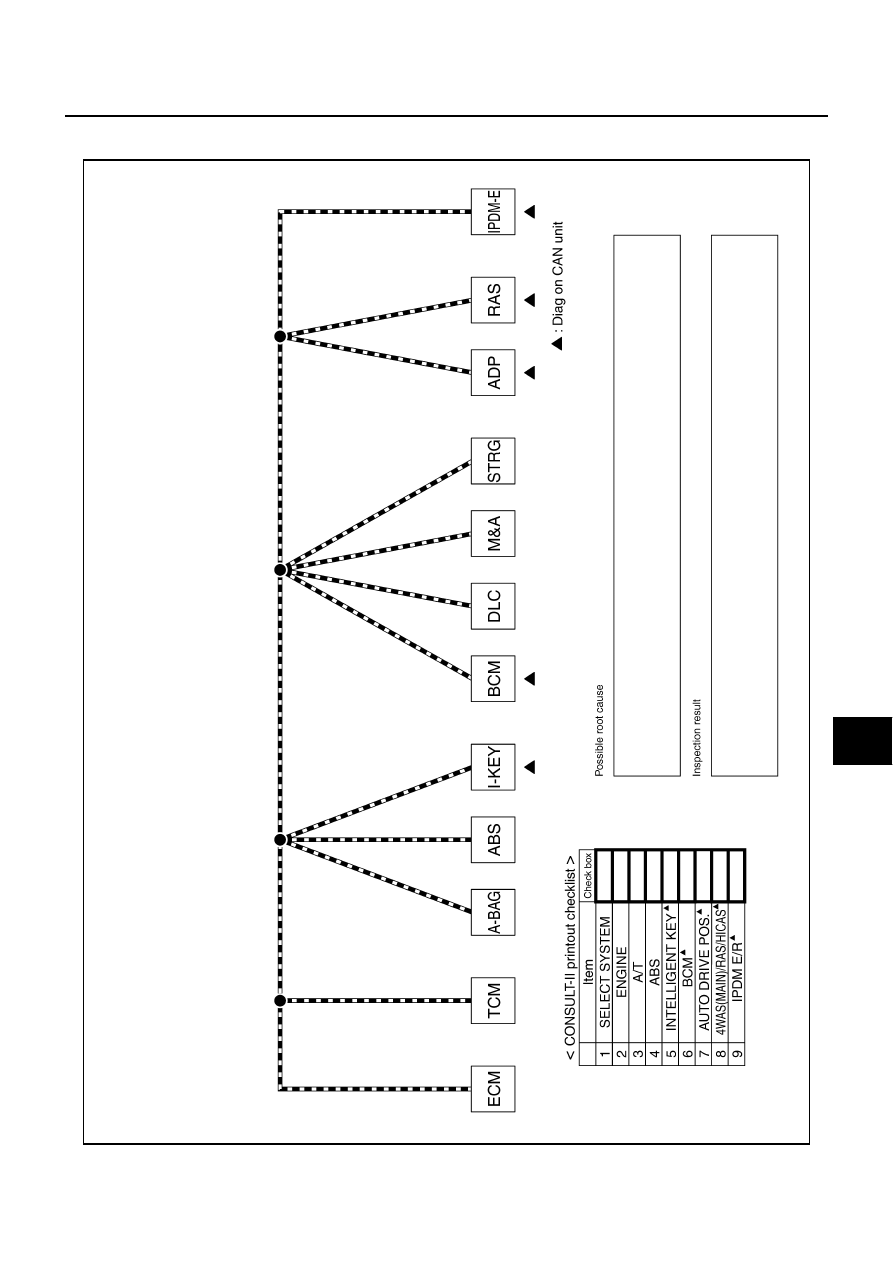

CAN System (Type 6)

NKS004J4

DIAGNOSIS SHEET

PKID0532E

LAN-66

[CAN]

TROUBLE DIAGNOSIS

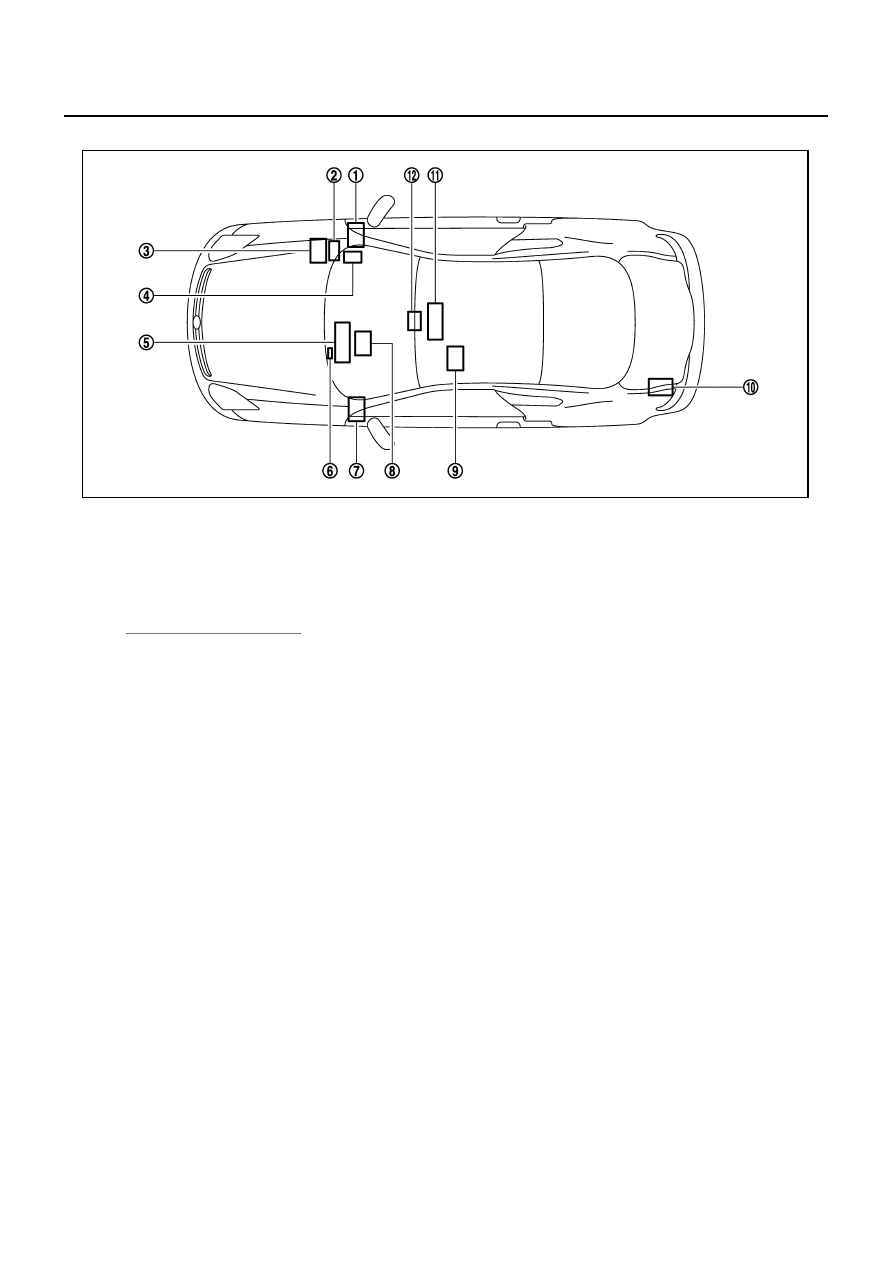

Component Parts Location

NKS004J5

Harness Layout

NKS004I8

Refer to

PG-40, "Harness Layout"

  .

1.

VDC/TCS/ABS control unit M93

2.

Intelligent Key unit M75

3.

IPDM E/R E9

4.

ECM F108

5.

Combination meter M19

6.

Data link connector M8

7.

BCM M1

8.

Steering angle sensor M22

9.

Driver seat control unit B352

10. RAS control unit B136

11.

A/T assembly F40

12. Air bag diagnosis sensor unit M55

PKID0805E

TROUBLE DIAGNOSIS

LAN-67

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Malfunction Area Chart

NKS004I9

MAIN LINE

BRANCH LINE

SHORT CIRCUIT

Malfunction Area

Reference

Main line between TCM and Intelligent Key unit

LAN-68, "Main Line Between TCM and Intelligent Key Unit"

Main line between VDC/TCS/ABS control unit and data link con-
nector

LAN-69, "Main Line Between VDC/TCS/ABS Control Unit and
Data Link Connector"

Main line between data link connector and driver seat control
unit

LAN-69, "Main Line Between Data Link Connector and Driver
Seat Control Unit"

Malfunction Area

Reference

ECM branch line circuit

LAN-70, "ECM Branch Line Circuit"

TCM branch line circuit

LAN-71, "TCM Branch Line Circuit"

VDC/TCS/ABS control unit branch line circuit

LAN-71, "VDC/TCS/ABS Control Unit Branch Line Circuit"

Intelligent Key unit branch line circuit

LAN-72, "Intelligent Key Unit Branch Line Circuit"

BCM branch line circuit

LAN-73, "BCM Branch Line Circuit"

Data link connector branch line circuit

LAN-73, "Data Link Connector Branch Line Circuit"

Combination meter branch line circuit

LAN-74, "Combination Meter Branch Line Circuit"

Steering angle sensor branch line circuit

LAN-75, "Steering Angle Sensor Branch Line Circuit"

Driver seat control unit branch line circuit

LAN-75, "Driver Seat Control Unit Branch Line Circuit"

RAS control unit branch line circuit

LAN-76, "RAS Control Unit Branch Line Circuit"

IPDM E/R branch line circuit

LAN-77, "IPDM E/R Branch Line Circuit"

Malfunction Area

Reference

CAN communication circuit

LAN-77, "CAN Communication Circuit"
