LAN-28

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

d.

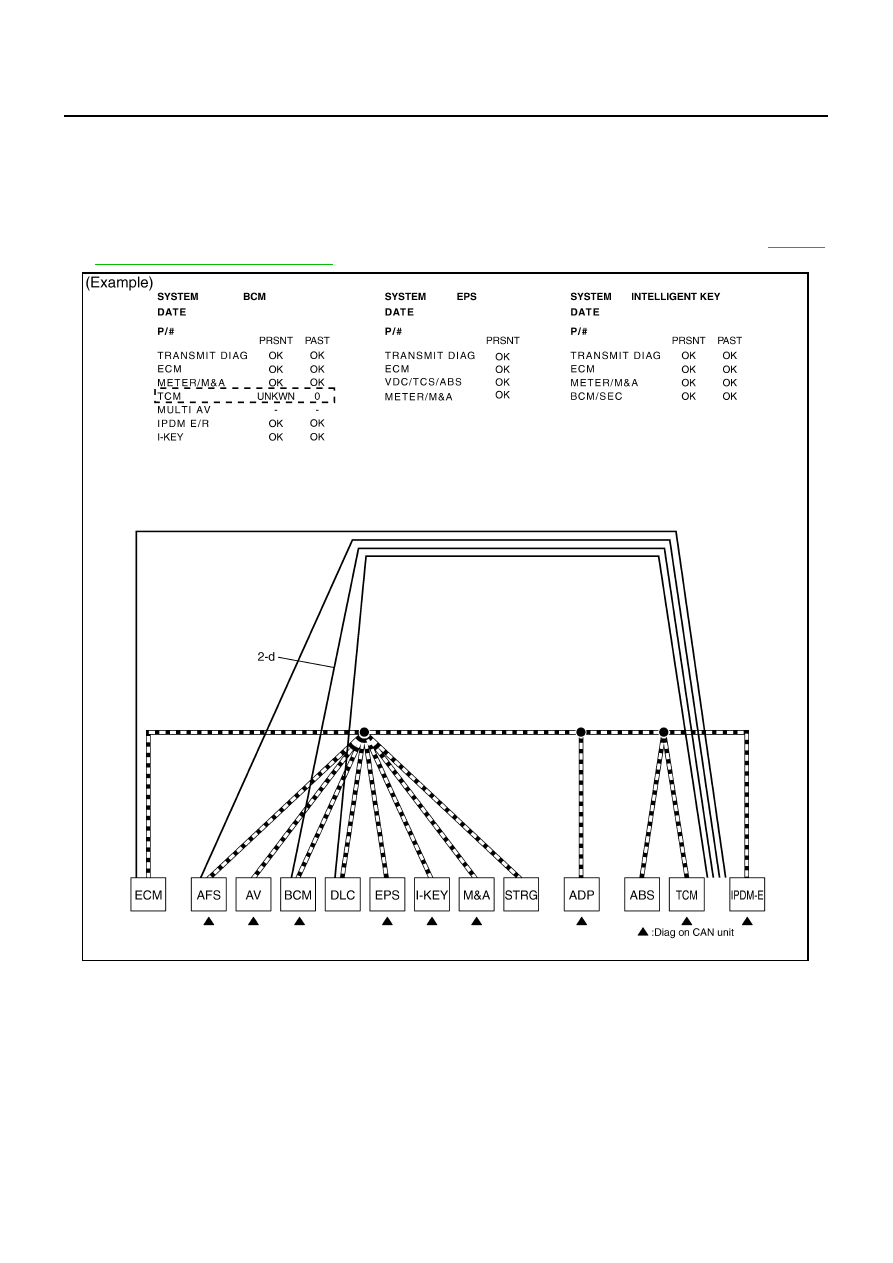

Reception item of “BCM”: On “TCM”, “UNKWN” is indicated. This means BCM cannot receive the signal
from TCM. Draw a line to indicate an error between BCM and TCM (line 2-d in the figure).

e.

Reception item of “EPS” and “INTELLIGENT KEY”: “UNKWN” is not indicated. This indicates normal com-
munication between EPS and I-KEY and their receiving units. Do not draw any line.
NOTE:
On CAN DIAG SUPPORT MNTR (without PAST), “UNKWN” is indicated even though the item is not used
in the trouble diagnosis. For the details of each item on CAN diagnostic support monitor, refer to

LAN-44,

"CAN Diagnostic Support Monitor"

 .

SKIB8726E

TROUBLE DIAGNOSES WORK FLOW

LAN-29

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

f.

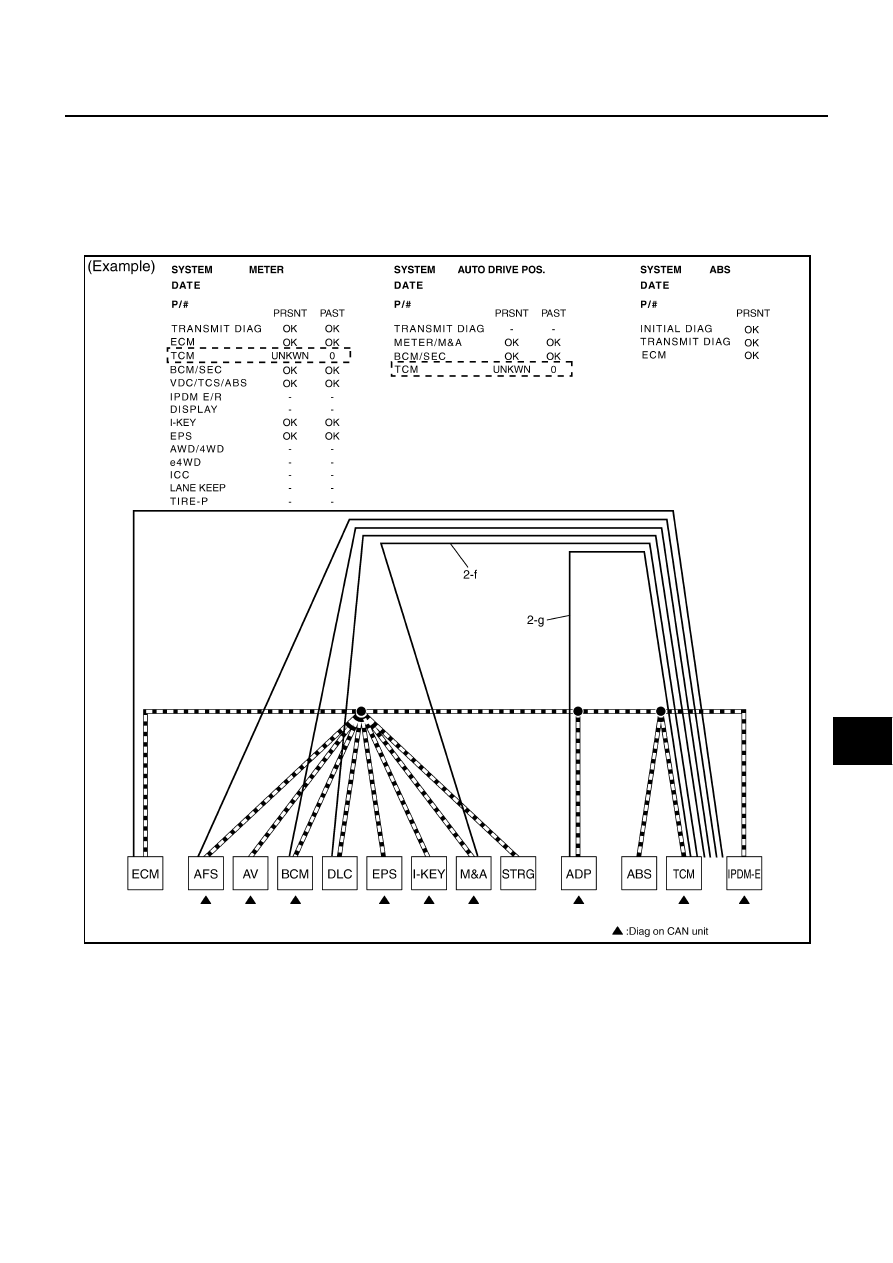

Reception item of “METER”: On “TCM”, “UNKWN” is indicated. This means M&A cannot receive the sig-
nal from TCM. Draw a line to indicate an error between M&A and TCM (line 2-f in the figure).

g.

Reception item of “AUTO DRIVE POS.”: On “TCM”, “UNKWN” is indicated. This means ADP cannot
receive the signal from TCM. Draw a line to indicate an error between ADP and TCM (line 2-g in the fig-
ure).

h.

Reception item of “ABS”: “UNKWN” is not indicated. This indicates normal communication between ABS
and its receiving units. Do not draw any line.

SKIB8727E

LAN-30

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

i.

Reception item of “IPDM E/R”: “UNKWN” is not indicated. This indicates normal communication between
IPDM-E and its receiving units. Do not draw any line.

3.

Based on information received from “CAN DIAG SUPPORT MNTR”, place a check mark on the known
good CAN communication line between ECM and IPDM-E.

a.

Through the previous procedure, the circuit between ADP splice and TCM has the most amount of lines
(shade 3-a in the figure).

b.

Place a check mark on the known good lines to establish the error circuit.

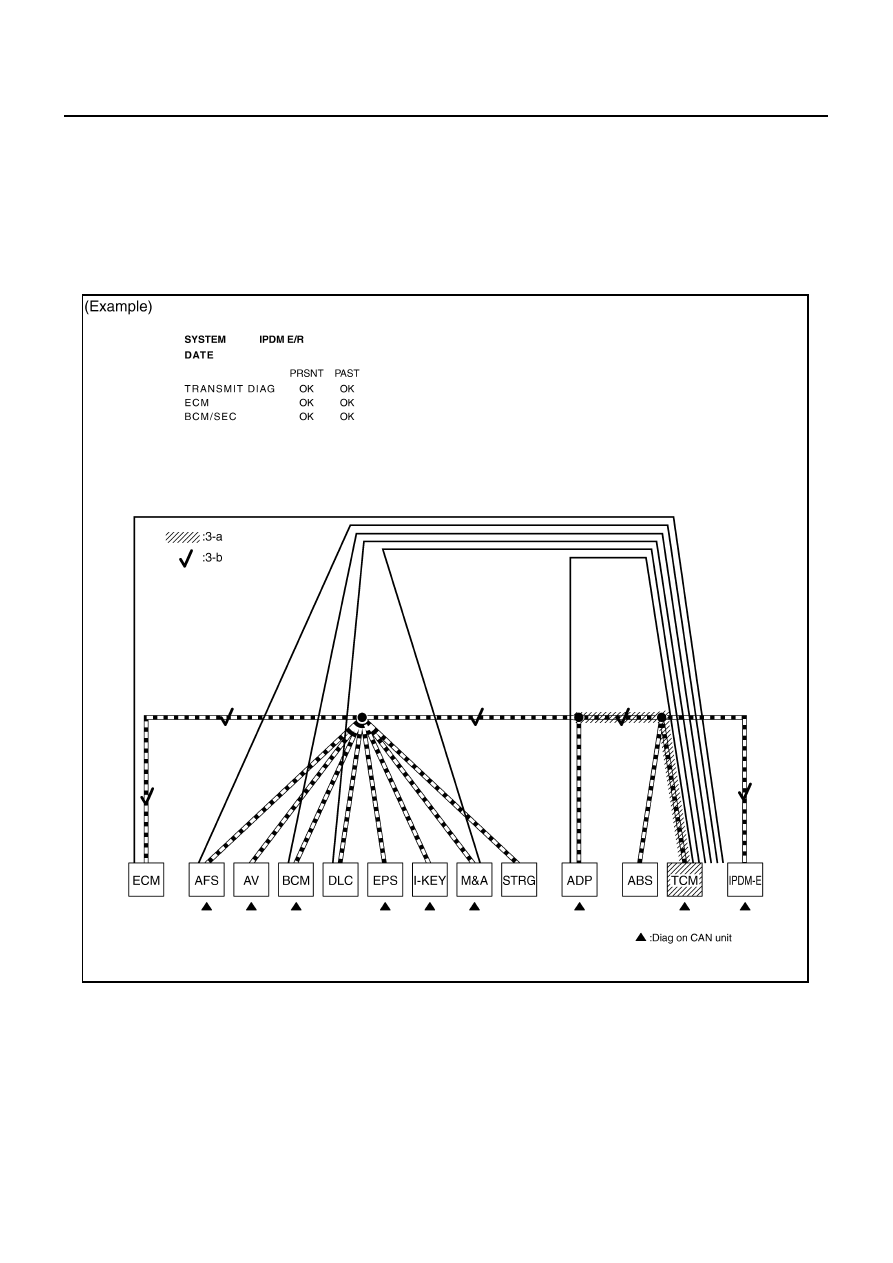

Reception item of “IPDM E/R”: On “ECM”, “OK” is indicated. IPDM-E communicates normally with ECM.
Put a check mark on the normal circuit between ECM and IPDM-E (check mark 3-b in the figure).

SKIB8728E

TROUBLE DIAGNOSES WORK FLOW

LAN-31

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

4.

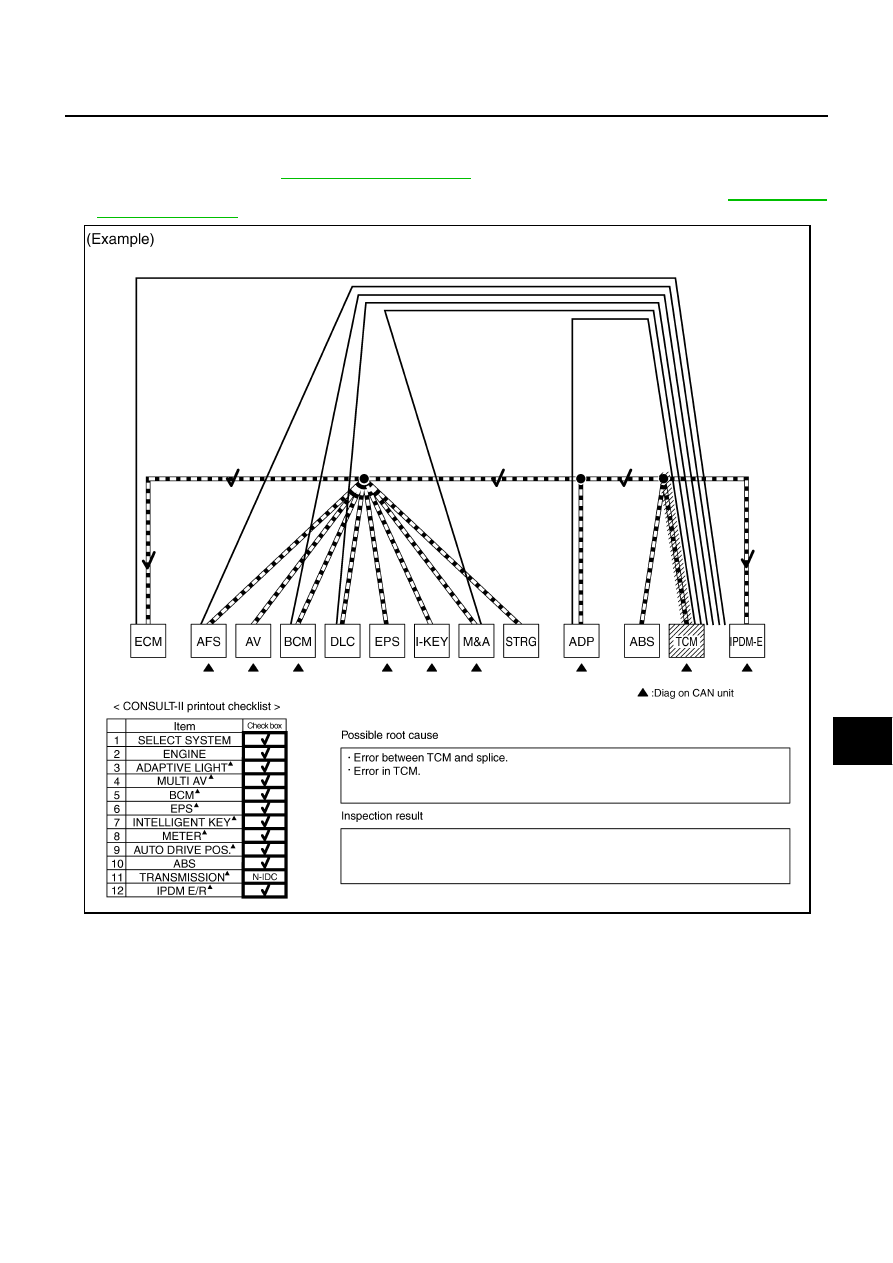

Through the above procedure, the error is detected in the TCM branch line (shaded in the figure).

NOTE:
For abbreviations, refer to

LAN-41, "Abbreviation List"

 .

5.

Perform the inspection for the detected error circuit. For the inspection procedure, refer to

LAN-67, "Mal-

function Area Chart"

 .

SKIB8893E
