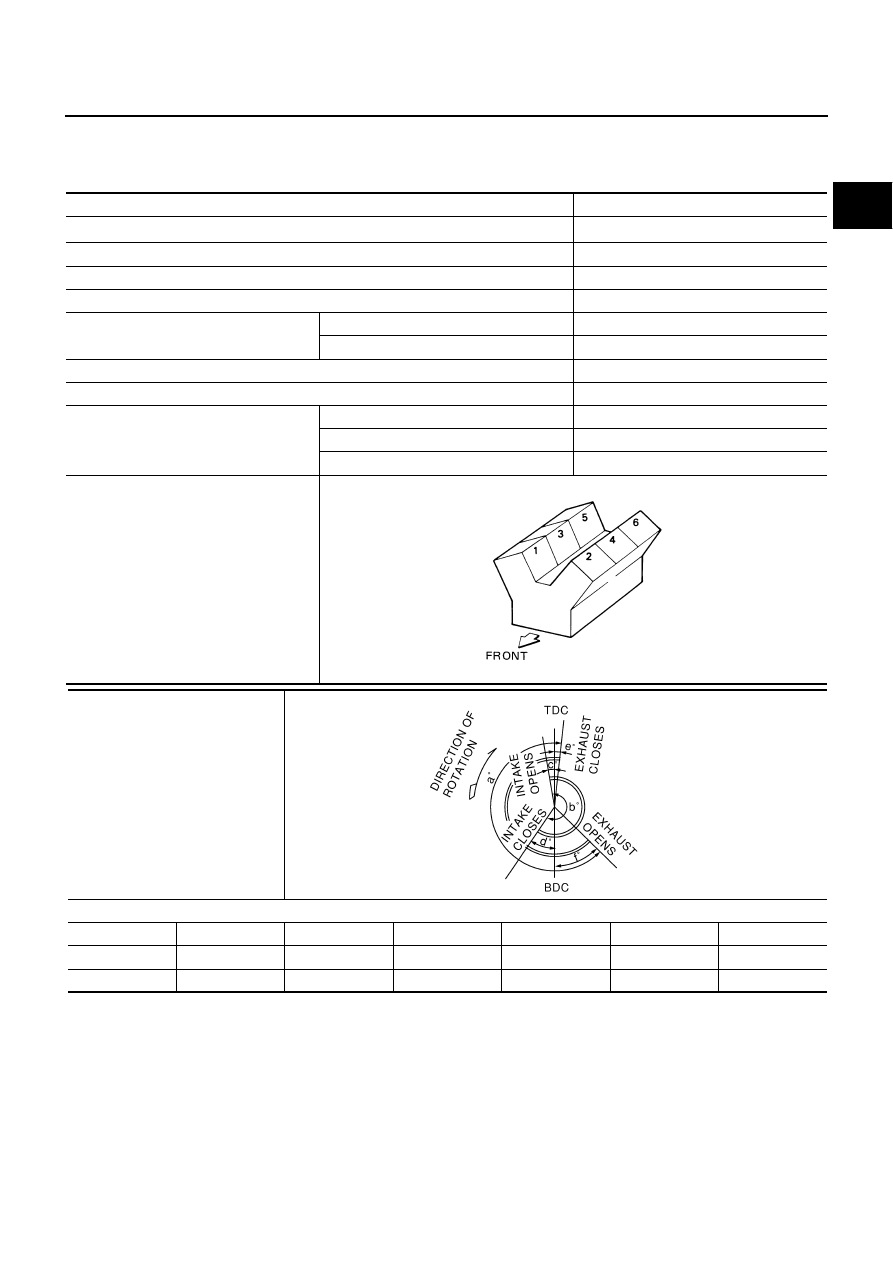

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00100

Standard and Limit

NBS002V9

GENERAL SPECIFICATIONS

Cylinder arrangement

V-6

Displacement

cm

3

   (cu in)

3,498 (213.45)

Bore and stroke

mm (in)

95.5 x 81.4 (3.76 x 3.205)

Valve arrangement

DOHC

Firing order

1-2-3-4-5-6

Number of piston rings

Compression

2

Oil

1

Number of main bearings

4

Compression ratio

10.3

Compression pressure

kPa (kg/cm

2

 , psi)/300 rpm

Standard

1,270 (13.0, 184)

Minimum

980 (10.0, 142)

Differential limit between cylinders

100 (1.0, 15)

Cylinder number

SEM713A

Valve timing
(Intake valve timing control - “OFF”)

Unit: degree

a

b

c

d

e

f

M/T models

248

248

−

2

70

−

2

70

A/T models

240

238

−

6

64

8

52

PBIC0187E

EM-168

SERVICE DATA AND SPECIFICATIONS (SDS)

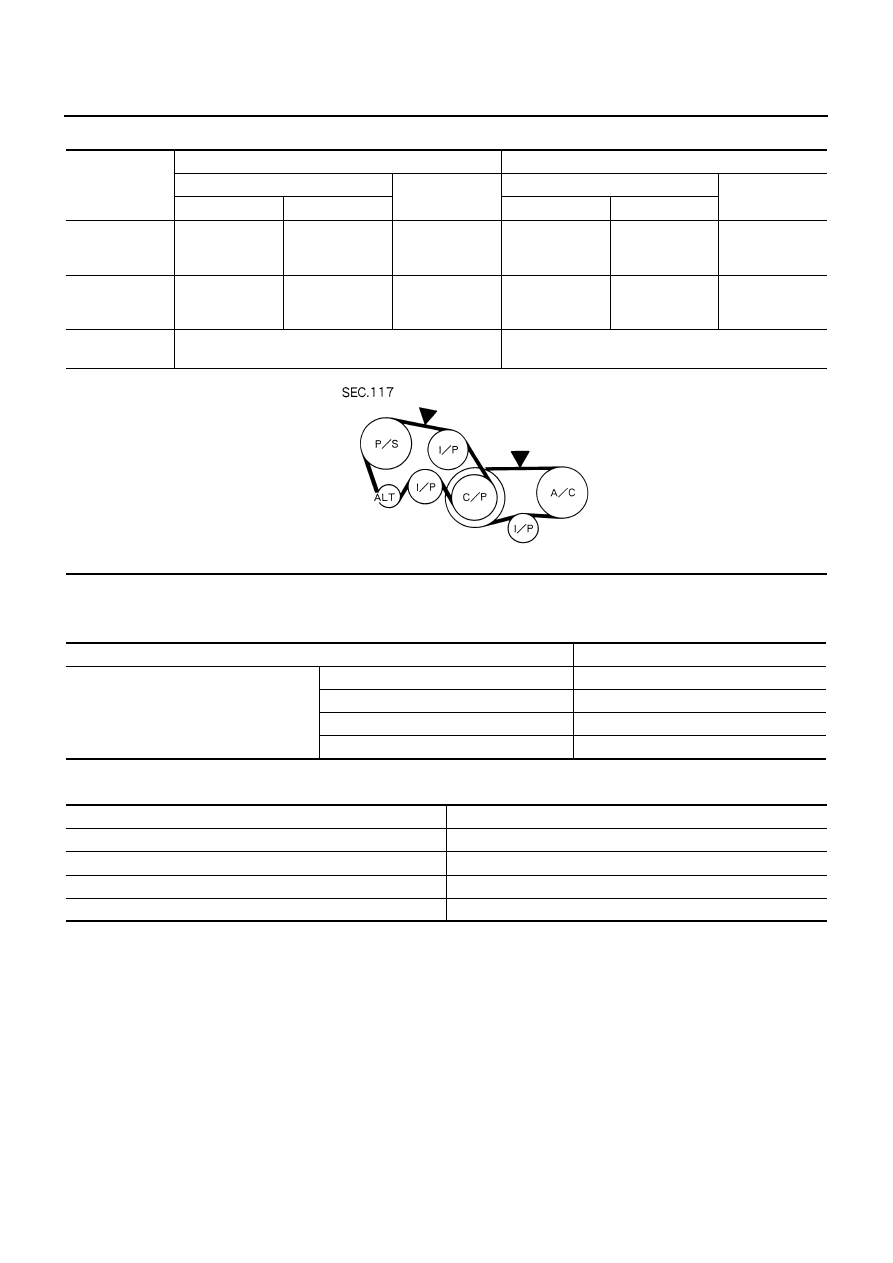

DRIVE BELT

* : If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on the belt.

INTAKE MANIFOLD COLLECTOR, INTAKE MANIFOLD AND EXHAUST MANIFOLD

Unit: mm (in)

SPARK PLUG

Unit: mm (in)

Deflection adjustment                                Unit: mm (in)

Tension adjustment*                                   Unit: N (kg, lb)

Used belt

New belt

Used belt

New belt

Limit

After adjustment

Limit

 After adjustment

Alternator and
power steering
oil pump belt

7 (0.28)

4 - 5

(0.16 - 0.20)

3.5 - 4.5

(0.138 - 0.177)

294 (30, 66)

730 - 818

(74.5 - 83.5,

164 - 184)

838 - 926

(85.5 - 94.5,

188 - 208)

A/C compressor
belt

12 (0.47)

9 - 10

(0.35 - 0.39)

8 - 9

(0.31- 0.35)

196 (20, 44)

348 - 436

(35.5 - 44.5,

78 - 98)

470 - 559

(48 - 57,

106 - 126)

Applied pushing
force

98 N (10 kg, 22 lb)

 —

KBIA1731J

Items

                                Limit

Surface distortion

Intake manifold collector (upper)

0.1 (0.004)

Intake manifold collector (lower)

0.1 (0.004)

Intake manifold

0.1 (0.004)

Exhaust manifold

0.3 (0.012)

Make

NGK

Standard type

PLFR5A-11

Hot type

PLFR4A-11

Cold type

PLFR6A-11

Gap (Nominal)

1.1 (0.043)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-169

C

D

E

F

G

H

I

J

K

L

M

A

EM

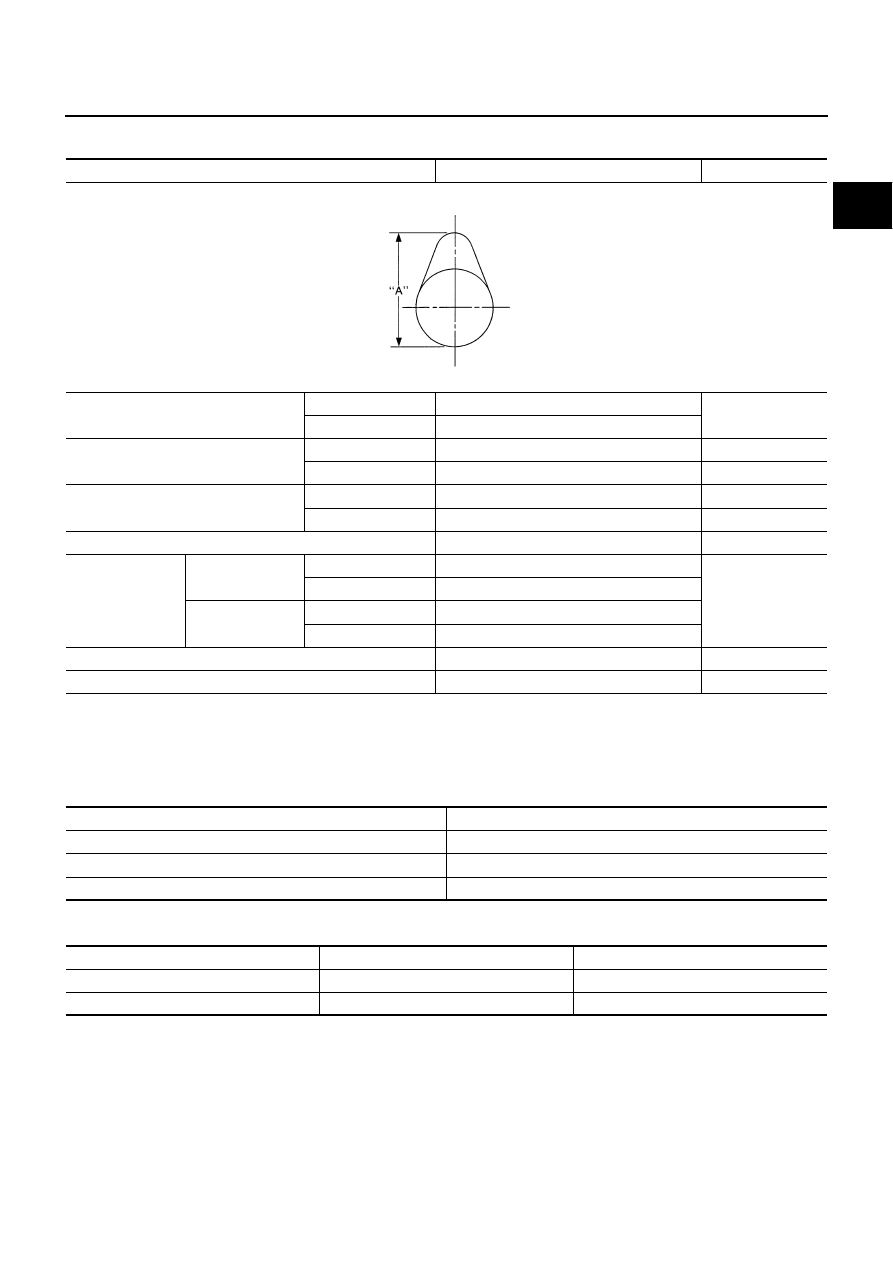

CAMSHAFT AND CAMSHAFT BEARING

Unit: mm (in)

*: Total indicator reading

*

1

 : Cam wear limit

Valve Lifter

Unit: mm (in)

Valve Clearance

Unit: mm (in)

*: Approximately 80

°

C (176

°

F)

Items

Standard

Limit

Camshaft journal oil clearance

No. 1

0.045 - 0.086 (0.0018 - 0.0034)

0.15 (0.0059)

No. 2, 3, 4

0.035 - 0.076 (0.0014 - 0.0030)

Camshaft bracket inner diameter

No. 1

26.000 - 26.021 (1.0236 - 1.0244)

—

No. 2, 3, 4

23.500 - 23.521 (0.9252 - 0.9260)

—

Camshaft journal diameter

No. 1

25.935 - 25.955 (1.0211 - 1.0218)

—

No. 2, 3, 4

23.445 - 23.465 (0.9230 - 0.9238)

—

Camshaft end play

0.115 - 0.188 (0.0045 - 0.0074)

0.24 (0.0094)

Camshaft cam
height “A”

M/T models

Intake

45.865 - 46.055 (1.8057 - 1.8132)

0.2 (0.008)*

1

Exhaust

45.875 - 46.065 (1.8061 - 1.8136)

A/T models

Intake

44.865 - 45.055 (1.7663 - 1.7738)

Exhaust

44.865 - 45.055 (1.7663 - 1.7738)

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

0.05 (0.0020)

Camshaft sprocket runout [TIR*]

—

0.15 (0.0059)

SEM671

Items

Standard

Valve lifter outer diameter

33.977 - 33.987 (1.3377 - 1.3381)

Valve lifter hole diameter

34.000 - 34.016 (1.3386 - 1.3392)

Valve lifter clearance

0.013 - 0.039 (0.0005 - 0.0015)

Items

Cold

Hot* (reference data)

Intake

0.26 - 0.34 (0.010 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.29 - 0.37 (0.011 - 0.015)

0.308 - 0.432 (0.012 - 0.017)

EM-170

SERVICE DATA AND SPECIFICATIONS (SDS)

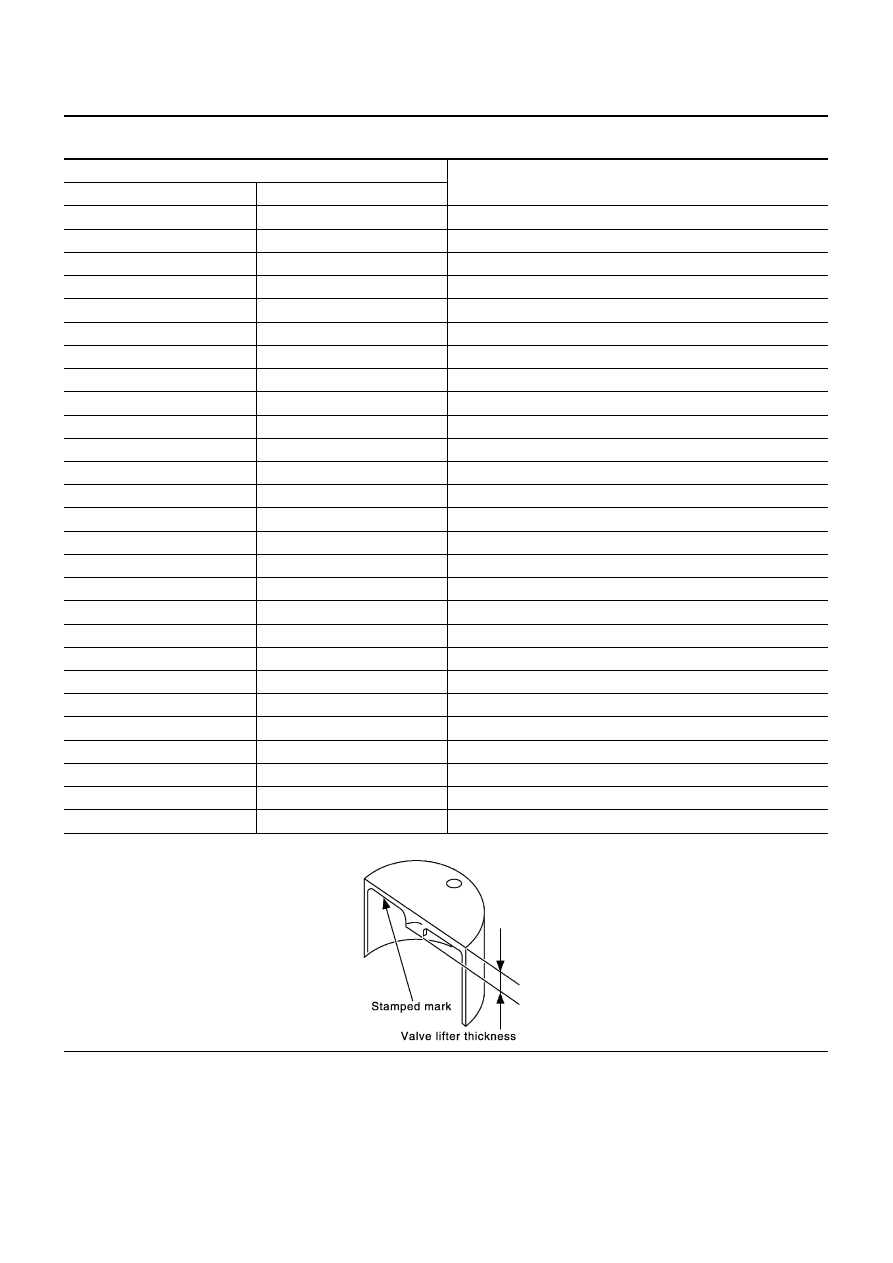

Available Valve Lifter
