DTC P2118 THROTTLE CONTROL MOTOR

PFP:16119

Component Description

NBS000WD

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.

On Board Diagnosis Logic

NBS000WE

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

DTC Confirmation Procedure

NBS000WF

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

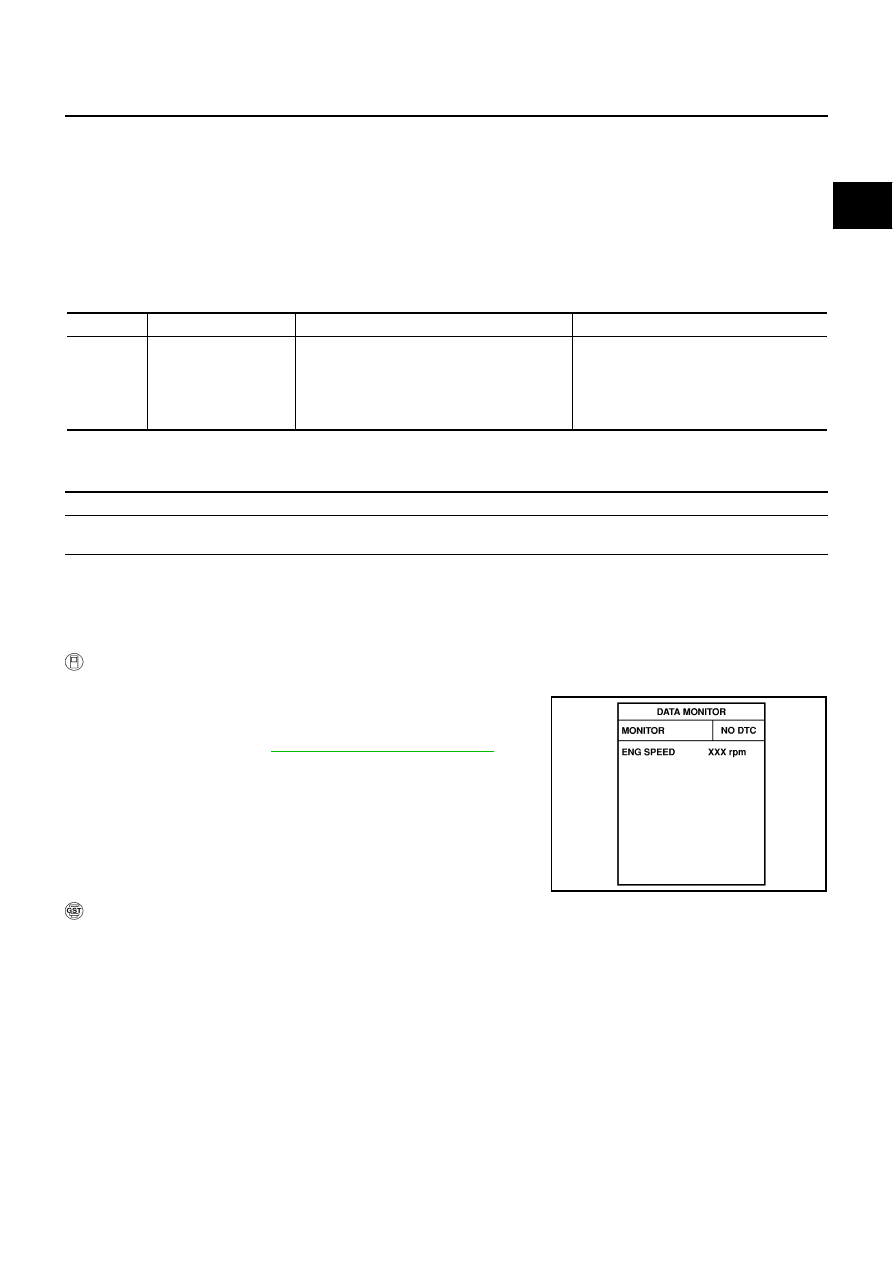

 WITH CONSULT-II

1.

Turn ignition switch ON and wait at least 2 seconds.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 5 seconds.

4.

If DTC is detected, go to

EC-587, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2118
2118

Throttle control motor
circuit short

ECM detects short in both circuits between
ECM and throttle control motor.

●

Harness or connectors
(The throttle control motor circuit is
shorted.)

●

Electric throttle control actuator
(Throttle control motor)

Engine operating condition in fail-safe mode

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.

SEF058Y

EC-586

DTC P2118 THROTTLE CONTROL MOTOR

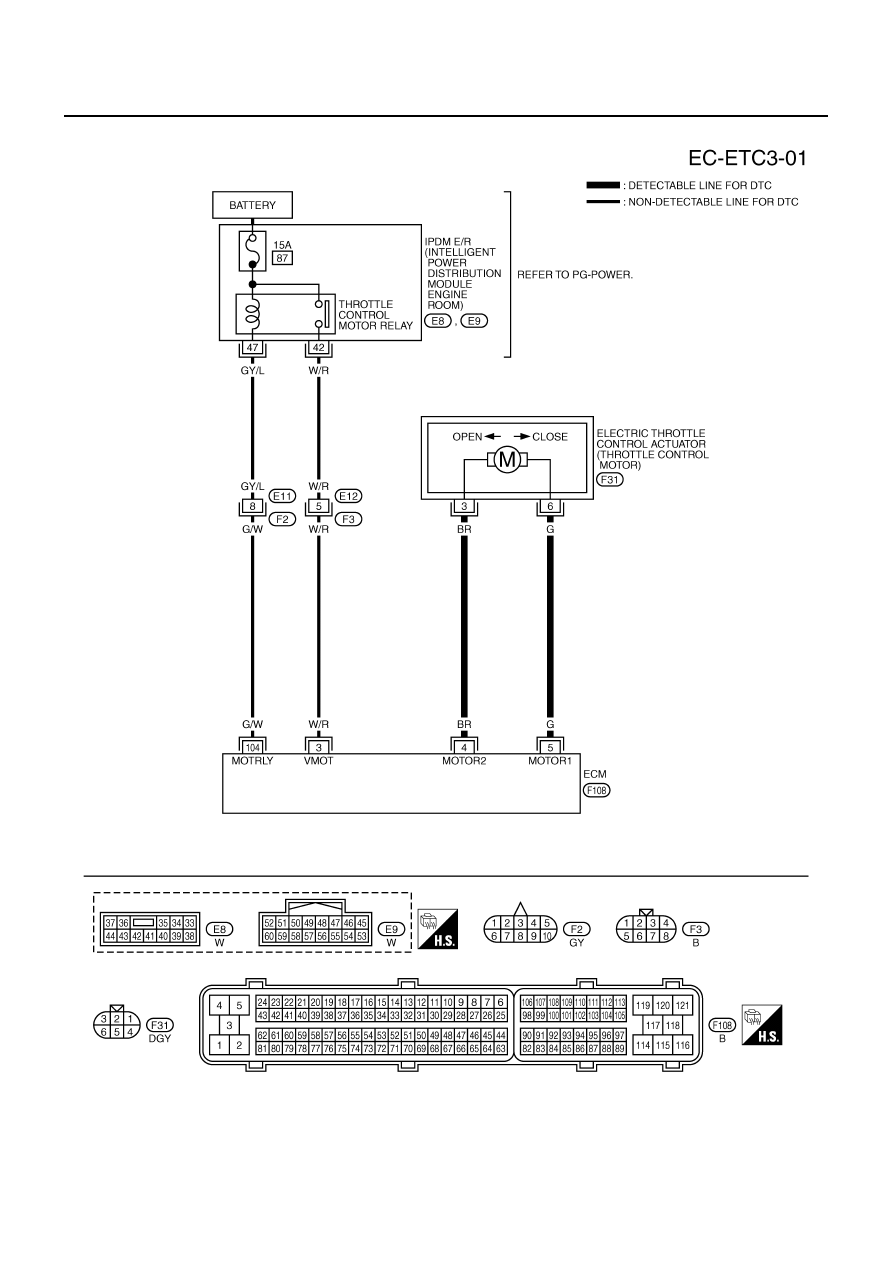

Wiring Diagram

NBS000WG

TBWM1282E

DTC P2118 THROTTLE CONTROL MOTOR

EC-587

C

D

E

F

G

H

I

J

K

L

M

A

EC

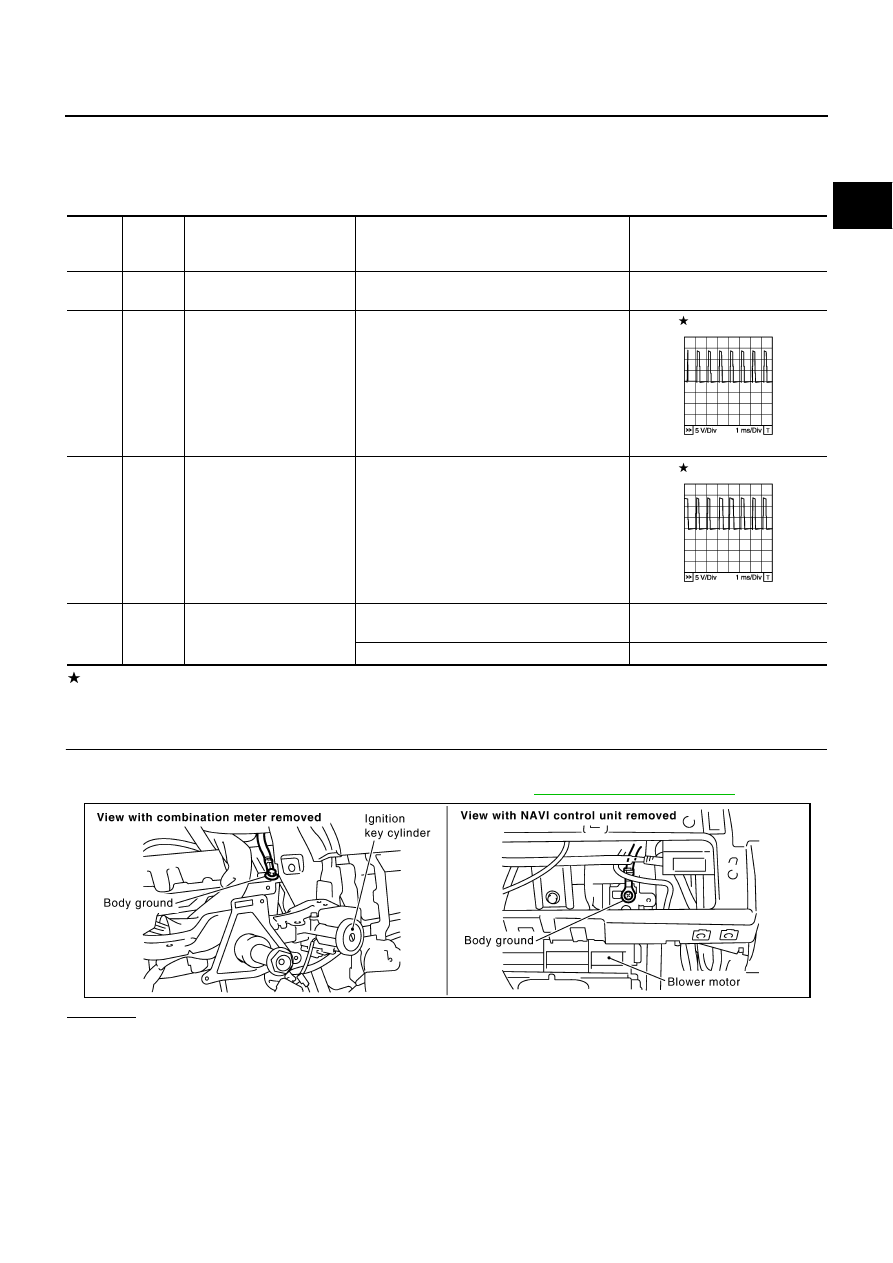

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

NBS000WH

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws on the body. Refer to

EC-159, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

3

W/R

Throttle control motor relay
power supply

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

4

BR

Throttle control motor
(Close)

[Ignition switch: ON]

●

Engine stopped

●

Shift lever: D (A/T) or 1st (M/T)

●

Accelerator pedal: Fully released

0 - 14V

5

G

Throttle control motor
(Open)

[Ignition switch: ON]

●

Engine stopped

●

Shift lever: D (A/T) or 1st (M/T)

●

Accelerator pedal: Fully depressed

0 - 14V

104

G/W

Throttle control motor relay

[Ignition switch: OFF]

BATTERY VOLTAGE
(11 - 14V)

[Ignition switch: ON]

0 - 1.0V

PBIB1104E

PBIB1105E

PBIB2192E

EC-588

DTC P2118 THROTTLE CONTROL MOTOR

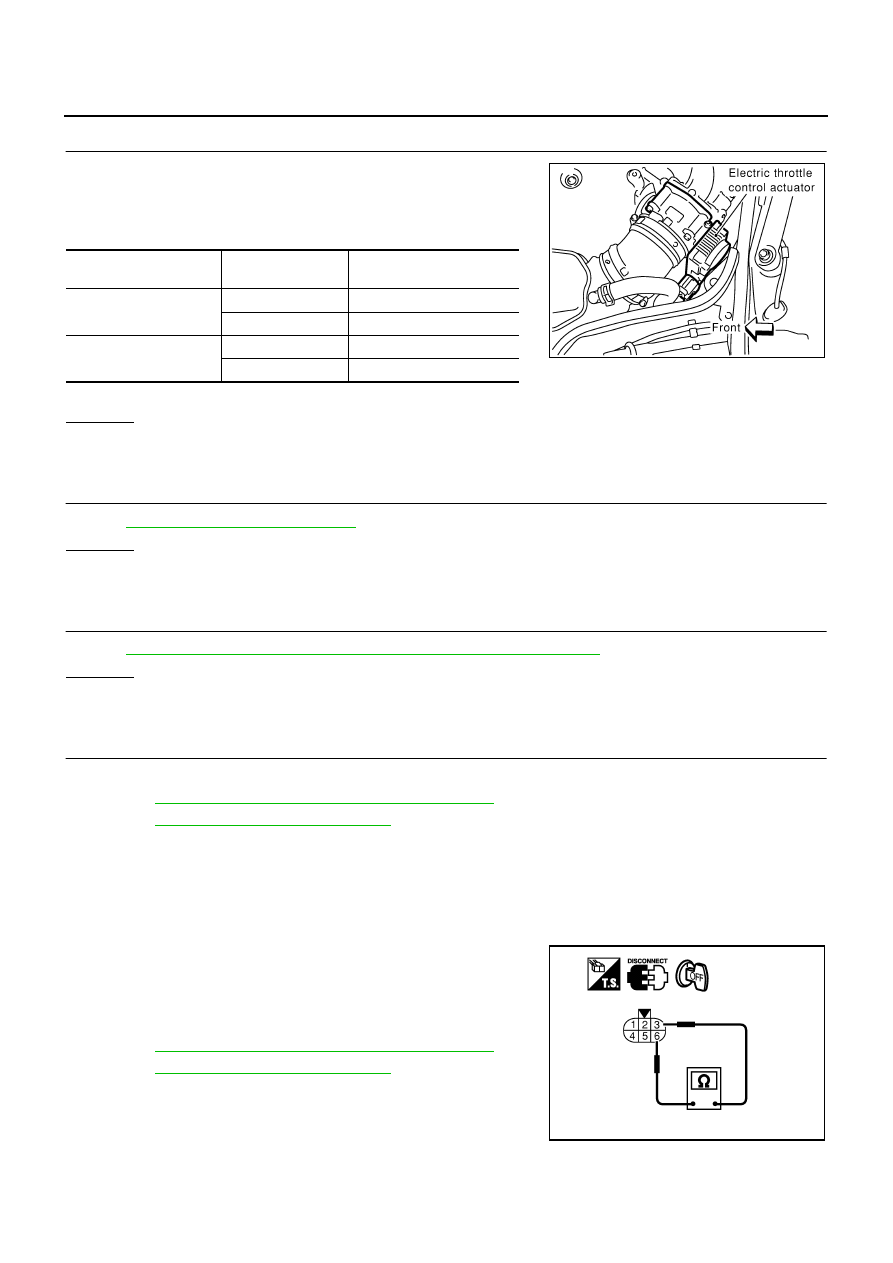

2.

CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1.

Disconnect electric throttle control actuator harness connector.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between the following terminals.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

CHECK THROTTLE CONTROL MOTOR

Refer to

EC-588, "Component Inspection"

 .

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 5.

4.

CHECK INTERMITTENT INCIDENT

Refer to

EC-151, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace harness or connectors.

5.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-79, "Throttle Valve Closed Position Learning"

 .

3.

Perform

EC-79, "Idle Air Volume Learning"

 .

>> INSPECTION END

Component Inspection

NBS000WI

THROTTLE CONTROL MOTOR

1.

Disconnect electric throttle control actuator harness connector.

2.

Check resistance between terminals 3 and 6.

3.

If NG, replace electric throttle control actuator and go to next
step.

4.

Perform

EC-79, "Throttle Valve Closed Position Learning"

 .

5.

Perform

EC-79, "Idle Air Volume Learning"

 .

Electric throttle control

actuator terminal

ECM terminal

Continuity

3

5

Should not exist

4

Should exist

6

5

Should exist

4

Should not exist

PBIB0995E

Resistance: Approximately 1 - 15

Ω

 [at 25

°

C (77

°

F)]

PBIB0095E
