DTC P1226 TP SENSOR
PFP:16119
Component Description
NBS000XO

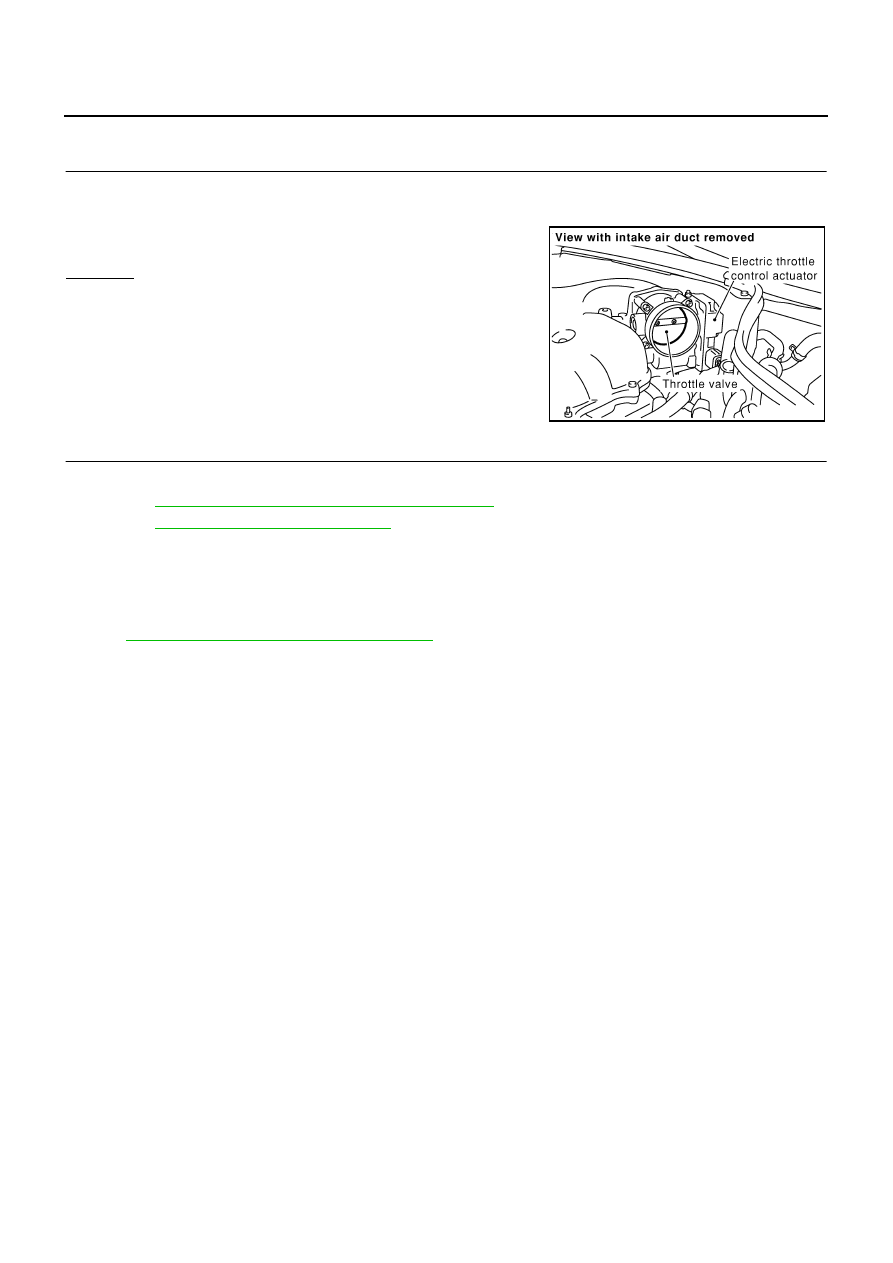

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
On Board Diagnosis Logic
NBS000XP
The MIL will not light up for this self-diagnosis.
DTC Confirmation Procedure
NBS000XQ
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

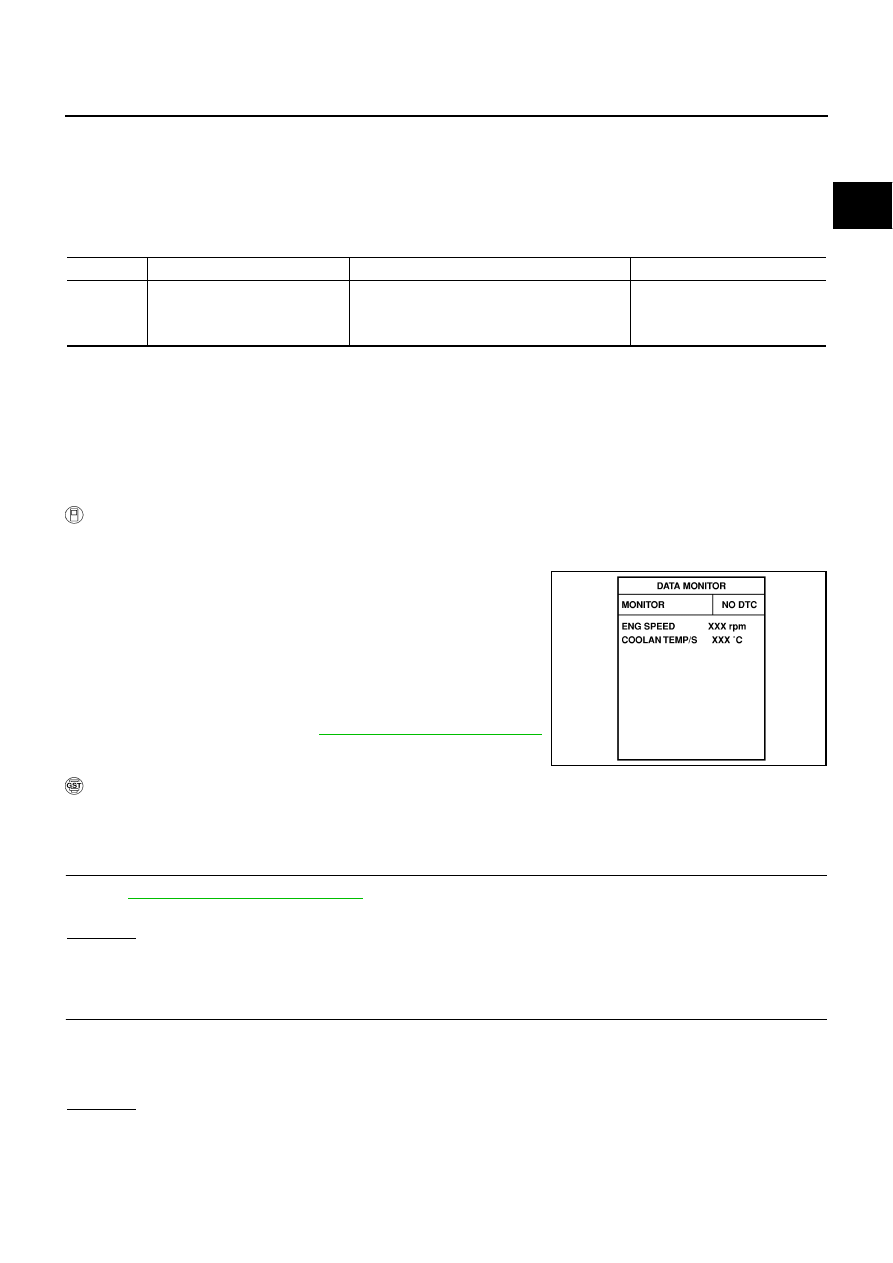

WITH CONSULT-II
1.
Turn ignition switch ON.
2.
Select “DATA MONITOR” mode with CONSULT-II.
3.
Turn ignition switch OFF and wait at least 10 seconds.
4.
Turn ignition switch ON.
5.
Repeat steps 3 and 4 for 32 times.
6.
If 1st trip DTC is detected, go to
EC-538, "Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.

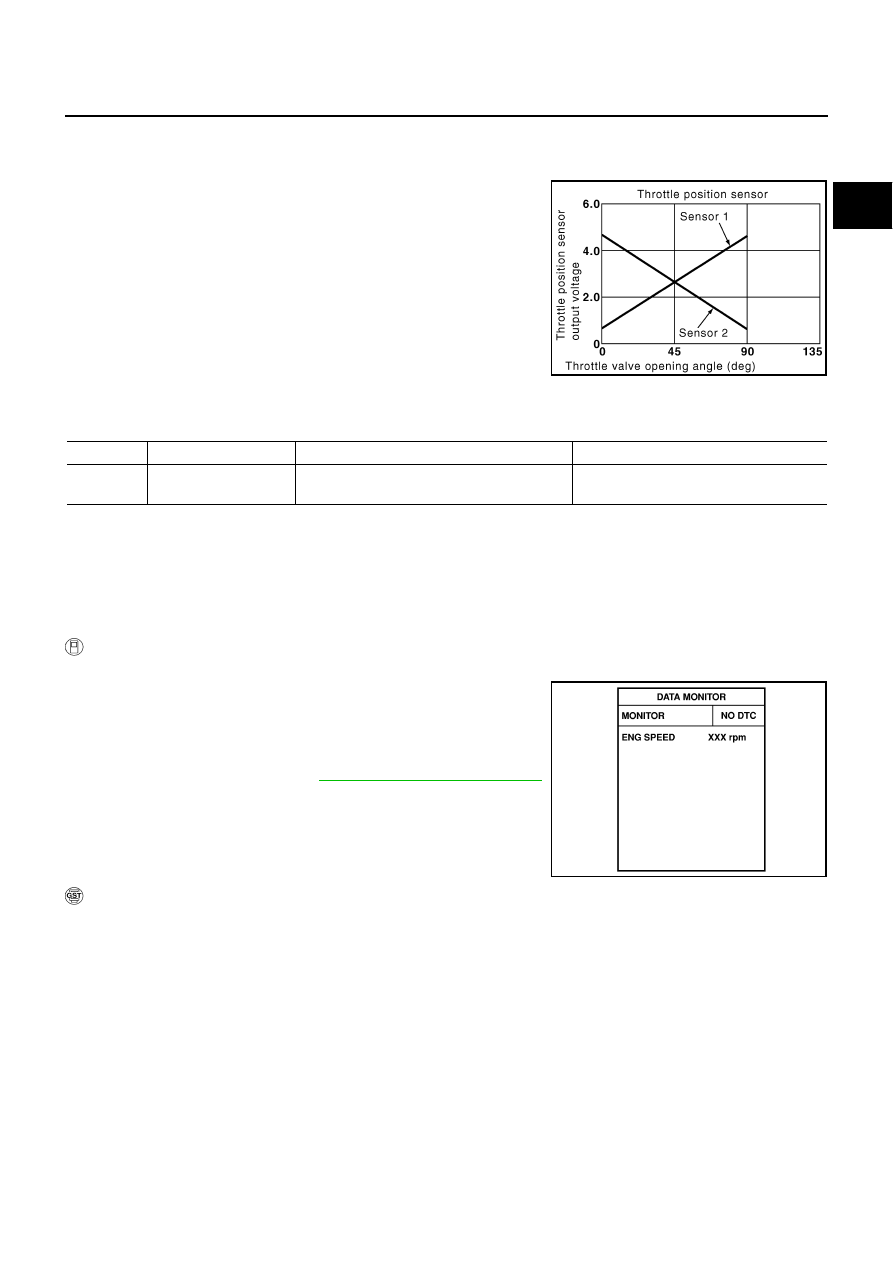

PBIB0145E
DTC No.
Trouble diagnosis name
DTC detecting condition
Possible cause
P1226
1226
Closed throttle position
learning performance
Closed throttle position learning is not per-
formed successfully, repeatedly.
●
Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
