DTC P1078 P1084 EVT CONTROL POSITION SENSOR

EC-513

C

D

E

F

G

H

I

J

K

L

M

A

EC

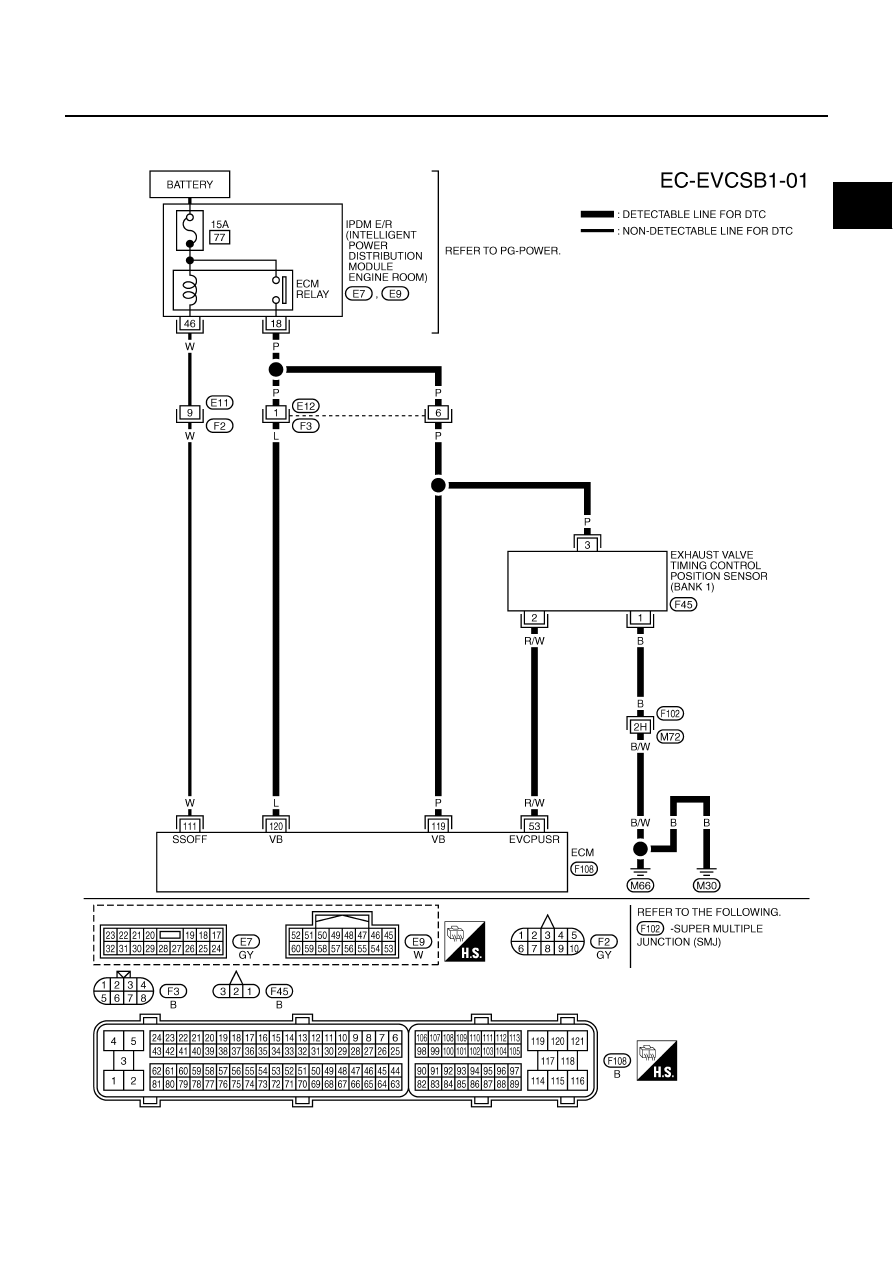

Wiring Diagram

NBS000VK

BANK 1

TBWM0836E

EC-514

DTC P1078 P1084 EVT CONTROL POSITION SENSOR

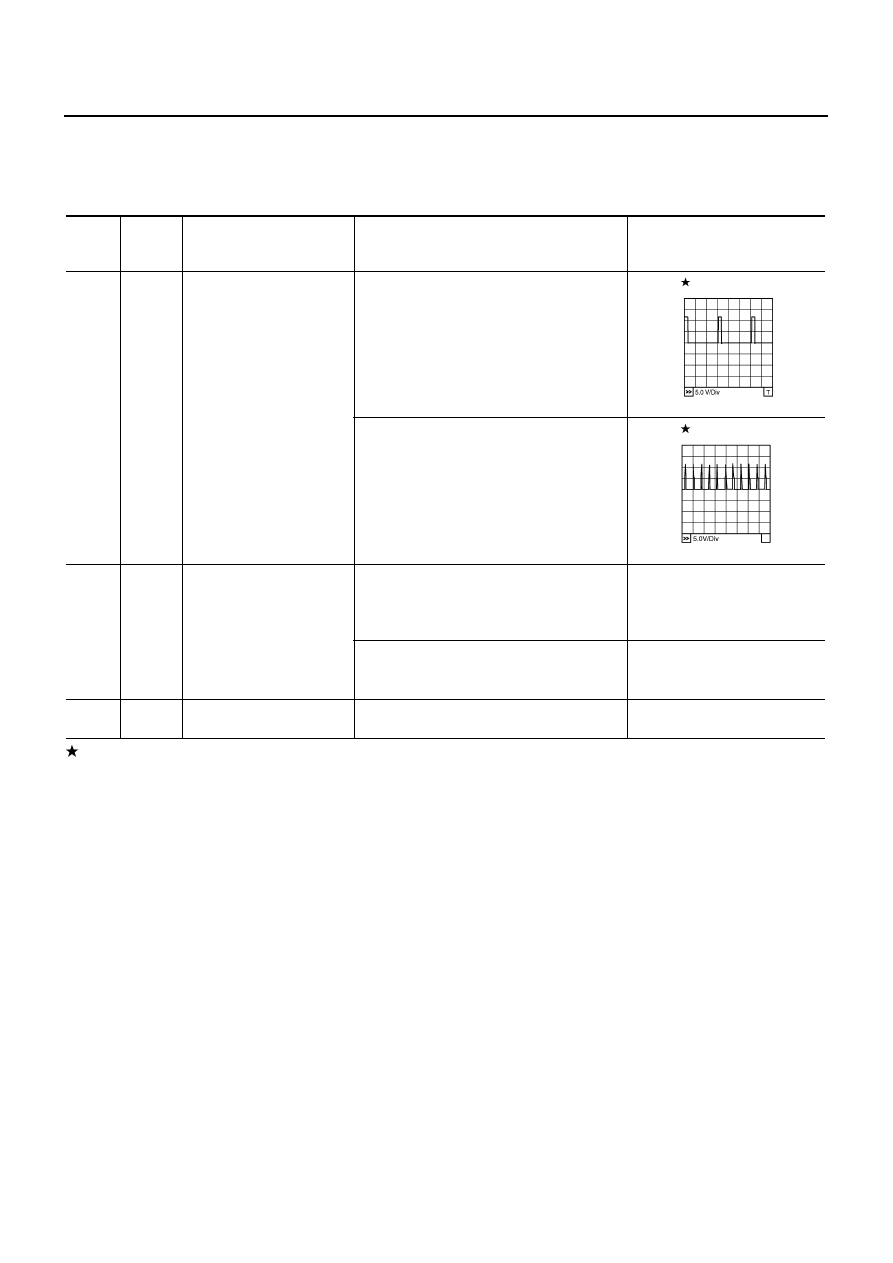

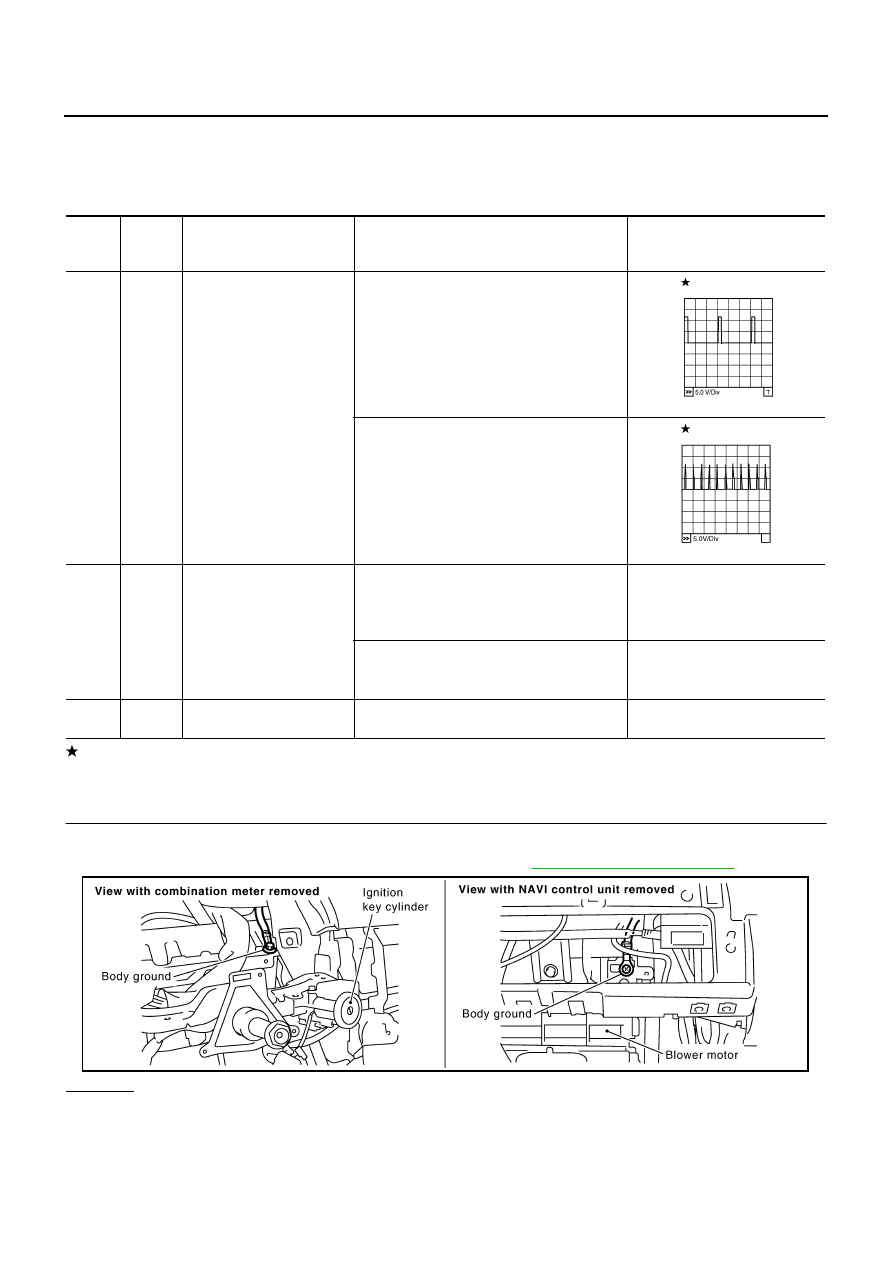

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

53

R/W

Exhaust valve timing control
position sensor (bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

NOTE:
The pulse changes depending on rpm at idle.

0 - 1.0V

[Engine is running]

●

Warm-up condition

●

Engine speed: 2,000rpm

0 - 1.0V

111

W

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

●

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

●

More than a few seconds after turning igni-
tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

P
L

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB2867E

PBIB2046E

DTC P1078 P1084 EVT CONTROL POSITION SENSOR

EC-515

C

D

E

F

G

H

I

J

K

L

M

A

EC

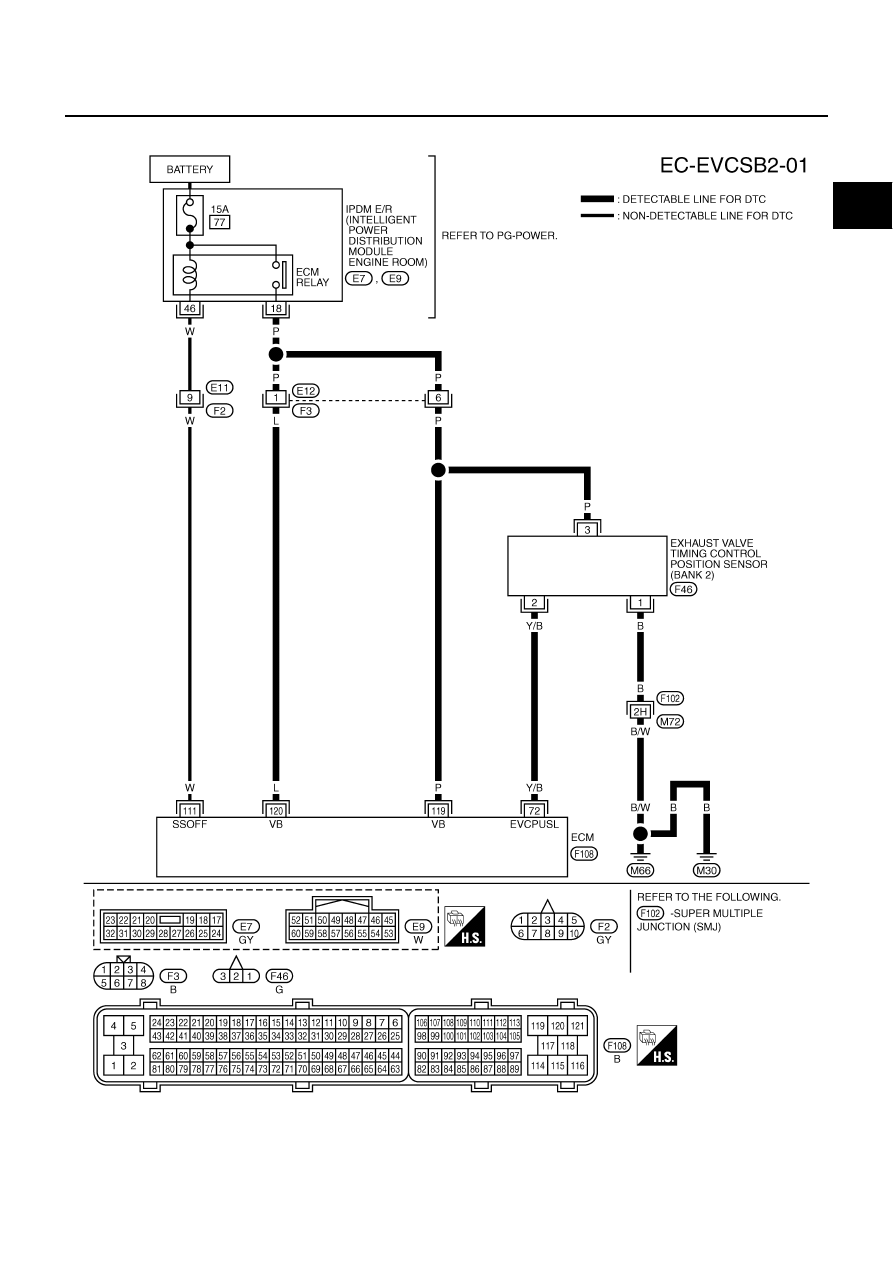

BANK 2

TBWM0946E

EC-516

DTC P1078 P1084 EVT CONTROL POSITION SENSOR

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

NBS000VL

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws on the body. Refer to

EC-159, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

72

W

Exhaust valve timing control
position sensor (bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

NOTE:
The pulse changes depending on rpm at idle.

0 - 1.0V

[Engine is running]

●

Warm-up condition

●

Engine speed: 2,000 rpm

0 - 1.0V

111

W

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

●

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

●

More than a few seconds after turning igni-
tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

P
L

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB2867E

PBIB2046E
