Infiniti G35 (V35). Manual - part 373

DTC P0327, P0328 KS

EC-373

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

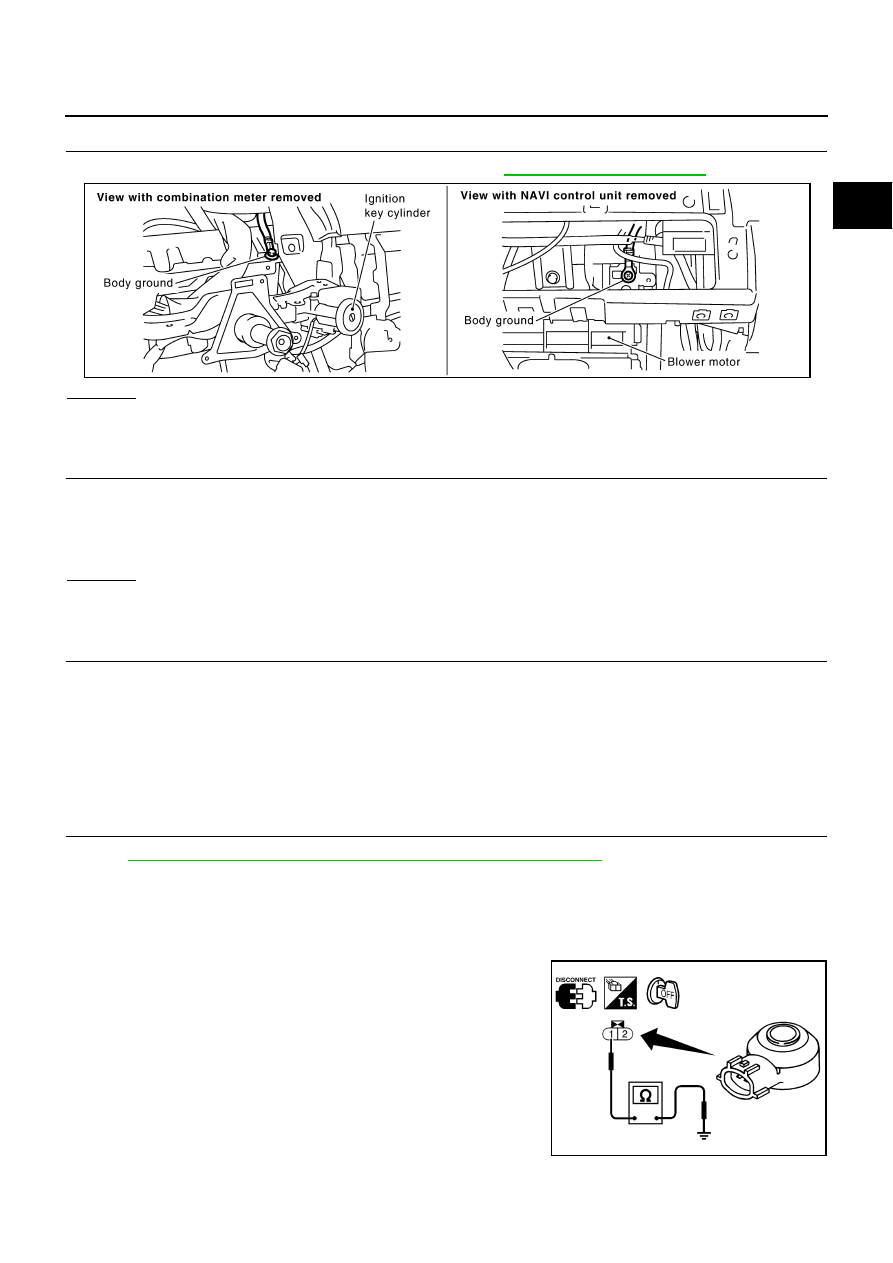

CHECK GROUND CONNECTIONS

Loosen and retighten two ground screws on the body. Refer to

EC-159, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace ground connections.

6.

CHECK KNOCK SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT

1.

Disconnect knock sensor harness connector.

2.

Check harness continuity between knock sensor terminal 2 and ground. Refer to Wiring Diagram.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors F37, F229

●

Harness connectors F102, M72

●

Harness for open or short between knock sensor terminal 2 and ground

>> Repair open circuit or short power in harness or connectors.

8.

CHECK INTERMITTENT INCIDENT

Refer to

EC-151, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Component Inspection

NBS000RZ

KNOCK SENSOR

Check resistance between knock sensor terminal 1 and ground.

NOTE:
It is necessary to use an ohmmeter which can measure more
than 10 M

Ω

.

CAUTION:

Do not use any knock sensors that have been dropped or phys-
ically damaged. Use only new ones.

PBIB2192E

Continuity should exist.

Resistance: Approximately 532 - 588 k

Ω

 [at 20

°

C (68

°

F)]

SEF111Y

EC-374

DTC P0327, P0328 KS

Removal and Installation

NBS000S0

KNOCK SENSOR

Refer to

EM-137, "CYLINDER BLOCK"

 .

DTC P0335 CKP SENSOR (POS)

EC-375

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0335 CKP SENSOR (POS)

PFP:23731

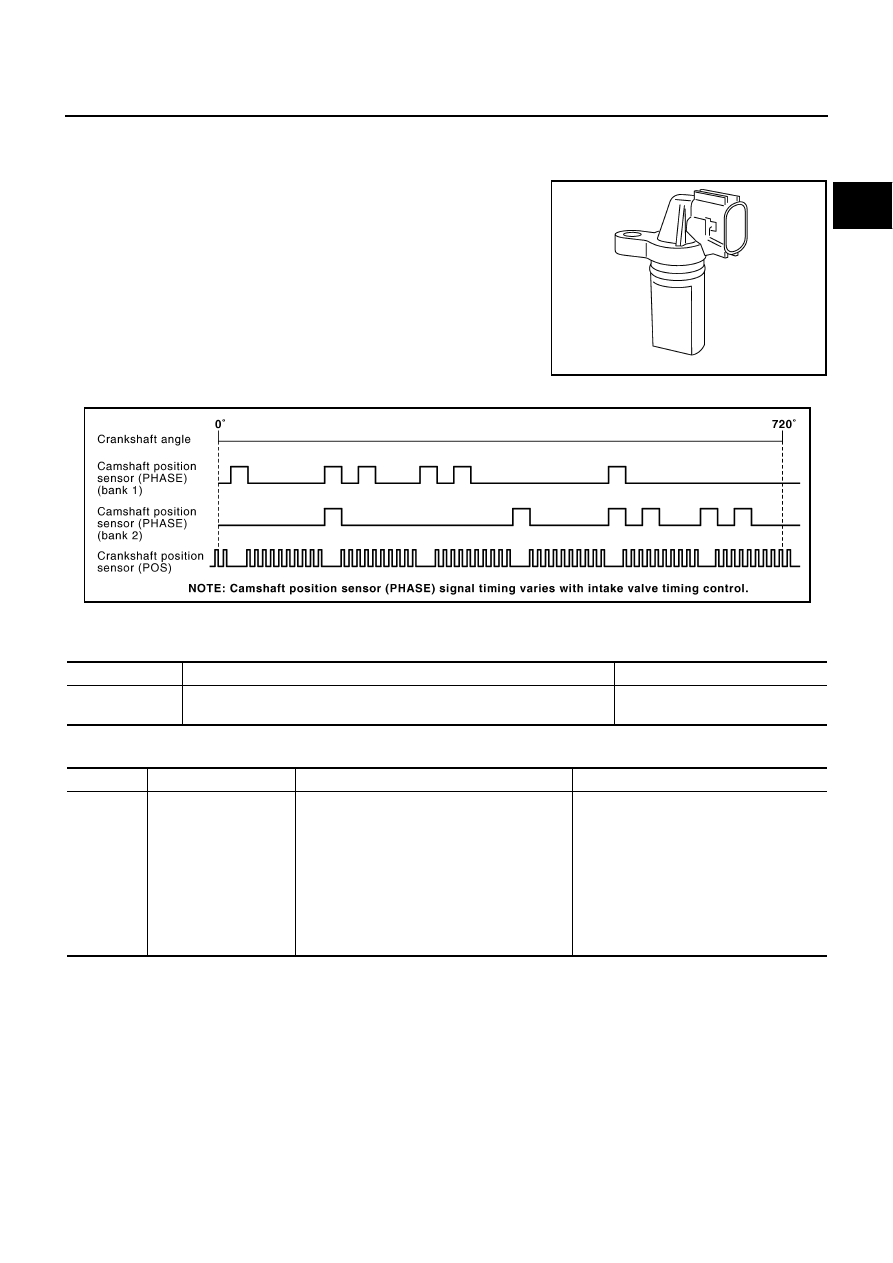

Component Description

NBS000S1

The crankshaft position sensor (POS) is located on the oil pan facing
the gear teeth (cogs) of the signal plate. It detects the fluctuation of
the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
ECM receives the signals as shown in the figure.

CONSULT-II Reference Value in Data Monitor Mode

NBS000S2

Specification data are reference values.

On Board Diagnosis Logic

NBS000S3

PBIB0562E

PBIB2744E

MONITOR ITEM

CONDITION

SPECIFICATION

ENG SPEED

●

Run engine and compare  CONSULT-II value with the tachometer indica-
tion.

Almost the same speed as the
tachometer indication.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0335
0335

Crankshaft position
sensor (POS) circuit

●

The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.

●

The proper pulse signal from the crankshaft
position sensor (POS) is not sent to ECM
while the engine is running.

●

The crankshaft position sensor (POS) signal
is not in the normal pattern during engine
running.

●

Harness or connectors
(The sensor circuit is open or shorted)

●

Crankshaft position sensor (POS)

●

Signal plate

EC-376

DTC P0335 CKP SENSOR (POS)

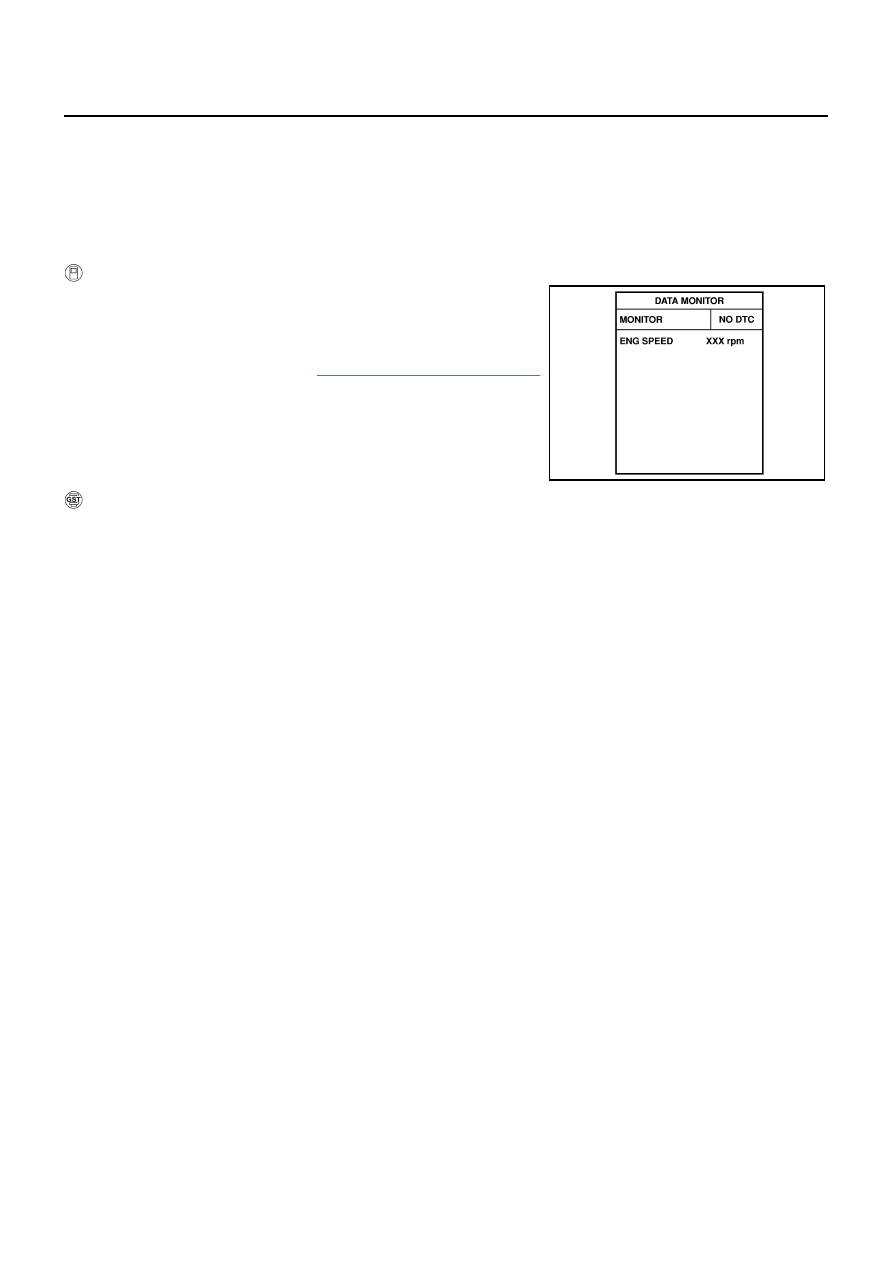

DTC Confirmation Procedure

NBS000S4

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.

 WITH CONSULT-II

1.

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.

3.

If 1st trip DTC is detected, go to

EC-378, "Diagnostic Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y
