Trouble Diagnoses
NIS000DL
DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter Does Not Activate Receiver.
Before conducting the procedure given below, make sure that system receiver (garage door opener, etc.)
operates with original, hand-held transmitter. If NG, receiver or hand-held transmitter is malfunctioning, not
vehicle related.
1.
CHECK ILLUMINATION
1.
Turn ignition switch OFF.
2.

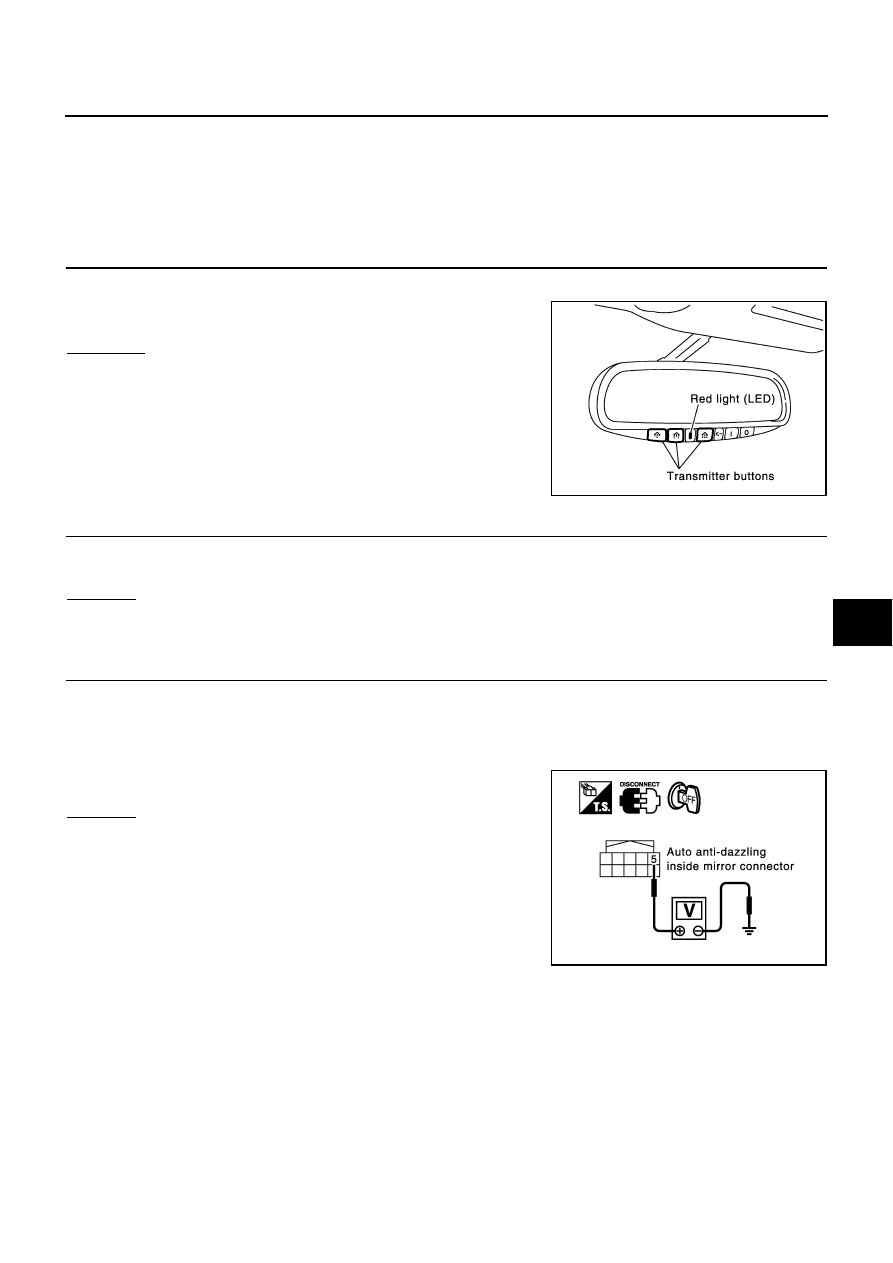

Does red light (LED) of transmitter illuminate when any transmit-
ter button is pressed?
YES or NO
YES
>> GO TO 2.
NO
>> GO TO 3.
2.
CHECK TRANSMITTER
Check transmitter with Tool*.
*:For details, refer to Technical Service Bulletin.
OK or NG
OK
>> Receiver or hand-held transmitter malfunction, not vehicle related.
NG
>> Replace inside mirror assembly.
3.
CHECK POWER SUPPLY
1.
Turn ignition switch OFF.
2.
Disconnect transmitter connector.
3.

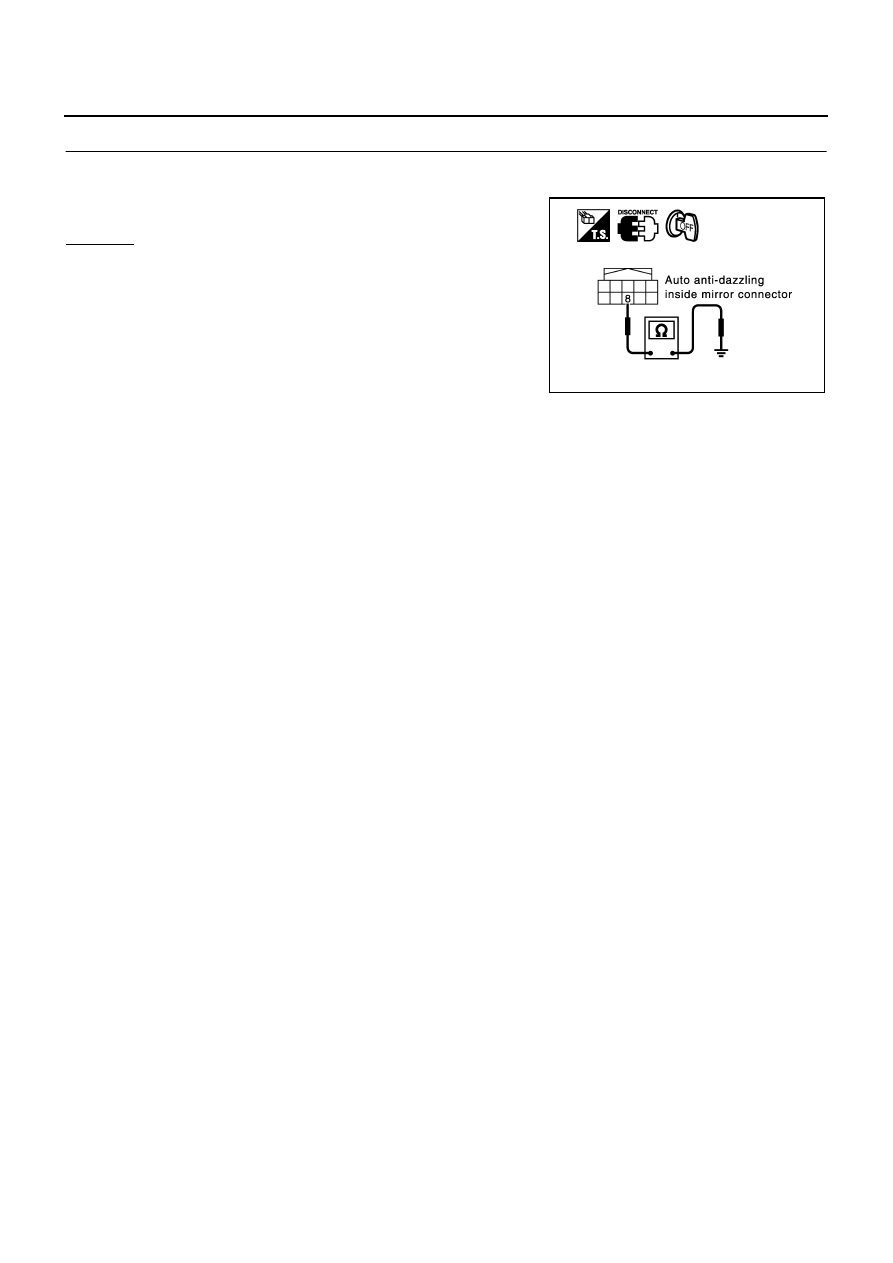

Check voltage between auto anti-dazzling inside mirror (homelink universal transceiver) connector R7 ter-
minal 5 and ground.
OK or NG
OK
>> GO TO 4.
NG
>> Check the following
●
Check 10A fuse. [No. 19 located in the fuse block (J/
B)]
●
Repair or replace harness between fuse and anti-daz-
zling inside mirror (homelink universal transceiver).
PIIA2371E
5 (B/R) – Ground
: Battery voltage
PIIA2370E
