3.

CHECK TRUNK LID LOCK ASSEMBLY (TRUNK ROOM LAMP SWITCH) GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between trunk lid lock assembly (trunk room
lamp switch) connector and ground.

OK or NG

OK

>> Check trunk kid lock assembly.

NG

>> Repair or replace trunk room lamp switch harness.

Diagnostic Procedure 2

NIS001J1

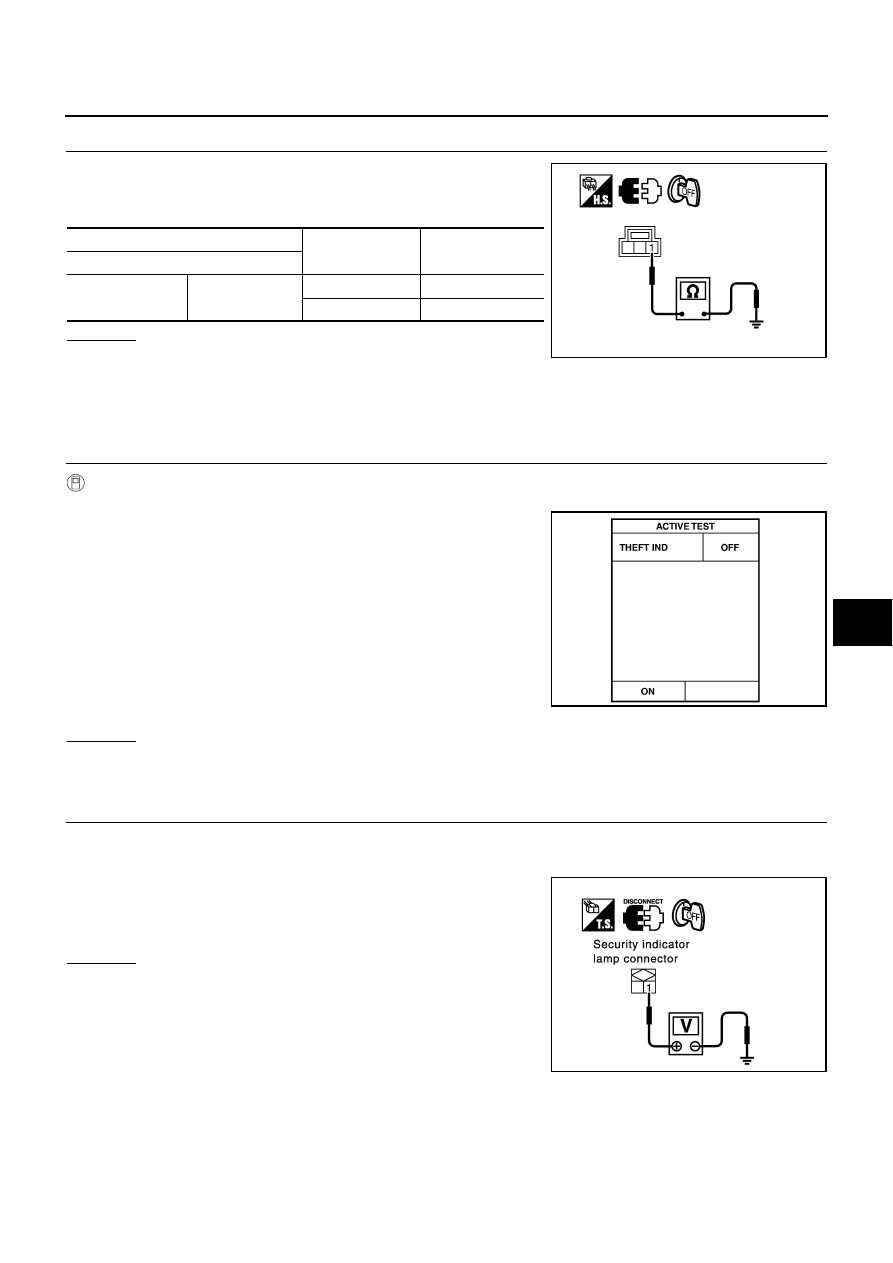

CHECK SECURITY INDICATOR LAMP

1.

SECURITY INDICATOR LAMP ACTIVE TEST

 With CONSULT-II

Check “THEFT IND” in “ACTIVE TEST” mode with CONSULT-II.

OK or NG

OK

>> Security indicator lamp is OK.

NG

>> GO TO 2.

2.

CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect security indicator lamp connector.

3.

Check voltage between security indicator lamp connector M34
terminal 1 and ground.

OK or NG

OK

>> Check the following.

●

Harness for open or short between BCM and security
indicator lamp

●

Security indicator lamp condition

NG

>> Check the following.

●

10A fuse [No.19, located in fuse block (J/B)]

●

Harness for open or short between security indicator lamp and fuse

Terminal

Door switch

Continuity

Door switch

1

3

Pushed

No

Released

Yes

PIIB9119E

Perform operation shown on display indicator lamp
should illuminate.

PIIA7005E

1 – Ground

: Battery voltage

PIIA1128E

BL-212

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Diagnostic Procedure 3

NIS001J2

CHECK FRONT DOOR KEY CYLINDER SWITCH

1.

CHECK KEY CYLINDER SWITCH OPERATION

Check if door key cylinder switch using key.

Do doors lock / unlock when using the key?

YES

>> Front door key cylinder switch operation is OK.

NO

>> Check door key cylinder switch circuit. Refer to

BL-212, "CHECK FRONT DOOR KEY CYLINDER

SWITCH"

 .

Diagnostic Procedure 4

NIS001J3

CHECK VEHICLE SECURITY HORN ALARM

First perform the “SELF-DIAG RESULTS” of “BCM” with CONSULT-II, then perform the trouble diagno-
sis of malfunction system indicated in “SELF-DIAG RESULTS” of “BCM”. Refer to

BCS-15, "CAN Com-

munication Inspection Using CONSULT-II (Self-Diagnosis)"

.

1.

CHECK HORN OPERATION

Check if horn sounds with horn switch.

Does horn operate?

Yes

>> GO TO 2.

No

>> GO TO 3.

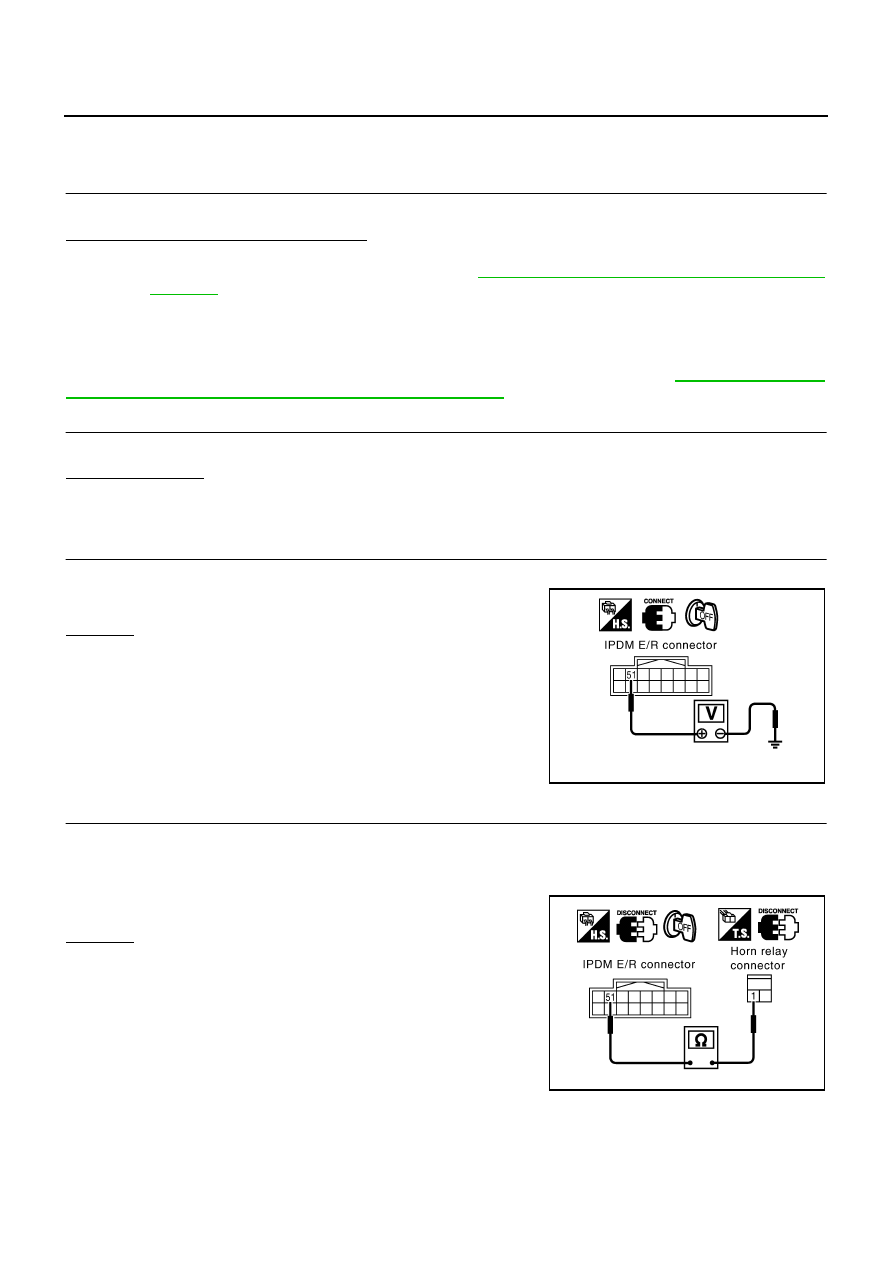

2.

CHECK IPDM E/R INPUT SIGNAL

Check voltage between IPDM E/R connector E9 terminal 51 and ground.

OK or NG

OK

>> Replace IPDM E/R.

NG

>> GO TO 3.

3.

CHECK HORN RELAY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R and horn relay connector.

3.

Check continuity between IPDM E/R connector E9 terminal 51 and horn relay connector E20 terminal 1.

OK or NG

OK

>> Check harness connection.

NG

>> Repair or replace harness.

51 – Ground

: Battery voltage

PIIA9444E

51 – 1

: Continuity should exist.

PIIA9445E

VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-213

C

D

E

F

G

H

J

K

L

M

A

B

BL

Diagnostic Procedure 5

NIS001J4

CHECK VEHICLE SECURITY HEADLAMP ALARM

1.

CHECK HEADLAMP OPERATION

Check if headlamp operate by lighting switch.

Does headlamp come on when turning switch “ON”?

YES

>> Headlamp circuit is OK.

NO

>> Check headlamp system. Refer to

LT-5, "HEADLAMP - XENON TYPE -"

  or

LT-35, "DAYTIME

LIGHT SYSTEM"

 .

Diagnostic Procedure 6

NIS001J5

CHECK DOOR LOCK AND UNLOCK SWITCH

1.

CHECK DOOR LOCK AND UNLOCK SWITCH INPUT SIGNAL

Check if power door lock operated by door lock and unlock switch.

Do doors lock / unlock when using each door lock and unlock switches?

YES

>> Door lock and unlock switch is OK.

NO

>> Check door lock and unlock switch. Refer to

BL-213, "CHECK DOOR LOCK AND UNLOCK

SWITCH"

BL-214

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

PFP:28591

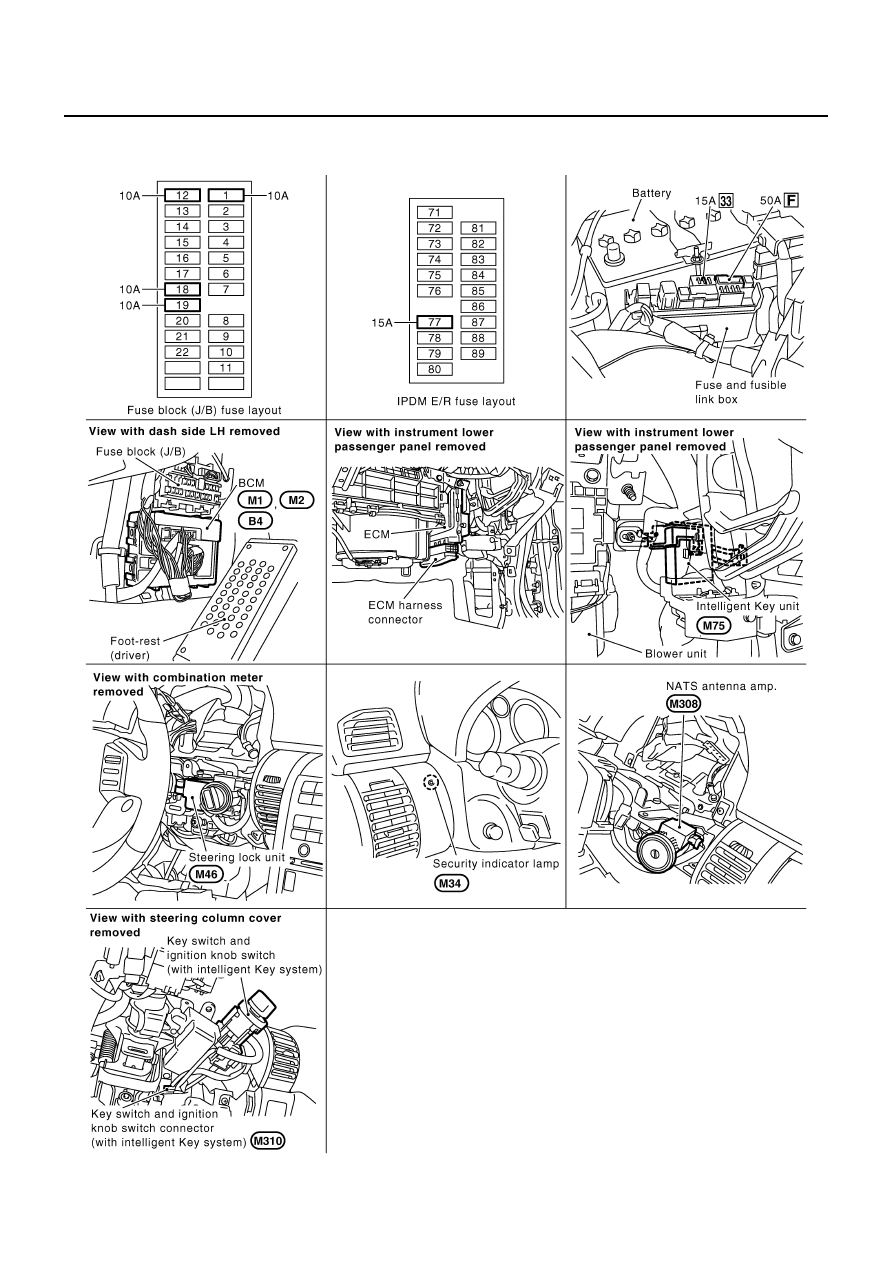

Component Parts and Harness Connector Location

NIS001KK

PIIB4394E
