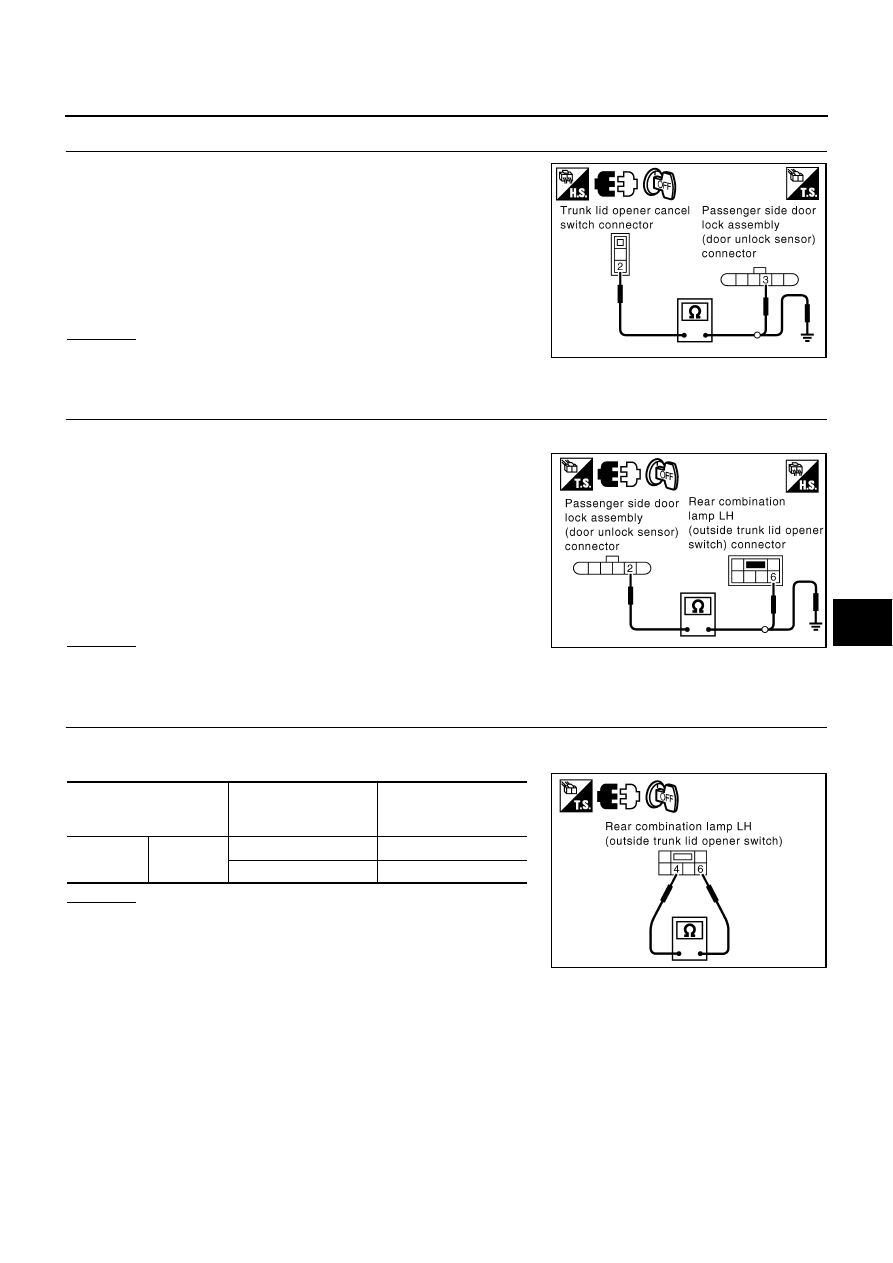

TRUNK LID OPENER

BL-183

C

D

E

F

G

H

J

K

L

M

A

B

BL

9.

CHECK PASSENGER SIDE DOOR LOCK ASSEMBLY (DOOR UNLOCK SENSOR) CIRCUIT

1.

Check continuity between trunk lid opener cancel switch con-
nector M56 terminal 2 and passenger side door lock assembly
(door unlock sensor) connector D44 terminal 3.

2.

Check continuity between trunk lid opener cancel switch con-
nector M56 terminal 2 and ground.

OK or NG

OK

>> GO TO 10.

NG

>> Repair harness or connector.

10.

CHECK REAR COMBINATION LAMP LH (OUTSIDE TRUNK LID OPENER SWITCH) CIRCUIT

1.

Disconnect rear combination lamp LH (outside trunk lid opener switch) connector.

2.

Check continuity between passenger side door lock assembly
(door unlock sensor) connector D44 terminal 2 and rear combi-
nation lamp LH (outside trunk lid opener switch) connector B125
terminal 6.

3.

Check continuity between passenger side door lock assembly
(door unlock sensor) connector D44 terminal 2 and ground.

OK or NG

OK

>> GO TO 11.

NG

>> Repair harness or connector.

11.

CHECK REAR COMBINATION LAMP LH (OUTSIDE TRUNK LID OPENER SWITCH)

Check continuity between rear combination lamp LH (outside trunk lid opener switch) connector B125 termi-
nals 4 and 6.

OK or NG

OK

>> GO TO 12.

NG

>> Replace rear combination lamp LH (outside trunk lid

opener switch).

2 (L) - 3 (W)

: Continuity should exist.

2 (L) - Ground

: Continuity should not exist.

PIIB7647E

2 (B/R) - 6 (B/R)

: Continuity should exist.

2 (B/R) - Ground

: Continuity should not exist.

PIIB7420E

Terminals

rear combination lamp

LH (outside trunk lid

opener switch) condition

Continuity

4

6

OFF (released)

No

ON (pushed)

Yes

PIIB7421E

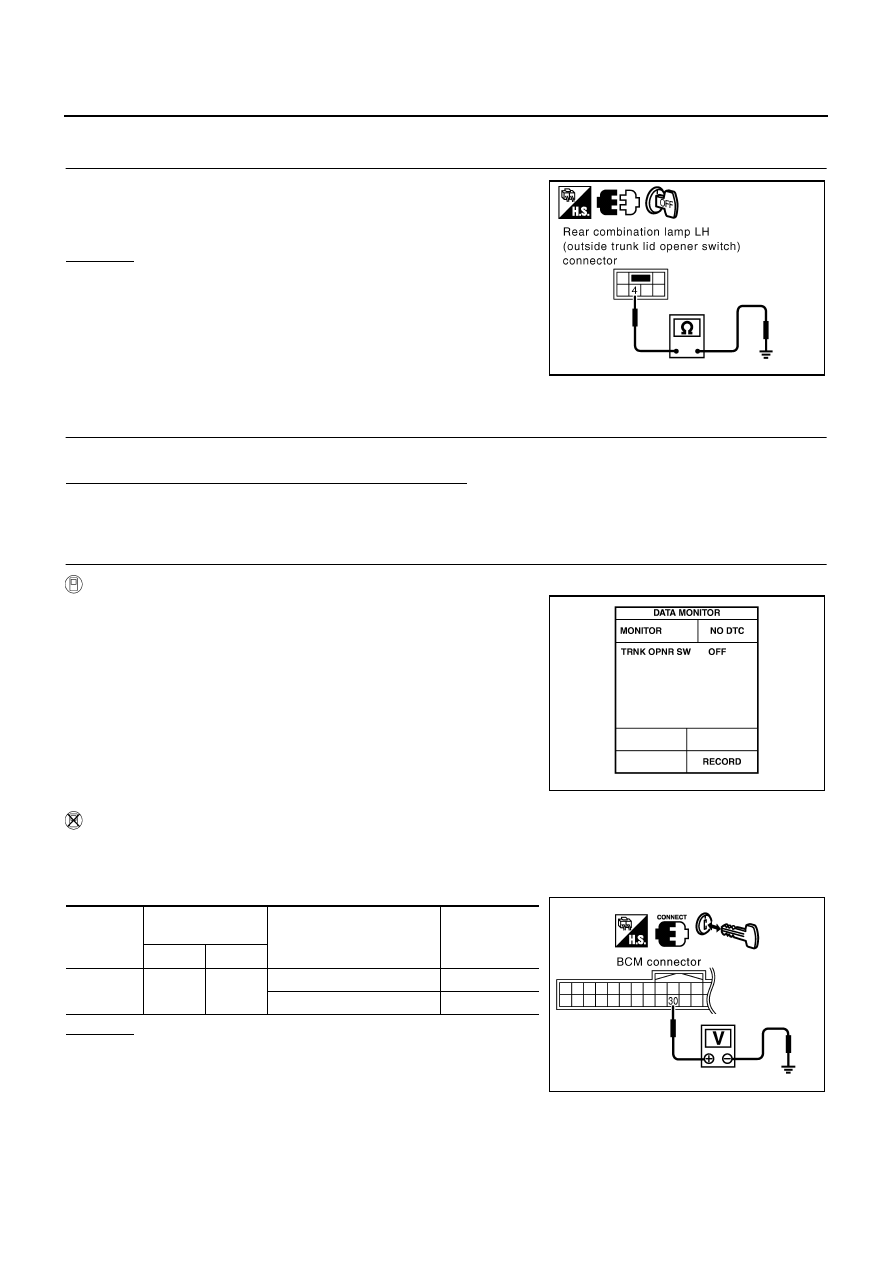

BL-184

TRUNK LID OPENER

12.

CHECK REAR COMBINATION LAMP LH (OUTSIDE TRUNK LID OPENER SWITCH) GROUND CIR-

CUIT

Check continuity between rear combination lamp LH (outside trunk
lid opener switch) connector B125 terminal 4 and ground.

OK or NG

OK

>> Check condition of harness and connector.

NG

>> Repair or replace harness.

TRUNK DOES NOT OPEN WITH TRUNK LID OPENER SWITCH / WITH INTELLIGENT KEY

1.

CHECK TRUNK LID OPENER CANCEL SWITCH

Check trunk lid opener cancel switch position.

Does trunk lid opener cancel switch turn OFF (CANCEL)?

Yes

>> Turn on trunk lid opener cancel switch.

No

>> GO TO 2.

2.

CHECK TRUNK LID OPEN INPUT SIGNAL

With CONSULT-II

Check trunk lid opener switch (“TRNK OPNR SW”) in “DATA MONI-
TOR” mode with CONSULT-II.

●

When trunk lid opener switch is turned to “LOCK”.

Without CONSULT-II

1.

Remove key from ignition key cylinder.

2.

Turn on trunk lid opener cancel switch.

3.

Check voltage between BCM connector and ground.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 6.

4 (B) - Ground

: Continuity should exist.

PIIB7422E

TRNK OPNR SW

: ON

PIIA9937E

Connector

Terminal

(Wire color)

Condition

Voltage [V]

(Approx.)

(+)

(–)

M1

30 (P)

Ground

Trunk lid opener switch ON

0

Trunk lid opener switch OFF

5

PIIA9334E

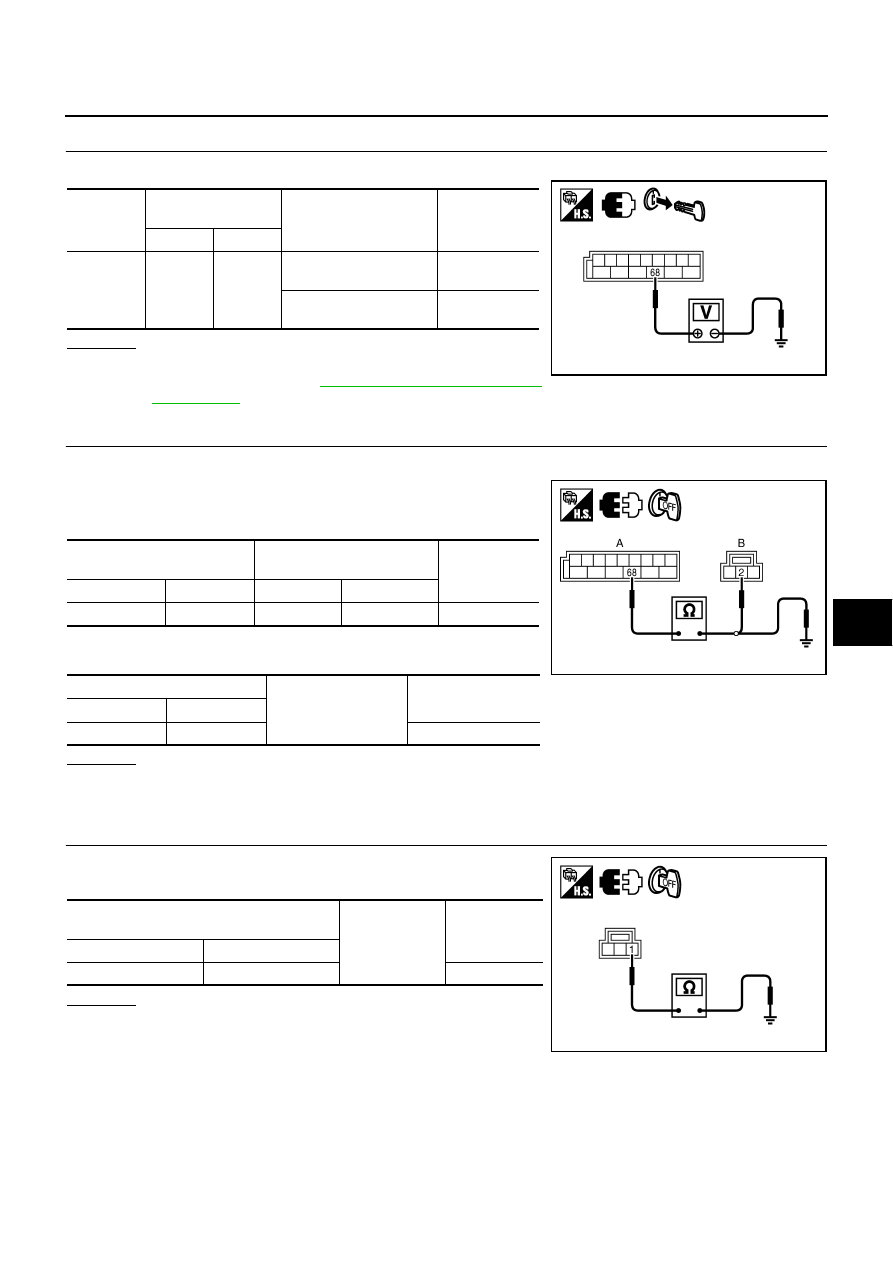

TRUNK LID OPENER

BL-185

C

D

E

F

G

H

J

K

L

M

A

B

BL

3.

CHECK TRUNK LID OPEN OUTPUT SIGNAL

Check voltage between BCM connector and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

4.

CHECK TRUNK LID LOCK ASSEMBLY (TRUNK LID OPENER ACTUATOR) CIRCUIT

1.

Disconnect BCM connector and trunk lid lock assembly (trunk lid opener actuator) connector.

2.

Check continuity between BCM harness connector B4 terminal
68 and trunk lid lock assembly (trunk lid opener actuator) har-
ness connector B419 terminal 2.

3.

Check continuity between BCM harness connector B4 terminal
68 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness or connector.

5.

CHECK TRUNK LID LOCK ASSEMBLY (TRUNK LID OPENER ACTUATOR) GROUND CIRCUIT

Check continuity between trunk lid lock assembly (trunk lid opener
actuator) connector B419 terminal 1 and ground.

OK or NG

OK

>> Replace trunk lid lock assembly (trunk lid opener actua-

tor).

NG

>> Repair harness or connector.

Connector

Terminal

(Wire color)

Condition

Voltage [V]

(Approx.)

(+)

(–)

B4

68 (G/W)

Ground

Trunk lid opener switch
ON

Battery voltage

Trunk lid opener switch
OFF

0

PIIB9157E

BCM (A)

Trunk lid lock assembly (trunk

lid opener actuator) (B)

Continuity

Connector

Terminal

Connector

Terminal

B4

68

B419

2

Yes

BCM (A)

Ground

Continuity

Connector

Terminal

B4

68

No

PIIB9158E

Trunk lid lock assembly (trunk lid opener actu-

ator) (A)

Ground

Continuity

Connector

Terminal

B419

1

Yes

PIIB9159E

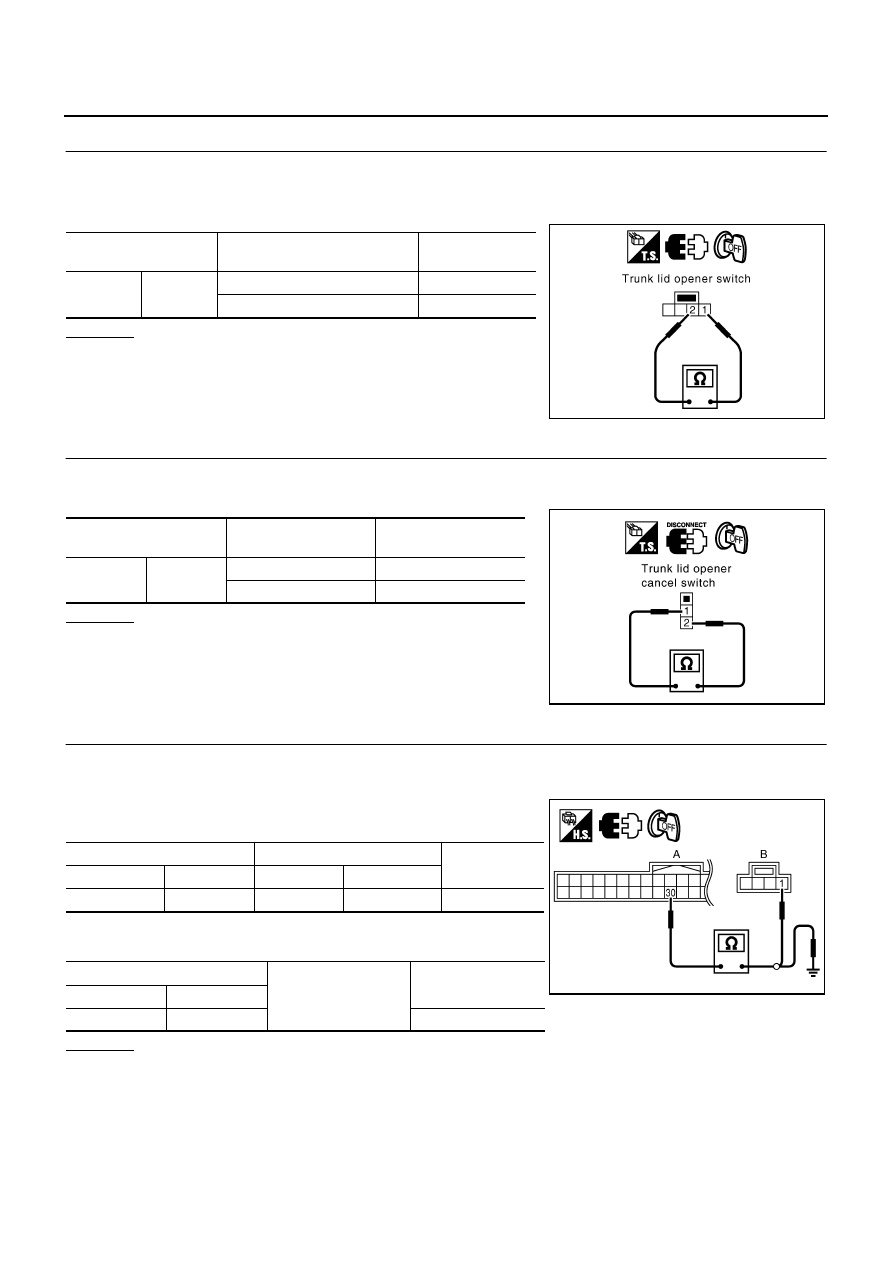

BL-186

TRUNK LID OPENER

6.

CHECK TRUNK LID OPENER SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect trunk lid opener switch connector.

3.

Check continuity between trunk lid opener switch connector M84 terminals 1 and 2.

OK or NG

OK

>> GO TO 7.

NG

>> Replace trunk lid opener switch.

7.

CHECK TRUNK LID OPENER CANCEL SWITCH

1.

Disconnect trunk lid opener cancel switch connector.

2.

Check continuity between trunk lid opener cancel switch connector M56 terminals 1 and 2.

OK or NG

OK

>> GO TO 8.

NG

>> Replace trunk lid opener cancel switch.

8.

CHECK TRUNK LID OPENER SWITCH CIRCUIT

1.

Disconnect BCM connector.

2.

Turn on trunk lid opener switch.

3.

Check continuity between BCM connector M1 terminal 30 and
trunk lid opener switch connector M84 terminal 1.

4.

Check continuity between BCM connector M1 terminal 30 and
ground.

OK or NG

OK

>> GO TO 9.

NG

>> Repair harness or connector.

Terminals

Trunk lid opener switch

condition

Continuity

1

2

ON (Pushed)

Yes

OFF (Released)

No

PIIB4238E

Terminals

Trunk lid opener cancel

switch condition

Continuity

1

2

ON

Yes

OFF

No

PIIA7871E

BCM (A)

Trunk lid opener switch (B)

Continuity

Connector

Terminal

Connector

Terminal

M1

30

M84

1

Yes

BCM (A)

Ground

Continuity

Connector

Terminal

M1

30

No

PIIB9163E
