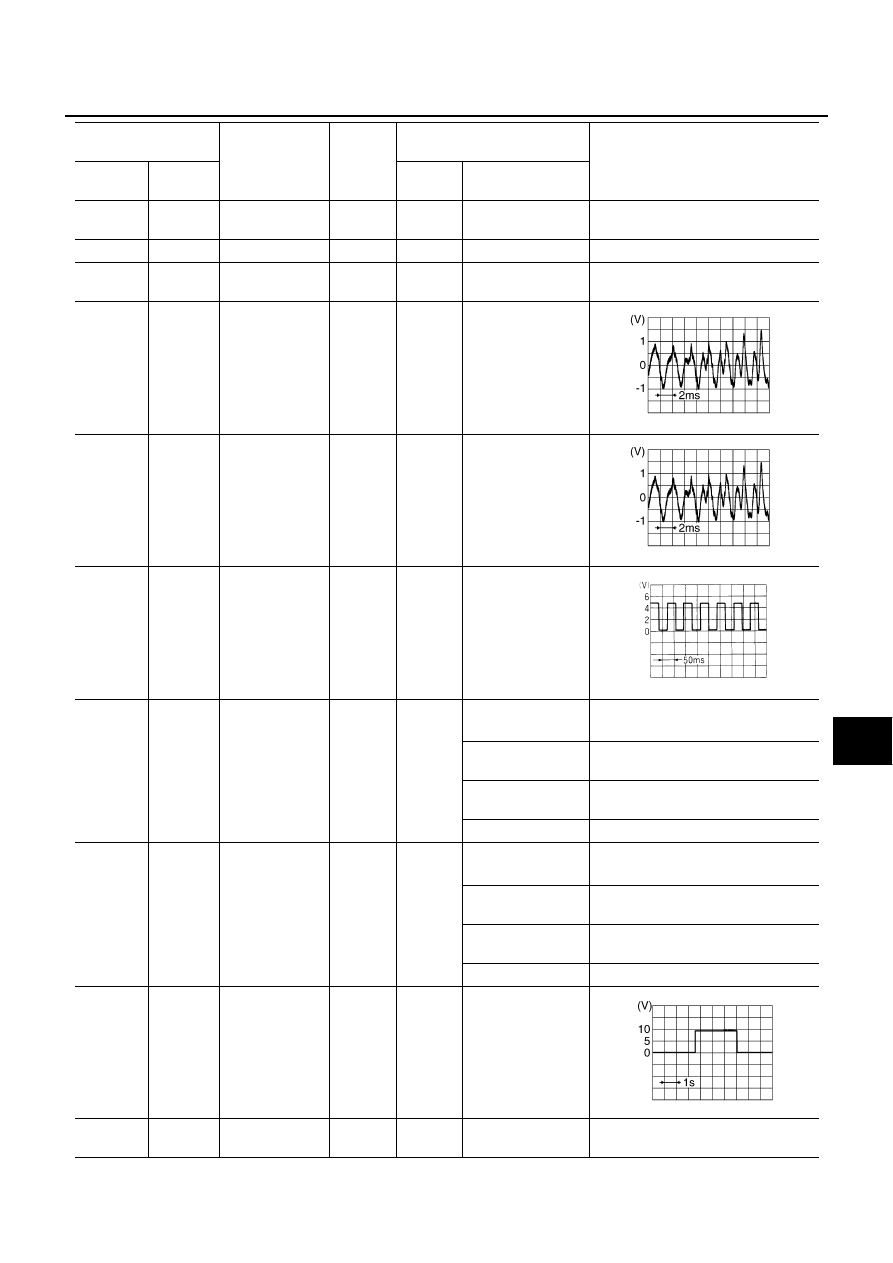

AUDIO

AV-23

C

D

E

F

G

H

I

J

L

M

A

B

AV

10

(LG)

Ground

ACC power sup-
ply

Input

ACC

—

Battery voltage

11

—

Shield

—

—

—

—

12

(G/Y)

Ground

Amp. ON signal

Output

ON

—

Approx. 12 V

14

(BR)

13

(Y)

Audio signal rear
LH

Output

ON

Receive audio sig-
nal

16

(L)

15

(P)

Audio signal rear
RH

Output

ON

Receive audio sig-
nal

18

(W/G)

Ground

Vehicle
speed signal (2-
pulse)

Input

ON

When vehicle speed
is approx. 40 km/h
(25 MPH)

22

(R)

Ground

Remote control A

Input

ON

Press MODE

switch

*1

Approx. 0 V

Press SEEK UP
switch

Approx. 1.7 V

Press VOL UP
switch

Approx. 3.3 V

Except for above

Approx. 5 V

23

(G)

Ground

Remote control B

Input

ON

Press POWER

switch

*2

Approx. 0 V

Press SEEK DOWN
switch

Approx. 1.7 V

Press VOL DOWN
switch

Approx. 3.3 V

Except for above

Approx. 5 V

24

(R/B)

Ground

Voice guidance
ON signal (With
navigation sys-
tem)

Input

ON

Press the “VOICE”
switch

25

(Y)

—

Remote control
ground

—

ON

—

Approx. 0 V

Terminal

 (Wire color)

Item

Signal

input/out-

put

Condition

Reference value

+

–

Ignition

switch

Operation

SKIB3609E

SKIB3609E

ELF1080D

SKIB0232E

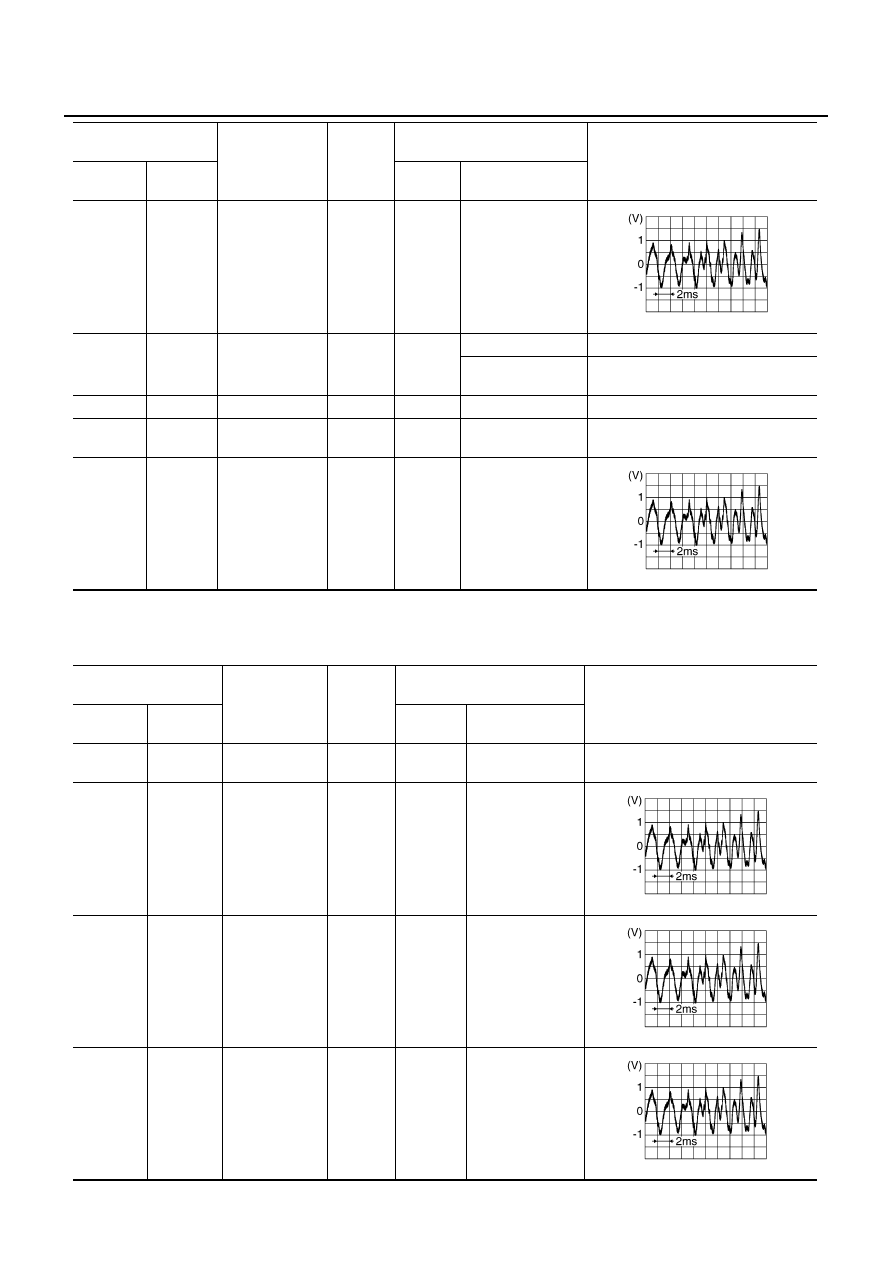

AV-24

AUDIO

*1 With telephone system: PTT switch
*2 With telephone system: MODE switch

Terminals and Reference Value for BOSE Speaker Amp.

NKS002F5

27

(W)

26

(OR)

TEL voice signal

Input

ON

When inputting TEL
voice signal

28

(L)

Ground

Tel ON signal

Input

ON

When using TEL

Approx. 0 V

When not using
TEL

Approx. 5 V

29

—

Shield

—

—

—

—

31

(B)

—

Shield —

—

—

—

32

(L/W)

30

(W/B)

Voice guidance
signal (With navi-
gation system)

Input

ON

When inputting
voice guidance

Terminal

 (Wire color)

Item

Signal

input/out-

put

Condition

Reference value

+

–

Ignition

switch

Operation

SKIB3609E

SKIB3609E

Terminal

(Wire color)

Item

Signal

input/out-

put

Condition

Reference value

+

–

Ignition

switch

Operation

1

(Y/R)

Ground

Battery power
supply

Input

—

—

Battery voltage

9

(G/Y)

10

(B/Y)

Audio signal
rear LH

Output

ON

Receive audio sig-
nal

11

(R/L)

12

(B)

Audio signal
rear RH

Output

ON

Receive audio sig-
nal

13

(G)

14

(R)

Audio signal
front LH

Output

ON

Receive audio sig-
nal

SKIB3609E

SKIB3609E

SKIB3609E

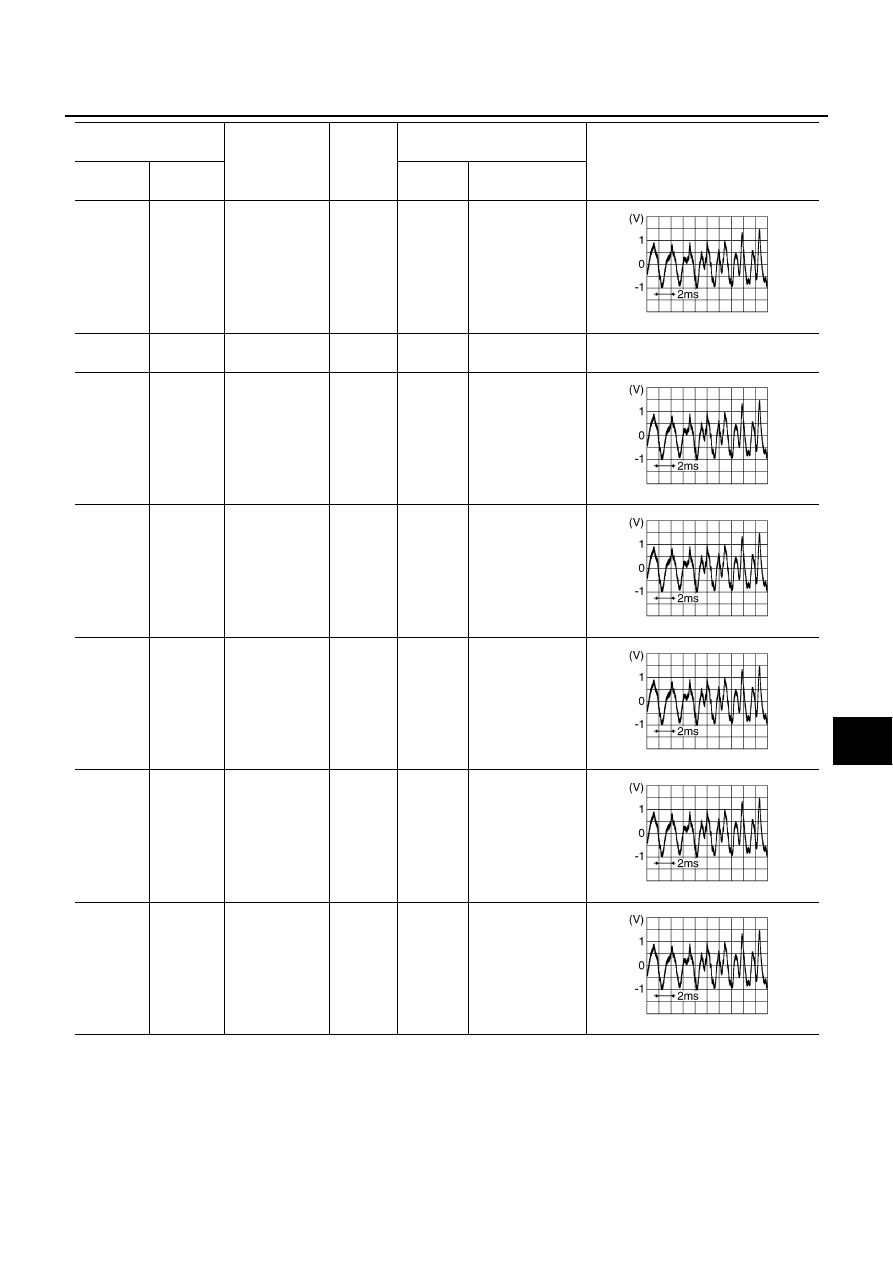

AUDIO

AV-25

C

D

E

F

G

H

I

J

L

M

A

B

AV

15

(GY)

16

(Y)

Audio signal
front RH

Output

ON

Receive audio sig-
nal

17

(B/R)

Ground

Ground

—

—

—

—

18

(L/Y)

2

(W/G)

Audio signal
woofer LH

Output

ON

Receive audio sig-
nal

19

(L/R)

3

(L/W)

Audio signal
woofer RH

Output

ON

Receive audio sig-
nal

24

(L)

23

(P)

Audio signal
rear RH

Input

ON

Receive audio sig-
nal

26

(LG)

25

(PU)

Audio signal
rear LH

Input

ON

Receive audio sig-
nal

28

(OR/L)

27

(W/L)

Audio signal
front  RH

Input

ON

Receive audio sig-
nal

Terminal

(Wire color)

Item

Signal

input/out-

put

Condition

Reference value

+

–

Ignition

switch

Operation

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV-26

AUDIO

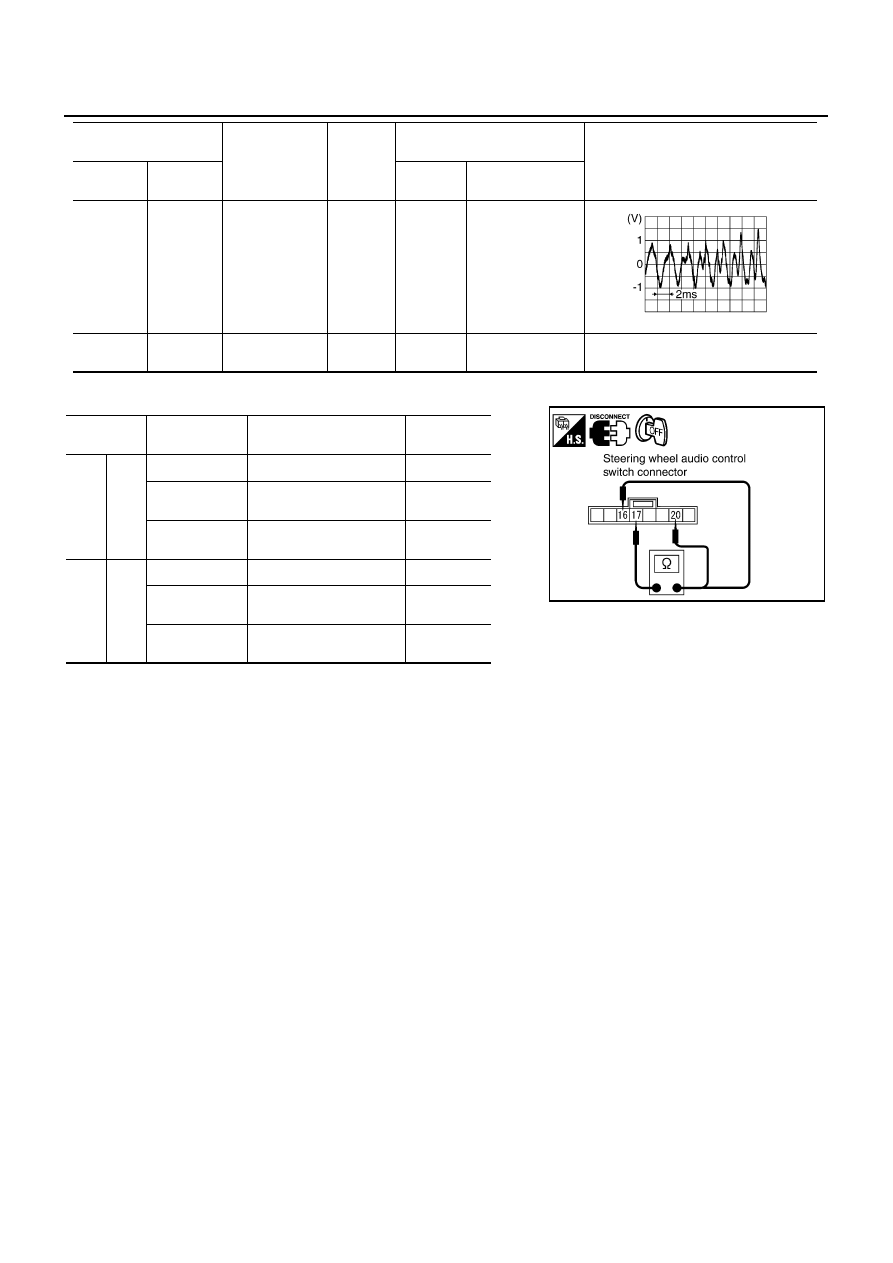

Steering Wheel Audio Control Switch Resistance Inspection

NKS002F7

*1 With telephone system: MODE switch
*2 With telephone system: PTT switch

30

(W)

29

(OR)

Audio signal
front LH

Input

ON

Receive audio sig-
nal

31

(SB)

Ground

Amp. ON signal

Input

ON

—

Approx. 12 V

Terminal

(Wire color)

Item

Signal

input/out-

put

Condition

Reference value

+

–

Ignition

switch

Operation

SKIB3609E

Terminal Signal

name

Condition

Resistance

(

Ω

)

16

17

Power

Depress power switch

*1

 .

Approx. 0

Seek down
(previous)

Depress (station) down
switch.

Approx. 165

Volume (down)

Depress volume down
switch.

Approx. 652

20

17

Mode

Depress mode switch

*2

 .

Approx. 0

Seek up (next)

Depress (station) up
switch.

Approx. 165

Volume (up)

Depress volume up
switch.

Approx. 652

SKIA1907E
