Infiniti G35 (V35). Manual - part 105





ATC-92

TROUBLE DIAGNOSIS

PERFORMANCE CHART
Test Condition

Testing must be performed as follows:

Test Reading

Recirculating-to-discharge Air Temperature Table

Ambient Air Temperature-to-operating Pressure Table

*1: With the cooling fan motor low-speed control
*2: With the cooling fan motor high-speed control

Vehicle condition

Indoors or in the shade (in a well-ventilated place)

Doors

Closed

Door windows

Open

Hood

Open

TEMP.

Max. COLD

Mode switch

 (Ventilation) set

Recirculation (REC) switch

 (Recirculation) set

 Fan (blower) speed

Max. speed set

Engine speed

Idle speed

Operate the air conditioning system for 10 minutes before taking measurements.

Inside air (Recirculating air) at blower assembly inlet

Discharge air temperature at center ventilator

°

C (

°

F)

Relative humidity

%

Air temperature

°

C (

°

F)

50 - 60

20 (68)

9.2 - 10.4 (49 - 51)

25 (77)

12.0 - 14.0 (54 - 57)

30 (86)

14.4 - 17.4 (58 - 63)

35 (95)

18.2 - 22.0 (65 - 72)

40 (104)

23.8 - 27.4 (75 - 81)

60 - 70

20 (68)

10.4 - 11.8 (51 - 53)

25 (77)

14.0 - 16.0 (57 - 61)

30 (86)

17.4 - 20.8 (63 - 69)

35 (95)

22.0 - 25.2 (72 - 77)

40 (104)

27.4 - 31.0 (81 - 88)

Ambient air

High-pressure (Discharge side)

kPa (kg/cm

2

 , psi)

Low-pressure (Suction side)

kPa (kg/cm

2

 , psi)

Relative humidity

%

Air temperature

°

C (

°

F)

50 - 70

20 (68)

815 - 1,000

*1

(8.3 - 10.2, 118 - 145)

220 - 260

(2.2 - 2.7, 32 - 38)

25 (77)

960 - 1,160

*1

(9.8 - 11.8, 139 - 168)

230 - 280

(2.3 - 2.9, 33 - 41)

30 (86)

1,230 - 1,500

 *1

(12.5 - 15.3, 178 - 218)

255 - 305

(2.6 - 3.1, 37 - 44)

35 (95)

1,200 - 1,460

  *2

(12.2 - 14.9, 174 - 212)

290 - 350

(3.0 - 3.6, 42 - 51)

40 (104)

1,330 -1,630

  *2

(13.6 - 16.6, 193 - 236)

335 - 410

(3.4 - 4.2, 49 - 59)

TROUBLE DIAGNOSIS

ATC-93

C

D

E

F

G

H

I

K

L

M

A

B

ATC

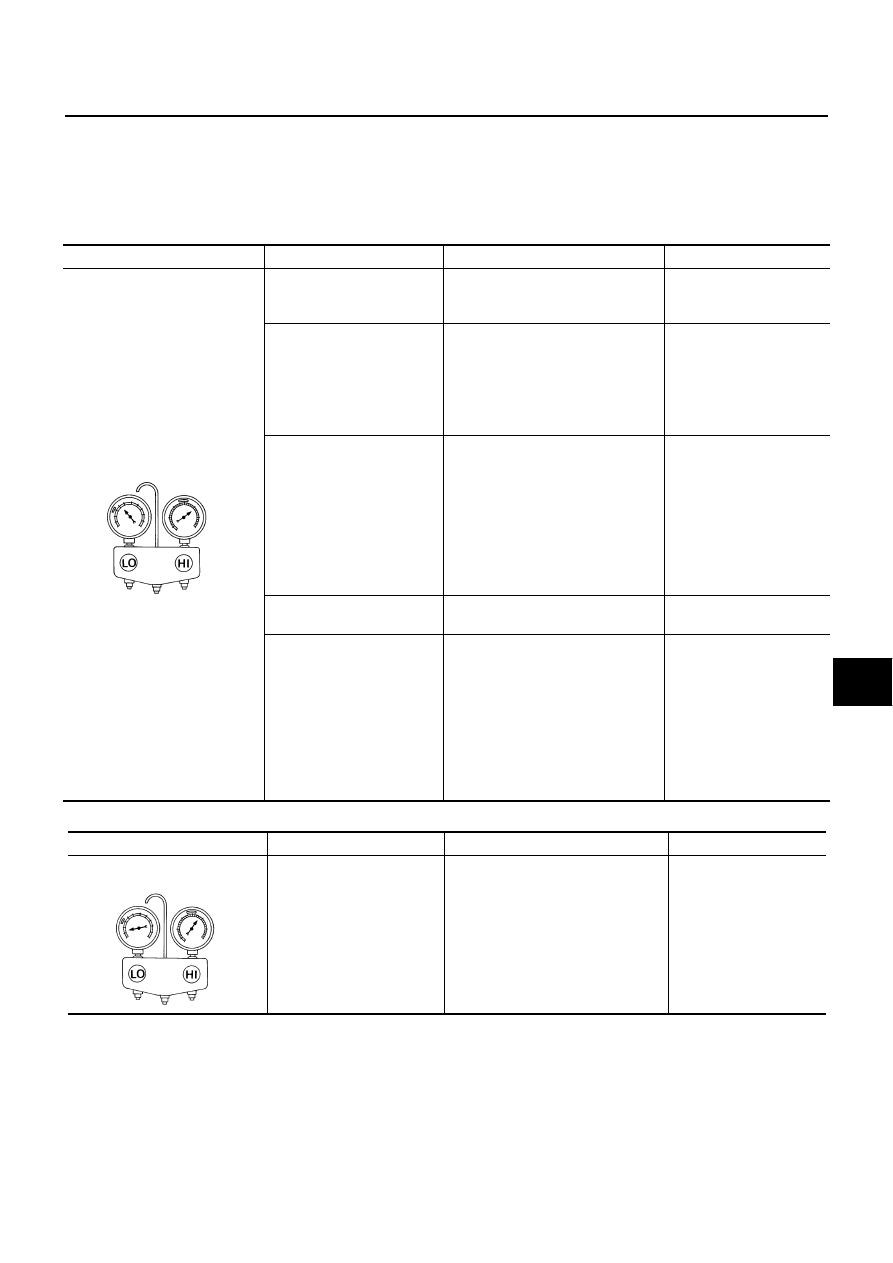

TROUBLE DIAGNOSIS FOR UNUSUAL PRESSURE

Whenever system’s high and/or low side pressure(s) is/are unusual, diagnose using a manifold gauge. The
marker above the gauge scale in the following tables indicates the standard (usual) pressure range. Since the
standard (usual) pressure, however, differs from vehicle to vehicle, refer to above table (Ambient air tempera-
ture-to-operating pressure table).

Both High- and Low-pressure Sides are Too High

High-pressure Side is Too High and Low-pressure Side is Too Low

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high- and low-pressure
sides are too high.

The pressure return to normal
soon after water is splashed
on condenser.

Excessive refrigerant charge in
refrigeration cycle.

Reduce refrigerant until
specified pressure is
obtained.

Air suction by cooling fan is
insufficient.

Insufficient condenser cooling perfor-
mance.

↓

1. Condenser fins are clogged.

2. Improper fan rotation of cooling

fan.

●

Clean condenser.

●

Check and repair cooling
fan if necessary.

●

Low-pressure pipe is not
cold.

●

When compressor is
stopped high-pressure
value quickly drops by
approximately 196 kPa (2
kg/cm

2

 , 28 psi). It then

decreases gradually there-
after.

Poor heat exchange in condenser
(After compressor operation stops,
high-pressure decreases too
slowly.).

↓

Air in refrigeration cycle.

Evacuate repeatedly and
recharge system.

Engine tends to overheat.

Engine cooling systems malfunction.

Check and repair each
engine cooling system.

●

An area of the low-pres-
sure pipe is colder than
areas near the evaporator
outlet.

●

Low-pressure pipe is
sometimes covered with
frost.

●

Excessive liquid refrigerant on low-
pressure side.

●

Excessive refrigerant discharge
flow.

●

Expansion valve is open a little
compared with the specification.



↓

Improper expansion valve adjust-
ment.

Replace expansion valve.

AC359A

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

High-pressure side is too high
and low-pressure side is too low.

Upper side of condenser and
high-pressure side are hot,
however, liquid tank is not so
hot.

High-pressure tube or parts located
between compressor and condenser
are clogged or crushed.

●

Check and repair or
replace malfunctioning
parts.

●

Check lubricant for
contamination.

AC360A

ATC-94

TROUBLE DIAGNOSIS

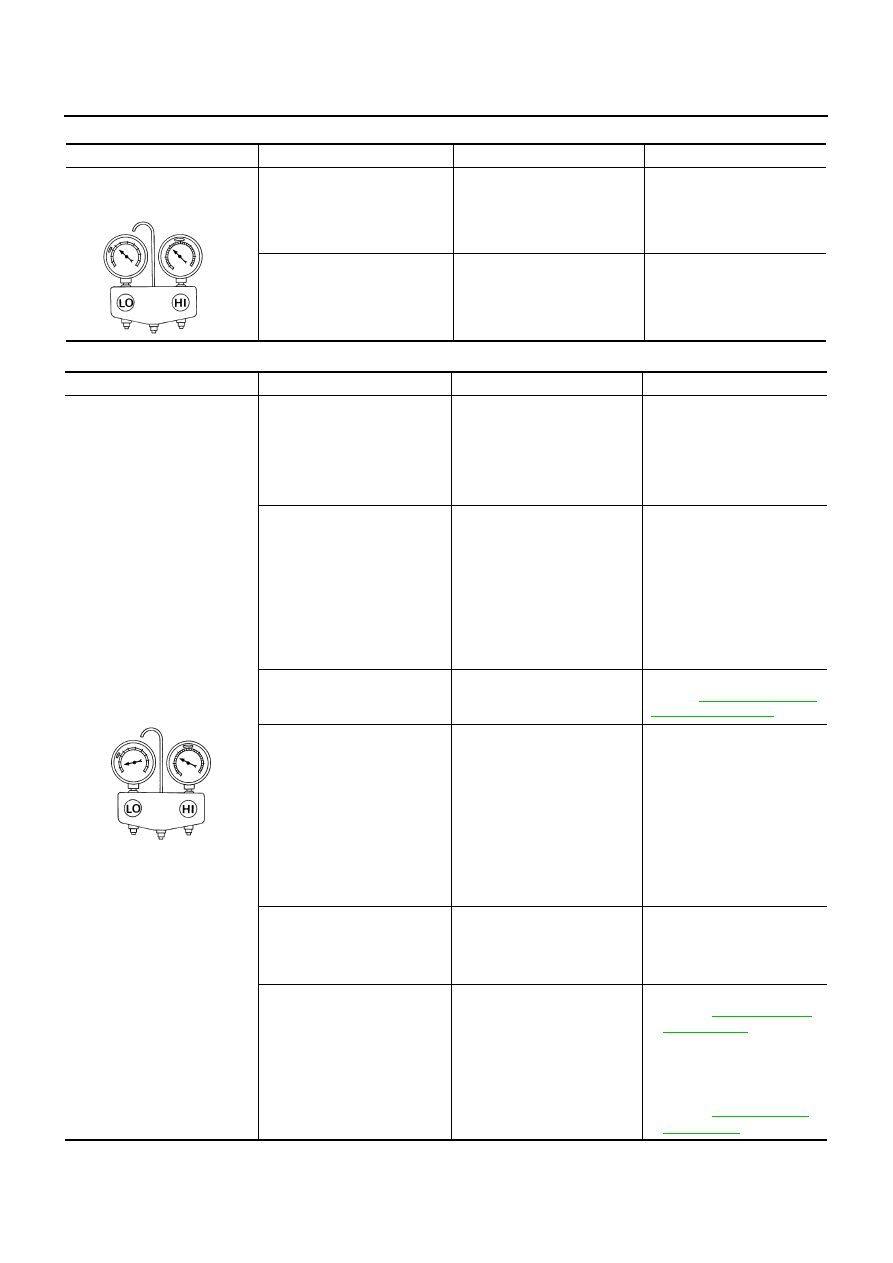

High-pressure Side is Too Low and Low-pressure Side is Too High

Both High- and Low-pressure Sides are Too Low

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

High-pressure side is too low
and low-pressure side is too
high.

High- and low-pressure sides
become equal soon after com-
pressor operation stops.

Compressor pressure operation
is improper.

↓

Damaged inside compressor
packings.

Replace compressor.

No temperature difference
between high- and low-pres-
sure sides.

Compressor pressure operation
is improper.

↓

Damaged inside compressor
packings.

Replace compressor.

AC356A

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high- and low-pressure
sides are too low.

●

There is a big temperature
difference between liquid tank
outlet and inlet. Outlet tem-
perature is extremely low.

●

Liquid tank inlet and expan-
sion valve are frosted.

Liquid tank inside is slightly
clogged.

●

Replace liquid tank.

●

Check lubricant for contami-
nation.

●

Temperature of expansion
valve inlet is extremely low as
compared with areas near liq-
uid tank.

●

Expansion valve inlet is
frosted.

●

Temperature difference
occurs somewhere in high-
pressure side.

High-pressure pipe located
between liquid tank and expan-
sion valve is clogged.

●

Check and repair malfunc-
tioning parts.

●

Check lubricant for contami-
nation.

Expansion valve and liquid tank
are warm or slightly cool when
touched.

Low refrigerant charge.

↓

Leaking fittings or components.

Check refrigerant for leaks.
Refer to

ATC-151, "Checking

for Refrigerant Leaks"

 .

There is a big temperature dif-
ference between expansion
valve inlet and outlet while the
valve itself is frosted.

Expansion valve closes a little
compared with the specifica-
tion.

↓

1. Improper expansion valve

adjustment.

2. Malfunctioning expansion

valve.

3. Outlet and inlet may be

clogged.

●

Remove foreign particles by
using compressed air.

●

Replace expansion valve.

●

Check lubricant for contami-
nation.

An area of the low-pressure
pipe is colder than areas near
the evaporator outlet.

Low-pressure pipe is clogged or
crushed.

●

Check and repair malfunc-
tioning parts.

●

Check lubricant for contami-
nation.

Air flow volume is not enough or
is too low.

Evaporator is frozen.

●

Check intake sensor circuit.
Refer to

ATC-109, "Intake

Sensor Circuit"

 .

●

Replace compressor.

●

Repair evaporator fins.

●

Replace evaporator.

●

Refer to

ATC-77, "Blower

Motor Circuit"

 .

AC353A
