AIR CONDITIONER CONTROL

ATC-35

C

D

E

F

G

H

I

K

L

M

A

B

ATC

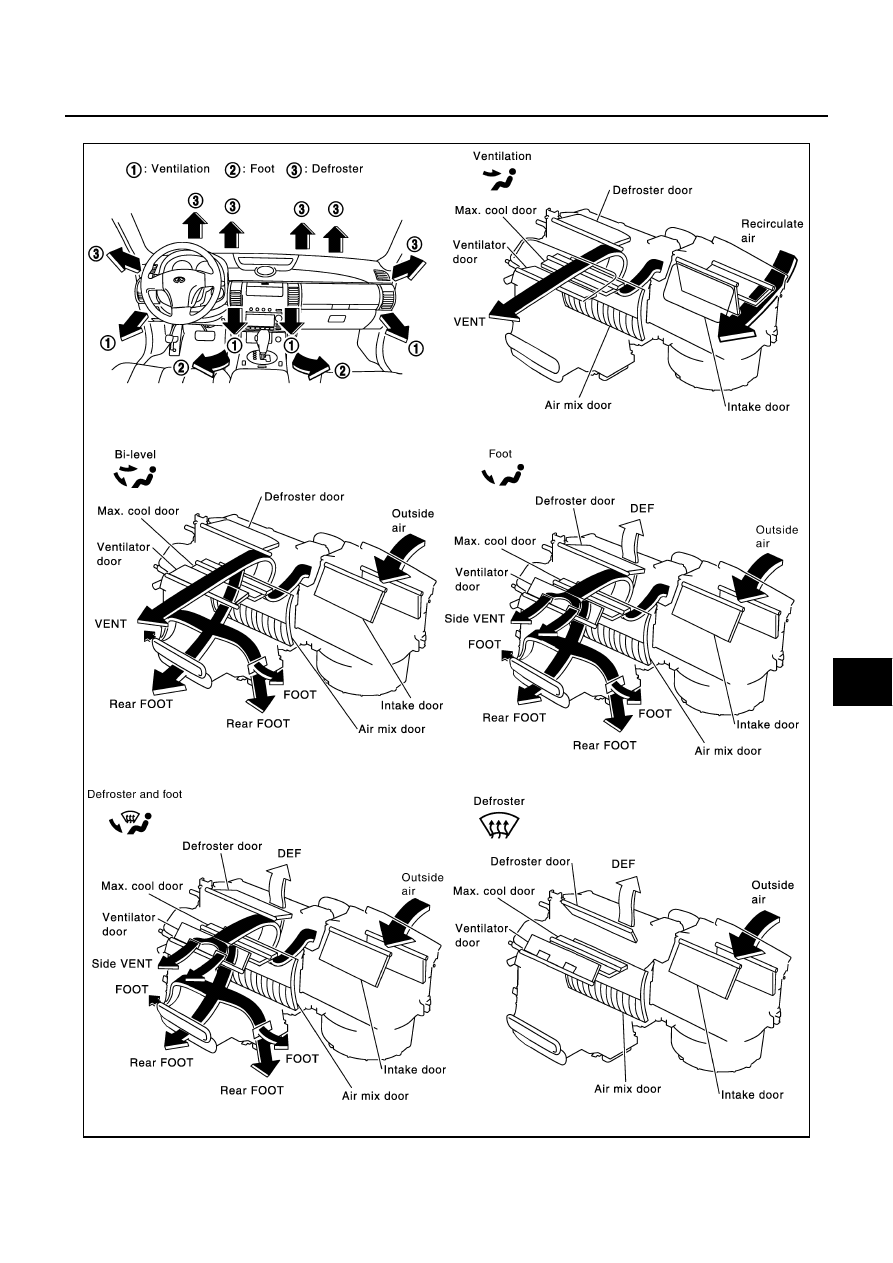

Discharge Air Flow

NJS00032

RJIA3754E

ATC-36

AIR CONDITIONER CONTROL

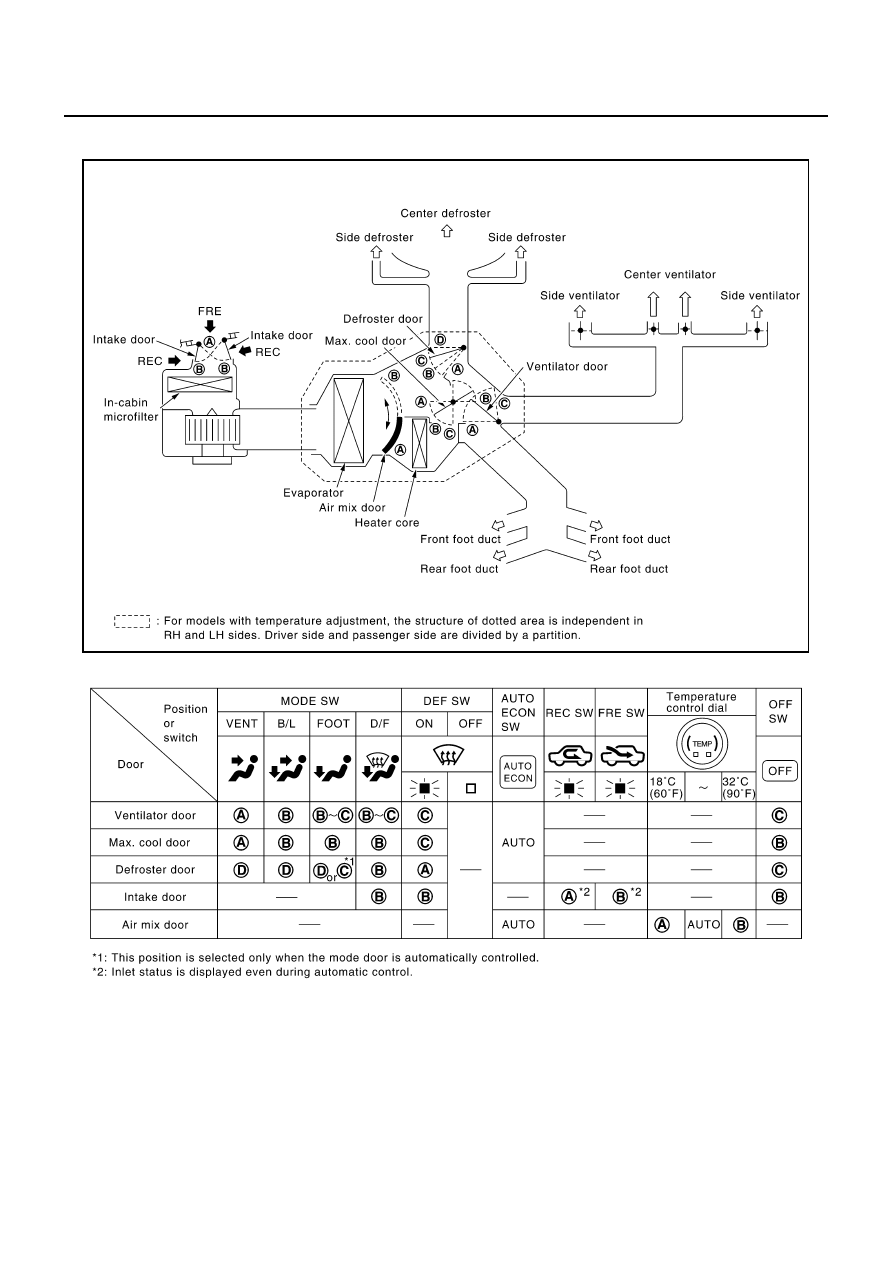

System Description

NJS00033

SWITCHES AND THEIR CONTROL FUNCTION

RJIA3755E

RJIA3480E

AIR CONDITIONER CONTROL

ATC-37

C

D

E

F

G

H

I

K

L

M

A

B

ATC

CAN Communication System Description

NJS00034

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. For details, refer to

LAN-47,

"CAN System Specification Chart"

 .

ATC-38

TROUBLE DIAGNOSIS

TROUBLE DIAGNOSIS

PFP:00004

CONSULT-II Function (BCM)

NJS00035

CONSULT-II can display each diagnosis item using the diagnosis test modes shown following.

CONSULT-II BASIC OPERATION

Refer to

GI-37, "CONSULT-II Start Procedure"

 .

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

DATA MONITOR
Operation Procedure

1.

Touch “AIR CONDITIONER” on “SELECT TEST ITEM” screen.

2.

Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.

3.

Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.

4.

When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is
selected, all the items will be monitored.

5.

Touch “START”.

6.

Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.

Display Item List

System part

Check item, diagnosis mode

Description

BCM

Data monitor

Displays BCM input data in real time.

All signals

Monitors all the items.

Selection from menu

Selects and monitors the individual item selected.

Monitor item name

 “operation or unit”

Contents

IGN ON SW

“ON/OFF”

Displays “IGN position (ON)/OFF, ACC position (OFF)” status as judged from ignition switch signal.

FAN ON SIG

“ON/OFF”

Displays “FAN (ON)/FAN (OFF)” status as judged from blower fan motor switch signal.

AIR COND SW

“ON/OFF”

Displays “COMP (ON)/COMP (OFF)” status as judged from air conditioner switch signal.
