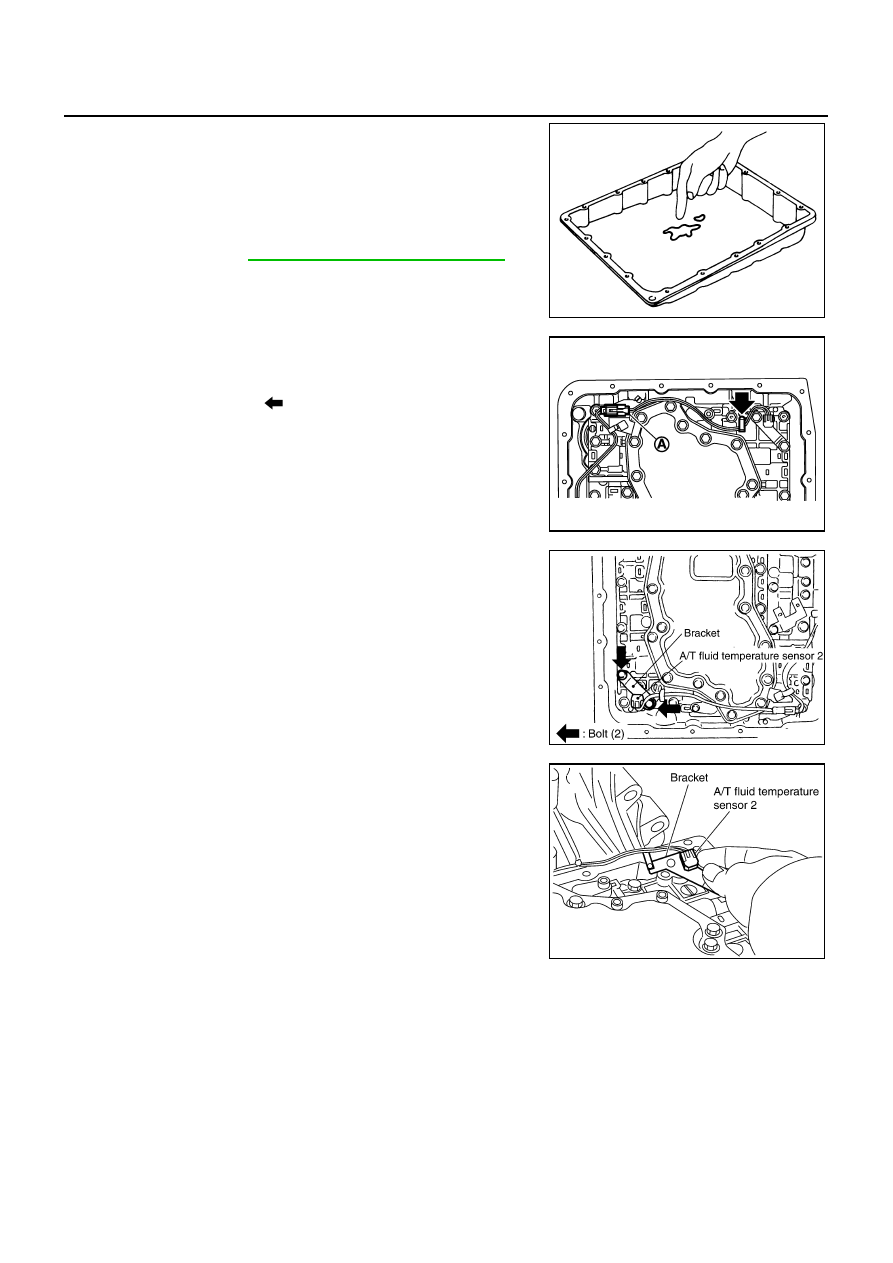

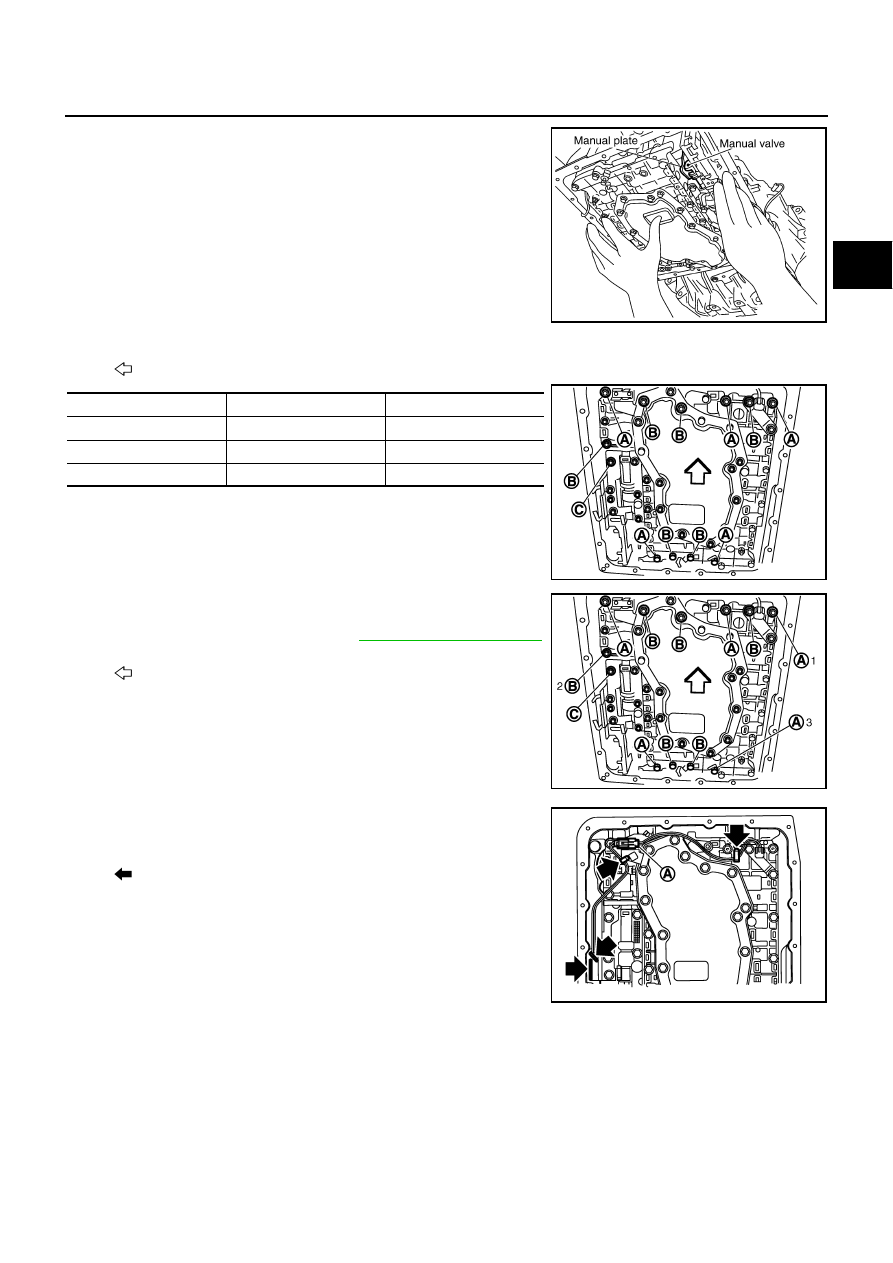

ON-VEHICLE SERVICE AT-231 D E F G H I J K L M A B AT ● Assemble it so that manual valve cutout is engaged with 8. Install bolts A, B and C in control valve with TCM. ● : Vehicle front 9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After → 2 → 3), and then tighten other bolts to the specified torque. Refer to . ● : Vehicle front 10. Connect A/T fluid temperature sensor 2 connector (A). 11. Securely fasten terminal cord assembly and A/T fluid tempera- ture sensor 2 harness with terminal clips. ● : Terminal clip (4) SCIA5142E Bolt symbol Length mm (in) Number of bolts A 42 (1.65) 5 B 55 (2.17) 6 C 40 (1.57) 1 SCIA8074E SCIA8075E SCIA8124E |
