DTC P1815 MANUAL MODE SWITCH

AT-163

D

E

F

G

H

I

J

K

L

M

A

B

AT

4.

CHECK DTC

Perform Refer to

AT-160, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

5.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace damaged parts.

6.

DETECT MALFUNCTIONING ITEM

Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> Replace control valve with TCM. Refer to

AT-225, "Control Valve with TCM and A/T Fluid Temper-

ature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

Component Inspection

NCS000GZ

MANUAL MODE SWITCH

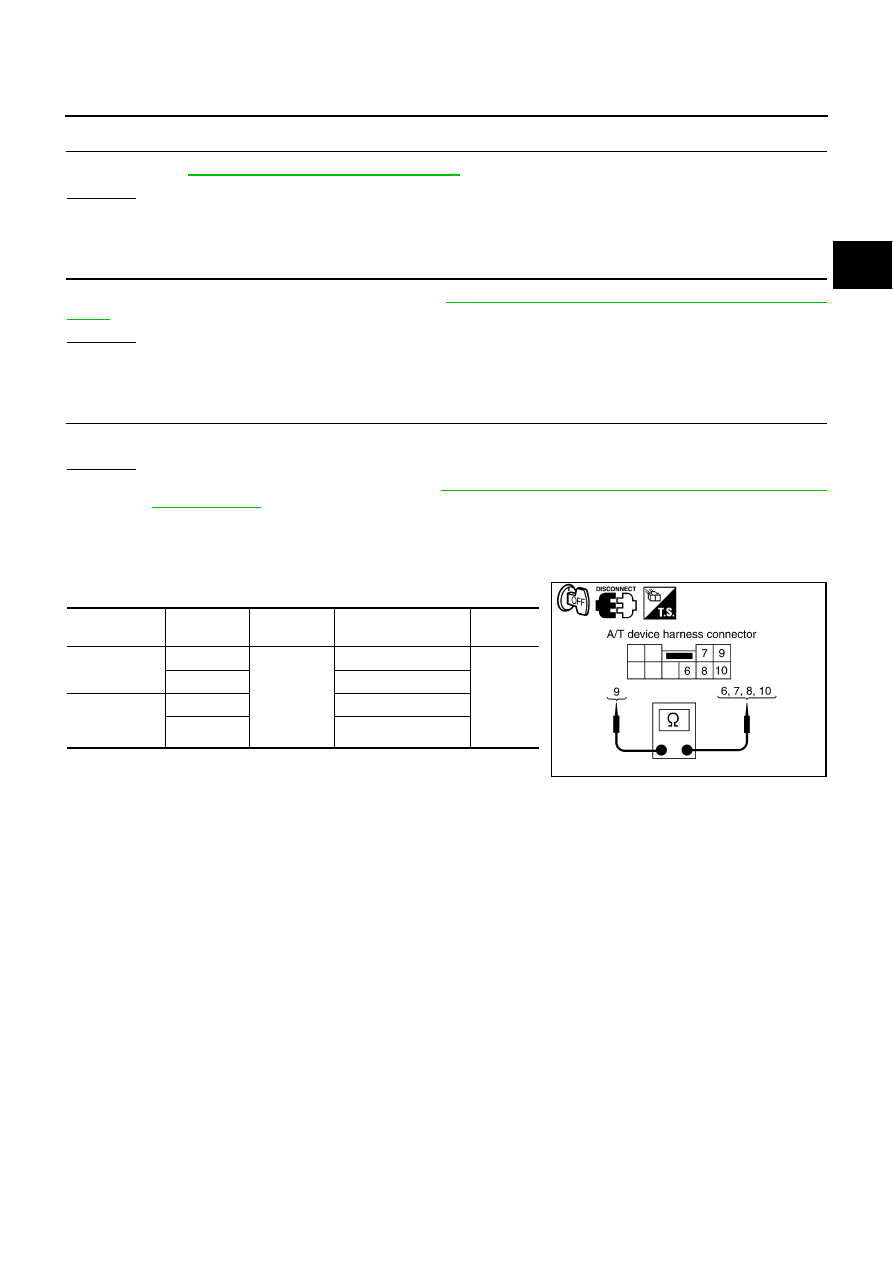

Check continuity between terminals.

Item

Position

Connector

Terminal

(Unit side)

Continuity

Manual mode
select switch

Auto

M47

9 - 10

Yes

Manual

6 - 9

Manual mode
position select
switch

UP

8 - 9

DOWN

7 - 9

SCIA2112E

AT-164

DTC P1841 ATF PRESSURE SWITCH 1

DTC P1841 ATF PRESSURE SWITCH 1

PFP:25240

Description

NCS000H0

Fail-safe function to detect front brake solenoid valve condition.

CONSULT-II Reference Value

NCS000H1

On Board Diagnosis Logic

NCS000H2

●

This is not an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P1841 ATF PRES SW 1/CIRC” with CONSULT-II is detected when TCM detects
that actual gear ratio is normal, and relation between gear position and condition of ATF pressure switch 1
is irregular during depressing accelerator pedal. (Other than during shift change)

Possible Cause

NCS000H3

●

ATF pressure switch 1.

●

Harness or connectors.
(Switch circuit is open or shorted.)

DTC Confirmation Procedure

NCS000H4

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

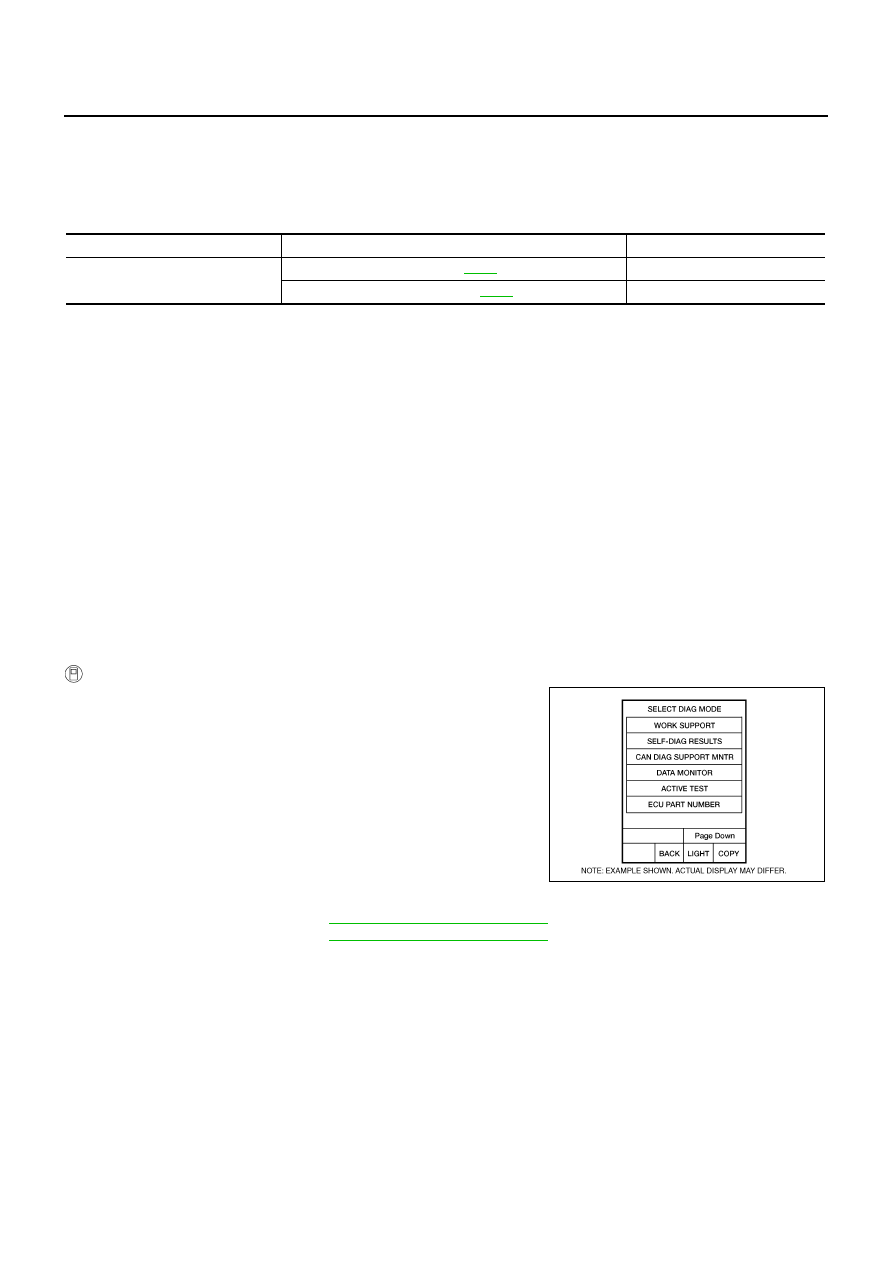

 WITH CONSULT-II

1.

Start the engine.

2.

Accelerate vehicle to maintain the following conditions.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”

Þ

 “4” (FR/B ON/OFF)

Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

3.

Perform step “2” again.

4.

Turn ignition switch OFF, then perform step “1” to “3” again.

5.

Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
If DTC (P1841) is detected, go to

AT-165, "Diagnostic Procedure"

 .

If DTC (P1757) is detected, go to

AT-145, "Diagnostic Procedure"

 .

Item name

Condition

Display value

ATF PRES SW 1

Front brake engaged. Refer to

AT-19



.

ON

Front brake disengaged. Refer to

AT-19



.

OFF

BCIA0031E

DTC P1841 ATF PRESSURE SWITCH 1

AT-165

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

NCS000H5

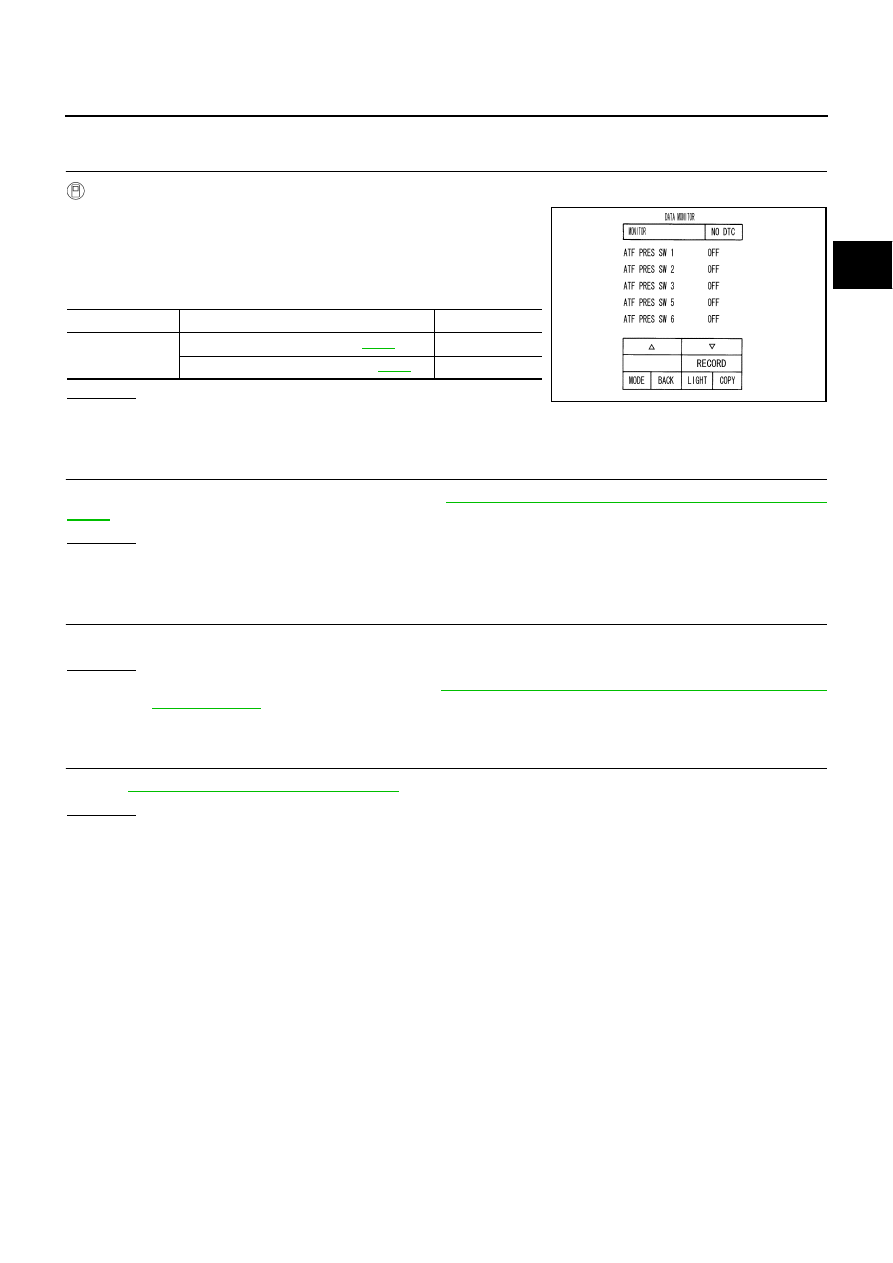

1.

CHECK INPUT SIGNAL

 With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA
MONITOR” mode for “A/T” with CONSULT-II.

3.

Drive vehicle in the “D” position (3rd

Þ

 4th gear), and confirm

the ON/OFF actuation of the “ATF PRES SW 1”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-172, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> Replace control valve with TCM. Refer to

AT-225, "Control Valve with TCM and A/T Fluid Temper-

ature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform

AT-164, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

Item name

Condition

Display value

ATF PRES SW 1

Front brake engaged. Refer to

AT-19



.

ON

Front brake disengaged. Refer to

AT-19



.

OFF

PCIA0067E

AT-166

DTC P1843 ATF PRESSURE SWITCH 3

DTC P1843 ATF PRESSURE SWITCH 3

PFP:25240

Description

NCS000H6

Fail-safe function to detect input clutch solenoid valve condition.

CONSULT-II Reference Value

NCS000H7

On Board Diagnosis Logic

NCS000H8

●

This is not an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P1843 ATF PRES SW 3/CIRC” with CONSULT-II is detected when TCM detects
that actual gear ratio is normal, and relation between gear position and condition of ATF pressure switch 3
is irregular during depressing accelerator pedal. (Other than during shift change)

Possible Cause

NCS000H9

●

ATF pressure switch 3.

●

Harness or connectors.
(Switch circuit is open or shorted.)

DTC Confirmation Procedure

NCS000HA

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Start the engine.

2.

Accelerate vehicle to maintain the following conditions.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”

Þ

 “4” (I/C ON/OFF)

Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

3.

Perform step “2” again.

4.

Turn ignition switch OFF, then perform step “1” to “3” again.

5.

Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
If DTC (P1843) is detected, go to

AT-167, "Diagnostic Procedure"

 .

If DTC (P1752) is detected, go to

AT-141, "Diagnostic Procedure"

 .

Item name

Condition

Display value

ATF PRES SW 3

Input clutch engaged. Refer to

AT-19



.

ON

Input clutch disengaged. Refer to

AT-19



.

OFF

BCIA0031E
