Infiniti G35 (V35). Manual - part 1





ACC-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NBS00137

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Battery Service

NBS00138

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

ACCELERATOR CONTROL SYSTEM

ACC-3

C

D

E

F

G

H

I

J

K

L

M

A

ACC

ACCELERATOR CONTROL SYSTEM

PFP:18005

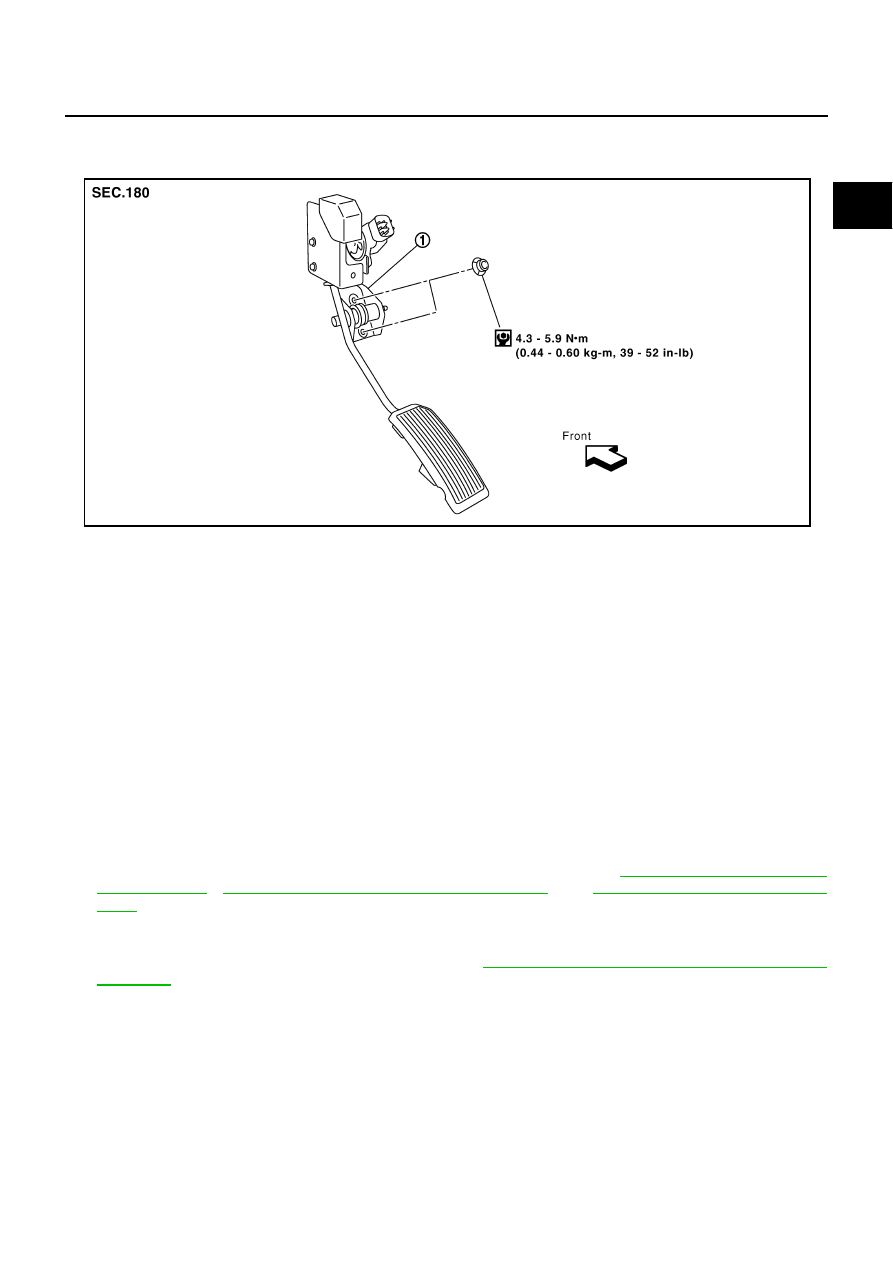

Components

NBS00139

Removal and Installation

NBS0013A

REMOVAL

1.

Disconnect accelerator pedal position sensor harness connector.

2.

Loosen nuts, and remove accelerator pedal assembly.

CAUTION:

●

Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sen-
sor from accelerator pedal assembly.

●

Avoid impact from dropping etc. during handling.

●

Be careful to keep accelerator pedal assembly away from water.

INSTALLATION

Install in the reverse order of removal.

INSPECTION AFTER INSTALLATION

●

Make sure that accelerator pedal moves smoothly within the whole operation range.

●

Make sure that accelerator pedal securely returns to the original position.

●

For the electrical inspection of accelerator pedal position sensor. Refer to

EC-592, "DTC P2122, P2123

APP SENSOR"

 ,

EC-599, "DTC P2127, P2128 APP SENSOR"

  and

EC-613, "DTC P2138 APP SEN-

SOR"

 .

CAUTION:

When harness connector of accelerator pedal position sensor is disconnected, perform “Acceler-
ator Pedal Released Position Learning”. Refer to

EC-79, "Accelerator Pedal Released Position

Learning"

 .

1.

Accelerator pedal assembly

PBIC2080E

ACC-4

ACCELERATOR CONTROL SYSTEM
