Infiniti FX35 / FX45. Manual - part 886





RF-26

< SERVICE INFORMATION >

SUNROOF

Removal

NOTE:
Detaching is possible even with the sunshade attached on the vehicle.
1.

Remove the headlining. Refer to

EI-43, "Component Parts Location"

.

2.

Remove sunshade stopper.

3.

The protection tape is pasted to the sunshade knob.

4.

Pull sunshade out of the rear end of the sunroof frame, and
remove it from the frame.

CAUTION:

Do not damage the sunshade and sunshade knob while lift-
ing up a little.

Installation

Install in the reverse order of removal.

WIND DEFLECTOR

Removal

NOTE:
Detaching is possible even with the wind deflector attached  on the vehicle.

1.

The sunroof is opened.

2.

Remove spring hinge screws, then remove hinge from the
frame.

3.

Remove the wind deflector.

Installation

Install in the reverse order of removal.

SUNROOF MOTOR ASSEMBLY

Removal

1.

Remove headlining. Refer to

EI-43, "Component Parts Loca-

tion"

.

2.

Remove motor mounting screw.

3.

Disconnect harness connector from sunroof motor assembly,
then remove sunroof motor assembly.

CAUTION:

• When removing the sunroof motor assembly, be sure that

the sunroof is in the fully closed position.

• Do not run the removed sunroof motor assembly as a sin-

gle unit.

Installation

Move the sunroof motor assembly laterally little by little so that the gear is completely engaged into the wire on
the sunroof unit assembly and the mounting surface becomes parallel. Then secure the sunroof   motor
assembly with screws.

CAUTION:

PIIA5064E

PIIA3510E

PIIA6189E

SUNROOF

RF-27

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

RF

N

O

P

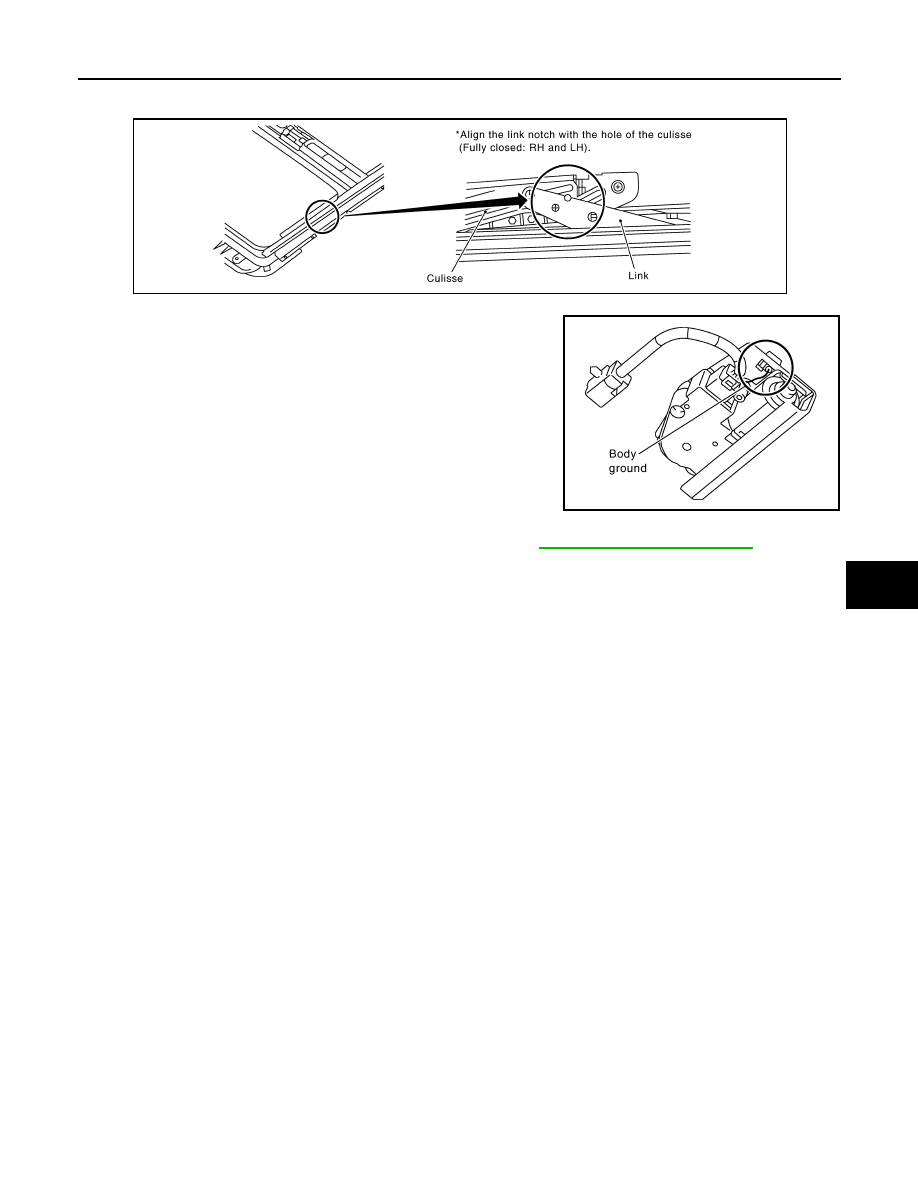

• Before installing the sunroof motor assembly, be sure to place the link and wire assembly in the

symmetrical and fully closed position.

• Confirm the body ground of the noise cover is connected.

• Initialization of it after installing the sunroof motor. Refer to

RF-10, "System Description"

.

PIIA5062E

PIIA5063E
