ELECTRICAL UNITS LOCATION

PG-65

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PG

N

O

P

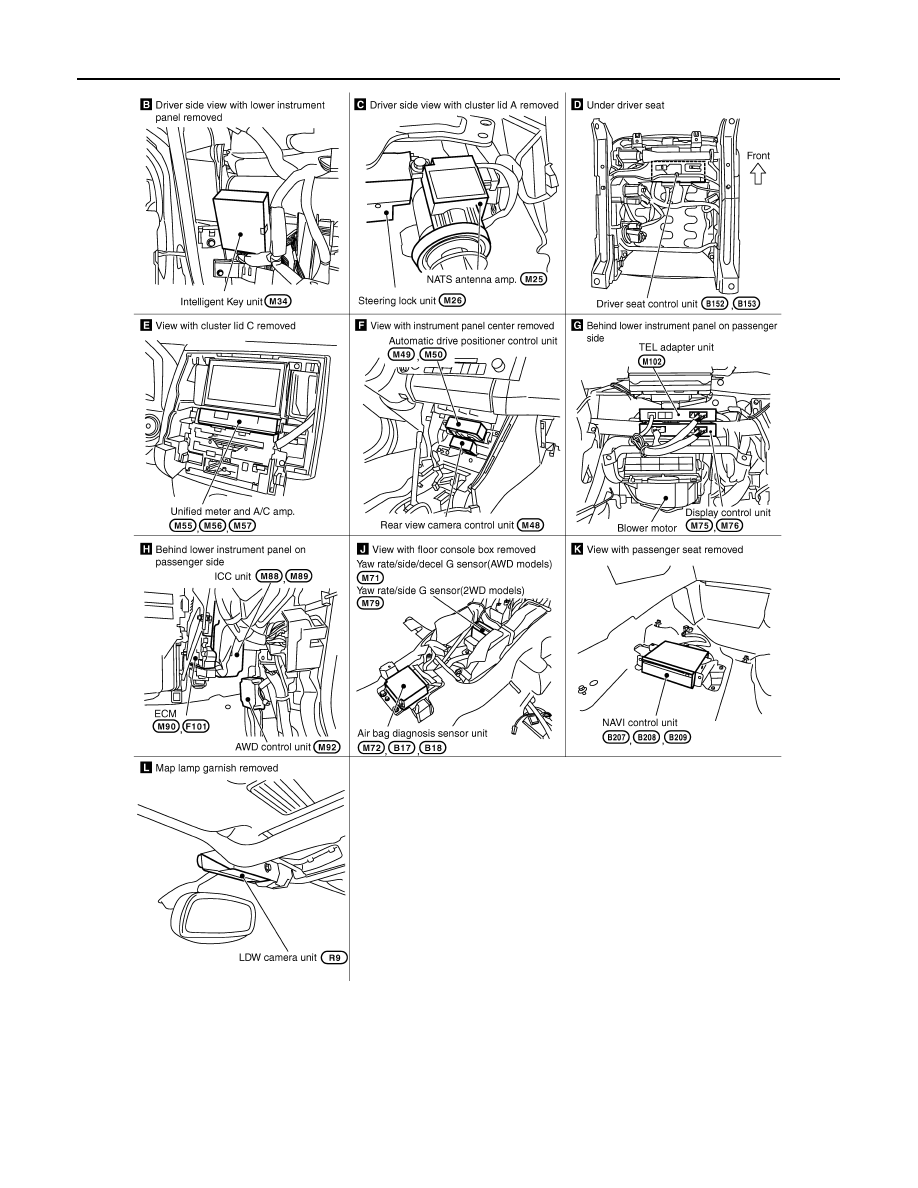

PASSENGER COMPARTMENT

CKIM0647E

PG-66

< SERVICE INFORMATION >

ELECTRICAL UNITS LOCATION

CKIM0648E

ELECTRICAL UNITS LOCATION

PG-67

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PG

N

O

P

LUGGAGE COMPARTMENT

CKIM0649E

PG-68

< SERVICE INFORMATION >

HARNESS CONNECTOR

HARNESS CONNECTOR

Description

INFOID:0000000001328885

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure

below.

CAUTION:

Never pull the harness or wires when disconnecting the connector.
[Example]

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure

below.

CAUTION:

SEL769DA
