CAN System (Type 6)

INFOID:0000000001328646

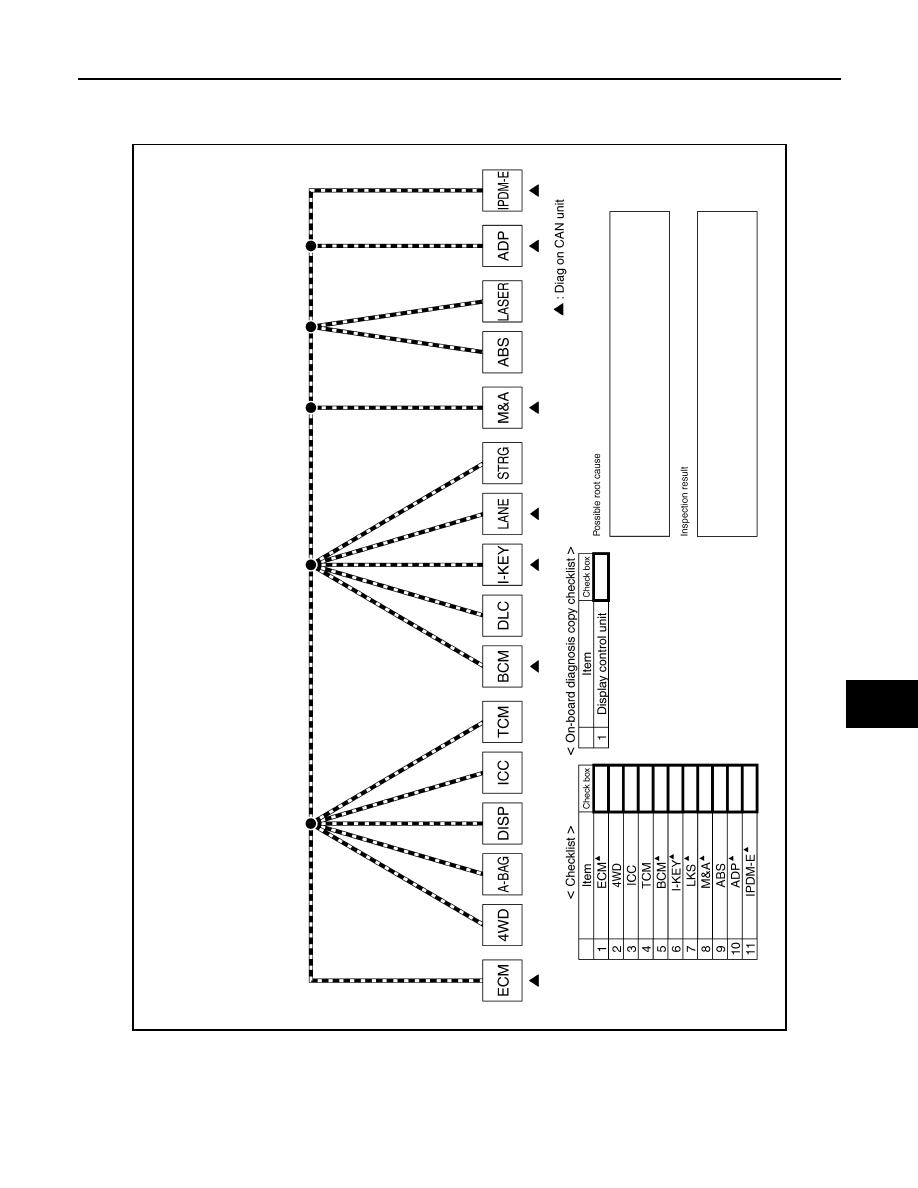

DIAGNOSIS SHEET

JPMIA0412GB

LAN-66

< SERVICE INFORMATION >

[CAN]

TROUBLE DIAGNOSIS

CAN System (Type 7)

INFOID:0000000001537531

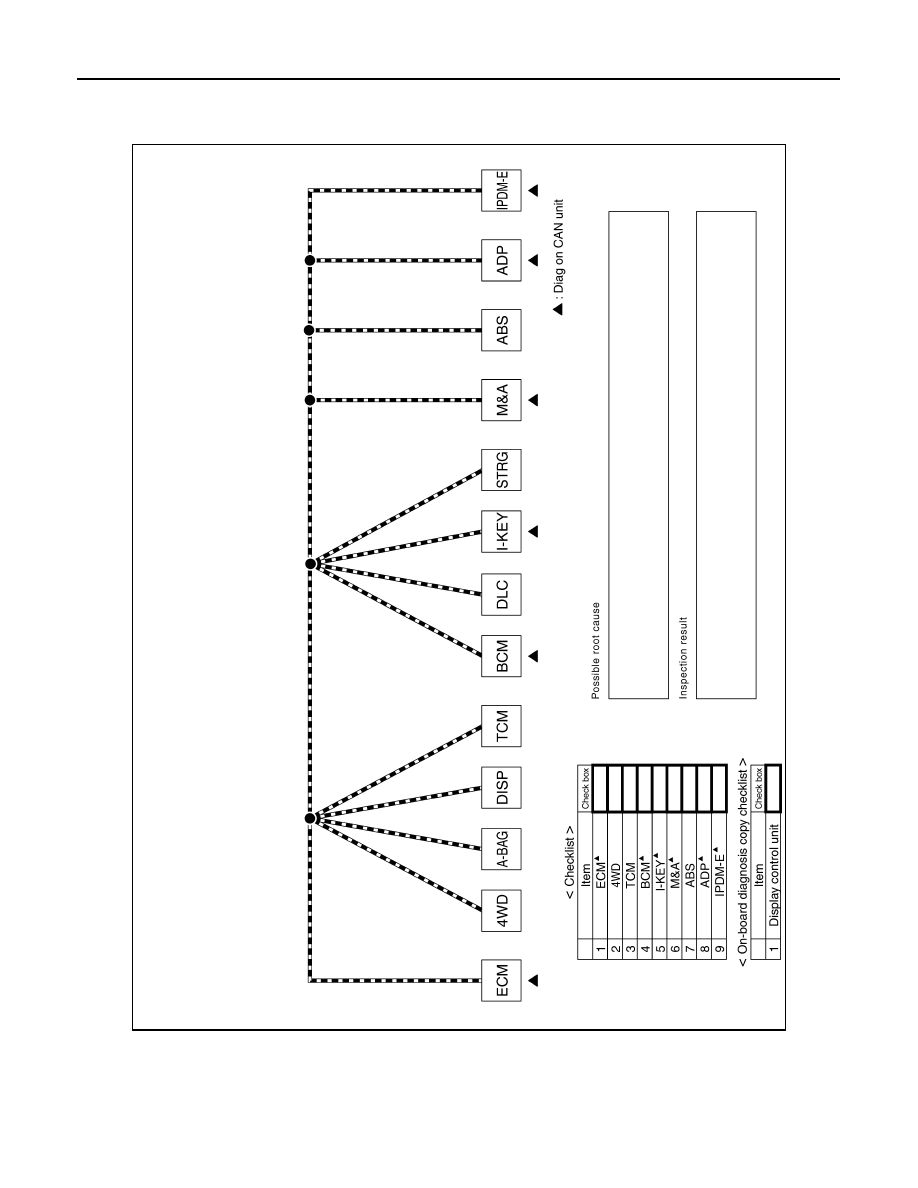

DIAGNOSIS SHEET

JPMIA0411GB

TROUBLE DIAGNOSIS

LAN-67

< SERVICE INFORMATION >

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

N

O

P

CAN system (Type 8)

INFOID:0000000001537532

DIAGNOSIS SHEET

JPMIA0412GB

LAN-68

< SERVICE INFORMATION >

[CAN]

TROUBLE DIAGNOSIS

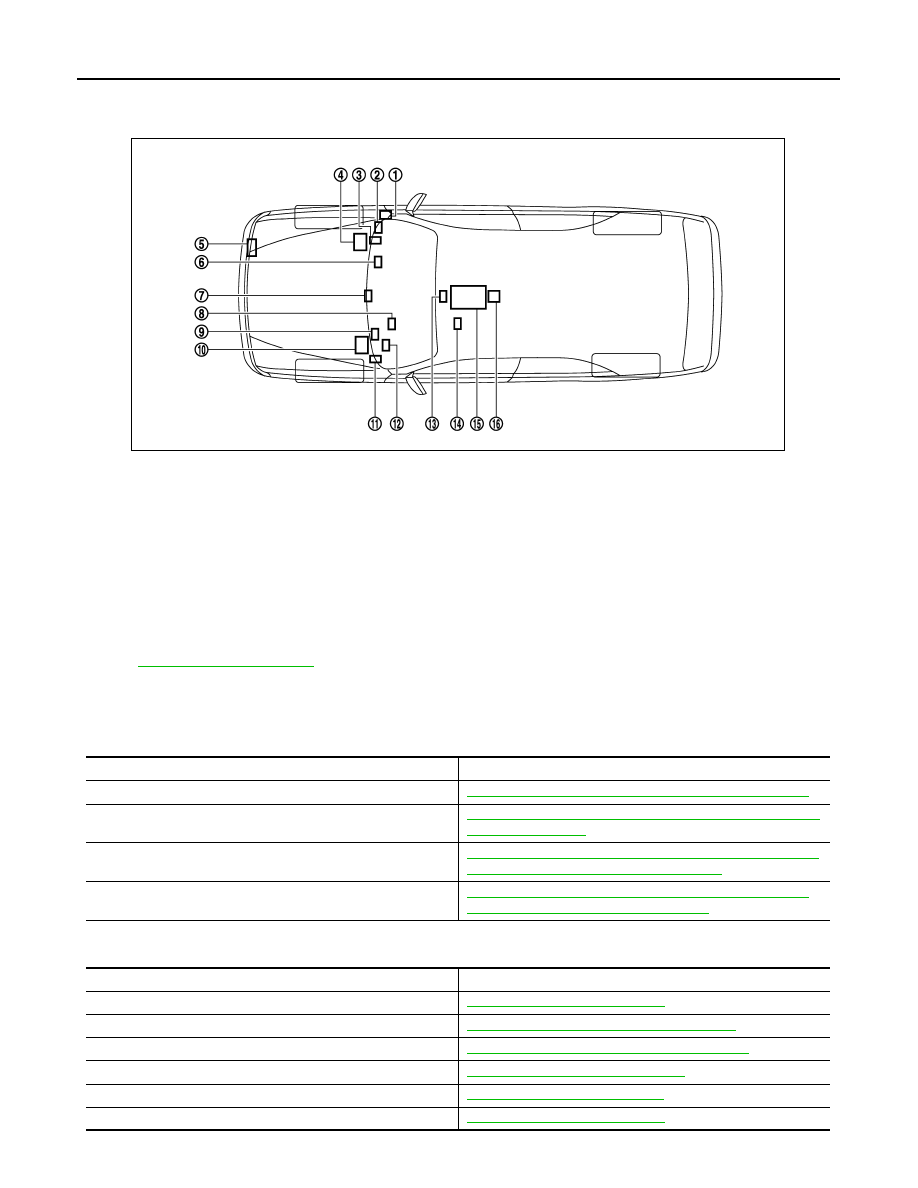

Component Parts Location

INFOID:0000000001328647

Harness Layout

INFOID:0000000001328648

Refer to

PG-40, "Harness Layout"

.

Malfunction Area Chart

INFOID:0000000001328649

MAIN LINE

BRANCH LINE

1.

AWD control unit M92

2.

ICC unit M88

3.

ECM M90

4.

IPDM E/R E9

5.

ICC sensor E39

6.

Display control unit M76

7.

Unified meter and A/C amp. M55

8.

Steering angle sensor M14

9.

Intelligent Key unit M34

10. ABS actuator and electric unit (con-

trol unit) E56

11.

BCM M3

12. Data link connector M5

13. LDW camera unit R9

14. Driver seat control unit B152

15. A/T assembly F44

16. Air bag diagnosis sensor unit M72

PKID0616E

Malfunction Area

Reference

Main line between TCM and data link connector

LAN-69, "Main Line Between TCM and Data Link Connector"

Main line between data link connector and unified meter and A/C
amp.

LAN-69, "Main Line Between Data Link Connector and Unified
Meter and A/C Amp."

Main line between unified meter and A/C amp. and ABS actuator
and electric unit (control unit)

LAN-70, "Main Line Between Unified Meter and A/C Amp. and
ABS Actuator and Electric Unit (Control Unit)"

Main line between ABS actuator and electric unit (control unit)
and driver seat control unit

LAN-71, "Main Line Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit"

Malfunction Area

Reference

ECM branch line circuit

LAN-72, "ECM Branch Line Circuit"

AWD control unit branch line circuit

LAN-72, "AWD Control Unit Branch Line Circuit"

Display control unit branch line circuit

LAN-73, "Display Control Unit Branch Line Circuit"

ICC unit branch line circuit

LAN-74, "ICC Unit Branch Line Circuit"

TCM branch line circuit

LAN-74, "TCM Branch Line Circuit"

BCM branch line circuit

LAN-75, "BCM Branch Line Circuit"
