IP-16

< SERVICE INFORMATION >

INSTRUMENT PANEL ASSEMBLY

1.

Remove bolts.

2.

The installation bolts of the harness clip and steering column
assembly is removed, steering column assembly is pulled back-
ward, and set combination meter bracket free from the instru-
ment panel and pad. Refer to

PS-12

.

(W) Side Ventilation (RH/LH)

1.

Insert a remover into gaps between instrument panel and pad,
pull back to your side, and disconnect metal clips below.

2.

Disconnect door mirror switch harness connectors, and remove
side ventilation (RH/LH).

(X) Instrument Panel and Pad

1.

Remove bolts and screws.

2.

Remove front passenger air bag module. Refer to

SRS-38, "Removal and Installation"

.

3.

Disconnect harness connectors, and remove instrument panel and pad from passenger door opening por-
tion.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000001328089

A/T CONSOLE FINISHER

PIIA5010E

PIIA5011E

INSTRUMENT PANEL ASSEMBLY

IP-17

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

IP

N

O

P

Disassembly

1.

Remove screws with power tool and remove instrument ashtray.

2.

Remove screws with power tool and remove instrument clock panel.

3.

Remove screws with power tool of back side and remove cup holder.

4.

Remove screws of back side and remove position indicator plate.

Assembly

Assemble in the reverse order of disassembly.

CENTER CONSOLE

1.

Instrument clock panel

2.

Instrument clock finisher

3.

Ashtry

4.

Cup holder

5.

Cup holder inner

6.

A/T console finisher

7.

A/T console panel

PIIB8537E

IP-18

< SERVICE INFORMATION >

INSTRUMENT PANEL ASSEMBLY

Disassembly

1.

Insert a remover into side between gaps console rear finisher and pull back to your side, and disconnect
pawls below.

2.

Disconnect harness connector and remove console rear finisher.

3.

Insert a remover into side between gaps of console mask and pull back to your side.

4.

Remove screws with power tool and remove console lid.

5.

Remove screws fixing DVD player with power tool.

6.

Disconnect harness connectors, and remove DVD player.

Assembly

Assemble in the reverse order of disassembly.

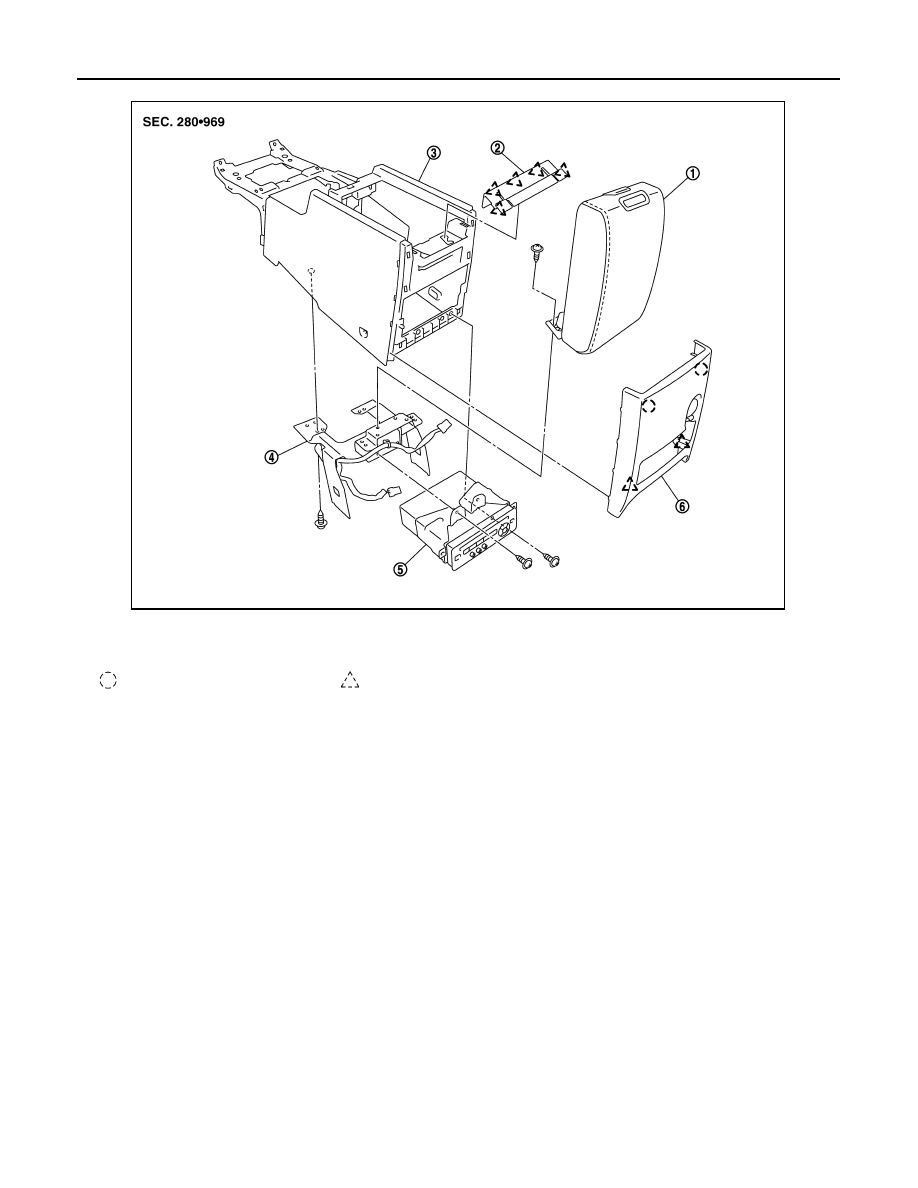

INSTRUMENT PASSENGER LOWER PANEL

1.

Console lid

2.

Console mask

3.

Console body

4.

DVD player bracket

5.

DVD player

6.

Console rear finisher

Clip

Pawl

PIIB8538E

INSTRUMENT PANEL ASSEMBLY

IP-19

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

IP

N

O

P

Disassembly

1.

Detach the damper from glove box assembly right side.

2.

Remove glove box pins and remove glove box assembly.

3.

Remove screws with power tool and remove glove box striker.

Assembly

Assemble in the reverse order of disassembly.

1.

Instrument passenger lower panel

2.

Glove box

3.

 Glove box pin

4.

Glove box striker

5.

Screw

PIIA5012E

PIIA4999E

PIIA5000E
