IGNITION SIGNAL

EC-1169

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TBWM1360E

EC-1170

< SERVICE INFORMATION >

[VK45DE]

IGNITION SIGNAL

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

46
60
61
62

BR
SB
L
Y

Ignition signal No. 7
Ignition signal No. 5
Ignition signal No. 3
Ignition signal No. 1

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes depending on rpm
at idle

0 - 0.2V

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

0.1 - 0.4V

PBIB0044E

PBIB0045E

IGNITION SIGNAL

EC-1171

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

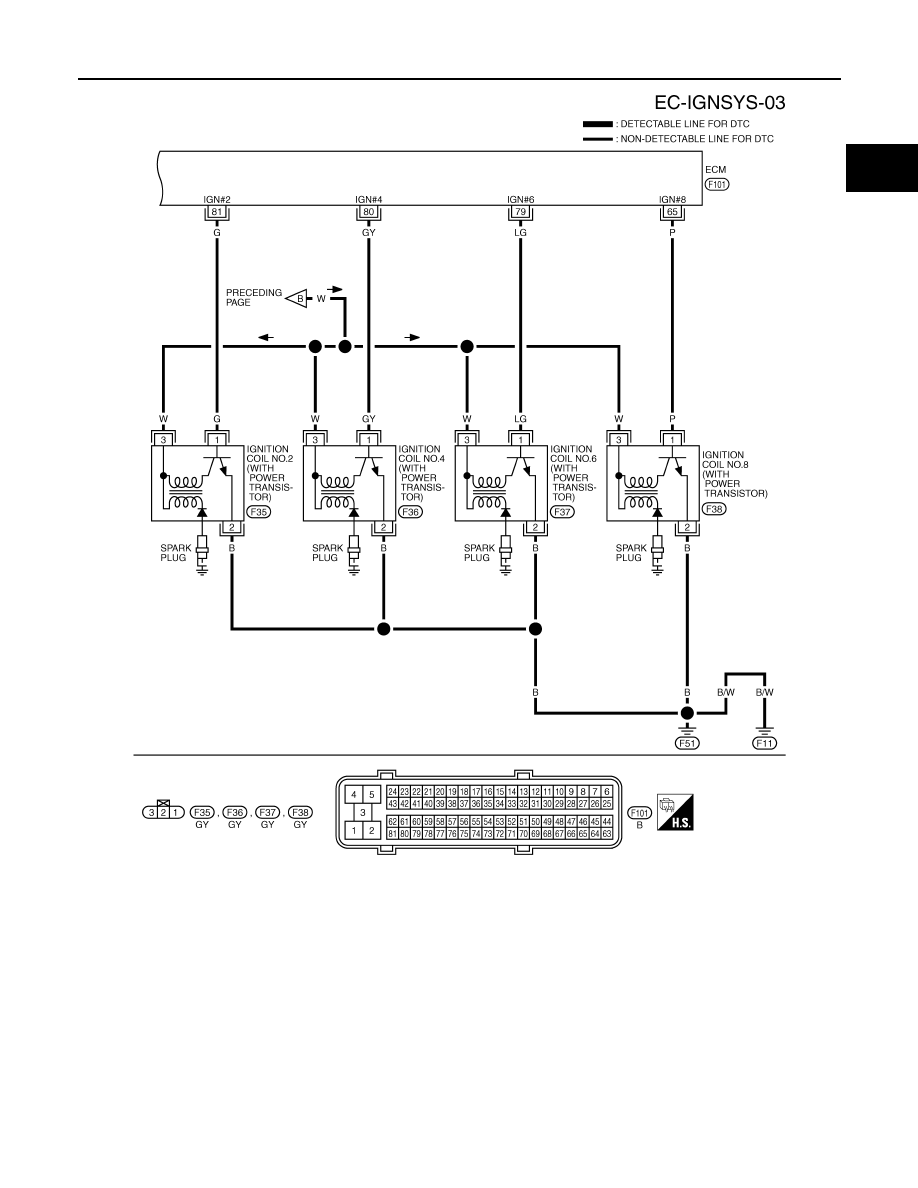

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TBWM1361E

EC-1172

< SERVICE INFORMATION >

[VK45DE]

IGNITION SIGNAL

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnosis Procedure

INFOID:0000000001327070

1.

CHECK ENGINE START

Turn ignition switch OFF, and restart engine.
Is engine running?
Yes or No

Yes (With CONSULT-III)>>GO TO 2.
Yes (Without CONSULT-III)>>GO TO 3.
No

>> GO TO 4.

2.

CHECK OVERALL FUNCTION

 With CONSULT-III

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.

2.

Make sure that each circuit produces a momentary engine speed drop.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 10.

3.

CHECK OVERALL FUNCTION

 Without CONSULT-III

1.

Let engine idle.

2.

Read the voltage signal between ECM terminals 46, 60, 61, 62,
65, 79, 80, 81 and ground with an oscilloscope.

3.

Verify that the oscilloscope screen shows the signal wave as
shown below.
NOTE:
The pulse cycle changes depending on rpm at idle.

OK or NG

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

65
79
80
81

P
LG
GY
G

Ignition signal No. 8
Ignition signal No. 6
Ignition signal No. 4
Ignition signal No. 2

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes depending on rpm
at idle

0 - 0.2V

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

0.1 - 0.4V

PBIB0044E

PBIB0045E

PBIB2094E
