TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-709

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Description

INFOID:0000000001326536

The specification (SP) value indicates the tolerance of the value that is displayed in “SPEC” of “DATA MONI-
TOR” mode with CONSULT-III during normal operation of the Engine Control System. When the value in
“SPEC” of “DATA MONITOR” mode is within the SP value, the Engine Control System is confirmed OK. When
the value in “SPEC” of “DATA MONITOR” mode is NOT within the SP value, the Engine Control System may
have one or more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
• B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board correc-

tion)

• A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
• MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)

Testing Condition

INFOID:0000000001326537

• Vehicle driven distance: More than 5,000 km (3,107 miles)
• Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm

2

, 14.25 - 15.12 psi)

• Atmospheric temperature: 20 - 30

°

C (68 - 86

°

F)

• Engine coolant temperature: 75 - 95

°

C (167 - 203

°

F)

• Transmission: Warmed-up
- After the engine is warmed up to normal operating temperature, drive vehicle until “ATF TEMP SE 1” (A/T

fluid temperature sensor signal) indicates more than 60

°

C (140

°

F).

• Electrical load: Not applied
- Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight

ahead.

• Engine speed: Idle

Inspection Procedure

INFOID:0000000001326538

NOTE:
Perform “SPEC” in “DATA MONITOR” mode in maximum scale display.

1.

Perform

EC-658, "Basic Inspection"

.

2.

Confirm that the testing conditions indicated above are met.

3.

Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2” and “MAS A/F SE-B1” in “SPEC” of “DATA
MONITOR” mode with CONSULT-III.

4.

Make sure that monitor items are within the SP value.

5.

If NG, go to

EC-710, "Diagnosis Procedure"

.

EC-710

< SERVICE INFORMATION >

[VK45DE]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Diagnosis Procedure

INFOID:0000000001326539

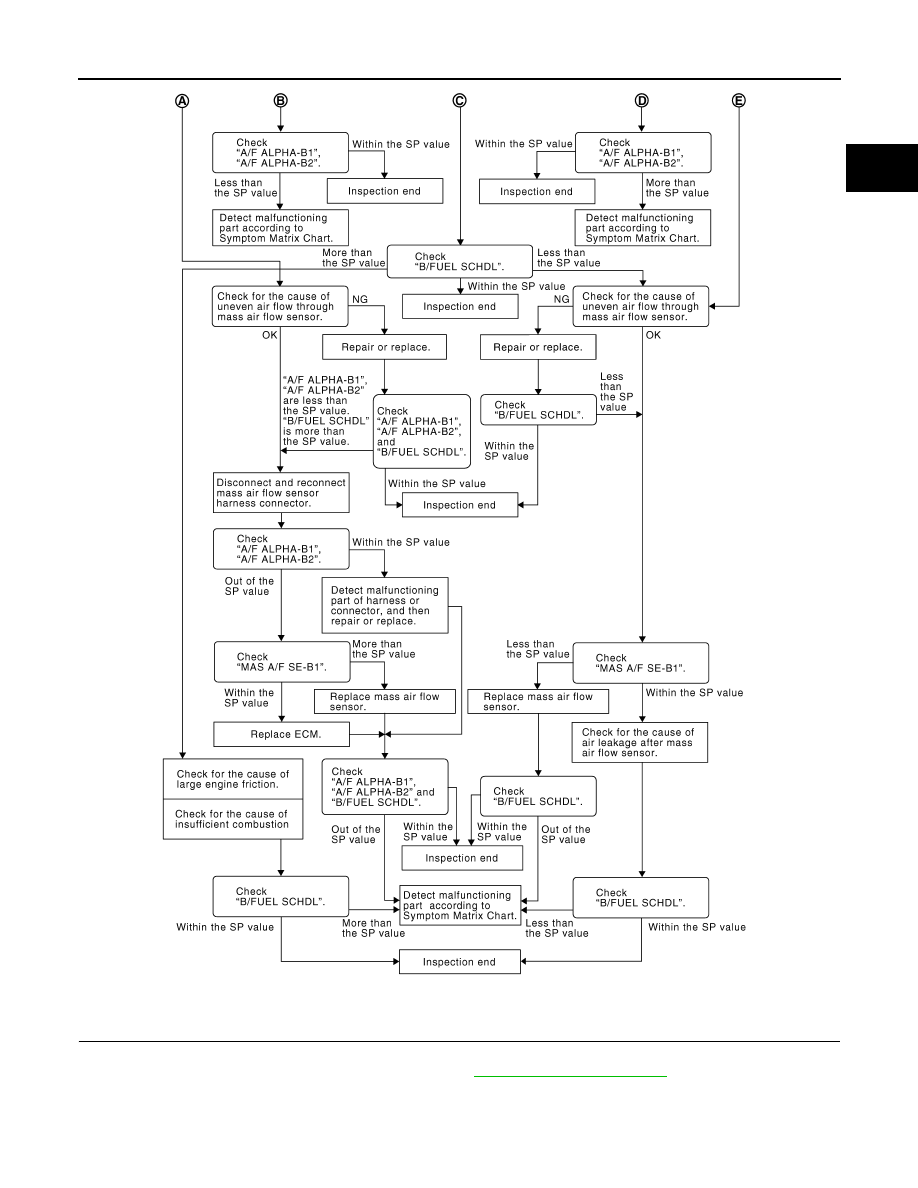

OVERALL SEQUENCE

PBIB2268E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-711

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

DETAILED PROCEDURE

1.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Confirm that the testing conditions are met. Refer to

EC-709, "Testing Condition"

.

3.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
NOTE:

PBIB3214E

EC-712

< SERVICE INFORMATION >

[VK45DE]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximately 1 minute because they may fluctuate. It is NG
if the indication is out of the SP value even a little.

OK or NG

OK

>> GO TO 17.

NG (Less than the SP value)>>GO TO 2.
NG (More than the SP value)>>GO TO 3.

2.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.

OK or NG

OK

>> GO TO 4.

NG (More than the SP value)>>GO TO 19.

3.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.

OK or NG

OK

>> GO TO 6.

NG (More than the SP value)>>GO TO 6.
NG (Less than the SP value)>>GO TO 25.

4.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Stop the engine.

2.

Disconnect PCV hose, and then plug it.

3.

Start engine.

4.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 6.

5.

CHANGE ENGINE OIL

1.

Stop the engine.

2.

Change engine oil.
NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detected after changing engine oil or changing driving con-
dition.

>> INSPECTION END

6.

CHECK FUEL PRESSURE

Check fuel pressure. (Refer to

EC-665, "Fuel Pressure Check"

.)

OK or NG

OK

>> GO TO 9.

NG (Fuel pressure is too high)>>Replace fuel pressure regulator, refer to

EC-665, "Fuel Pressure Check"

.

GO TO 8.

NG (Fuel pressure is too low)>>GO TO 7.

7.

DETECT MALFUNCTIONING PART

1.

Check the following.

-

Clogged and bent fuel hose and fuel tube

-

Clogged fuel filter

-

Fuel pump and its circuit (Refer to

EC-1155

.)

2.

If NG, repair or replace the malfunctioning part. (Refer to

EC-665, "Fuel Pressure Check"

.)

If OK, replace fuel pressure regulator.
