ON BOARD REFUELING VAPOR RECOVERY (ORVR)

EC-49

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

 With CONSULT-III

1.

Remove fuel tank. Refer to

FL-10

.

2.

Drain fuel from the tank as follows:

a.

Remove fuel feed hose located on the fuel gauge retainer.

b.

Connect a spare fuel hose, one side to fuel gauge retainer where the hose was removed and the other
side to a fuel container.

c.

Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT-III.

3.

Check refueling EVAP vapor cut valve for being stuck to close as follows.
Blow air into the refueling EVAP vapor cut valve (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.

4.

Check refueling EVAP vapor cut valve for being stuck to open as follows.

a.

Connect vacuum pump to hose end.

b.

Remove fuel gauge retainer with fuel gauge unit.
Always replace O-ring with new one.

c.

Put fuel tank upside down.

d.

Apply vacuum pressure to hose end [

−

13.3 kPa (

−

100 mmHg,

−

3.94 inHg)] with fuel gauge retainer

remaining open and check that the pressure is applicable.

 Without CONSULT-III

1.

Remove fuel tank. Refer to

FL-10

.

2.

Drain fuel from the tank as follows:

a.

Remove fuel gauge retainer.

b.

Drain fuel from the tank using a handy pump into a fuel container.

3.

Check refueling EVAP vapor cut valve for being stuck to close as follows.
Blow air into the refueling EVAP vapor cut valve (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.

4.

Check refueling EVAP vapor cut valve for being stuck to open as follows.

a.

Connect vacuum pump to hose end.

b.

Remove fuel gauge retainer with fuel gauge unit.
Always replace O-ring with new one.

c.

Put fuel tank upside down.

PBIB1035E

EC-50

< SERVICE INFORMATION >

[VQ35DE]

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

d.

Apply vacuum pressure to hose end [

−

13.3 kPa (

−

100 mmHg,

−

3.94 inHg)] with fuel gauge retainer

remaining open and check that the pressure is applicable.

PBIB1035E

POSITIVE CRANKCASE VENTILATION

EC-51

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

POSITIVE CRANKCASE VENTILATION

Description

INFOID:0000000001325911

SYSTEM DESCRIPTION

This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold. During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the
PCV valve. Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of venti-
lating air. The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air
passes through the hose connecting air inlet tubes to rocker cover. Under full-throttle condition, the manifold
vacuum is insufficient to draw the blow-by flow through the valve. The flow goes through the hose connection
in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meetthe requirement. This is because some of the flow will go
through the hoseconnection to the air inlet tubes under all condi-
tions.

Component Inspection

INFOID:0000000001325912

PCV (POSITIVE CRANKCASE VENTILATION) VALVE

With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.

SEC921C

PBIB1588E

PBIB1589E

EC-52

< SERVICE INFORMATION >

[VQ35DE]

POSITIVE CRANKCASE VENTILATION

PCV VALVE VENTILATION HOSE

1.

Check hoses and hose connections for leaks.

2.

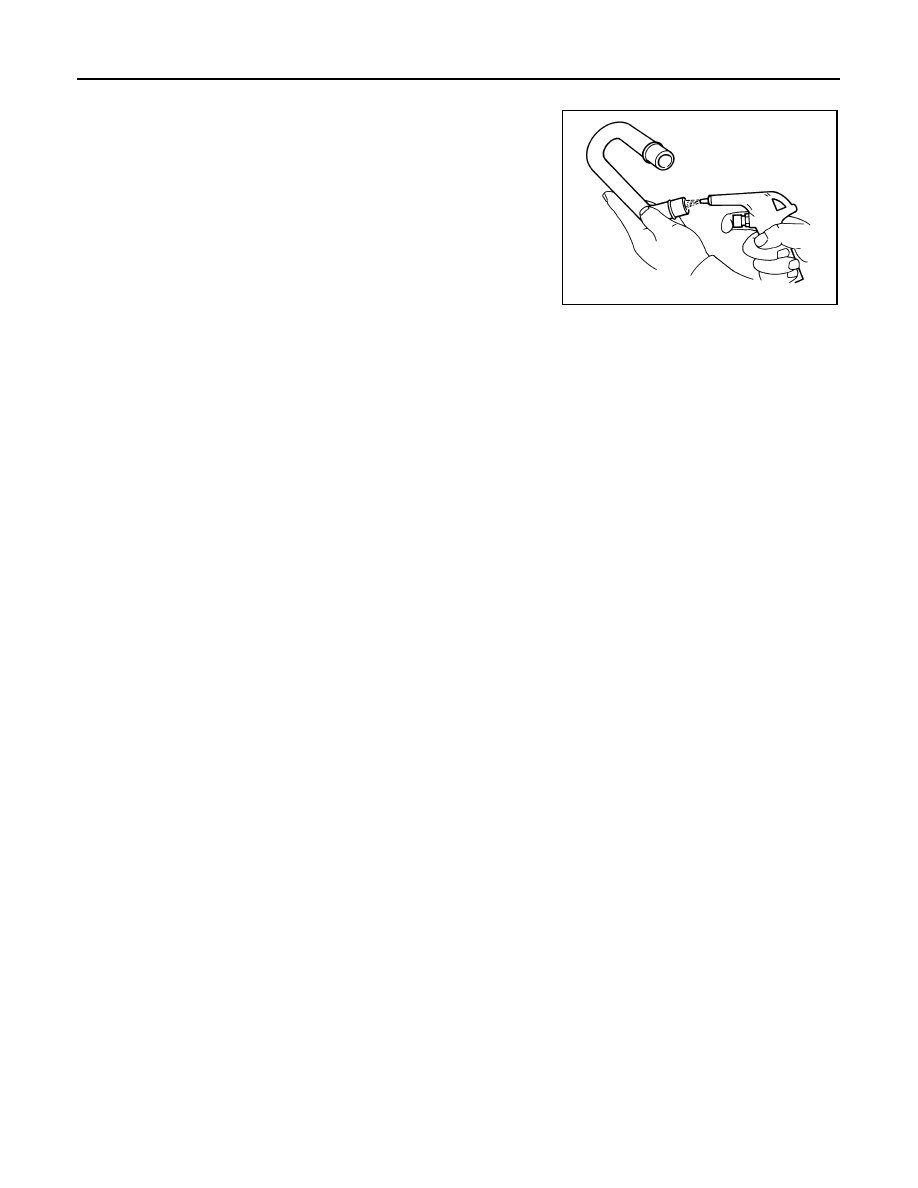

Disconnect all hoses and clean with compressed air. If any
