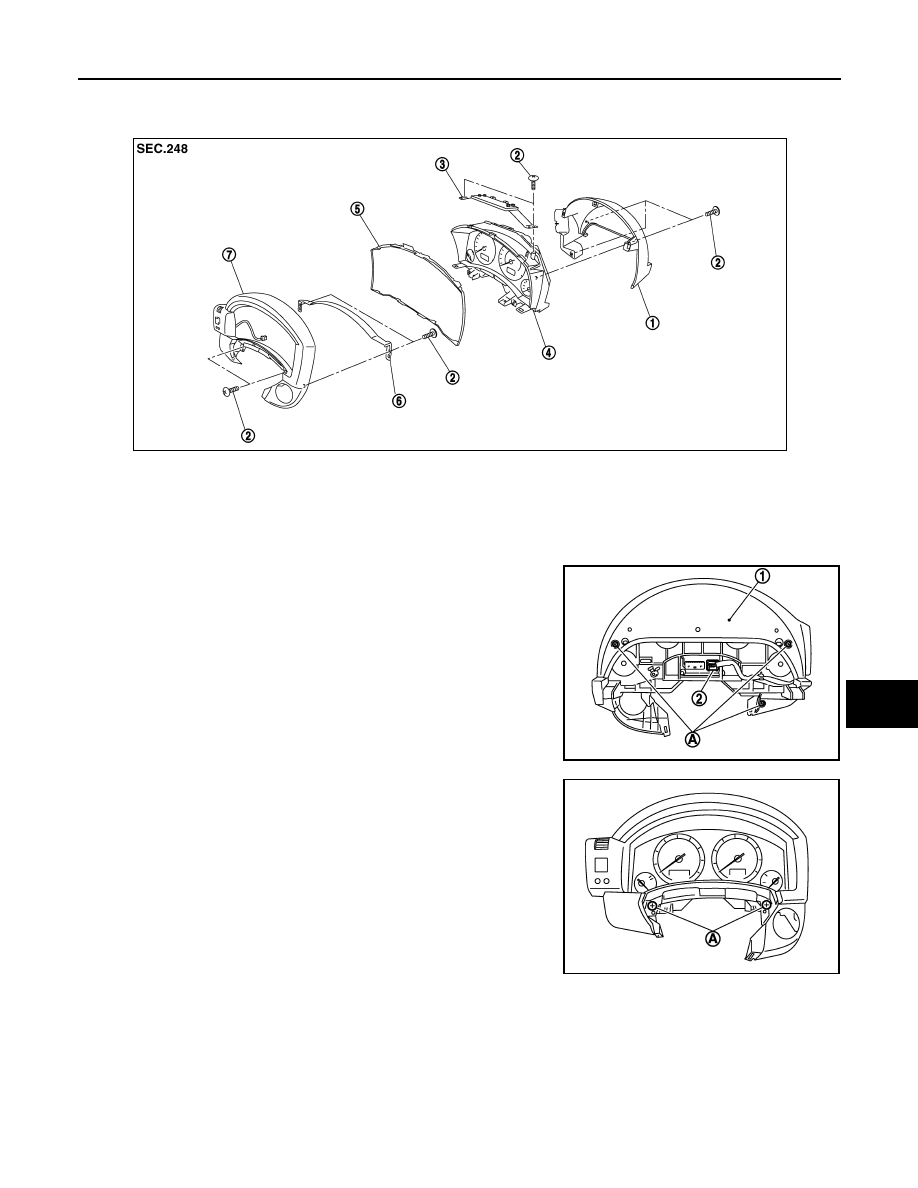

Disassembly and Assembly of Combination Meter

INFOID:0000000001328454

DISASSEMBLY

1.

Remove screws (A) and remove rear cover (1).

2.

Disconnect odo/trip meter and illumination control switch con-
nector (2).

3.

Remove screws (A).

1.

Rear cover

2.

Screws

3.

Plate

4.

Unified meter control unit assembly

5.

Front cover

6.

Reinforcing metal

7.

Switch and meter housing

SKIA5790E

SKIB8477E

SKIB8478E

DI-24

< SERVICE INFORMATION >

COMBINATION METERS

4.

Remove tabs (A) and remove switch and meter housing (1).

5.

Remove screws (A) and remove reinforcing metal (1).

6.

Remove screws (A) and remove plate (1).

7.

Disengage tabs (A) to separate front cover (1).

ASSEMBLY

Assembly is the reverse order of disassembly.

Removal and Installation of Odo/Trip Meter and Illumination Control Switch

INFOID:0000000001328455

REMOVAL

1.

Remove combination meter. Refer to

IP-10, "Component Parts Location"

.

SKIB8479E

SKIB8480E

SKIB8481E

SKIB8482E

COMBINATION METERS

DI-25

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

DI

N

O

P

2.

Remove switch and meter housing. Refer to

DI-23, "Disassem-

bly and Assembly of Combination Meter"

.

3.

Remove screws (2), and remove switch assembly.

4.

Remove screws (5), and remove odo/trip meter and illumination
control switch.

INSTALLATION

Installation is the reverse order of removal.

SKIA5795E

SKIA5796E

DI-26

< SERVICE INFORMATION >

UNIFIED METER AND A/C AMP

UNIFIED METER AND A/C AMP

System Description

INFOID:0000000001328456

• For the unified meter and A/C amp., the signal required for controlling the combination meter are integrated

in the A/C auto amp.

• The unified meter and A/C amp. corresponds to a CONSULT-III function (self-diagnosis results, CAN diag-

nosis support monitor, data monitor).

COMBINATION METER CONTROL FUNCTION

• Unified meter and A/C amp. receives necessary information for combination meter from each unit by CAN

communication.

• Unified meter and A/C amp. transmits a signals with communication line (TX, RX) between unified meter and

A/C amp. and combination meter.

Input/output signals between unified meter and A/C amp. and combination meter.

NOTE:

Combination meter performs fail-safe operation when unified meter and A/C amp. communication is malfunctioning. Refer to

DI-5, "Sys-

tem Description"

.

A/C AUTO AMP. FUNCTION

Unified meter and A/C amp. controls each operation for A/C auto amp. Regarding A/C control, refer to

ATC-

24, "Description of Air Conditioner LAN Control System"

 in ATC section.

OTHER FUNCTIONS

Drive Computer Function

The signals required for the distance to empty (DTE) display are centralized in the unified meter and A/C
amp., converted into data, and transmitted to the display unit (without NAVI) and display control unit (with
NAVI) using CAN communication.

Signal Buffer Function

Unified meter and A/C amp. transmits each signal to other units with CAN communication.

Unit

Input

Output

Unified meter and A/C amp.

• Seat belt buckle switch signal (Driver's side)
• Parking brake signal
• Illumination control nighttime required signal
• Refuel status signal
• Low-fuel warning lamp condition signal
• Combination meter receive error signal
• Delivery destination data signal
• Combination meter specifications signal

• Vehicle speed signal (8-pulse)
• Engine speed signal
• Engine coolant temperature signal
• Fuel level sensor signal (resistance value)
• Malfunction indicator lamp signal
• ABS warning lamp signal
• Low tire pressure warning lamp signal
• Run-flat tire warning lamp signal
• Brake warning lamp signal
• A/T CHECK warning lamp signal
• ICC warning lamp signal
• Oil pressure switch signal
• Door switch signal
• AWD warning lamp signal
• Key warning lamp signal
• VDC OFF indicator lamp signal
• SLIP indicator lamp signal
• CRUISE indicator lamp signal
• SET indicator lamp signal
• High beam request signal
• Turn indicator signal
• Snow mode switch signal
• ICC system display signal
• Shift position indicator signal
• Manual mode indicator signal
• Manual mode gear position signal
• CAN communication condition signal of A/T
• Position lights request signal
• Buzzer output signal
