CENTER CONSOLE ASSEMBLY

IP-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

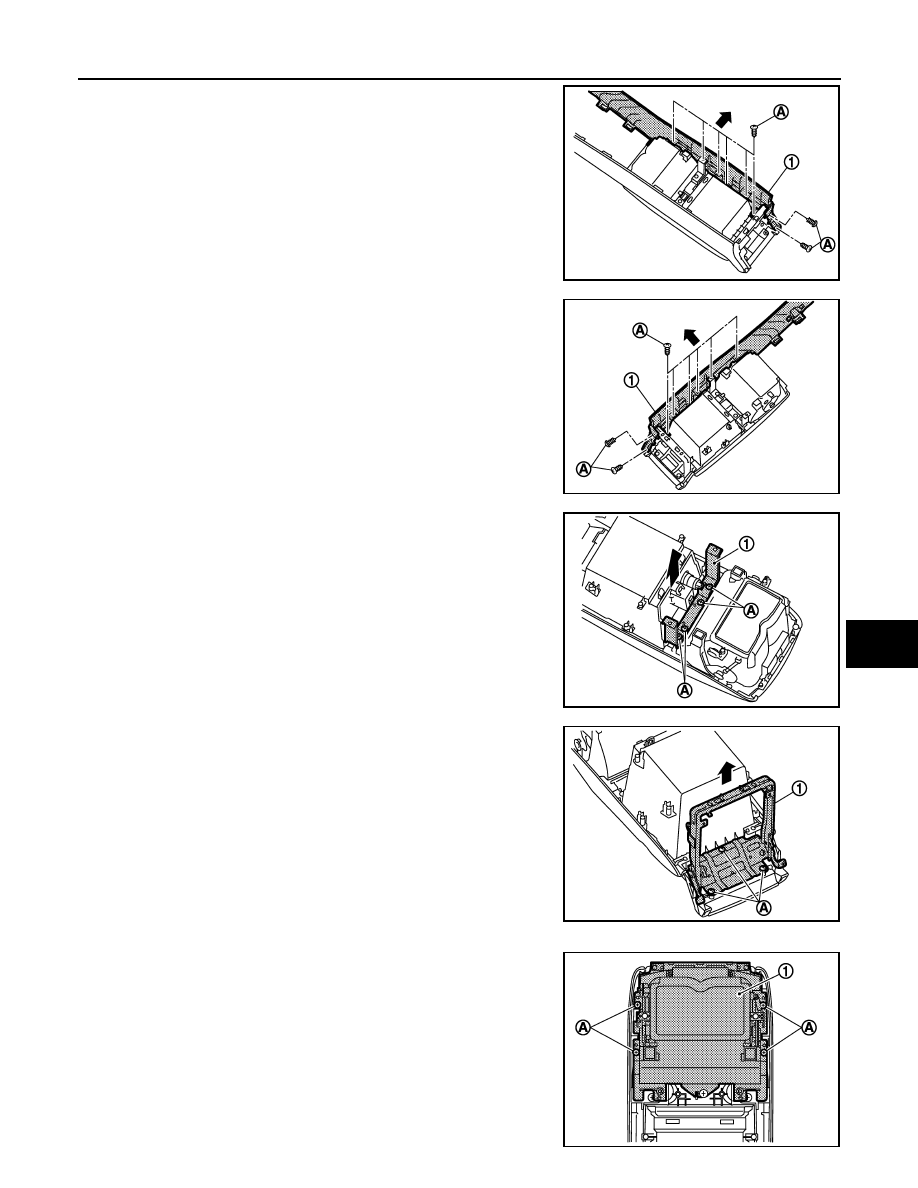

6.

Remove console pad LH.
• Remove console pad LH (1) fixing screws (A).
• Pull the console pad LH crosswise.

7.

Remove console pad RH.
• Remove console pad RH (1) fixing screws (A).
• Pull the console pad RH crosswise.

8.

Remove console center bracket.
• Remove console center bracket (1) fixing screws (A).
• Pull up console center bracket.

9.

Remove console upper bracket.
• Remove console upper bracket (1) fixing screws (A).
• Pull up console upper bracket.

10. Remove cup holder assembly.

• Remove cup holder assembly (1) fixing screws (A).
• Pull up cup holder assembly.

JMJIA1646ZZ

JMJIA1647ZZ

JMJIA1648ZZ

JMJIA1649ZZ

JMJIA1650ZZ

IP-26

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

11. Remove power outlet (1).

Refer to

PWO-5, "CONSOLE POWER SOCKET : Removal and

Installation"

.

12. Remove auxiliary input jacks (2).

Refer to

AV-917, "Removal and Installation"

.

13. Remove ipod connector (3).

Refer to

AV-916, "Removal and Installation"

.

14. Remove console finisher.

• Disengage pawls while pulling console finisher (1).
• Pull up console finisher.

ASSEMBLY

Assemble in the reverse order of disassembly.

JMJIA1676ZZ

: Pawl

JMJIA1677ZZ

LAN

LAN-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

LAN

A

O

P

N

CONTENTS

LAN SYSTEM

CAN FUNDAMENTAL

PRECAUTION ...............................................

8

PRECAUTIONS ...................................................

8

Precautions for Trouble Diagnosis  ............................

8

Precautions for Harness Repair  ................................

8

FUNCTION DIAGNOSIS ...............................

9

CAN COMMUNICATION SYSTEM  .....................

9

System Description  ...................................................

9

System Diagram ........................................................

9

CAN Communication Control Circuit .......................

10

DIAG ON CAN ....................................................

11

Description ..............................................................

11

System Diagram ......................................................

11

TROUBLE DIAGNOSIS  .....................................

12

Condition of Error Detection  ....................................

12

Symptom When Error Occurs in CAN Communi-
cation System ..........................................................

12

CAN Diagnosis with CONSULT-III  ..........................

15

Self-Diagnosis .........................................................

15

CAN Diagnostic Support Monitor  ............................

15

How to Use CAN Communication Signal Chart  ......

17

BASIC INSPECTION  ...................................

18

DIAGNOSIS AND REPAIR WORKFLOW  .........

18

Trouble Diagnosis Flow Chart  .................................

18

Trouble Diagnosis Procedure ..................................

18

CAN

HOW TO USE THIS MANUAL .....................

23

HOW TO USE THIS SECTION ...........................

23

Caution ....................................................................

23

Abbreviation List ......................................................

23

PRECAUTION ..............................................

24

PRECAUTIONS .................................................

24

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

24

Precautions for Trouble Diagnosis  ..........................

24

Precautions for Harness Repair  ..............................

24

BASIC INSPECTION  ...................................

26

DIAGNOSIS AND REPAIR WORKFLOW  ........

26

Interview Sheet ........................................................

26

FUNCTION DIAGNOSIS ..............................

27

CAN COMMUNICATION SYSTEM  ...................

27

CAN System Specification Chart .............................

27

CAN Communication Signal Chart  ..........................

27

COMPONENT DIAGNOSIS  .........................

32

CAN COMMUNICATION SYSTEM  ...................

32

Component Parts Location  ......................................

32

Wiring Diagram - CAN SYSTEM -  ...........................

33

MALFUNCTION AREA CHART ........................

39

Main Line  .................................................................

39

Branch Line  .............................................................

39

Short Circuit .............................................................

39

MAIN LINE BETWEEN AV AND DLC CIR-
CUIT ..................................................................

40

Diagnosis Procedure  ...............................................

40

MAIN LINE BETWEEN DLC AND TCM CIR-
CUIT ..................................................................

41

Diagnosis Procedure  ...............................................

41

MAIN LINE BETWEEN TCM AND ABS CIR-
CUIT ..................................................................

42

Diagnosis Procedure  ...............................................

42

LAN-2

MAIN LINE BETWEEN TCM AND ADP CIR-
CUIT ...................................................................

43

Diagnosis Procedure  ..............................................

43

MAIN LINE BETWEEN ADP AND ABS CIR-
CUIT ...................................................................

44

Diagnosis Procedure  ..............................................

44

ECM BRANCH LINE CIRCUIT  ..........................

46

Diagnosis Procedure  ..............................................

46

A-BAG BRANCH LINE CIRCUIT  ......................

47

Diagnosis Procedure  ..............................................

47

AFS BRANCH LINE CIRCUIT  ...........................

48

Diagnosis Procedure  ..............................................

48

AV BRANCH LINE CIRCUIT  .............................

49

Diagnosis Procedure  ..............................................

49

LANE BRANCH LINE CIRCUIT  ........................

50

Diagnosis Procedure  ..............................................

50

4WD BRANCH LINE CIRCUIT  ..........................

51

Diagnosis Procedure  ..............................................

51

BCM BRANCH LINE CIRCUIT  ..........................

52

Diagnosis Procedure  ..............................................

52

DLC BRANCH LINE CIRCUIT ...........................

53

Diagnosis Procedure  ..............................................

53

M&A BRANCH LINE CIRCUIT  ..........................

54

Diagnosis Procedure  ..............................................

54

STRG BRANCH LINE CIRCUIT  ........................

55

Diagnosis Procedure  ..............................................

55

TCM BRANCH LINE CIRCUIT  ..........................

56

Diagnosis Procedure  ..............................................

56

ADP BRANCH LINE CIRCUIT  ..........................

57

Diagnosis Procedure  ..............................................

57

ABS BRANCH LINE CIRCUIT  ..........................

58

Diagnosis Procedure  ..............................................

58

ICC BRANCH LINE CIRCUIT  ............................

59

Diagnosis Procedure  ..............................................

59

IPDM-E BRANCH LINE CIRCUIT  .....................

60

Diagnosis Procedure  ..............................................

60

CAN COMMUNICATION CIRCUIT ....................

61

Diagnosis Procedure  ..............................................

61

CAN SYSTEM (TYPE  1)

COMPONENT DIAGNOSIS  ........................

63

MAIN LINE BETWEEN AV AND DLC CIR-
CUIT ...................................................................

63

Diagnosis Procedure  ..............................................

63

MAIN LINE BETWEEN DLC AND TCM CIR-
CUIT ...................................................................

64

Diagnosis Procedure ...............................................

64

MAIN LINE BETWEEN TCM AND ABS CIR-
CUIT ...................................................................

65

Diagnosis Procedure ...............................................

65

ECM BRANCH LINE CIRCUIT  ..........................

66

Diagnosis Procedure ...............................................

66

A-BAG BRANCH LINE CIRCUIT  ......................

67

Diagnosis Procedure ...............................................

67

AV BRANCH LINE CIRCUIT  .............................

68

Diagnosis Procedure ...............................................

68

BCM BRANCH LINE CIRCUIT ..........................

69

Diagnosis Procedure ...............................................

69

DLC BRANCH LINE CIRCUIT  ..........................

70

Diagnosis Procedure ...............................................

70

M&A BRANCH LINE CIRCUIT ..........................

71

Diagnosis Procedure ...............................................

71

STRG BRANCH LINE CIRCUIT  ........................

72

Diagnosis Procedure ...............................................

72

TCM BRANCH LINE CIRCUIT  ..........................

73

Diagnosis Procedure ...............................................

73

ABS BRANCH LINE CIRCUIT  ..........................

74

Diagnosis Procedure ...............................................

74

IPDM-E BRANCH LINE CIRCUIT  .....................

75

Diagnosis Procedure ...............................................

75

CAN COMMUNICATION CIRCUIT  ...................

76

Diagnosis Procedure ...............................................

76

CAN SYSTEM (TYPE  2)

COMPONENT DIAGNOSIS  .......................

78

MAIN LINE BETWEEN AV AND DLC CIR-
CUIT ...................................................................

78

Diagnosis Procedure ...............................................

78

MAIN LINE BETWEEN DLC AND TCM CIR-
CUIT ...................................................................

79

Diagnosis Procedure ...............................................

79

MAIN LINE BETWEEN TCM AND ADP CIR-
CUIT ...................................................................

80

Diagnosis Procedure ...............................................

80

MAIN LINE BETWEEN ADP AND ABS CIR-
CUIT ...................................................................

81

Diagnosis Procedure ...............................................

81

ECM BRANCH LINE CIRCUIT  ..........................

83

Diagnosis Procedure ...............................................

83
