AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-501

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DATA MONITOR

ALL SIGNALS

• Displays the status of the following vehicle signals inputted into AV control unit.
• For each signal, actual signal can be compared with the condition recognized on the system.

• AV COMM CIRCUIT [U1300]
• SONAR CONN [U125C]

When either one of the following items
are detected:

• Sonar control unit power supply or

ground circuit malfunction are detected.

• Malfunction is detected in the AV com-

munication circuits between sonar con-
trol unit and the junction between AV
control unit and multifunction switch.

• Sonar control unit power supply and

ground circuits.

• AV communication circuits between so-

nar control unit and the junction between
AV control unit and multifunction switch.

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]
• IPod CONN [U1254]

Malfunction is detected in the AV communi-
cation circuits between AV control unit and
the junction between multifunction switch
and iPod adapter.

AV control unit and the junction between
multifunction switch and iPod adapter.

• AV COMM CIRCUIT [U1300]
• REAR CAMERA LAN CONN [U1252]
• IPod CONN [U1254]

Malfunction is detected in the AV communi-
cation circuits between camera control unit
and the junction between AV control unit
and multifunction switch.

AV communication circuits between cam-
era control unit and the junction between
AV control unit and multifunction switch.

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]
• REAR CAMERA LAN CONN [U1252]
• IPod CONN [U1254]

Malfunction is detected in the AV communi-
cation circuits between AV control unit and
the junction between camera control unit
and multifunction switch.

AV communication circuits between AV
control unit and the junction between cam-
era control unit and multifunction switch.

• AV COMM CIRCUIT [U1300]
• IPod CONN [U1254]
• AROUND CAMERA CONN [U125B]

Malfunction is detected in the AV communi-
cation circuits between around view moni-
tor control unit and the junction between AV
control unit and multifunction switch.

AV communication circuits between around
view monitor control unit and the junction
between AV control unit and multifunction
switch.

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]
• IPod CONN [U1254]
• AROUND CAMERA CONN [U125B]

Malfunction is detected in the AV communi-
cation circuits between AV control unit and
the junction between around view monitor
control unit and multifunction switch.

AV communication circuits between AV
control unit and the junction between
around view monitor control unit and multi-
function switch.

• AV COMM CIRCUIT [U1300]
• INTERNAL COMM [U121F]
• SWITCH CONN [U1240]
• IPod CONN [U1254]

Malfunction is detected in the AV communi-
cation circuits.

Check and repair the short circuit in AV
communication circuits.

• AV COMM CIRCUIT [U1300]
• INTERNAL COMM [U121F]
• SWITCH CONN [U1240]
• REAR CAMERA LAN CONN [U1252]
• IPod CONN [U1254]

Malfunction is detected in the AV communi-
cation circuits.

Check and repair the short circuit in AV
communication circuits.

• AV COMM CIRCUIT [U1300]
• INTERNAL COMM [U121F]
• SWITCH CONN [U1240]
• IPod CONN [U1254]
• AROUND CAMERA CONN [U125B]

Malfunction is detected in the AV communi-
cation circuits.

Check and repair the short circuit in AV
communication circuits.

Error item

Description

Possible malfunction factor/Action to take

Display Item

Display

Vehicle status

Remarks

VHCL SPD SIG

On

Vehicle speed > 0 km/h (0 MPH)

Changes in indication may be delayed. This is
normal.

Off

Vehicle speed = 0 km/h (0 MPH)

PKB SIG

On

Parking brake is applied.

Off

Parking brake is released.

AV-502

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

SELECTION FROM MENU

Allows the technician to select which vehicle signals should be displayed and displays the status of the
selected vehicle signals.

ILLUM SIG

On

Block the light beam from the auto
light optical sensor when the light
SW is ON.

—

Off

Expose the auto light optical sensor
to light when the light SW is OFF or
ON.

IGN SIG

On

Ignition switch ON

Off

Ignition switch in the ACC position

REV SIG

On

Shift the selector lever to the “R” po-
sition

Changes in indication may be delayed. This is
normal.

Off

Shift the selector lever to a position
other than the “R” position

Display Item

Display

Vehicle status

Remarks

Item to be selected

Description

VHCL SPD SIG

The same as when “ALL SIGNALS”
is selected.

PKB SIG

ILLUM SIG

IGN SIG

REV SIG

AV

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

AV-503

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

Diagnosis Description

INFOID:0000000003390932

The diagnosis function of around view monitor control unit is displayed when selecting “Camera Cont.” of Con-
firmation/Adjustment mode in the multi AV system.

Around view monitor control unit diagnosis item

CAUTION:

*: Never perform other operations for approximately 10 seconds after performing "Initialize Camera Image Calibration".

Connection Confirmation

The status of signals inputted to around view monitor control unit can
be checked.

Connection Confirmation item list

AV control unit Confirmation/Adjustment mode

Function

Camera Cont.

Connection Confirmation

The status of signals input to around view monitor control unit
can be checked.

Calibrating Cam-
era Image

Rear Camera

Performs the calibration of rear camera.

Pass-Side Camera

Performs the calibration of side camera LH.

Front Camera

Performs the calibration of front camera.

Dr-Side Camera

Performs the calibration of side camera.

Initialize Camera Image

Calibration

*

The calibration can be initialized to NISSAN factory shipment
condition.

Correct Draw Line
of Camera Image

Rear View

The position of rear view guiding line can be changed.

Front-Side View

The position of Front-Side view guiding line can be changed.

Front View

The position of front view guiding line can be changed.

Fine Tuning of Birds-Eye View

• The confirmation and adjustment of the difference between

each camera can be performed.

• The system changes to the ZOOM function by the operation

of shift and the ZOOM ratio of each camera can be changed.

JSNIA1057GB

Diagnosis item

Display

Description

Steer. Angle Sensor

ON/OFF

• Input status of steering angle sensor is displayed by ON/OFF.
• When all of steering signals 1, 2, and 3 are input, it is turned ON. It remains

ON until connection confirmation mode is stopped.

Reverse Sensor

ON/OFF

Input status of reverse signal inputted to around view monitor control unit is dis-
played by ON/OFF in real time.

Vehicle Speed Sensor

ON/OFF

• Input status of vehicle speed signal inputted to around view monitor control

unit is displayed by ON/OFF.

• When the vehicle speed signal is input, it is turned ON. It remains ON until con-

nection confirmation mode is stopped.

Camera Switch

ON/OFF

• The status of camera switch signal received via AV communication from AV

control unit is displayed by ON/OFF.

• When the camera switch signal is received once, it is turned ON. It remains

ON until connection confirmation mode is stopped.

IGN

ON/OFF

Input status of ignition signal inputted to around view monitor control unit is dis-
played by ON/OFF in real time.

AV-504

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

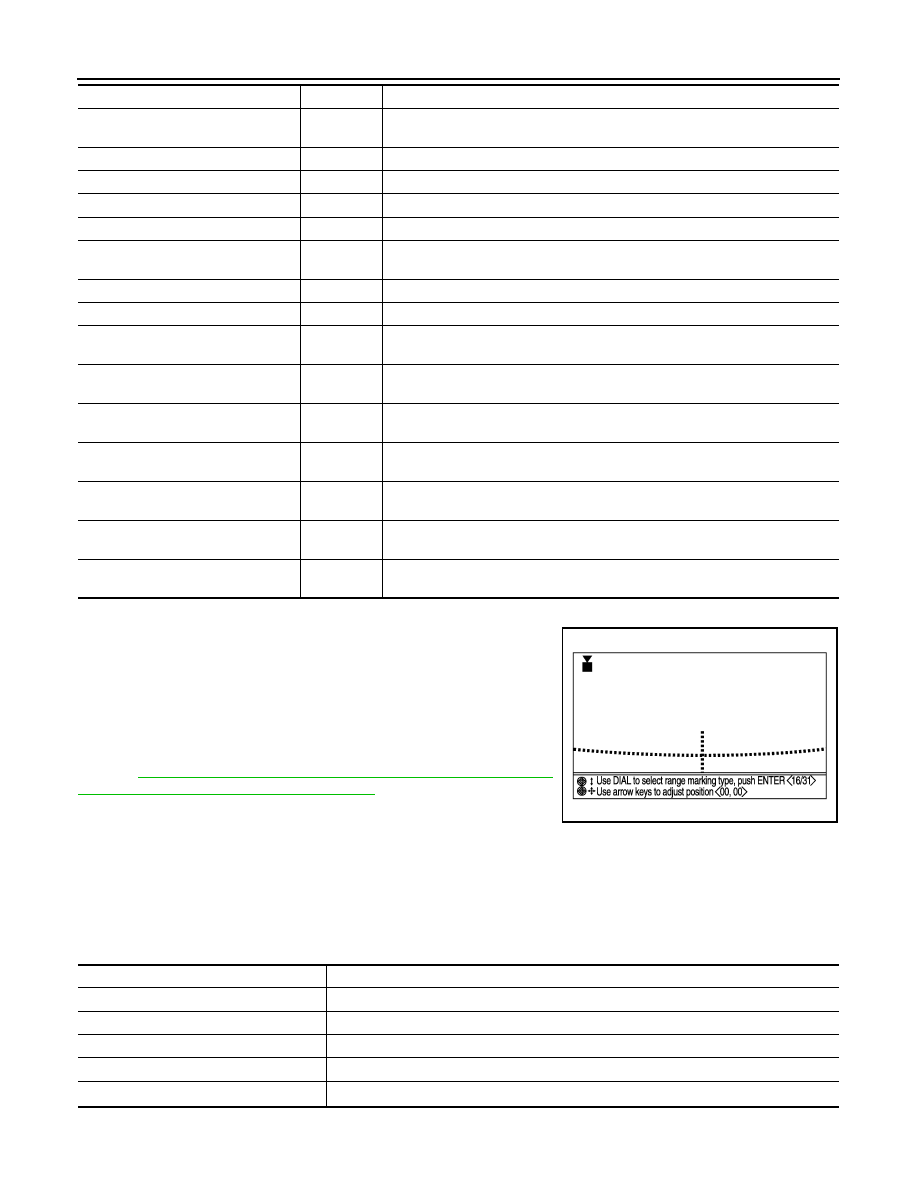

Calibrating Camera Image

• Perform the calibration of camera image caused by the incorrect

mounting position of each camera, etc. Always perform calibration
after performing the following work.

- When each camera or each camera mount (door mirror, front grille,

etc.) is removed

- When replacing around view monitor control unit
• When performing the calibration initialization, it can be set to the

NISSAN factory shipment condition.

Refer to

AV-438, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Special Repair Requirement"

 for the calibration proce-

dure.

Calibrating Camera Image item

CAUTION:

*: Never perform other operations for approximately 10 seconds after performing "Initialize Camera Image Calibration".

Type of Steer. Angle Sensor

Relative

The input type of steering angle sensor is displayed. (“Relative” is displayed on
this model.)

Type of Steer. Gear ratio

1

The type of steering gear ratio is displayed. (“1” is displayed on this model.)

Left or Right Steer.

Left

The steering position is displayed. (“Left” is displayed on this model.)

Rear Camera Image Output signal

OK / NG

The input status of rear camera image signal is displayed by OK/NG in real time.

Rear Camera COMM Status

OK / NG

The communication status with rear camera is displayed by OK/NG in real time.

Rear Camera COMM Line

OK / NG

The status of communication line with rear camera is displayed by OK/NG in real
time.

Front Camera Image Output signal

OK / NG

The input status of front camera image signal is displayed by OK/NG in real time.

Front Camera COMM Status

OK / NG

The communication status with front camera is displayed by OK/NG in real time.

Front Camera COMM Line

OK / NG

The status of communication line with front camera is displayed by OK/NG in real
time.

Pass-Side Camera Image Output sig-
nal

OK / NG

The input status of side camera RH image signal is displayed by OK/NG in real
time.

Pass-Side Camera COMM Status

OK / NG

The communication status with side camera RH is displayed by OK/NG in real
time.

Pass-Side Camera COMM Line

OK / NG

The status of communication line with side camera RH is displayed by OK/NG in
real time.

Dr-Side Camera Image Output signal

OK / NG

The input status of side camera LH image signal is displayed by OK/NG in real
time.

Dr-Side Camera COMM Status

OK / NG

The communication status with side camera LH is displayed by OK/NG in real
time.

Dr-Side Camera COMM Line

OK / NG

The status of communication line with side camera LH is displayed by OK/NG in
real time.

Diagnosis item

Display

Description

Adjustment range

Rotating direction

: 31 patterns (16 on the
center)

Upper/lower direction

:

−

99 – 99

Left/right direction

:

−

99 – 99

JSNIA1053GB

Items

Description

Rear Camera

Performs the calibration of rear camera.

Pass-Side Camera

Performs the calibration of side camera RH.

Front Camera

Performs the calibration of front camera.

Dr-Side Camera

Performs the calibration of side camera LH.

Initialize Camera Image Calibration

*

The calibration can be initialized to the factory shipment setting.
