Infiniti EX35. Manual - part 1460

TM-228

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

7.

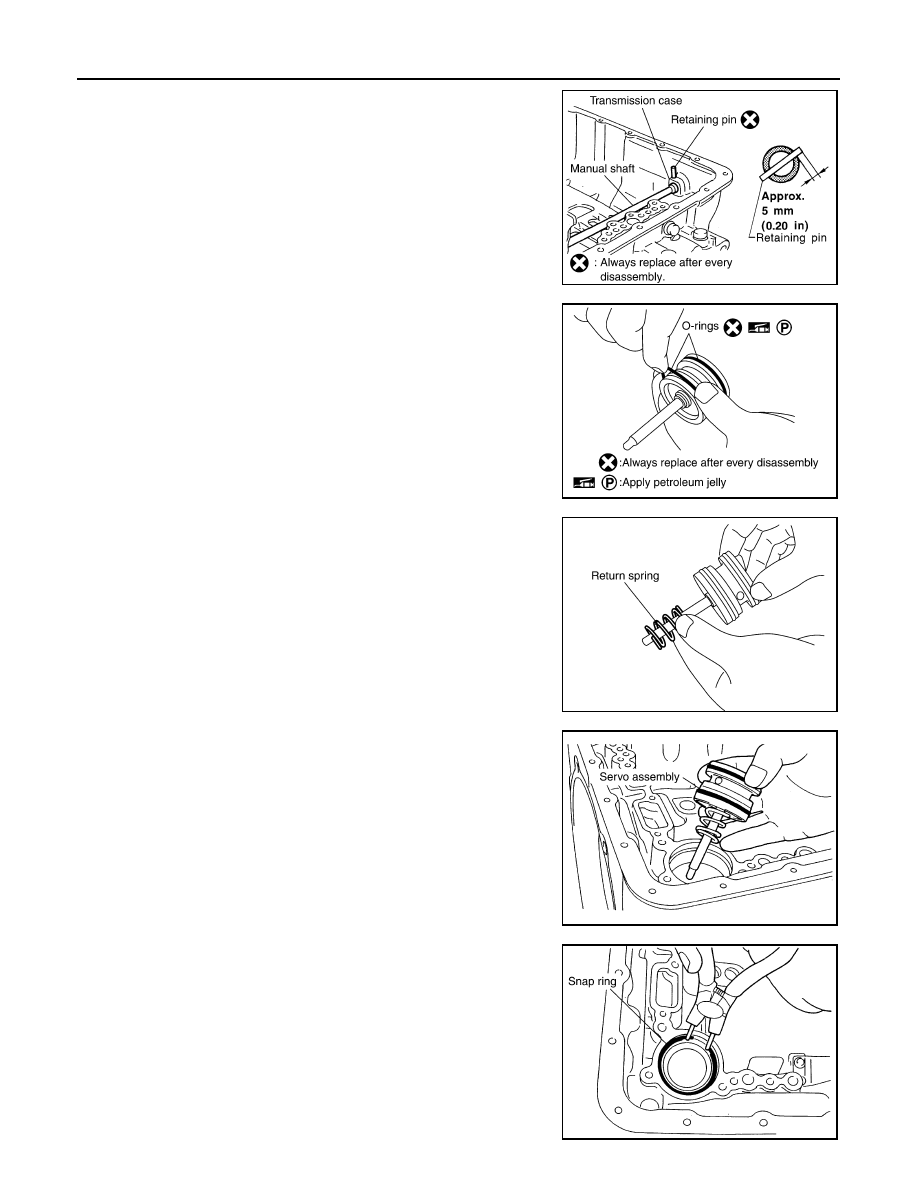

Install retaining pin into the transmission case and manual shaft.

a.

Fit pinhole of the transmission case to pinhole of the manual
shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the transmission
case.

CAUTION:

Drive retaining pin to 5

±

1 mm (0.20

±

0.04 in) over the trans-

mission case.

8.

Install O-rings to servo assembly.

9.

Install return spring to servo assembly.

10. Install servo assembly in transmission case.

11. Using a pair of snap ring pliers, install snap ring to transmission

case.

SCIA2427E

SCIA5719E

SCIA5717E

SCIA5679E

SCIA2333E

TRANSMISSION ASSEMBLY

TM-229

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

12. Install D-rings in reverse brake piston.

13. Install reverse brake piston in transmission case.

14. Install needle bearing to drum support edge surface.

CAUTION:

Check the direction of needle bearing. Refer to

TM-207,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

15. Install seal rings to drum support.

16. Install spring retainer and return spring in transmission case.

SCIA6330E

SCIA2325E

SCIA2796E

SCIA3333E

SCIA2324E

TM-230

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

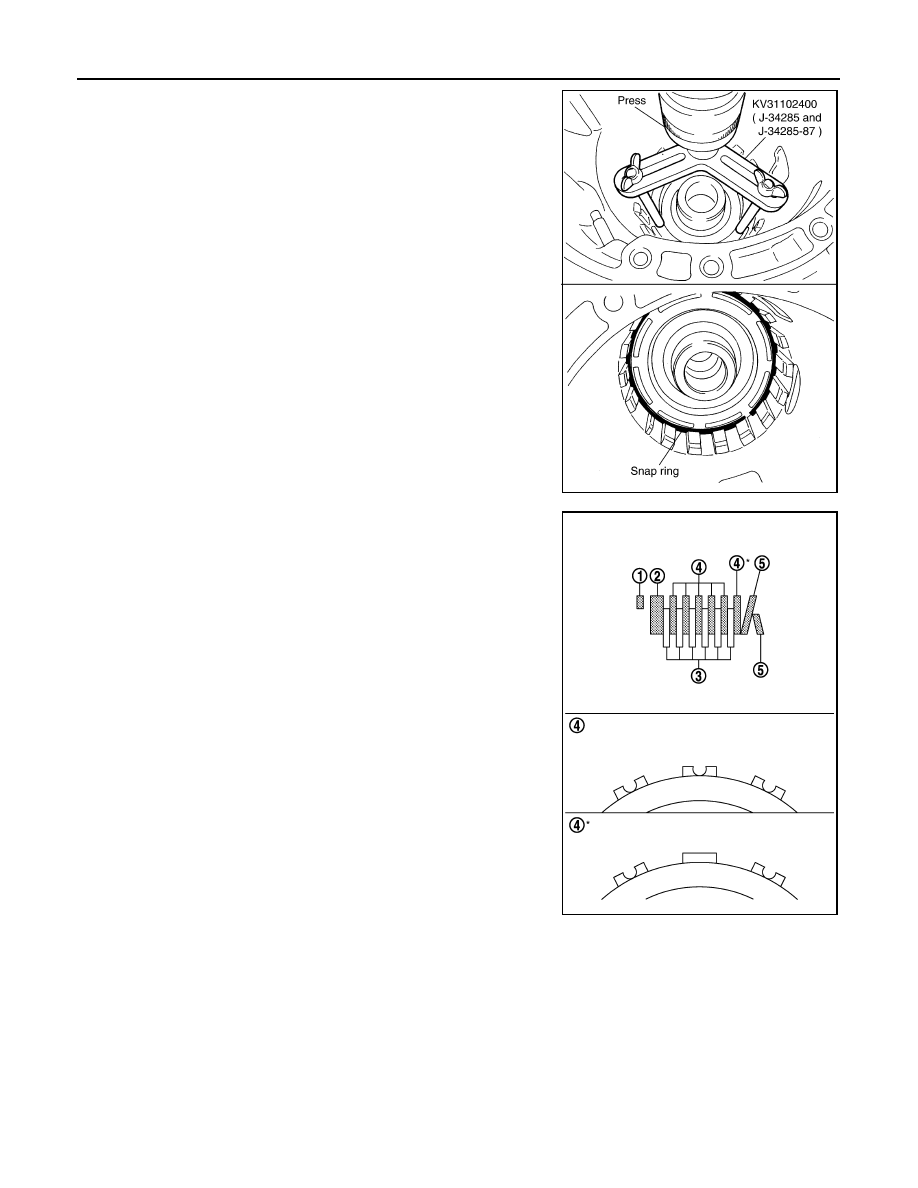

17. Set the SST on spring retainer and install snap ring (fixing spring

retainer) in transmission case while compressing return spring.

CAUTION:

Securely assemble them using a flat-bladed screwdriver so
that snap ring tension is slightly weak.

18. Install reverse brake drive plates, driven plates, dish plates and

retaining plate in transmission case.

CAUTION:

Check order of plates.

SCIA5877E

1

:  Snap  ring

2

: Retaining plate

3

: Drive plate

4

: Driven plate

5

: Dish plate

6/6

: Drive plate / Driven plate

JPDIA0568ZZ

TRANSMISSION ASSEMBLY

TM-231

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

19. Assemble N-spring.

20. Install reverse brake retaining plate in transmission case.

21. Install snap ring in transmission case.

22. Measure clearance between retaining plate and snap ring. If not

within specified clearance, select proper retaining plate.

23. Install needle bearing to transmission case.

CAUTION:

Check the direction of needle bearing. Refer to

TM-207,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

SCIA5249E

SCIA2439E

Specified clearance “A”

Standard:

TM-270, "Reverse Brake"

.

Retaining plate: Refer to

TM-270, "Reverse Brake"

SCIA3129E

SCIA5031E
