Emergency situations

1. Shake the sealant bottle (2).

WARNING

Do not use the tire sealant after

the sealant has expired (i.e. past

the expiration date on the sealant

container). This can increase the risk of

tire failure.

WARNING

• Keep out of reach of children.

• Avoid contact with eyes.

• Do not swallow.

OIGH067042

2. Connect the filling hose (3) to the

Using the Tire Mobility Kit

sealant bottle (2) in the direction of (A)

and connect the sealant bottle to the

WARNING

compressor (6) in the direction of (B).

3. Ensure that the compressor is

switched OFF.

OOSH079017L

Detach the speed restriction label (1)

from the sealant bottle (2), and place

OOS080015N

it in a highly visible place inside the

4. Unscrew the valve cap from the valve

vehicle such as on the steering wheel to

of the defective wheel and screw the

remind the driver not to drive too fast.

filling hose (3) of the sealant bottle

onto the valve.

CAUTION

Securely install the sealant filling hose

to the valve. If not, sealant may flow

backward, possibly clogging the filling

hose.

8-26

8. Switch off the compressor.

9. Detach the hoses from the sealant

bottle connector and from the tire

valve.

Return the Tire Mobility Kit to its storage

location in the vehicle.

WARNING

Do not leave your vehicle running in

a poorly ventilated area for extended

OOS080002K

periods of time. Carbon monoxide

5. Plug the compressor power cord (4)

poisoning and suffocation can occur.

into the vehicle power outlet.

Distributing the sealant

NOTICE

Only use the front passenger side

power outlet when connecting the

power cord.

6. Switch on the ignition switch.

7. Switch on the compressor and let it

run for approximately 5~7 minutes to

fill the sealant up to proper pressure.

(refer to the Tire and Wheels, chapter

8). The inflation pressure of the tire

OLMF064106

after filling is unimportant and will be

checked/corrected later.

10. Immediately drive approximately 7~10

km (4~6 miles or about 10 minutes)

Be careful not to overinflate the tire

to evenly distribute the sealant in the

and stay away from the tire when

tire.

filling it.

Do not exceed a speed of 80 km/h (50

mph). If possible, do not fall below a

CAUTION

speed of 20 km/h (12 mph).

Do not attempt to drive your vehicle if

While driving, if you experience any

the tire pressure is below 200 kpa (29

unusual vibration, ride disturbance or

psi). This could result in an accident due

noise, reduce your speed and drive with

to sudden tire failure.

caution until you can safely pull off of the

side of the road.

Call for road side service or towing.

8-27

Emergency situations

How to adjust tire pressure

OIGH067043

OOS080015N

11. After driving approximately 7~10 km

OOS080015N

(4~6 miles or about 10 minutes), stop

1. Park your vehicle in a safe location.

at a safe location.

2. Connect the filling hose (3) of the

12. Connect the filling hose (3) of the

compressor directly to the tire valve.

3. Plug the compressor power cord into

13. Plug the compressor power cord into

the vehicle power outlet.

4. Adjust the tire inflation pressure to the

14. Adjust the tire inflation pressure to

recomended tire inflation.

the recomended tire inflation.

With the ignition swithched on,

proceed as follows.

- To increase the inflation pressure:

Switch on the compressor. To

check the current inflation pressure

setting, briefly switch off the

compressor.

- To reduce the inflation pressure:

Press the button (9) on the

compressor.

NOTICE

Do not use the sealant when only

Do not let the compressor run for more

adjusting tire pressure.

than 10 minutes, otherwise the device

will overheat and may be damaged.

8-28

Notes on the safe use of the Tire

Information

Mobility Kit

The pressure gauge may show higher than

actual reading when the compressor is

•

Park your car at the side of the road

running. To get an accurate tire pressure,

so that you can work with the Tire

the compressor needs to be turned off.

Mobility Kit away from moving traffic.

•

To be sure your vehicle will not move,

even when you’re on fairly level

CAUTION

ground, always set your parking brake.

If the inflation pressure is not

•

Only use the Tire Mobility Kit for

maintained, drive the vehicle a second

sealing/inflation passenger car tires.

time, refer to Distributing the sealant.

Only punctured areas located within

Then repeat steps 1 to 4.

the tread region of the tire can be

Use of the TMK may be ineffectual for

sealed using the tire mobility kit.

tire damage larger than approximately

•

Do not use on motorcycles, bicycles

4 mm (0.16 in).

or any other type of tires.

Contact an authorized HYUNDAI dealer

•

When the tire and wheel are

if the tire cannot be made roadworthy

damaged, do not use Tire Mobility Kit

with the Tire Mobility Kit.

for your safety.

•

Use of the Tire Mobility Kit may not be

WARNING

effective for tire damage larger than

approximately 4 mm (16 inch).

The tire inflation pressure must be

Please contact the nearest HYUNDAI

inflated to the proper pressure (Refer to

dealer if the tire cannot be made

“Tire and Wheels” section in chapter 2).

roadworthy with the Tire Mobility Kit.

If it is not, do not continue driving.

Call for road side service or towing.

CAUTION

Tire pressure sensor

The sealant on the tire pressure sensor

and wheel should be removed when

you replace the tire with a new one and

inspect the tire pressure sensors. We

recommend that you get this done at an

authorized dealer.

Information

When reinstalling the repaired or replaced

tire and wheel on the vehicle, tighten the

wheel bolt to 11~13 kgf·m (79~94 lbf·ft).

8-29

Emergency situations

•

Do not use the Tire Mobility Kit if a tire

is severely damaged by driving run flat

or with insufficient air pressure.

•

Do not remove any foreign objects

such as nails or screws that have

penetrated the tire.

•

Provided the car is outdoors, leave the

engine running. Otherwise operating

the compressor may eventually drain

the car battery.

•

Never leave the Tire Mobility Kit

unattended while it is being used.

•

Do not leave the compressor running

for more than 10 minutes at a time or

it may overheat.

•

Do not use the Tire Mobility Kit if the

ambient temperature is below -30°C

(-22°F).

•

In case of skin contact with the

sealant, wash the area thoroughly

with plenty of water. If the irritation

persists, seek medical attention.

•

In case of eye contact with the

sealant, flush your eyes for at least 15

minutes. If the irritation persists, seek

medical attention.

•

In case of swallowing the sealant,

rinse the mouth and drink plenty of

water. However, never give anything

to an unconscious person and seek

medical attention immediately.

•

Long time exposure to the sealant

may cause damage to bodily tissue

such as kidney, etc.

8-30

Towing

Towing service

If any of the loaded wheels or suspension

components are damaged or the vehicle

is being towed with the rear wheels on

the ground, use a towing dolly under the

rear wheels.

When being towed by a commercial tow

truck and wheel dollies are not used,

the rear of the vehicle should always be

lifted, not the front.

For 4WD vehicles, it must be towed

with a wheel lift and dollies or flatbed

equipment with all the wheels off the

ground.

NOTICE

Do not lift the vehicle by the tow fitting

or body and chassis parts. Otherwise

the vehicle may be damaged.

OOS067007L

[A] : Dollies

CAUTION

If emergency towing is necessary,

• Do not tow the vehicle with the rear

we recommend having it done by

wheels on the ground as this may

an authorized HYUNDAI dealer or a

cause damage to the vehicle.

commercial tow-truck service.

Proper lifting and towing procedures

are necessary to prevent damage to

the vehicle. The use of wheel dollies or

flatbed is recommended.

For 2WD vehicles, it is acceptable to tow

the vehicle with the front wheels on the

ground (without dollies) and the rear

wheels off the ground.

OOS067022

• Do not tow with sling-type

equipment. Use wheel lift or flatbed

equipment.

OOS067021

8-31

Emergency situations

Removable Towing Hook

WARNING

Front

If your vehicle is equipped with a

rollover sensor, place the ignition

switch in the LOCK/OFF or ACC position

when the vehicle is being towed.

The side impact and curtain air bag

may deploy if the sensor detects the

situation as a rollover.

When towing your vehicle in an

emergency without wheel dollies:

1. Place the ignition switch in the ACC

OOS080012N

position.

Rear

2. Place the shift lever in N (Neutral).

3. Release the parking brake.

CAUTION

Failure to place the shift lever in N

(Neutral) when being towed with the

front wheels on the ground can cause

internal damage to the transmission.

OOS067041

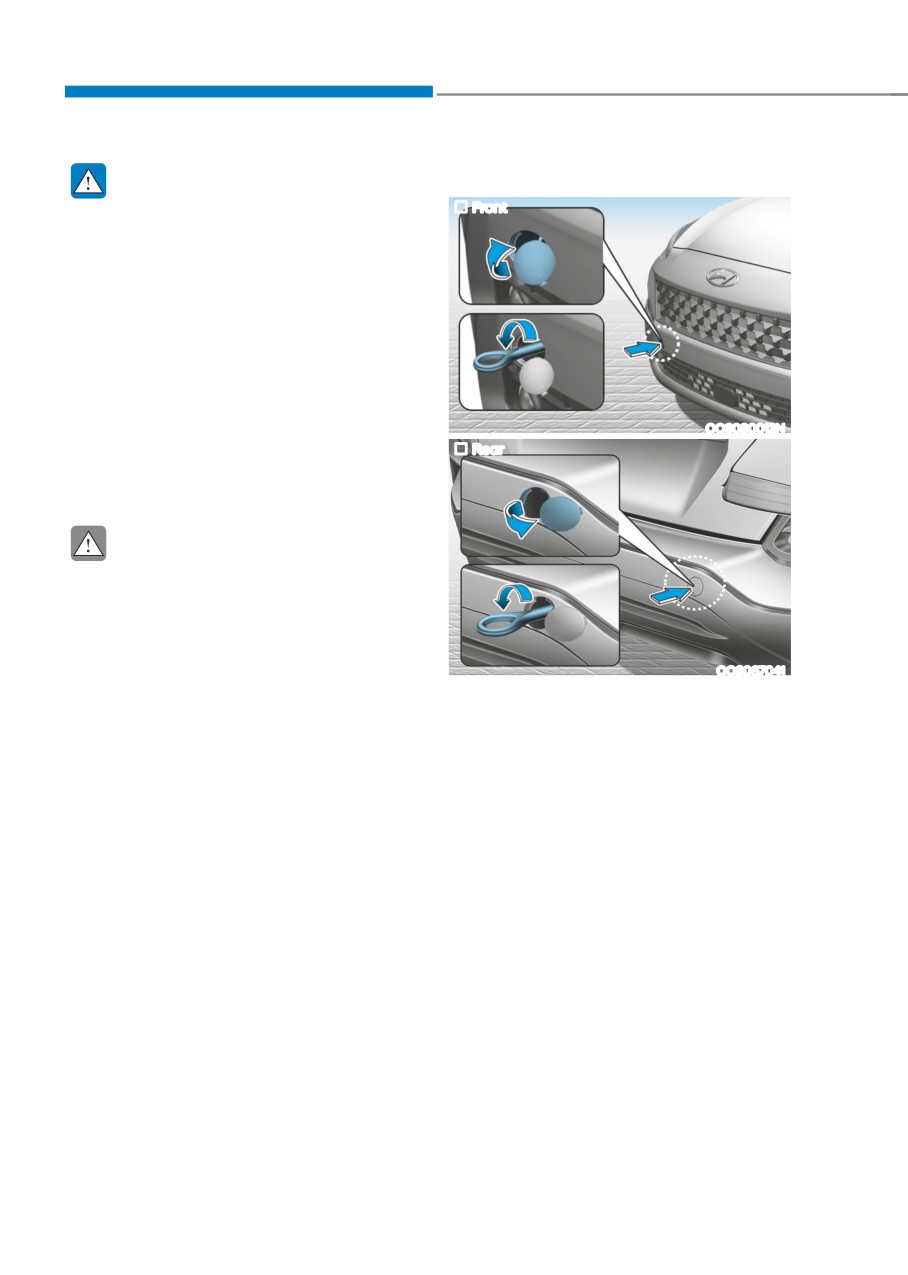

1. Open the liftgate, and remove the

towing hook from the tool case.

2. Remove the hole cover pressing the

lower part of the cover on the front or

rear bumper.

3. Install the towing hook by turning it

clockwise into the hole until it is fully

secured.

4. Remove the towing hook and install

the cover after use.

8-32

Emergency Towing

Always follow these emergency towing

precautions:

If towing is necessary, we recommend

you have it done by an authorized

•

Place the ignition switch in the ACC

HYUNDAI dealer or a commercial tow

position so the steering wheel is not

truck service.

locked. (if equipped)

If a towing service is not available in

•

Place the shift lever in N (Neutral).

an emergency, your vehicle may be

•

Release the parking brake.

temporarily towed using a cable or chain

•

Depress the brake pedal with more

secured to the emergency towing hook

force than normal since you will have

at the front (or rear) of the vehicle.

reduced braking performance.

Use extreme caution when towing the

•

More steering effort will be required

vehicle with a cable or chain. A driver

because the power steering system

must be in the vehicle to steer it and

will be disabled.

operate the brakes.

•

Use a vehicle heavier than your own to

Towing in this manner may be done

tow your vehicle.

only on hard-surfaced roads for a short

•

The drivers of both vehicles should

distance and at low speeds. Also, the

communicate with each other

wheels, axles, power train, steering and

frequently.

brakes must all be in good condition.

•

Before emergency towing, check that

the hook is not broken or damaged.

CAUTION

•

Fasten the towing cable or chain

The driver must be in the vehicle for

securely to the hook.

steering and braking operations when

•

Do not jerk the hook. Apply steady

the vehicle is being towed. Passengers

and even force.

other than the driver must not be in the

vehicle.

8-33

Emergency situations

NOTICE

To avoid damage to your vehicle and

vehicle components when towing:

• Always pull straight ahead when

using the towing hooks. Do not pull

from the side or at a vertical angle.

• Do not use the towing hooks to pull

a vehicle out of mud, sand or other

conditions from which the vehicle

cannot be driven out under its own

OOS067027

power.

•

Use a towing cable or chain less than

• Limit the vehicle speed to 10 mph

5 m (16 feet) long. Attach a white or

(15 km/h) and drive less than 1

red cloth (about 30 cm (12 inch) wide)

mile (1.5 km) when towing to avoid

in the middle of the cable or chain for

serious damage to transmission. (if

easy visibility.

equipped with intelligent variable

transmission)

•

Drive carefully so the towing cable or

chain remains tight during towing.

• The vehicle should be towed at a

speed of 25km/h (15 mph) or less

•

Before towing, check the intelligent

within the distance of 20km (12

variable transmission/dual clutch

miles). (if equipped with dual clutch

transmission for fluid leaks under

transmission)

your vehicle. If the intelligent variable

transmission/dual clutch transmission

fluid is leaking, flatbed equipment or a

Tie-down Hook

towing dolly must be used.

WARNING

NOTICE

Do not use the tie-down hook(s) for

Accelerate or decelerate the vehicle

towing purposes. If the tie-down

in a slow and gradual manner while

hook(s) are used for towing, the

maintaining tension on the tow rope

tie-down hook(s) or bumper will be

or chain to start or drive the vehicle,

damaged and this could lead to serious

otherwise tow hooks and the vehicle

injury.

may be damaged.

8-34

Emergency situations

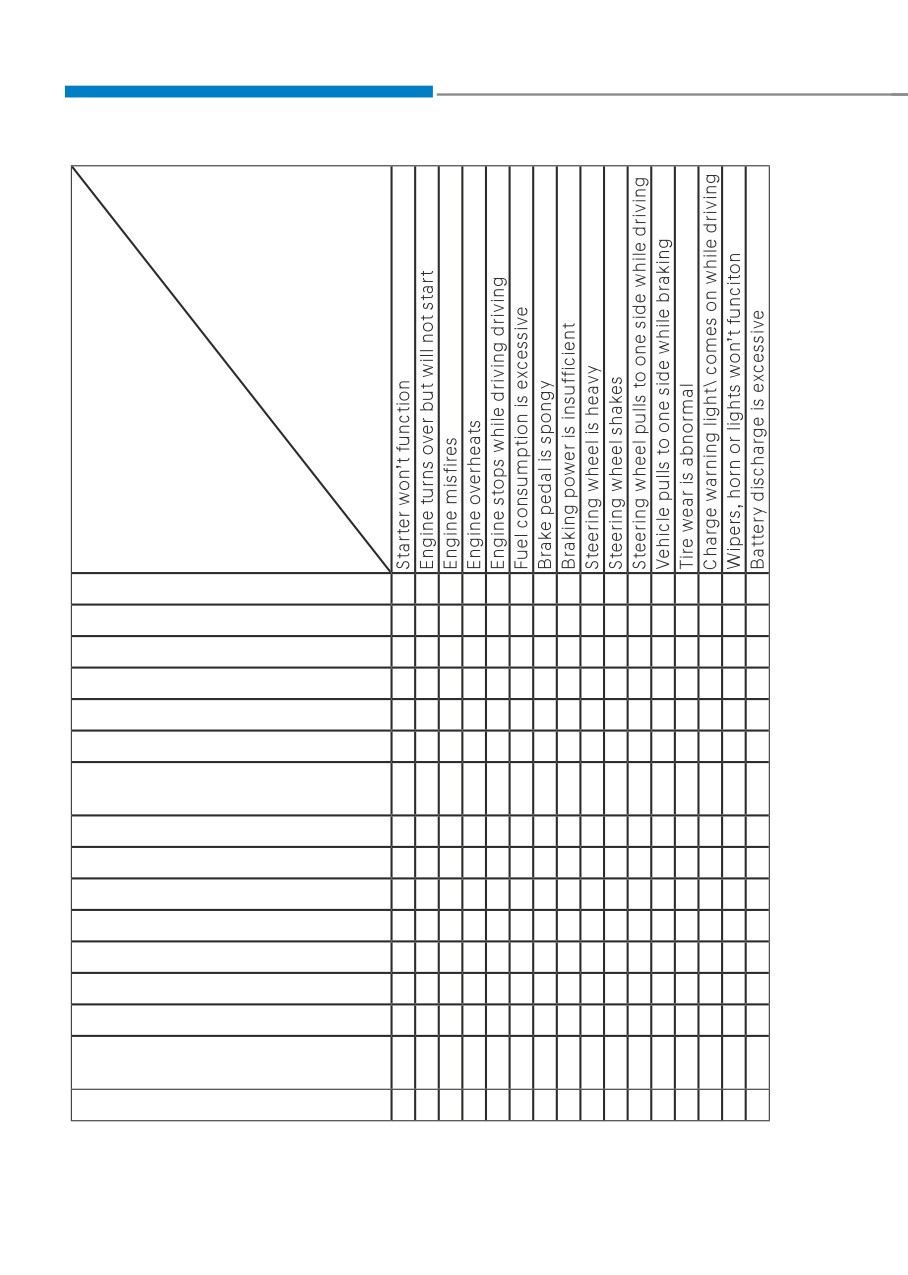

SYMPTOM

PROBABLE CAUSE

Ignition circuit faulty

Ignition coil or condensor faulty

Distributor faulty

Alternator belt loose

Check fuses, bulbs or wiring

Brake dragging

Shift lever not positioned in

"P" or "N" range

Frequent driving in lower gear

Air intrusion into brake lines

Brake fluid insufficient

Brake disc and pads wet

Brake pad wear

Wheel alignment incorrect

Wheel balance incorrect

Tire pressure incorrect

(too low or high)

Tire size incorrect

8-36

9.Maintenance

Engine compartment

9-3

Maintenance services

9-4

Owner’s responsibility

9-4

Owner maintenance precautions

9-4

Owner maintenance

9-5

Owner maintenance schedule

9-6

Scheduled maintenance services

9-7

Maintenance schedule (smartstream g2.0 Atkinson)

9-7

Scheduled maintenance services

9-11

Maintenance schedule (smartstream g1.6 T-gdi)

9-11

Explanation of scheduled maintenance items

9-15

Fuel filter (for gasoline engine)

9-15

Intelligent variable transmission fluid

9-16

Parking brake

9-16

Engine oil

9-17

Checking the engine oil level

9-17

Checking the engine oil and filter

9-18

Engine coolant

9-20

Checking the coolant level

9-20

Changing coolant

9-22

Brake fluid

9-23

Checking the brake fluid level

9-23

Washer fluid

9-24

Checking the washer fluid level

9-24

Parking brake

9-24

Checking the parking brake

9-24

Air cleaner

9-25

Filter replacement

9-25

Climate control air filter

9-26

Filter inspection

9-26

Wiper blades

9-27

Blade inspection

9-27

Blade replacement

9-27

Battery

9-30

For best battery service

9-31

Battery capacity label

9-31

Battery recharging

9-32

Reset items

9-33

Tires and wheels

9-34

Tire care

9-34

Recommended cold tire inflation pressures

9-34

Check tire inflation pressure

9-35

Tire rotation

9-36

Wheel alignment and tire balance

9-37

Tire replacement

9-37

Wheel replacement

9-38

Tire traction

9-38

Tire maintenance

9-38

Tire sidewall labeling

9-39

Tire terminology and definitions

9-42

All season tires

9-44

Summer tires

9-44

Snow tires

9-44

Radial-ply tires

9-45

Low aspect ratio tires

9-45

Fuses

9-46

Instrument panel fuse replacement

9-47

Engine compartment panel fuse replacement

9-48

Fuse/relay panel description

9-50

Light bulbs

9-59

Headlamp, position lamp, turn signal lamp, Daytime Running Light (DRL)

replacement

9-60

Front fog lamp

9-63

Side repeater lamp replacement

9-64

Rear combination lamp bulb replacement

9-64

High mounted stop lamp replacement

9-66

License plate light bulb replacement

9-67

Interior light bulb replacement

9-67

Appearance care

9-69

Exterior care

9-69

Interior care

9-74

Emission control system

9-78

Gasoline Particulate Filter (GPF)

9-81

Maintenance

maintEnancE sErvicEs

You should exercise the utmost care

Owner maintenance precautions

to prevent damage to your vehicle and

Inadequate, incomplete or insufficient

injury to yourself whenever performing

servicing may result in operational

any maintenance or inspection

problems with your vehicle that could

procedures.

lead to vehicle damage, an accident, or

Have your vehicle maintained and

personal injury. This chapter provides

repaired by an authorized HYUNDAI

instructions only for the maintenance

dealer. An authorized HYUNDAI dealer

items that are easy to perform.

meets HYUNDAI’s high service quality

Several procedures can be done only

standards and receives technical support

by an authorized HYUNDAI dealer with

from HYUNDAI in order to provide you

special tools.

with a high level of service satisfaction.

Your vehicle should not be modified

in any way. Such modifications may

Owner’s responsibility

adversely affect the performance, safety

Maintenance service and record

or durability of your vehicle and may, in

retention are the owner’s responsibility.

addition, violate conditions of the limited

You should retain documents that show

warranties covering the vehicle.

proper maintenance has been performed

on your vehicle in accordance with

NOTICE

the scheduled maintenance service

charts shown on the following pages.

Improper owner maintenance during

You need this information to establish

the warranty period may affect

your compliance with the servicing

warranty coverage. For details, read

and maintenance requirements of your

the separate Service Passport provided

vehicle warranties.

with the vehicle. If you’re unsure

about any servicing or maintenance

Detailed warranty information is

procedure, have the system be serviced

provided in your Owner’s Handbook &

by an authorized HYUNDAI dealer.

Warranty Information booklet.

Repairs and adjustments required as a

result of improper maintenance or a lack

of required maintenance are not covered.

9-4

ownEr maintEnancE

The following lists are vehicle checks and

WARNING

inspections that should be performed

Performing maintenance work on a

by the owner or an authorized HYUNDAI

vehicle can be dangerous. If you lack

dealer at the frequencies indicated to

sufficient knowledge and experience or

help ensure safe, dependable operation

the proper tools and equipment to do

of your vehicle.

the work, we recommend that having it

Any adverse conditions should be

done by an authorized HYUNDAI dealer.

brought to the attention of your dealer as

ALWAYS follow these precautions for

soon as possible.

performing maintenance work:

These Owner Maintenance vehicle

• Park your vehicle on level ground.

checks are generally not covered by

Shift the vehicle to P (Park), apply

warranties and you may be charged for

the parking brake, and press the

labor, parts and lubricants used.

Engine Start/Stop button to the OFF

position.

• Block the tires (front and back) to

prevent the vehicle from moving.

Remove loose clothing or jewelry

that can become entangled in

moving parts.

• If you must run the engine during

maintenance, do so out doors or in

an area with plenty of ventilation.

• Keep flames, sparks, or smoking

materials away from the battery and

fuel-related parts.

WARNING

Touching metal parts

Do not touch metal parts (including

strut bars) while the engine is operating

or hot. Doing so could result in serious

personal injury. Turn the engine off and

wait until the metal parts cool down

to perform maintenance work on the

vehicle.

9-5

Maintenance

Owner maintenance schedule

At least monthly:

When you stop for fuel:

• Check coolant level in the engine

coolant reservoir.

• Check the coolant level in the engine

coolant reservoir or the water-cooled

• Check the operation of all exterior

intercooler coolant reservoir.

lights, including the stoplights, turn

signals and hazard warning flashers.

• Check the windshield washer fluid

level.

• Check the inflation pressures of all

tires including the spare for tires that

• Check for low or under-inflated tires.

are worn, show uneven wear, or are

damaged.

WARNING

• Check for loose wheel lug nuts.

Be careful when checking your coolant

level when the engine is hot. This may

At least twice a year: (i.e., every

result in coolant being blown out of the

Spring and Autumn)

opening and cause serious burns and

• Check radiator, heater and air

other injuries.

conditioning hoses for leaks or

damage.

While operating your vehicle:

• Check windshield washer spray and

•

Note any changes in the sound of the

wiper operation. Clean wiper blades

exhaust or any smell of exhaust fumes

with a clean cloth dampened with

in the vehicle.

washer fluid.

•

Check for vibrations in the steering

• Check headlamp alignment.

wheel. Notice if there is any increased

• Check muffler, exhaust pipes, shields

steering effort or looseness in the

and clamps.

steering wheel, or change in its

straight-ahead position.

• Check the seat belts for wear and

function.

•

Notice if your vehicle constantly turns

slightly or “pulls” to one side when

At least once a year:

traveling on smooth, level road.

• Clean body and door drain holes.

•

When stopping, listen and check for

unusual sounds, pulling to one side,

• Lubricate door hinges and hood

increased brake pedal travel or “hard-

hinges.

to-push” brake pedal.

• Lubricate door and hood locks and

•

If any slipping or changes in the

latches.

operation of your transmission occurs,

• Lubricate door rubber weather strips.

check the transmission fluid level.

• Check the air conditioning system.

•

Check the automatic transmission P

• Inspect and lubricate automatic

(Park) function.

transmission linkage and controls.

•

Check the parking brake.

• Clean the battery and terminals.

•

Check for fluid leaks under your

• Check the brake fluid level.

vehicle (water dripping from the air

conditioning system during or after

use is normal).

9-6

scHEDULED maintEnancE sErvicEs

Maintenance Schedule (Smartstream G2.0 Atkinson)

The following maintenance services must be performed to ensure good emission control and performance. Keep

receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency

of service is determined by whichever occurs first.

R : Replace

A : Add

S : Service

I : Inspect

L : Lubricate

r : Rotate

KILOMETERS

104

112

120

128

136

144

152

160

DESCRIPTION

X 1000

MONTHS

102

108

114

120

Engine Oil And Filter

Replacement (Synthetic oil)

Steering gear box, linkage

and boots

Drive shafts and boots

Vacuum Hose

All Latch, Hinges and Locks

Rotate tire or perform

seasonal tire change

Fuel Injector Cleaner *¹

*1 : If TOP TIER Detergent Gasoline is not available, one bottle of Fuel Injector Cleaner is recommended. Fuel Injector Cleaners are

available from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other Fuel Injector

Cleaners.

Maintenance Schedule (Smartstream G2.0 Atkinson) (CONT)

R : Replace

A : Add

S : Service

I : Inspect

L : Lubricate

r : Rotate

KILOMETERS

104

112

120

128

136

144

152

160

X 1000

DESCRIPTION

MONTHS

102

108

114

120

Brake Inspection (front

disc/pads & calipers

and rear disc/pads &

calipers/shoes,

includes tire rotation)

Brake Service (includes

parking brake

inspection and tire rotation)

Brake Lines, Hoses and

Connections

Battery Condition

Suspension Mounting Bolts

Air Conditioning Refrigerant

Cooling System Hoses and

Connections

Exhaust Pipe and Muffler

Air intake hose

Climate Control Air Filter

Maintenance Schedule (Smartstream G2.0 Atkinson) (CONT)

R : Replace

A : Add

S : Service

I : Inspect

L : Lubricate

r : Rotate

KILOMETERS

104

112

120

128

136

144

152

160

DESCRIPTION

X 1000

MONTHS

102

108

114

120

Fuel Tank, Fuel Filler Cap,

Canister, Vapor Hose

Fuel Tank Air Filter

Fuel Filter

Fuel Lines, Hoses and

Connections

Air Cleaner Filter

Brake fluid

Spark plugs

Replace every 160,000 km or 84 months

First, replace 192,000 km or 120 months.

Engine Coolant

After that, replace every 48,000 km or 24 months

Maintenance Schedule (Smartstream G2.0 Atkinson) (CONT)

R : Replace

A : Add

S : Service

I : Inspect

L : Lubricate

r : Rotate

KILOMETERS

104

112

120

128

136

144

152

160

X 1000

DESCRIPTION

MONTHS

102

108

114

120

First, inspect 96,000 km or 72 months.

Drive belts *¹

After that, inspect every 32,000 km or 24 months

Valve clearance *²

Inspect every 90,000 km (54,000 miles) or 72 months

Brake pedal free play

Inspect depending on the condition

Intercooler in/out hose, air

First, inspect 8,000 km or 6 months.

intake hose

After that, inspect every 32,000km or 24 months.

*1 : The drive belt should be replaced when cracks occur or tension is reduced.

*2 : Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized HYUNDAI perform the

operation

NOTICE

After 120 months or 160,000 km continue to follow the prescribed maintenance intervals.

scHEDULED maintEnancE sErvicEs

Maintenance Schedule (Smartstream G1.6 T-GDi)

The following maintenance services must be performed to ensure good emission control and performance. Keep

receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency

of service is determined by whichever occurs first.

R : Replace

A : Add

S : Service

I : Inspect

L : Lubricate

r : Rotate

KILOMETERS X

104

112

120

128

136

144

152

160

1000

DESCRIPTION

MONTHS

102

108

114

120

Engine Oil And Filter

Replacement (Synthetic oil)

Steering gear box, linkage and

boots

Drive shafts and boots

Vacuum Hose

All Latch, Hinges and Locks

Rotate tire or perform seasonal

tire change

Fuel Injector Cleaner *¹

*1 :

If TOP TIER Detergent Gasoline is not available, one bottle of Fuel Injector Cleaner is recommended. Fuel Injector Cleaners are

available from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other Fuel Injector

Cleaners.

Maintenance Schedule (Smartstream G1.6 T-GDi) (CONT)

R : Replace

A : Add

S : Service

I : Inspect

L : Lubricate

r : Rotate

KILOMETERS X

104

112

120

128

136

144

152

160

DESCRIPTION

1000

MONTHS

102

108

114

120

Brake Inspection (front disc/

pads & calipers

and rear disc/pads & calipers/

shoes,

includes tire rotation)

Brake Service (includes parking

brake

inspection and tire rotation)

Brake Lines, Hoses and

Connections

Battery Condition

Suspension Mounting Bolts

Air Conditioning Refrigerant

Cooling System Hoses and

Connections

Exhaust Pipe and Muffler

Air intake hose

Climate Control Air Filter

Maintenance Schedule (Smartstream G1.6 T-GDi) (CONT)

R : Replace

A : Add

S : Service

I : Inspect

L : Lubricate

r : Rotate

KILOMETERS X

104

112

120

128

136

144

152

160

DESCRIPTION

1000

MONTHS

102

108

114

120

Fuel Tank, Fuel Filler Cap,

Canister, Vapor Hose

Fuel Tank Air Filter

Fuel Filter

Fuel Lines, Hoses and

Connections

Air Cleaner Filter

Brake fluid

Spark plugs

Replace every 72,000 km

First, replace 192,000 km or 120 months.

Engine Coolant

After that, replace every 48,000 km or 24 months

Maintenance Schedule (Smartstream G1.6 T-GDi) (CONT)

R : Replace

A : Add

S : Service

I : Inspect

L : Lubricate

r : Rotate

KILOMETERS X

104

112

120

128

136

144

152

160

1000

DESCRIPTION

MONTHS

102

108

114

120

First, inspect 96,000 km or 72 months.

Drive belts *¹

After that, inspect every 32,000 km or 24 months

Brake pedal free play

Inspect depending on the condition

Dual clutch transmission fluid

Inspect every 52 000 km or 48 months

First, inspect 8,000 km or 6 months.

Intercooler, in/out hose

After that, inspect every 32,000km or 24 months.

*1 : The drive belt should be replaced when cracks occur or tension is reduced.

NOTICE

After 120 months or 160,000 km continue to follow the prescribed maintenance intervals.

ExpLanation of scHEDULED maintEnancE itEms

Engine oil and filter

Vacuum crankcase ventilation

The engine oil and filter should be

hoses (if equipped)

changed at the intervals specified in the

Inspect the surface of hoses for evidence

maintenance schedule. If the vehicle

of heat and/or mechanical damage.

is being driven in severe conditions,

Hard and brittle rubber, cracking,

more frequent oil and filter changes are

tears, cuts, abrasions, and excessive

required.

swelling indicate deterioration. Particular

attention should be paid to examine

Drive belts

those hose surfaces nearest to high heat

sources, such as the exhaust manifold.

Inspect all drive belts for evidence

of cuts, cracks, excessive wear or oil

Inspect the hose routing to ensure that

saturation and replace if necessary.

the hoses do not come in contact with

any heat source, sharp edges or moving

Drive belts should be checked

component which might cause heat

periodically for proper tension and

damage or mechanical wear. Inspect

adjusted as necessary.

all hose connections, such as clamps

and couplings, to make sure they are

Information

secure, and that no leaks are present.

Hoses should be replaced immediately if

When you are inspecting the belt, turn the

there is any evidence of deterioration or

engine off.

damage.

Fuel lines, fuel hoses and

Air cleaner filter

connections

We recommend that the air cleaner filter

Check the fuel lines, fuel hoses and

be replaced by an authorized HYUNDAI

connections for leakage and damage.

dealer.

We recommend an authorized HYUNDAI

dealer replace any damaged or leaking

Spark plugs

parts immediately.

Make sure to install new spark plugs of

the correct heat range.

Fuel filter (for gasoline engine)

When assembling parts, be sure to

The fuel filter is considered to be

wipe the inside and outside of the boot

maintenance free but periodic inspection

bottom of the ignition coil and the

is recommended for this maintenance

insulator of the spark plug with a soft

depends on fuel quality. If there are

cloth to prevent contamination of the

some important matters like fuel flow

spark plug insulator.

restriction, surging, loss of power, hard

starting problem etc., replace the fuel

filter immediately. Consult an authorized

Cooling system

HYUNDAI dealer for details.

Check cooling system components, such

as radiator, coolant reservoir, hoses and

Vapor hose and fuel filler cap

connections for leakage and damage.

Replace any damaged parts.

The vapor hose and fuel filler cap should

be inspected at those intervals specified

in the maintenance schedule. Make sure

Engine coolant

a new vapor hose or fuel filler cap is

The coolant should be changed at the

correctly replaced.

intervals specified in the maintenance

schedule.

9-15

Maintenance

Intelligent variable transmission

Brake discs, pads, calipers and

fluid (if equipped)

rotors

Intelligent variable transmission fluid

Check the pads, the disc, and the rotor

should not be checked under normal

for any excessive wear-out. Inspect

usage conditions.

calipers for any fluid leakage.

We recommend that the Intelligent

For more information on checking the

variable transmission fluid is changed by

pads or lining wear limit, refer to the

an authorized HYUNDAI dealer according

HYUNDAI web site.

to the maintenance schedule.

(http://service.hyundai-motor.com)

Dual clutch transmission fluid (if

Suspension mounting bolts

equipped)

Check the suspension connections for

Inspect the dual clutch transmission fluid

looseness or damage. Retighten to the

according to the maintenance schedule.

specified torque.

Brake hoses and lines

Steering gear box, linkage &

Visually check for proper installation,

boots/lower arm ball joint

chafing, cracks, deterioration and any

With the vehicle stopped and the engine

leakage. Replace any deteriorated or

off, check for excessive free-play in the

damaged parts immediately.

steering wheel. Check the linkage for

bends or damage. Check the dust boots

Brake fluid

and ball joints for deterioration, cracks,

Check the brake fluid level in the brake

or damage.

fluid reservoir. The level should be

Replace any damaged parts.

between the MIN and the MAX marks

on the side of the reservoir. Use only

Drive shafts and boots

hydraulic brake fluid conforming to DOT

Check the drive shafts, boots and clamps

4 specification.

for cracks, deterioration, or damage.

Replace any damaged parts and, if

Parking brake

necessary, repack the grease.

Inspect the parking brake system

including the parking brake lever and

Air conditioning refrigerant

cables.

Check the air conditioning lines and

connections for leakage and damage.

9-16

EnginE oiL

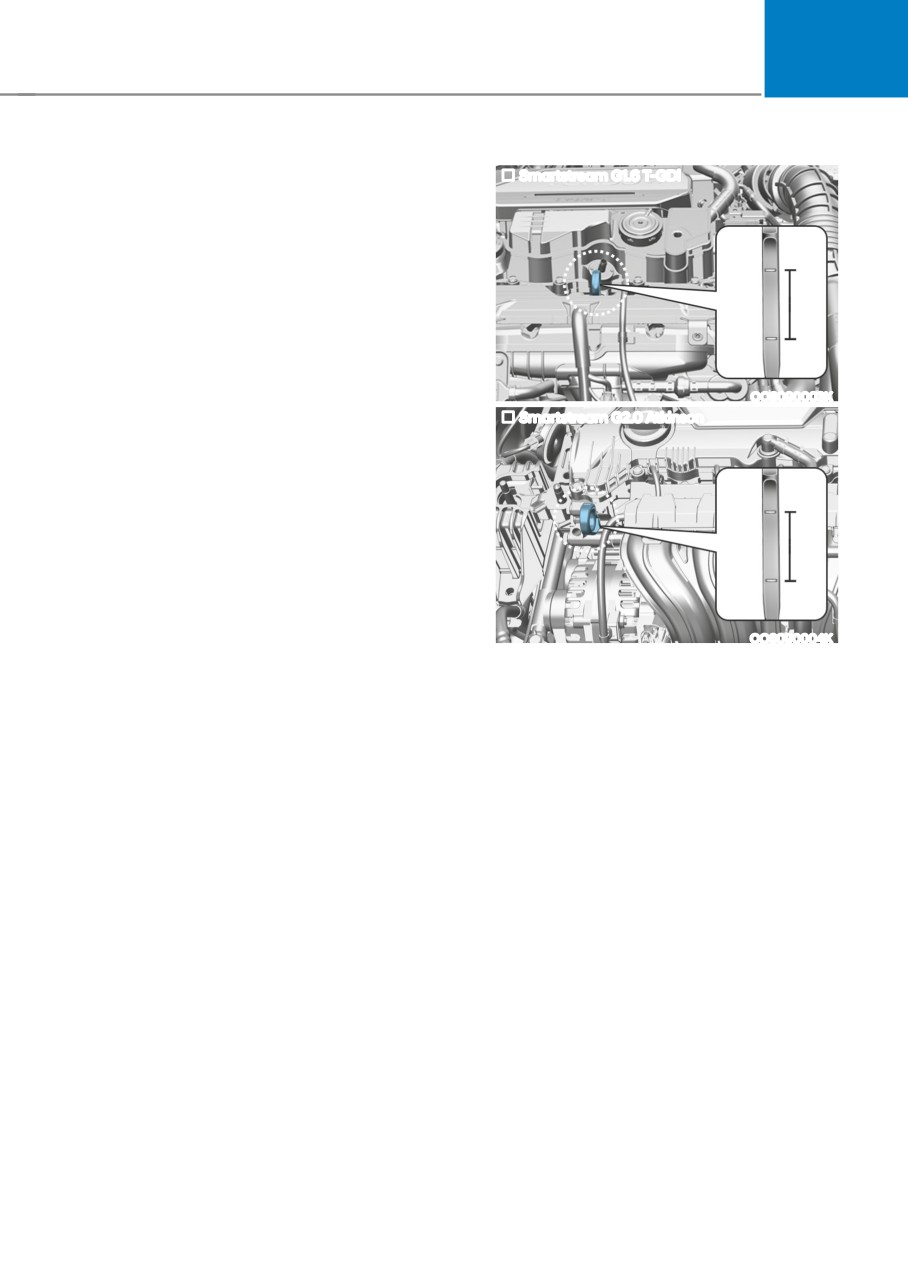

Checking the engine oil level

Smartstream G1.6 T-GDi

Engine oil is used for lubricating,

cooling, and operating various hydraulic

components in the engine. Engine oil

consumption while driving is normal,

and it is necessary to check and refill the

engine oil regularly. Also, check and refill

the oil level within the recommended

maintenance schedule to prevent

deterioration of oil performance.

Check the engine oil following the below

OOS090003K

procedure.

Smartstream G2.0 Atkinson

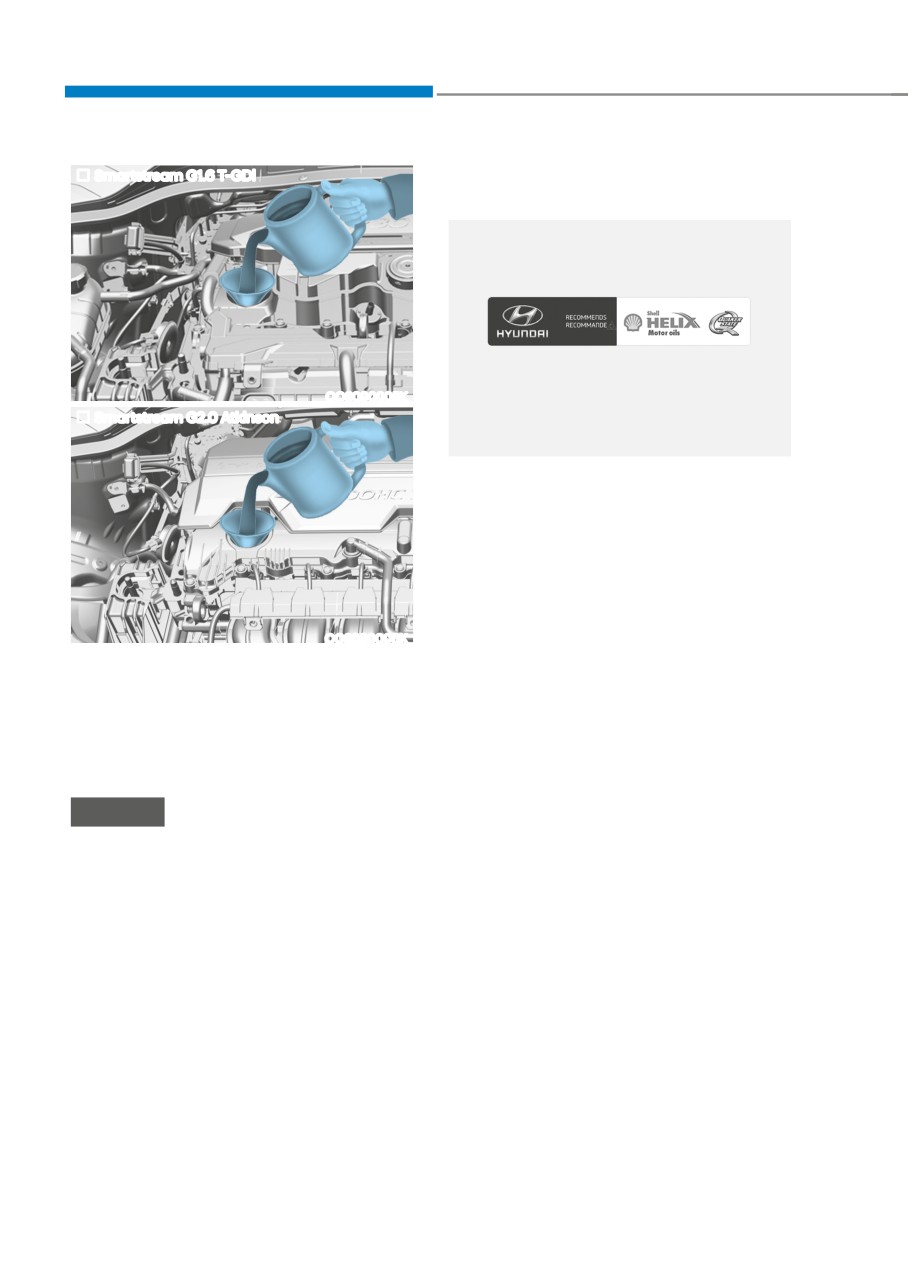

1. Follow all of the oil manufacturer’s

precautions.

2. Be sure the vehicle is on the level

ground in P (Park) with the parking

brake set and the wheels blocked.

3. Turn the engine on and warm

the engine up until the coolant

temperature reaches a constant

normal temperature.

OOS090004K

4. Turn the engine off, remove the oil

6. Pull the dipstick out again and check

filler cap and pull the dipstick out.

Wait for 15 minutes for the oil to return

the level. The level should be between

F (Full) and L (Low).

to the oil pan.

5. Wipe the dipstick clean and re-insert

it fully.

9-17

Maintenance

Smartstream G1.6 T-GDi

Checking the engine oil and

filter

OOS090005K

Smartstream G2.0 Atkinson

We recommend that the engine oil

and filter be changed by an authorized

HYUNDAI dealer according to the

Maintenance Schedule at the beginning

of this chapter.

•

If the maintenance schedule to

replace engine oil is exceeded,

the engine oil performance may

OOS090006K

deteriorate, and the engine condition

7. If the oil level is below the L, add

may be affected. Therefore, replace

enough oil to bring the level to F.

the engine oil according to the

maintenance schedule.

Use only the specified engine oil (Refer

•

To keep the engine in optimal

to “Recommended Lubricants and

condition, use the recommended

Capacities” section in chapter 2).

engine oil and filter. If the

recommended engine oil and filter are

not used, replace it according to the

NOTICE

maintenance schedule under severe

• Do not spill engine oil when adding

usage conditions.

or changing engine oil. Wipe off

•

The purpose of the maintenance

spilled oil immediately.

schedule for engine oil replacement

• The engine oil consumption may

is to prevent oil deterioration and it is

increase while you break in a new

irrelevant to oil consumption. Check

vehicle and it will be stabilized after

and refill engine oil regularly.

driving 6,000 km (4,000 miles).

• The engine oil consumption can be

affected by driving habits, climate

conditions, traffic conditions,

oil quality, etc. Therefore, it is

recommended that you inspect the

engine oil level regularly and refill it

if necessary.

9-18

Information

When the oil pressure is low due to

insufficient engine oil, the Engine

Oil Pressure (

) warning light will

illuminate. In addition, the enhanced

engine protection system, which limits

the engine’s power is activated and the

Malfunction Indicator Lamp (

) will

illuminate when the vehicle is driven in

this state continuously. When oil pressure

is restored, the Engine Oil Pressure

warning light will turn off and the engine

power will no longer be limited.

WARNING

Used engine oil may cause irritation or

cancer of the skin if left in contact with

the skin for prolonged periods of time.

Always protect your skin by washing

your hands thoroughly with soap and

warm water as soon as possible after

handling used oil.

CAUTION

The engine oil is very hot immediately

after the vehicle has been driven and

can cause burns during replacement.

Replace the engine oil after the engine

oil has cooled down.

9-19

Hyundai Kona (2022 year). Manual in english - page 16
