Seats & Safety System

OCN7030031

OHI038145

To install the tether anchor:

Automatic locking mode

1. Route the child restraint tether strap

Since all passenger seat belts move

over the child restraint seatback.

freely under normal conditions and

Route the tether strap under the

only lock under extreme or emergency

head restraint and between the head

conditions (emergency locking mode),

restraint posts, or route the tether

you must manually pull the seat belt all

strap over the top of the vehicle

the way out to shift the retractor to the

seatback. Make sure the strap is not

“Automatic Locking” mode to secure a

twisted.

child restraint.

2. Connect the tether strap hook to the

The “Automatic Locking” mode will

tether anchor, then tighten the tether

help prevent the normal movement of

strap according to the child seat

the child in the vehicle from causing

manufacturer’s instructions to firmly

the seat belt to loosen and compromise

secure the child restraint to the seat.

the child restraint system. To secure a

child restraint system, use the following

3. Check that the child restraint is

procedure.

securely attached to the seat by

pushing and pulling the seat forward-

and-back and side-to-side.

Securing a child restraint with lap/

shoulder belt

When not using the LATCH system, all

child restraints must be secured to a

vehicle rear seat with the lap part of a

lap/shoulder belt.

WARNING

ALWAYS place a rear-facing child

restraint in the rear seat of the vehicle.

Placing a rear-facing child restraint in

the front seat can result in serious injury

or death if the child restraint is struck

by an inflating air bag.

3-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

To install a child restraint system on the

rear seats, do the following:

1. Place the child restraint system on a

rear seat and route the lap/ shoulder

belt around or through the child

restraint, following the restraint

manufacturer’s instructions. Be sure

the seat belt webbing is not twisted.

Information

When using the rear center seat belt, you

OHI038146

should also refer to the “Rear Seat Belt -

2. Fasten the lap/shoulder belt latch

Passenger’s 3-point system” section in this

into the buckle. Listen for the distinct

chapter.

“click” sound.

Information

Position the release button so that it is easy

to access in case of an emergency.

OLF034076

3. Pull the shoulder portion of the

seat belt all the way out. When the

shoulder portion of the seat belt

is fully extended, it will shift the

retractor to the “Automatic Locking”

(child restraint) mode.

3-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

If your CRS (child restraint system)

manufacturer instructs or recommends

you to use a tether anchor with the lap/

shoulder belt, refer to the previous pages

for more information.

Information

When the seat belt is allowed to retract to

its fully stowed position, the retractor will

automatically switch from the “Automatic

OLF034075

Locking” mode to the emergency lock

mode for normal adult usage.

4. Slowly allow the shoulder portion of

the seat belt to retract and listen for

an audible “clicking” or “ratcheting”

WARNING

sound. This indicates that the retractor

is in the “Automatic Locking” mode.

If the retractor is not in the “Automatic

If no distinct sound is heard, repeat

Locking” mode, the child restraint

steps 3 and 4.

can move when your vehicle turns or

stops suddenly. A child can be seriously

5. Remove as much slack from the belt

injured or killed if the child restraint

as possible by pushing down on the

is not properly anchored in the car,

child restraint system while feeding

including manually pulling the seat belt

the shoulder belt back into the

all the way out to shift the rectractor to

retractor.

the “Automatic Locking” mode.

6. Push and pull on the child restraint

system to confirm that the seat belt

To remove the child restraint, press the

is holding it firmly in place. If it is not,

release button on the buckle and then

release the seat belt and repeat steps

pull the lap/shoulder belt out of the

2 through 6.

restraint and allow the seat belt to retract

7. Double check that the retractor is in

fully.

the “Automatic Locking” mode by

attempting to pull more of the seat

belt out of the retractor. If you cannot,

the retractor is in the “Automatic

Locking” mode.

3-34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

$,5 %$* ǘ $'9$1&(' 6833/(0(17

$/ 5(675$,17 6<67(0

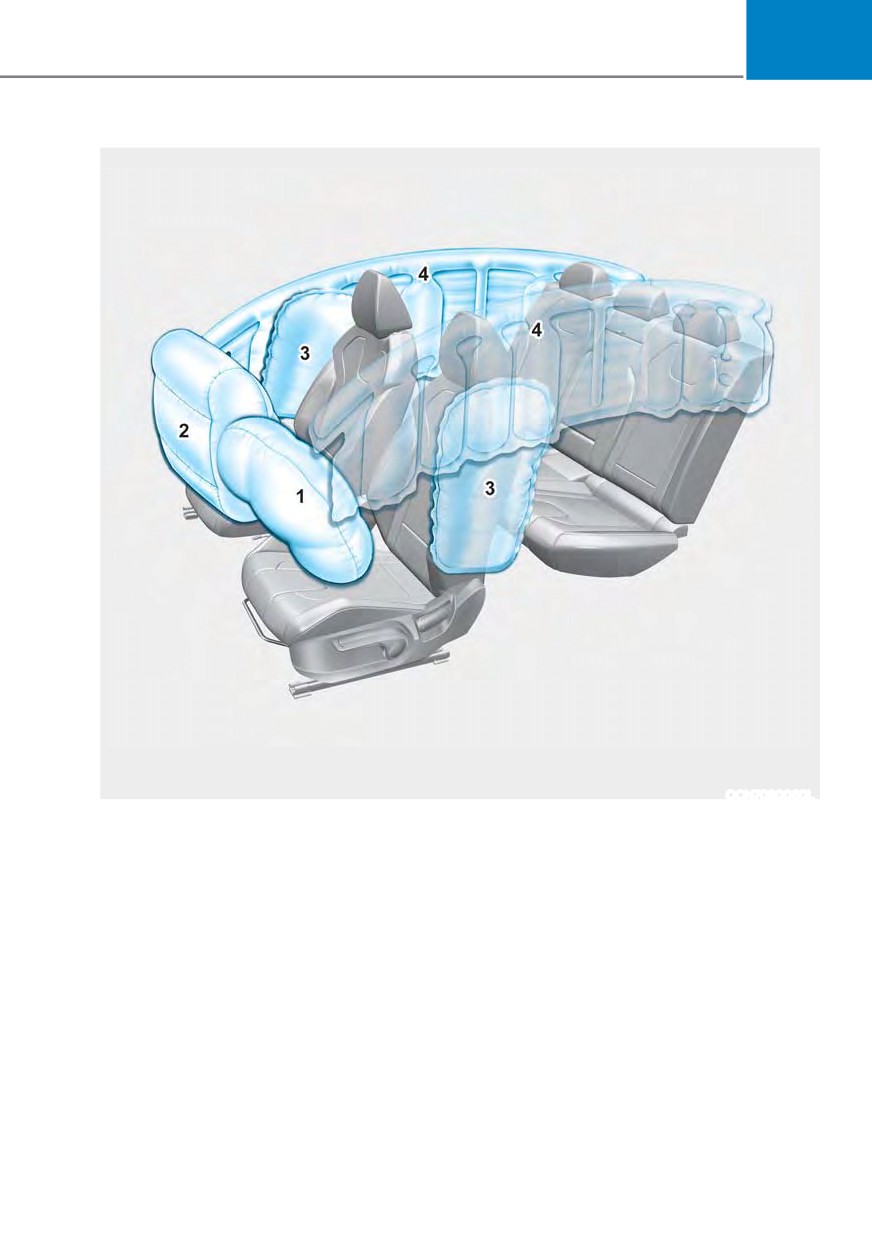

The actual air bags in the vehicle may differ from the illustration.

OCN7030060L

1. Driver’s front air bag

2. Passenger’s front air bag

3. Side air bag

4. Curtain air bag

3-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

Where Are the Air Bags?

„ 'ULYHUŔV IURQW DLU EDJ

Driver’s and passenger’s front air

bags

Your vehicle is equipped with an

Advanced Supplemental Restraint

System (SRS) and lap/shoulder belts at

both the driver and passenger seating

positions.

The SRS consists of air bags which are

located in the center of the steering

wheel, in the driver’s side lower crash

OCN7030036

pad below the steering wheel column

„ 3DVVHQJHUŔV IURQW DLU EDJ

and the passenger’s side front panel pad

above the glove box.

The air bags are labeled with the letters

“AIR BAG” embossed on the pad covers.

OCN7030038

The purpose of the SRS is to provide the

vehicle’s driver and front passengers with

additional protection than that offered

by the seat belt system alone. The SRS

uses sensors to gather information about

the driver’s and front passenger’s seat

belt usage and impact severity. The seat

belt buckle sensors determine if the

driver and front passenger’s seat belts

are fastened. These sensors provide the

ability to control the SRS deployment

based on whether or not the seat belts

are fastened, and how severe the impact

is. The advanced SRS offers the ability to

control the air bag inflation within two

levels. A first stage level is provided for

moderate-severity impacts. A second

stage level is provided for more severe

impacts. According to the impact

severity, and seat belt usage, the SRS

Control Module (SRSCM) controls the

air bag inflation. Failure to properly

wear seat belts can increase the risk or

severity of injury in an accident.

3-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

Side air bags

WARNING

„ )URQW VHDW

To reduce the risk of serious injury or

death from inflating front air bags, take

the following precautions:

ś

Seat belts must be worn at all times

to help keep occupants positioned

properly.

ś

Move your seat as far back as

possible from front air bags, while

still maintaining control of the

vehicle.

ś

Never lean against the door or center

OCN7030041

console.

ś

Do not allow the front passenger

to place their feet or legs on the

dashboard.

ś

No objects (such as crash pad cover,

cellular phone holder, cup holder,

air fresheners or stickers) should

be placed over or near the air bag

modules on the steering wheel,

instrument panel, windshield glass,

and the front passenger’s panel

OCN7030042

above the glove box. Such objects

could cause harm if the vehicle is in a

Your vehicle is equipped with a side air

crash severe enough to cause the air

bag in each front seat. The purpose of

bags to deploy.

the air bag is to provide the vehicle’s

driver and the front passenger with

additional protection than that offered by

the seat belt alone.

The side air bags are designed to deploy

only during certain side impact collisions,

depending on the crash severity. The

side and curtain air bags on both sides

of the vehicle may deploy if a rollover or

possible rollover is detected. For vehicles

equipped with a rollover sensor the side

air bags and pre-tensioners on both sides

of the vehicle may deploy if a rollover or

possible rollover is detected. However,

the side air bags are not designed to

deploy in all side impact or rollover

situations.

3-38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

Curtain air bags

WARNING

To reduce the risk of serious injury or

death from an inflating side air bag,

take the following precautions:

ś

Seat belts must be worn at all times

to help keep occupants positioned

properly.

ś

Do not allow passengers to lean their

heads or bodies onto doors, put their

arms on the doors, stretch their arms

out of the window, or place objects

between the doors and seats.

OCN7030044

ś

Hold the steering wheel at the 9

o’clock and 3 o’clock positions, to

minimize the risk of injuries to your

hands and arms.

ś

Do not use any accessory seat

covers. This could reduce or prevent

the effectiveness of the system.

ś

Do not place any objects over the

air bag or between the air bag and

yourself. Also, do not attach any

objects around the area the air bag

OCN7030043

inflates such as the door, side door

glass, front and rear pillar.

Curtain air bags are located along both

sides of the roof rails above the front and

ś

Do not place any objects between

rear doors.

the door and the seat. They may

become dangerous projectiles if the

They are designed to help protect the

side air bag inflates.

heads of the front seat occupants and

the rear outboard seat occupants in

ś

Do not install any accessories on the

certain side impact collisions.

side or near the side air bags.

The curtain air bags are designed to

ś

Do not put any objects between the

deploy during certain side impact

side airbag label and seat cushion. It

collisions, depending on the crash

could cause harm if the vehicle is in a

severity.

crash severe enough to cause the air

bags to deploy.

The side and curtain air bags on both

sides of the vehicle may deploy if a

ś

Do not cause impact to the doors

rollover or possible rollover is detected.

when the ignition switch button is in

the ON position as this may cause the

The curtain air bags are not designed

side air bags to inflate.

to deploy in all side impact or rollover

situations.

ś

If the seat or seat cover is damaged,

have the vehicle checked and

repaired by an authorized HYUNDAI

dealer.

3-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

How Does the Air Bag System

WARNING

Operate?

To reduce the risk of serious injury or

death from an inflating curtain air bag,

take the following precautions:

ś

All seat occupants must wear

seat belts at all times to help keep

occupants positioned properly.

ś

Properly secure child restraints as far

away from the door as possible.

ś

Do not place any objects over the air

bag. Also, do not attach any objects

around the area the air bag inflates

such as the door, side door glass,

OCN7030061N

front and rear pillar, roof side rail.

The SRS consists of the following

ś

Do not hang other objects except

components:

clothes, especially hard or breakable

1. Driver’s front air bag module

objects. In an accident, it may cause

2. Passenger’s front air bag module

vehicle damage or personal injury.

ś

Do not allow passengers to lean their

3. Side air bag modules (front)

heads or bodies onto doors, put their

4. Curtain air bag modules

arms on the doors, stretch their arms

5. Retractor pre-tensioner assemblies

out of the window, or place objects

6. Air bag warning light

between the doors and seats.

7. SRS control module (SRSCM) /

ś

Do not attempt to open or repair

Rollover sensor

the side curtain air bags yourself.

If necessary, have the air bag be

8. Front impact sensors

inspected by an authorized HYUNDAI

9. Side impact sensors (acceleration)

dealer.

10.Side impact sensors (pressure)

11. Occupant classification system

12. Driver’s and front passenger’s seat

belt buckle sensors

The SRSCM (Supplemental Restraint

System Control Module) continually

monitors all SRS components while

the Engine Start/Stop button is in the

ON position or approximately within

3 minutes after the ignition is off to

determine if a crash impact is severe

enough to require air bag deployment or

pre-tensioner seat belt deployment.

3-40

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

ś There are even circumstances under

„ 'ULYHUŔV IURQW DLU EDJ

which contact with the air bag can

cause fatal injuries, especially if the

occupant is positioned excessively

close to the air bag.

You can take steps to help reduce the

risk of being injured by an inflating air

bag. The greatest risk is sitting too close

to the air bag. An air bag needs about 10

inches (25 cm) of space to inflate. NHTSA

recommends that drivers allow at least

10 inches (25 cm) between the center of

ODN8039077L

the steering wheel and the chest.

When the SRSCM detects a sufficiently

severe impact to the front of the vehicle,

it will automatically deploy the front air

WARNING

bags.

To reduce the risk of serious injury or

death from an inflating air bag, take the

„ 'ULYHUŔV IURQW DLU EDJ

following precautions:

ś NEVER place a child restraint in the

front passenger seat.

Always properly restrain children

under age 13 in the rear seats of the

vehicle.

ś Adjust the front passenger’s and

driver’s seats as far to the rear as

possible while maintaining you to

maintain full control of the vehicle.

ODN8039078L

ś Hold the steering wheel with

Upon deployment, tear seams molded

hands at the 9 o’clock and 3 o’clock

directly into the pad covers will separate

positions.

under pressure from the expansion of the

ś NEVER place anything or anyone

air bags. Further opening of the covers

between the air bag and the seat

allows full inflation of the air bags.

occupant.

A fully inflated air bag, in combination

ś Do not allow the front passenger

with a properly worn seat belt, slows the

to place their feet or legs on the

driver or the front passenger forward

dashboard.

motion, reducing the risk of head and

chest injury.

3-42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

„ 'ULYHUŔV IURQW DLU EDJ

What to Expect After an Air Bag

Inflates

After a frontal or side air bag inflates, it

will deflate very quickly. Air bag inflation

will not prevent the driver from seeing

out of the windshield or being able

to steer. Curtain air bags may remain

partially inflated for some time after they

deploy.

ODN8039079L

WARNING

„ 3DVVHQJHUŔV IURQW DLU EDJ

After an air bag inflates, take the

following precautions:

ś

Open your windows and doors as

soon as possible after impact to

reduce prolonged exposure to the

smoke and powder released by the

inflating air bag.

ś

Do not touch the air bag storage

area’s internal components

immediately after an air bag has

ODN8039080L

inflated. The parts that come into

contact with an inflating air bag may

After complete inflation, the air bag

be very hot.

immediately starts deflating, enabling

the driver to maintain forward visibility

ś

Always wash exposed skin areas

and the ability to steer or operate other

thoroughly with cold water and mild

controls.

soap.

ś

Always have an authorized

HYUNDAI dealer replace the air bag

WARNING

immediately after deployment. Air

To prevent objects from becoming

bags are designed to be used only

dangerous projectiles when the

once.

passenger’s air bag inflates:

ś Do not install or place any objects

(drink holder, CD holder, stickers,

etc.) on the front passenger’s panel

above the glove box where the

passenger’s air bag is located.

ś Do not install a container of liquid

air freshener near the instrument

cluster or on the instrument panel

surface.

3-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

Noise and smoke from inflating air

overhead console which illuminates

bag

the words “PASSENGER AIR BAG OFF”

indicating the front passenger air bag

When the air bags inflate, they make a

system is deactivated.

loud noise and may produce smoke and

powder in the air inside of the vehicle.

ś The overhead console air bag

This is normal and is a result of the

indicator light is interconnected with

ignition of the air bag inflator. After the

the OCS.

air bag inflates, you may feel substantial

discomfort in breathing because of the

The OCS is designed to help detect

contact of your chest with both the seat

the presence of a properly-seated

belt and the air bag, as well as from

front passenger and determine if the

breathing the smoke and powder. The

passenger’s front air bag should be

powder may aggravate asthma for some

enabled (may inflate) or not.

people. If you experience breathing

The purpose is to help reduce the risk

problems after an air bag deployment,

of injury or death from an inflating air

seek medical attention immediately.

bag to certain front passenger seat

Though the smoke and powder are

occupants, such as children, by requiring

nontoxic, they may cause irritation to

the air bag to be automatically turned

the skin, eyes, nose, throat, etc. If this is

OFF.

the case, wash and rinse with cold water

immediately and seek medical attention

if the symptoms persist.\Occupant

Classification System (OCS)

OCN7030070N

Your vehicle is equipped with an

Occupant Classification System (OCS) in

the front passenger’s seat.

Main components of the Occupant

Classification System

ś A detection device located within the

front passenger seat cushion.

ś Electronic system to help determine

whether the passenger air bag

systems should be activated or

deactivated.

ś An indicator light located on the

3-44

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

Condition and operation in the front passenger Occupant Classification System

Indicator/Warning light

Devices

Condition detected by the

“PASSENGER

SRS warning

Front passenger

occupant classification system

AIR BAG OFF”

light

air bag

indicator light

1. Adult *1

Off

Off

Activated

2. Infant *2 or child restraint

system with 12 months old

On

Off

Deactivated

*3 *4

3. Unoccupied

On

Off

Deactivated

4. Malfunction in the system

Off

On

Activated

*1 : The system judges a person of adult size as an adult. When a smaller adult sits in the

front passenger seat, the system may recognize him/her as a child depending on his/her

physique and posture.

*2 : Do not allow children to ride in the front passenger seat. When a larger child who has

outgrown a child restraint system sits in the front passenger seat, the system may

recognize him/her as an adult depending upon his/her physique or sitting position.

*3 : Never install a child restraint system on the front passenger seat.

*4 : The PASSENGER AIR BAG “OFF” indicator may turn on or off when a child above 12

months to 12 years old (with or without child restraint system) sits in the front passenger

seat. This is a normal condition.

3-46

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

WARNING

Riding in an improper position or placing weight on the front passenger’s seat when

it is unoccupied by a passenger adversely affects the OCS. To reduce the risk of

serious injury or death:

ś NEVER put a heavy load in the front seat or seatback

pocket, or hang any items on the front passenger

seat.

OVQ036013NB

ś NEVER place your feet on the front passenger

seatback.

2/0%

ś NEVER sit with your hips shifted towards the front of

the seat.

2/0%

ś NEVER ride with the seatback reclined when the

vehicle is moving.

2/0%

ś NEVER place your feet or legs on the dashboard.

2/0%

3-47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

ś NEVER lean on the door or center console or sit on

one side of the front passenger seat.

2/0%

ś Do not sit on the passenger seat wearing heavily

padded clothes such as ski wear and hip protector.

ODH035900K

ś Do not use car seat accessories such as thick blankets

and cushions which cover up the car seat surface.

ODH035901K

ś Do not place electronic devices such as laptops, DVD

player, or conductive materials such as water bottles

on the passenger seat.

ś Do not use electronic devices such as laptops and

satellite radios which use inverter chargers.

OHI038161

ś If large amount of liquid has been spilled on the

passenger seat, the air bag warning light may

illuminate or malfunction.

Therefore, make sure the seat has been completely

dried before driving the vehicle.

OHI038162

ś

Do not place sharp objects on the front passenger seat. These may damage the

occupant detection system, if they puncture the seat cushion.

ś

Do not place any items under the front passenger seat.

ś

When changing or replacing the seat or seat cover, use original items only.

The OCS has been developed based on using original HYUNDAI car seats only.

Altering or changing the authentic parts may result in system malfunction and

increase risk of injury when in collision. Any of the above could interfere with the

proper operation of the OCS sensor thereby increasing the risk of an injury in an

accident.

3-48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

WARNING

NEVER allow an adult passenger to ride

in the front passenger seat when the

“PASSENGER AIR BAG OFF” indicator

is illuminated. During a collision, the

air bag will not inflate if the indicator

is illuminated. Have your passenger

reposition themselves in the seat. If the

“PASSENGER AIR BAG OFF” indicator

remains illuminated after the passenger

repositions themselves properly

OHI038118

and the vehicle is restarted, have

Proper seated position for OCS

the passenger move to the rear seat

If the “PASSENGER AIR BAG OFF”

because the air bag will not inflate.

indicator is on when an adult is seated

in the front passenger seat, place the

NOTICE

Engine Start/Stop button in the OFF

position and ask the passenger to sit

The “PASSENGER AIR BAG OFF”

properly (sitting upright with the seat

indicator generally illuminates for

back in an upright position, centered

approximately 4 seconds after the

on the seat cushion with their seat belt

Engine Start/Stop button is in the ON

on, legs comfortably extended and their

position or after the engine is started.

feet on the floor). Restart the engine and

However, if the ignition switch or

have the person remain in that position.

Engine Start/Stop button is turned to

This will allow the system to detect the

the ON position within 3 minutes after

person and to enable the passenger air

ignition OFF, the indicator does not

bag. If the “PASSENGER AIR BAG OFF”

illuminate. If the front passenger seat

indicator is still on, ask the passenger to

is occupied, the OCS will then classify

move to the rear seat.

the front passenger after several more

seconds.

3-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

Do Not Install a Child Restraint in the

Why Didn’t My Air Bag Go Off in

Front Passenger’s Seat

a Collision?

Air bags are not designed to inflate in

every collision. There are certain types

of accidents in which the air bag would

not be expected to provide additional

protection. These include rear impacts,

second or third collisions in multiple

impact accidents, as well as low speed

impacts. Damage to the vehicle indicates

a collision energy absorption, and is not

an indicator of whether or not an air bag

should have inflated.

OHI039193N

Even though your vehicle is equipped

WARNING

with the OCS, never install a child

restraint in the front passenger’s seat.

To reduce the risk of an air bag

An inflating air bag can forcefully strike a

deploying unexpectedly and causing

child or child restraint resulting in serious

serious injury or death:

or fatal injury.

ś Do not hit or allow any objects to

impact the locations where air bags

or sensors are installed.

WARNING

ś Do not perform maintenance on or

ś NEVER place a rear-facing or front-

around the air bag sensors. If the

facing child restraint in the front

location or angle of the sensors is

passenger’s seat of the vehicle.

altered, the air bags may deploy

ś An inflating frontal air bag could

when they should not or may not

forcefully strike a child resulting in

deploy when they should.

serious injury or death.

ś Do not install bumper guards or

ś Always properly restrain children in

replace the bumper with a non-

an appropriate child restraint in the

genuine HYUNDAI parts. This may

rear seat of the vehicle.

adversely affect the collision and air

bag deployment performance.

ś Place the ignition switch in the

LOCK/OFF or ACC position when the

vehicle is being towed to prevent

inadvertent air bag deployment.

ś Have all air bag repairs performed by

an authorized HYUNDAI dealer.

3-50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

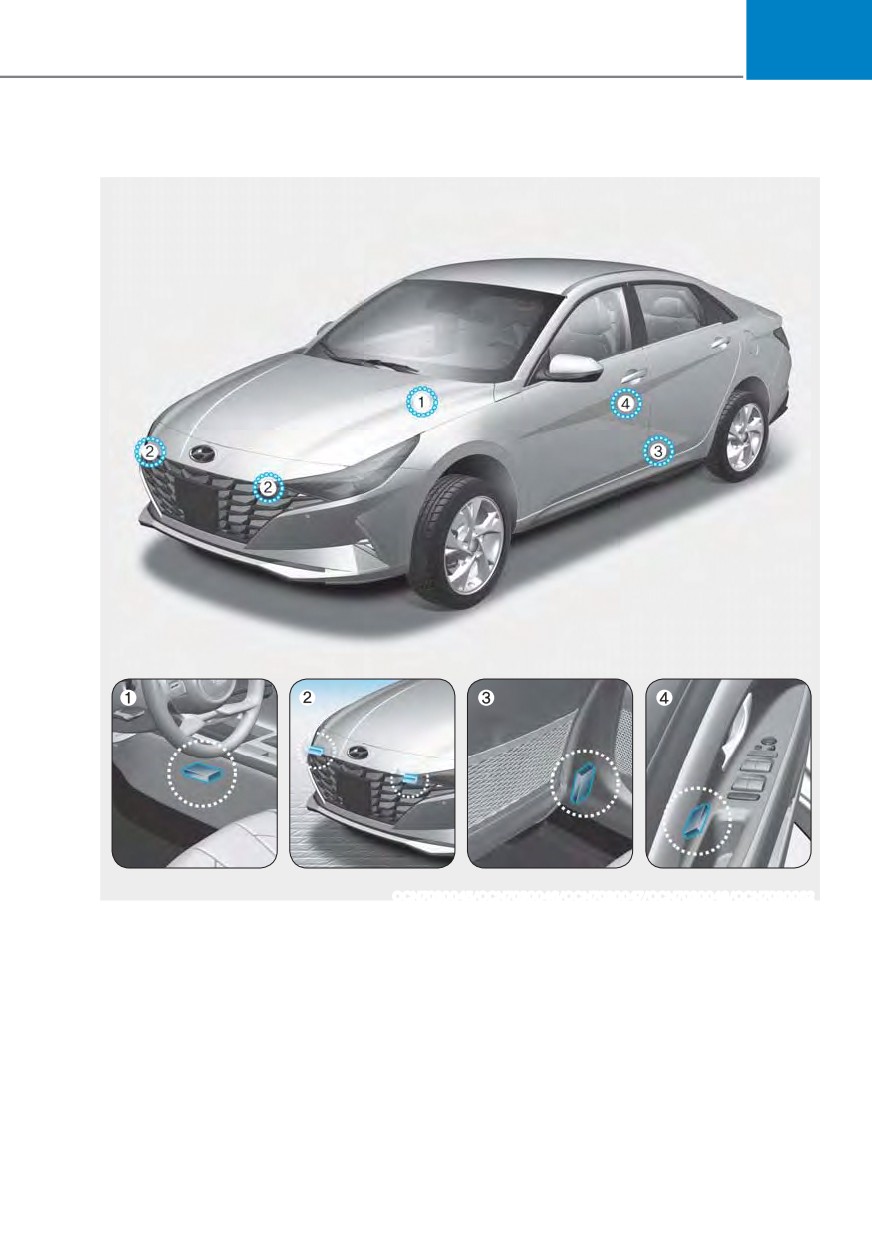

Air bag collision sensors

OCN7030045/OCN7030046/OCN7030047/OCN7030048/OCN7030062

1. SRS control module/Rollover sensor

2. Front impact sensors

3. Side impact sensors (acceleration)

4. Side impact sensors (pressure)

3-51

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

Air bag inflation conditions

Side and curtain air bags

Side and curtain air bags are designed

to inflate when an impact is detected by

side collision sensors depending on the

severity of impact resulting from a side

impact collision.

Although the driver’s and front

passenger’s air bags are designed to

inflate only in frontal collisions, they also

may inflate in other types of collisions

if the front impact sensors detect a

sufficient impact. Side and curtain air

OCN7030050

bags are designed to inflate only in side

impact collisions or rollover situations,

Front air bags

but they may inflate in other collisions

Front air bags are designed to inflate

if the side impact sensors detect a

in a frontal collision depending on the

sufficient impact.

severity of impact of the front collision.

If the vehicle chassis is impacted by

bumps or objects on unimproved roads,

the air bags may deploy. Drive carefully

on unimproved roads or on surfaces not

designed for vehicle traffic to prevent

unintended air bag deployment.

Air bag non-inflation conditions

OCN7030049

OCN7030051

In certain low-speed collisions the air

bags may not deploy. The air bags are

designed not to deploy in such cases

because they may not provide benefits

OCN7030042

beyond the protection of the seat belts.

3-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

OCN7030052

OCN7030053

Front air bags are not designed to inflate

In an angled collision, the force of impact

in rear collisions, because occupants

may direct the occupants in a direction

are moved backward by the force of the

where the air bags would not be able to

impact. In this case, inflated air bags

provide any additional benefit, and thus

would not provide any additional benefit.

the sensors may not deploy any air bags.

OCN7030049

OCN7030054

Front air bags may not inflate in side

Just before impact, drivers often brake

impact collisions, because occupants

heavily. Such heavy braking lowers the

move in the direction of the collision,

front portion of the vehicle causing it

and thus in side impacts, front air bag

to “ride” under a vehicle with a higher

deployment would not provide additional

ground clearance. Air bags may not

occupant protection.

inflate in this “underride” situation

because deceleration forces that are

However, side and curtain air bags may

detected by sensors may be significantly

inflate depending on the severity of

reduced by such “underride” collisions.

impact.

3-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

SRS Care

The SRS is virtually maintenance-free

and there are no parts you can safely

service by yourself. If the SRS air bag

warning light does not illuminate when

the ignition switch is in the ON position,

or continuously remains on, have your

vehicle immediately inspected by an

authorized HYUNDAI dealer.

Any work on the SRS system, such as

removing, installing, repairing, or any

OCN7030056

work on the steering wheel, the front

Front air bags may not inflate in rollover

passenger’s panel, front seats and roof

accidents because air bag deployment

rails must be performed by an authorized

may not provide protection to the

HYUNDAI dealer. Improper handling of

occupants.

the SRS system may result in serious

However, side and curtain air bags may

personal injury.

inflate when the vehicle is rolled over by

a side impact collision.

WARNING

To reduce the risk of serious injury or

death, take the following precautions:

ś

Do not attempt to modify or

disconnect the SRS components or

wiring, including the addition of any

kind of badges to the pad covers or

modifications to the body structure.

ś

Do not place objects over or near

the air bag modules on the steering

wheel, instrument panel, or the front

passenger’s panel above the glove box.

OCN7030055

ś

Clean the air bag pad covers with

Air bags may not inflate if the vehicle

a soft cloth moistened with plain

collides with objects such as utility poles

water. Solvents or cleaners could

or trees, where the point of impact is

adversely affect the air bag covers

concentrated and the collision energy is

and proper deployment of the

absorbed by the vehicle structure.

system.

ś

Always have inflated air bags

replaced by an authorized HYUNDAI

dealer.

ś

If components of the air bag system

must be discarded, or if the vehicle

must be scrapped, certain safety

precautions must be observed.

Consult an authorized HYUNDAI

dealer for the necessary information.

Failure to follow these precautions

could increase the risk of personal

injury.

3-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03

Additional Safety Precautions

Air Bag Warning Labels

Passengers should not move out of

or change seats while the vehicle is

moving. A passenger who is not wearing

a seat belt during a crash or emergency

stop can be thrown against the inside of

the vehicle, against other occupants, or

be ejected from the vehicle.

Do not use any accessories on seat

belts. Devices claiming to improve

occupant comfort or reposition the seat

belt can reduce the protection provided

by the seat belt and increase the chance

OCN7030069N

of serious injury in a crash.

Air bag warning labels, required by the

Do not modify the front seats.

U.S. National Highway Traffic Safety

Modification of the front seats could

Administration (NHTSA), are attached

interfere with the operation of the

to alert the driver and passengers of

supplemental restraint system sensing

potential risks of the air bag system. Be

components or side air bags.

sure to read all of the information about

the air bags that are installed on your

Do not place items under the front

vehicle in this Owners Manual.

seats. Placing items under the front seats

could interfere with the operation of the

supplemental restraint system sensing

components and wiring harnesses.

Do not cause impact to the doors.

Impact to the doors when the Engine

Start/Stop button is in the ON position

may cause the air bags to inflate.

Modifications to accommodate

disabilities. If you require modification

to your vehicle to accommodate

a disability, contact the HYUNDAI

Customer Connect Center at 800-633-

5151.

Adding equipment to or modifying

your air bag equipped vehicle

If you modify your vehicle by changing

your vehicle’s frame, bumper system,

front end or side sheet metal or ride

height, this may affect the operation of

your vehicle’s air bag system.

3-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

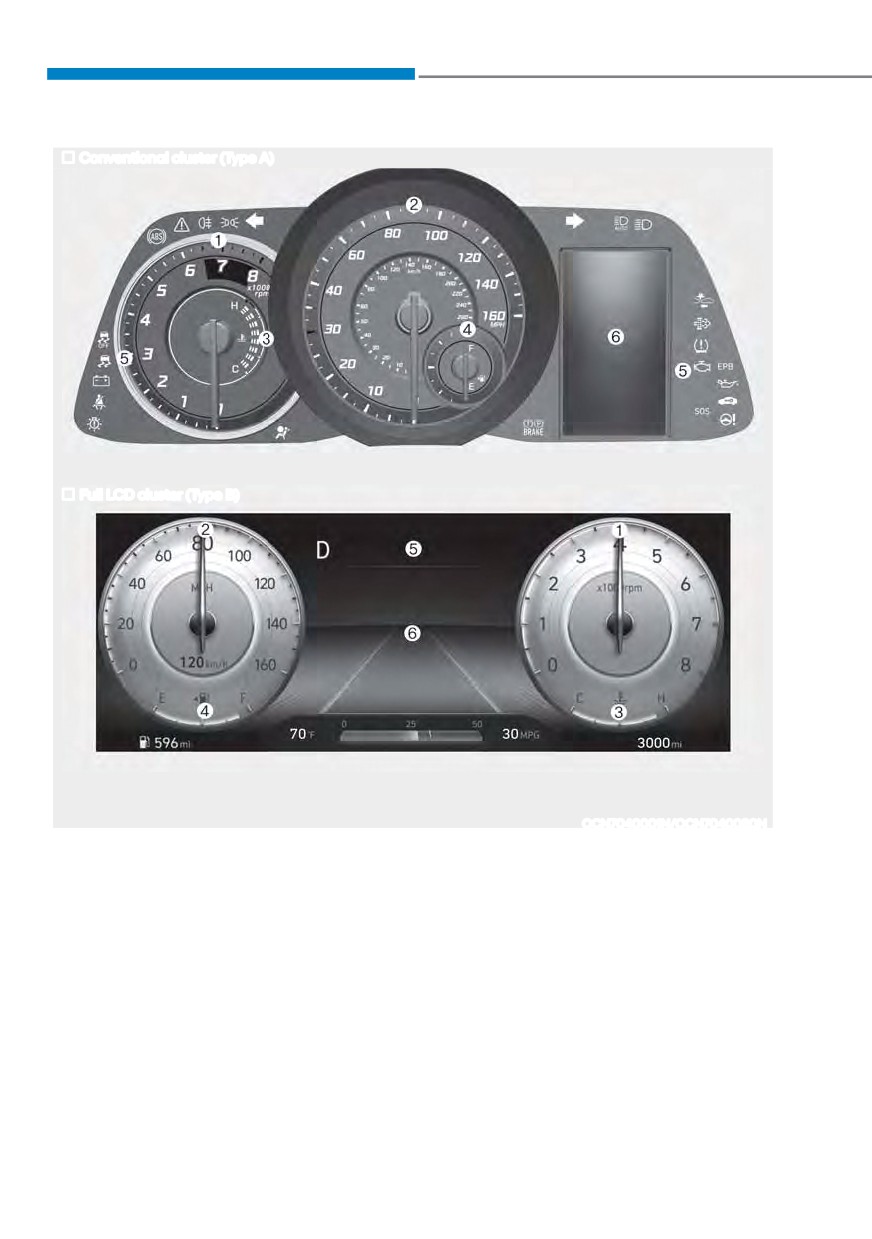

INSTRUMENT CLUSTER

„ Conventional cluster (Type A)

„ Full LCD cluster (Type B)

The actual cluster in the vehicle may differ from the illustration.

For more information, refer to the "Gauges and Meters" in this chapter.

OCN7040001N/OCN7040080N

1. Tachometer

4. Fuel gauge

2. Speedometer

5. Warning and indicator lights

3. Engine coolant temperature gauge

6. LCD display (including trip computer)

4-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

Instrument Cluster Control

Gauges and Meters

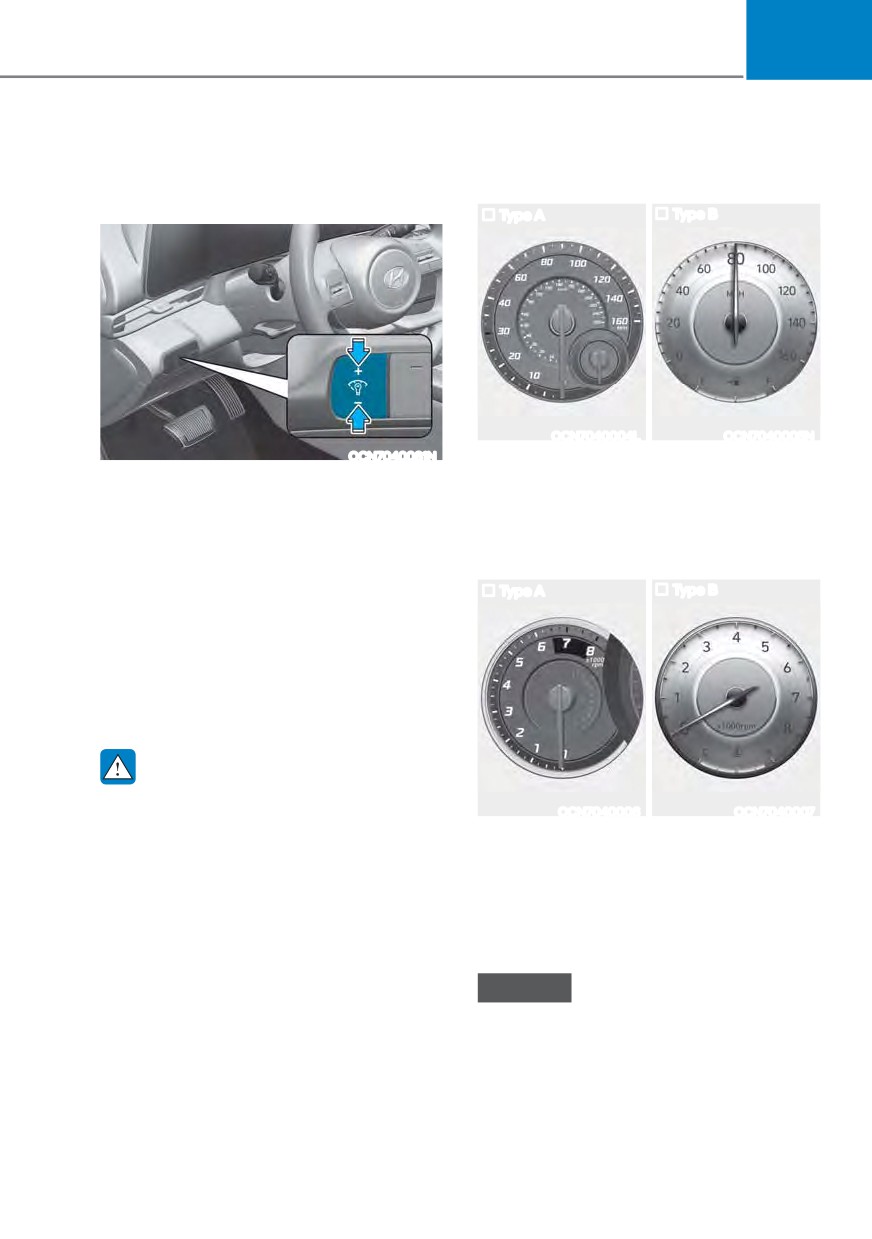

Adjusting instrument cluster

Speedometer

illumination

„ Type A

„ Type B

OCN7040004L

OCN7040005N

OCN7040081N

The speedometer indicates the speed of

When the vehicle's parking lamps or

the vehicle and is calibrated in miles per

headlights are on, press the illumination

hour (MPH) and/or kilometers per hour

control button to adjust the brightness of

(km/h).

the instrument panel illumination.

When pressing the illumination control

Tachometer

button, the interior switch illumination

„ Type A

„ Type B

intensity is also adjustable.

ś The brightness of the instrument

panel illumination is displayed.

ś If the brightness reaches the

maximum or minimum level, a chime

will sound.

WARNING

Never adjust the instrument cluster

OCN7040006

OCN7040007

while driving. Doing so could lead to

driver distraction which may cause an

The tachometer indicates the

accident and lead to vehicle damage,

approximate number of engine

serious injury, or death.

revolutions per minute (RPM).

Use the tachometer to select the correct

shift points and to prevent lugging and/

or over-revving the engine.

NOTICE

Do not operate the engine within the

tachometer's RED ZONE. This may

cause severe engine damage.

4-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

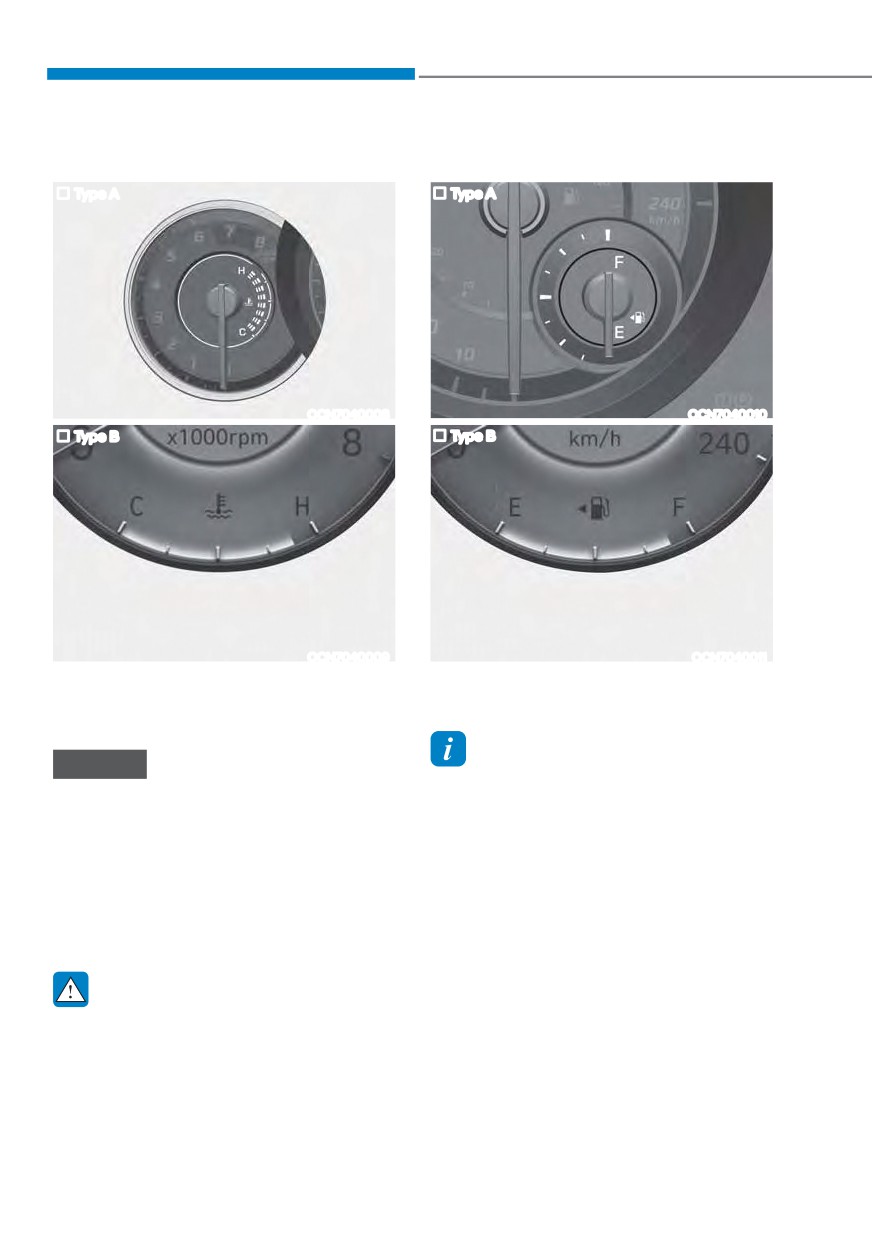

Engine coolant temperature gauge

Fuel gauge

„ Type A

„ Type A

OCN7040008

OCN7040010

„ Type B

„ Type B

OCN7040009

OCN7040011

This gauge indicates the temperature

This gauge indicates the approximate

of the engine coolant when the ignition

amount of fuel remaining in the fuel tank.

switch is in the ON position.

Information

NOTICE

ś The fuel tank capacity is given in

If the gauge pointer moves beyond

chapter 2.

the normal range area toward the "H"

ś The fuel gauge is supplemented by

position, it indicates overheating that

a low fuel warning light, which will

may damage the engine.

illuminate when the fuel tank is nearly

Do not continue driving with an

empty.

overheated engine. If your engine

ś On inclines or curves, the fuel gauge

overheats, refer to "If the Engine

pointer may fluctuate or the low fuel

Overheats" in chapter 7.

warning light may come on earlier than

usual due to the movement of fuel in

WARNING

the tank.

Never remove the radiator cap or

reservoir cap when the engine is hot.

The engine coolant is under pressure

and could severely burn. Wait until the

engine is cool before adding coolant to

the reservoir.

4-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

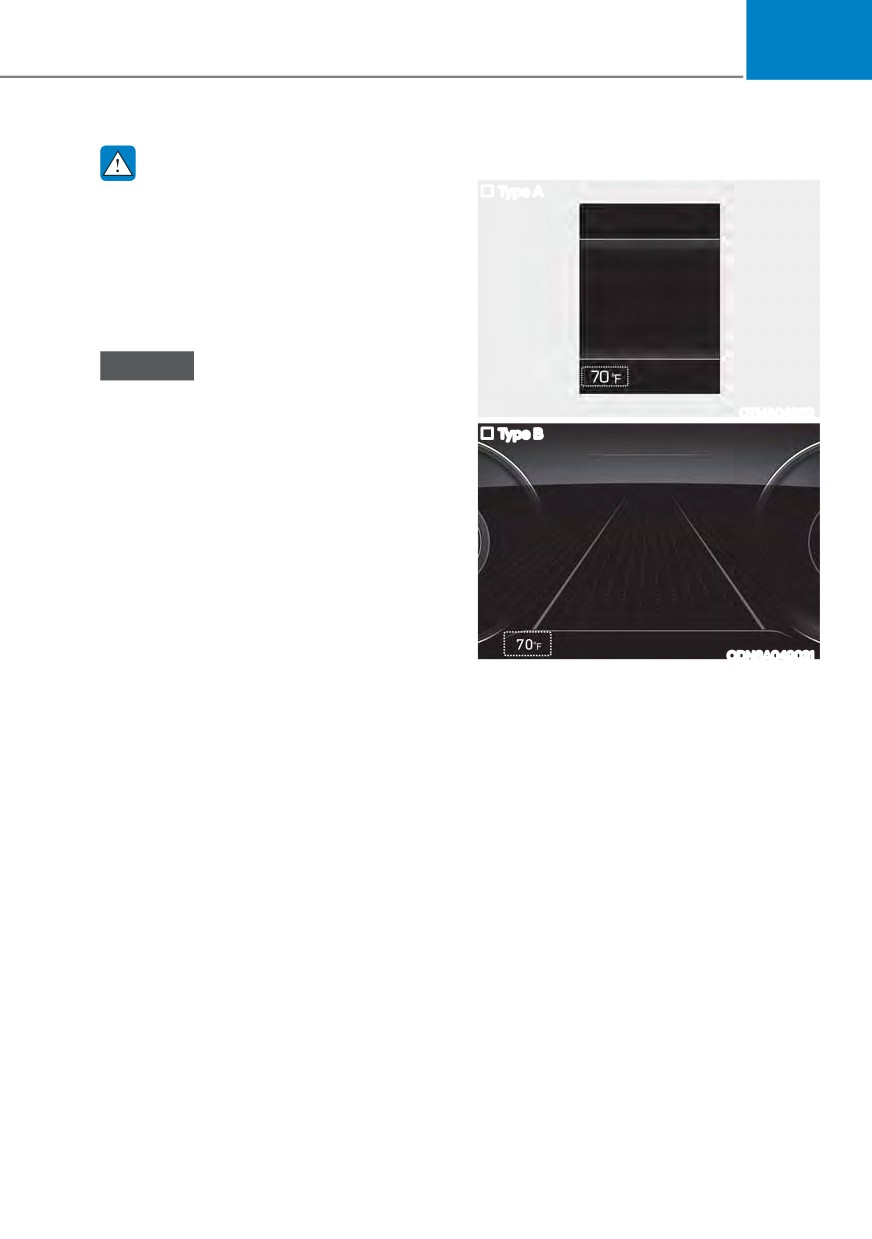

Outside temperature gauge

WARNING

Running out of fuel can expose vehicle

„ Type A

occupants to danger.

You must stop and obtain additional

fuel as soon as possible after the

warning light comes on or when the

gauge indicator comes close to the "E

(Empty)" level.

NOTICE

Avoid driving with an extremely low

fuel level. Running out of fuel could

OTMA048112

cause the engine to misfire and damage

„ Type B

the catalytic converter.

ODN8A049031

This gauge indicates the current outside

air temperature by 1°F (1°C).

- Temperature range: -40°F ~ 140°F

(40°C ~ 60°C)

Note that the temperature indicated

on the LCD display may not change

as quickly as the outside temperature

(there may be a slight delay before the

temperature changes.)

You can change the temperature unit

from °F to °C or °C to °F in the User

Settings mode in the cluster:

-

*R WR 8VHU 6HWWLQJV 0RGH Ɵ 2WKHU Ɵ

Temperature Unit.

For vehicles equipped with Automatic

Climate Control, you can also:

- Press and hold the AUTO and OFF

buttons on the climate control unit for

3 seconds

Both the temperature unit on the cluster

LCD display and climate control screen

will change.

4-7

Content      ..     1      2      3      4      ..
