Hyundai ix20 (2017 year). Instruction - part 9

Features of your vehicle

OED040045

OED040046

OED040800

Lighting control

Parking light position (

)

Headlight position (

)

The light switch has a Headlight and a

When the light switch is in the parking

When the light switch is in the headlight

Parking light position.

light position (1st position), the tail posi-

position

(2nd position), the head, tail,

To operate the lights, turn the knob at the

tion, license and instrument panel lights

position, license and instrument panel

end of the control lever to one of the fol-

will turn ON.

lights are ON.

lowing positions:

(1) Off position

✽ NOTICE

(2) Parking light position

The ignition switch must be in the ON

(3) Headlight position

position to turn on the headlights.

(4) Auto light position (if equipped)

4 71

Features of your vehicle

CAUTION

•

Never place anything over sensor

(1) located on the instrument

panel, this will ensure better auto-

light system control.

•

Don’t clean the sensor using a

window cleaner, the cleanser may

leave a light film which could

interfere with sensor operation.

•

If your vehicle has window tint or

other types of metallic coating on

OYN049201

the front windshield, the Auto

OED040801

Auto light position (if equipped)

light system may not work prop-

High beam operation

erly.

When the light switch is in the AUTO light

To turn on the high beam headlights, push

position, the taillights and headlights will

the lever away from you. Pull it back for

be turned ON or OFF automatically

low beams.

depending on the amount of light outside

The high beam indicator will light when

the vehicle.

the headlight high beams are switched on.

To prevent the battery from being dis-

charged, do not leave the lights on for a

prolonged time while the engine is not

running.

WARNING

Do not use high beam when there

are other vehicles. Using high

beam could obstruct the other dri-

ver's vision.

4 72

Features of your vehicle

To signal a lane change, move the turn

signal lever slightly and hold it in position

(B). The lever will return to the off position

when released.

If an indicator stays on and does not

flash or if it flashes abnormally, one of the

turn signal bulbs may be burned out and

will require replacement.

One-touch lane change function

(if equipped)

To activate an one-touch lane change

OED040802

OED040804

function, move the turn signal lever

To flash the headlights, pull the lever

Turn signals and lane change sig-

slightly and then release it. The lane

towards you. It will return to the normal

nals

change signals will blink 3 times.

(low beam) position when released. The

The ignition switch must be on for the

headlight switch does not need to be on

turn signals to function. To turn on the

✽ NOTICE

to use this flashing feature.

turn signals, move the lever up or down

If an indicator flash is abnormally quick

(A). The green arrow indicators on the

or slow, a bulb may be burned out or

instrument panel indicate which turn sig-

have a poor electrical connection in the

nal is operating. They will self-cancel

circuit.

after a turn is completed. If the indicator

continues to flash after a turn, manually

return the lever to the off position.

4 73

Features of your vehicle

■ Type A

Daytime running light

(if equipped)

The Daytime Running Lights (DRL) can

make it easier for others to see the front

of your vehicle during the day. DRL can

be helpful in many different driving condi-

tions, and it is especially helpful after

dawn and before sunset.

OED040806

■ Type B

The DRL system will make the head-

lights turn OFF when:

1. The parklight switch is ON.

2. The engine is OFF.

OYN049200

Front fog light (if equipped)

Fog lights are used to provide improved

visibility when visibility is poor due to fog,

OAM049046L

rain or snow, etc. The fog lights will turn

on when the fog light switch (1) is turned

Rear fog light

on after the parklight is turned on.

To turn the rear fog lights on, turn the

To turn off the fog lights, turn the fog light

rear fog light switch (1) to the on position

switch (1) to the O (Off) position.

when the headlight is turned on.

Also, the rear fog lights turn on when the

rear fog light switch is turned on after the

CAUTION

front fog light switch

(if equipped) is

When in operation, the fog lights

turned on and the headlight switch is in

consume large amounts of vehicle

the parklight position.

electrical power. Only use the fog

To turn the rear fog lights off, turn the rear

lights when visibility is poor.

fog light switch to the on position again.

4 74

Features of your vehicle

■ Left-hand drive type

The higher the number of the switch

position, the lower the headlight beam

level. Always keep the headlight beam at

the proper leveling position, or headlights

may dazzle other road users.

Listed below are the examples of proper

switch settings. For loading conditions

other than those listed below, adjust the

switch position so that the beam level

may be the nearest as the condition

obtained according to the list.

OYN049047

■ Right-hand drive type

Loading condition

Switch position

Driver only

0

Driver + Front passenger

0

Full passengers

1

(including driver)

Full passengers (including

driver) + Maximum per-

3

missible loading

OYN049047R

Driver + Maximum per-

Headlight leveling device

5

(if equipped)

missible loading

To adjust the headlight beam level

according to the number of the passen-

gers and loading weight in the luggage

area, turn the beam leveling switch.

4 75

Features of your vehicle

WIPERS AND WASHERS

A : Wiper speed control (front)

Windshield wipers (front)

■ Front

· 2 - High wiper speed

Operates as follows when the ignition

· 1 - Low wiper speed

switch is turned ON.

· --- - Intermittent wipe

: For a single wiping cycle, move the

· AUTO* - Automatic control wipe

lever to this position and release it.

The wipers will operate continuously if

· O - Off

the lever is held in this position.

·

- Single wipe

O : Wiper is not in operation

B : Intermittent control wipe time

--- : Wiper operates intermittently at the

same wiping intervals. Use this mode

adjustment

in light rain or mist. To vary the speed

setting, turn the speed control knob.

C : Wash with brief wipes (front)*

1 : Normal wiper speed

■ Rear (if equipped)

D : Rear wiper/washer control

2 : Fast wiper speed

·

- Continuous wipe

·

---

- Intermittent wipe

✽ NOTICE

· O

- Off

If there is heavy accumulation of snow

or ice on the windshield, defrost the

E : Wash with brief wipes (rear)*

windshield for about

10 minutes, or

until the snow and/or ice is removed

before using the windshield wipers to

* : if equipped

ensure proper operation.

If you do not remove the snow and/or ice

before using the wiper and washer, it

may damage the wiper and washer sys-

OXM049230L/OAM049048L

tem.

4 76

Features of your vehicle

To vary the speed setting, turn the speed

control knob (1).

CAUTION

If the wiper switch is set in AUTO mode

When washing the vehicle, set the

when the ignition switch is ON, the wiper

wiper switch in the off position to

will operate once to perform a self-check

stop the auto wiper operation.

of the system. Set the wiper to off posi-

The wiper may operate and be dam-

tion when the wiper is not in use.

aged if the switch is set in the AUTO

mode while washing the vehicle.

Do not remove the sensor cover

CAUTION

located on the upper end of the pas-

Rain sensor

When the ignition switch is ON and

senger side windshield glass.

the windshield wiper switch is

Damage to system parts could

placed in the AUTO mode, use cau-

OEL049900

occur and may not be covered by

tion in the following situations to

AUTO (Automatic) control

your vehicle warranty.

avoid any injury to the hands or

(if equipped)

When starting the vehicle in winter,

other parts of the body:

The rain sensor located on the upper end

set the wiper switch in the off posi-

• Do not touch the upper end of the

of the windshield glass senses the

tion. Otherwise, wipers may operate

windshield glass facing the rain

amount of rainfall and controls the wiping

and ice may damage the windshield

sensor.

cycle for the proper interval. The more it

wiper blades. Always remove all

• Do not wipe the upper end of the

rains, the faster the wiper operates. When

snow and ice and defrost the wind-

windshield glass with a damp or

the rain stops, the wiper stops.

shield properly prior to operating

wet cloth.

the windshield wipers.

• Do not put pressure on the wind-

shield glass.

4 77

Features of your vehicle

CAUTION

CAUTION

To prevent possible damage to the

•

To prevent possible damage to

washer pump, do not operate the

the wipers or windshield, do not

washer when the fluid reservoir is

operate the wipers when the

empty.

windshield is dry.

•

To prevent damage to the wiper

blades, do not use gasoline,

kerosene, paint thinner, or other

WARNING

solvents on or near them.

Do not use the washer in freezing

•

To prevent damage to the wiper

temperatures without first warming

arms and other components, do

the windshield with the defrosters;

OXM049048E

not attempt to move the wipers

the washer solution could freeze on

Windshield washers (front)

the windshield and obscure your

manually.

vision.

•

To prevent possible damage to

In the O (Off) position, pull the lever gen-

the wipers and washer system,

tly toward you to spray washer fluid on

use anti-freezing washer fluids in

the windshield and to run the wipers 1-3

the winter season or cold weather.

cycles.

Use this function when the windshield is

dirty.

The spray and wiper operation will con-

tinue until you release the lever.

If the washer does not work, check the

washer fluid level. If the fluid level is not

sufficient, you will need to add appropri-

ate non-abrasive windshield washer fluid

to the washer reservoir.

The reservoir filler neck is located in the

front of the engine compartment on the

passenger side.

4 78

Features of your vehicle

OXM049103E

OXM049125L

Rear window wiper and washer

Push the lever away from you to spray

switch

rear washer fluid and to run the rear

wipers 1~3 cycles. The spray and wiper

The rear window wiper and washer

operation will continue until you release

switch is located at the end of the wiper

the lever.

and washer switch lever. Turn the switch

to desired position to operate the rear

wiper and washer.

- Normal wiper operation

---

- Intermittent wipe

O - Wiper is not in operation

4 79

Features of your vehicle

INTERIOR LIGHT

■ Type A

Room lamp

(3)

(1) Map lamp (if equipped)

In the on position, the light stays on at all

Push the lamp lens to turn the light on or

times.

off. This light produces a spot beam for

convenient use as a map lamp at night or

(4) O

as a personal lamp for the driver and the

In the off position, the light stays off at all

front passenger.

times, even when a door is open.

(2)

CAUTION

OYN049048

■ Type B

The light comes on when any door is

Do not use the interior lights for

opened regardless of the ignition switch

extended periods when engine is

position. When doors are unlocked by the

not running.

transmitter or smart key, or the key is

It may cause battery discharge.

removed from the ignition switch, the

light comes on for approximately 30 sec-

onds as long as any door is not opened.

The light goes out gradually after approx-

WARNING

imately 30 seconds if the door is closed.

Do not use the interior lights when

However, if the ignition switch is ON or all

driving in the dark. Accidents could

OYN049049

doors are locked, the light will turn off

happen because the view may be

■ Type C

immediately.

obscured by interior lights.

If a door is opened with the ignition

switch in the ACC or LOCK position, the

light stays on for about

20 minutes.

However, if a door is opened with the

ignition switch in the ON position, the

light stays on continuously.

OYN049095

4 80

Features of your vehicle

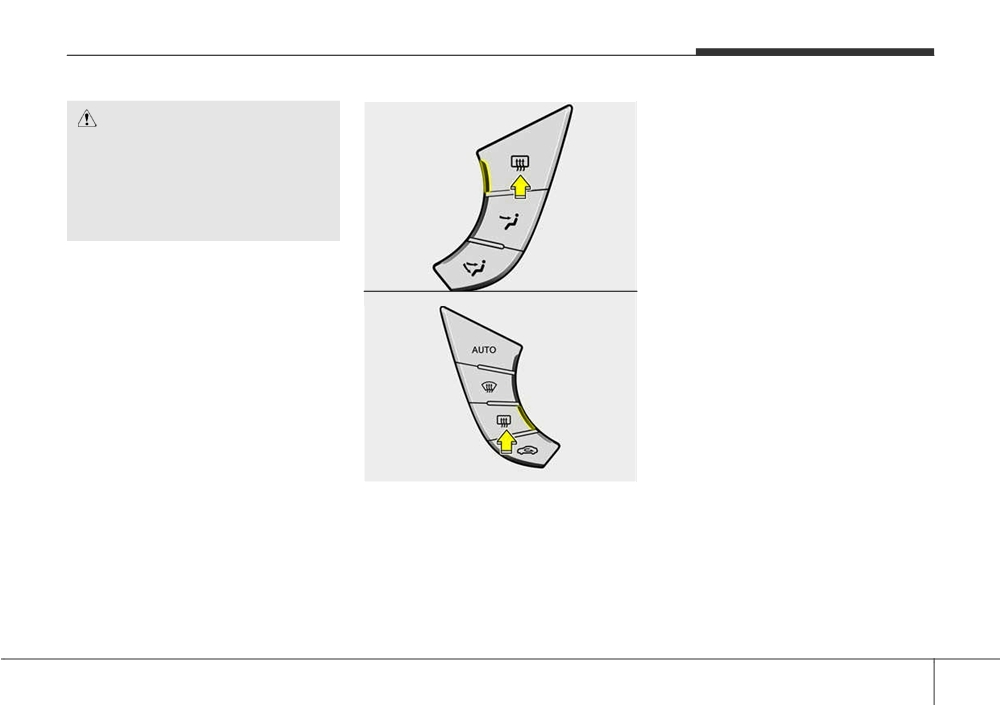

DEFROSTER

■ Manual climate control

The indicator on the rear window

CAUTION

defroster button illuminates when the

To prevent damage to the conduc-

defroster is ON.

tors bonded to the inside surface of

If there is heavy accumulation of snow on

the rear window, never use sharp

the rear window, brush it off before oper-

instruments or window cleaners

ating the rear defroster.

containing abrasives to clean the

The rear window defroster automatically

window.

turns off after approximately 20 minutes

or when the ignition switch is turned off.

To turn off the defroster, press the rear

✽ NOTICE

OJC040056

window defroster button again.

If you want to defrost and defog the

■ Automatic climate control

front windshield, refer to “Windshield

Outside mirror defroster

defrosting and defogging” in this sec-

(if equipped)

tion.

If your vehicle is equipped with outside

mirror defrosters, they will operate at the

same time when you turn on the rear

window defroster.

Front wiper deicer (if equipped)

If your vehicle is equipped with front

wiper deicer, they will operate at the

OJC043055

same time when you turn on the rear

Rear window defroster

window defroster.

The defroster heats the window to

remove frost, fog and thin ice from the

interior and exterior of the rear window,

while engine is running.

To activate the rear window defroster,

press the rear window defroster button

located in the center facia switch panel.

4 81

Features of your vehicle

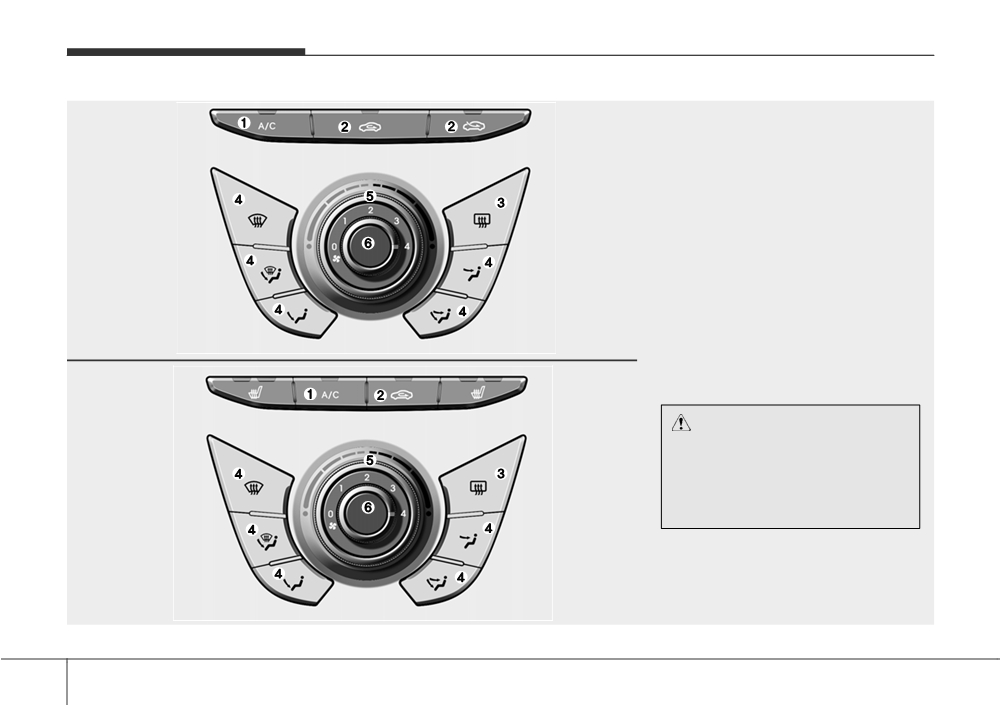

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)

■ Type A

1. A/C (Air conditioning) button

2. Air intake control button

3. Rear window defroster button

4. Mode selection button

5. Temperature control knob

6. Fan speed control knob

■ Type B

CAUTION

Operating the blower when the

ignition switch is in the ON posi-

tion could cause the battery to

discharge. Operate the blower

when the engine is running.

OJC040057/OJC043058

4 82

Features of your vehicle

Heating and air conditioning

1. Start the engine.

2. Set the mode to the desired position.

To improve the effectiveness of heat-

ing and cooling :

- Heating:

- Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to the outside

(fresh) air position.

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn the

air conditioning system (if equipped)

on.

OJC040096

4 83

Features of your vehicle

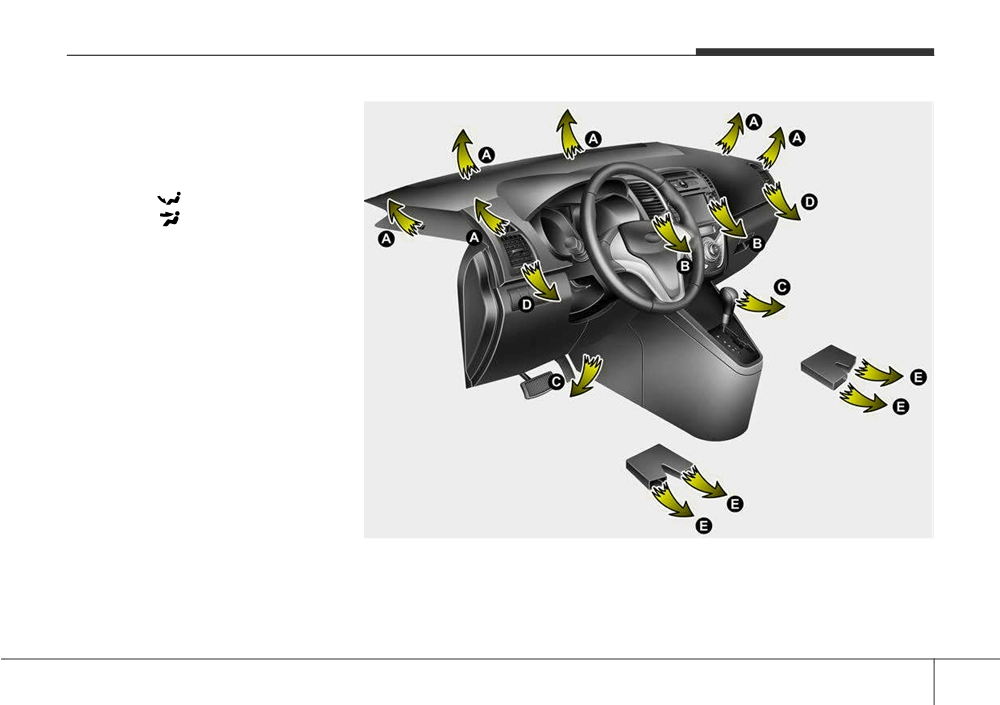

Bi-Level (B, D, C, E)

Air flow is directed towards the face and

the floor.

Floor-Level (C, E, A, D)

Most of the air flow is directed to the

floor, with a small amount of the air being

OJC040059

directed to the windshield and side win-

OJC040097

dow defrosters.

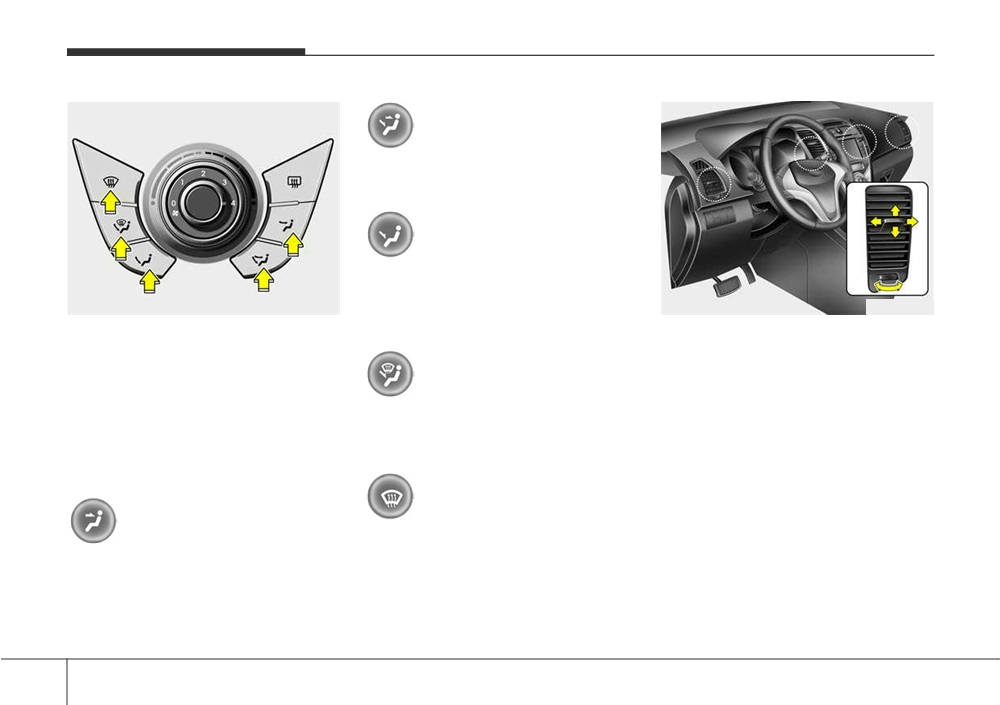

Mode selection

Instrument panel vents

The mode selection button controls the

The outlet vents can be opened or closed

direction of the air flow through the venti-

separately using the thumbwheel. To

Floor/Defrost-Level (A, C, E, D)

lation system.

close the vent, rotate it left to the maxi-

Air can be directed to the floor, dash-

mum position.

board outlets, or windshield. Five sym-

Most of the air flow is directed to the floor

Also, you can adjust the direction of air

bols are used to represent Face, Bi-

and the windshield with a small amount

delivery from these vents using the vent

directed to the side window defrosters.

Level, Floor, Floor-Defrost and Defrost

control lever as shown.

air position.

Defrost-Level (A, D)

Face-Level (B, D)

Most of the air flow is directed to the

windshield with a small amount of air

Air flow is directed toward the upper body

directed to the side window defrosters.

and face. Additionally, each outlet can be

controlled to direct the air discharged

from the outlet.

4 84

Features of your vehicle

■ Type A

Outside (fresh) air position

■ Type A

■ Type B

■ Type B

With the outside

(fresh) air position

selected, air enters the vehicle from out-

side and is heated or cooled according to

the function selected.

OJC040060

OJC040061

✽ NOTICE

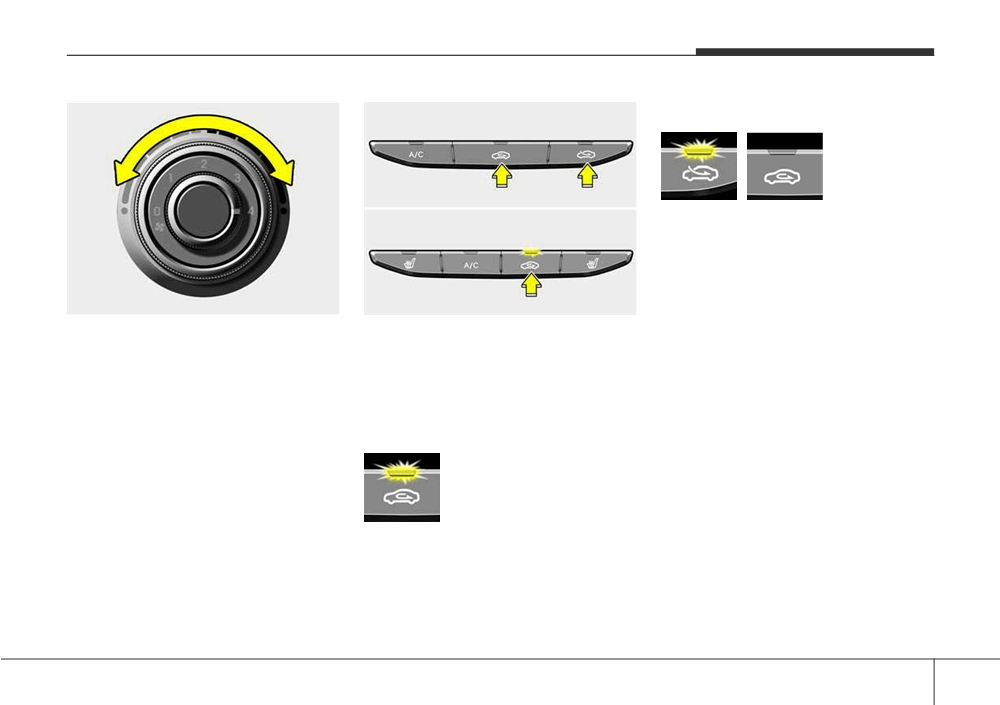

Temperature control

Air intake control

It should be noted that prolonged oper-

The temperature control knob allows you

This is used to select outside (fresh) air

ation of the heater in the recirculated air

to control the temperature of the air flow-

position or recirculated air position.

position (without air conditioning select-

ed) will cause fogging of the windshield

ing from the ventilation system. To

To change the air intake control position,

and side windows and the air within the

change the air temperature in the pas-

press the control button.

senger compartment, turn the knob to

passenger compartment will become

the right position for warm and hot air or

stale.

Recirculated air position

left position for cooler air.

In addition, prolonged use of the air con-

With the recirculated air

ditioning with the recirculated air posi-

position selected, air from

tion selected will result in excessively dry

the passenger compart-

air in the passenger compartment.

ment will be drawn through

the heating system and

heated or cooled according

to the function selected.

4 85

Features of your vehicle

WARNING

•

Continuous operation of the cli-

mate control system in the recir-

culated air position may allow

humidity to increase inside the

vehicle which may fog the glass

and obscure visibility.

•

Do not sleep in a vehicle with air

conditioning or heating system

on. It may cause serious harm or

death due to a drop in the oxygen

OJC040062

OJC043177

level and/or body temperature.

•

Continuous operation of the cli-

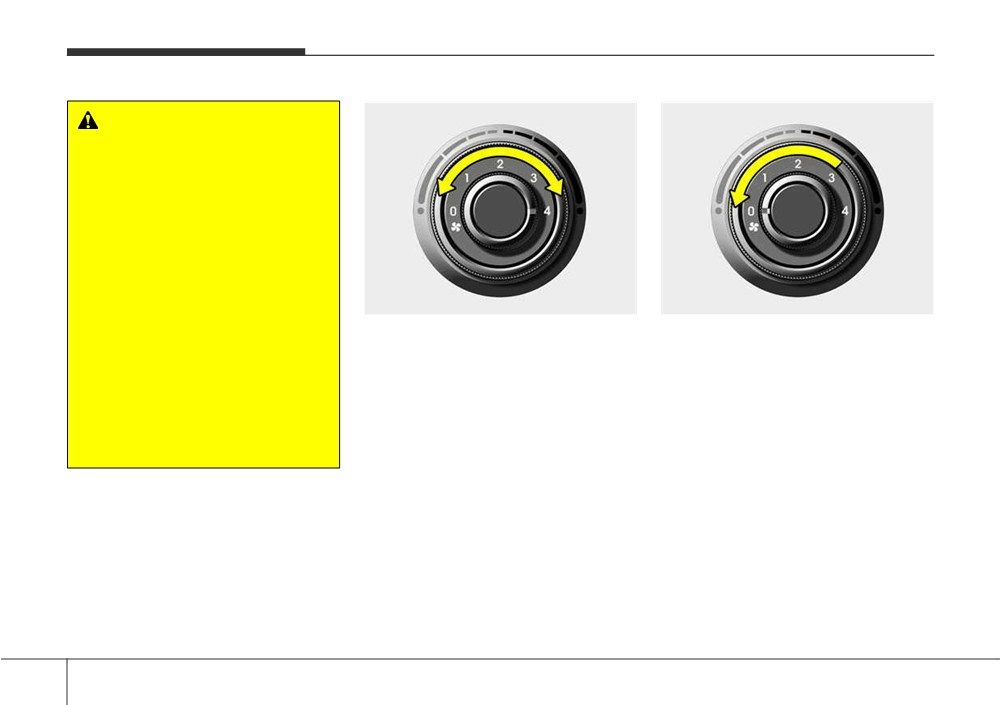

Fan speed control

To turn off the blowers

mate control system in the recir-

The ignition switch must be in the ON

To turn off the blowers, turn the fan

culated air position can cause

position for fan operation.

speed control knob to the "0" position.

drowsiness or sleepiness, and

The fan speed control knob allows you to

loss of vehicle control. Set the air

control the fan speed of the air flowing

intake control to the outside

from the ventilation system. To change

(fresh) air position as much as

the fan speed, turn the knob to the right

possible while driving.

for higher speed or left for lower speed.

Setting the fan speed control knob to the

“0” position turns off the fan.

4 86

Content   ..  7  8  9  10   ..
