Hyundai Ioniq Plug-in Hybrid (2018 year). Instruction - part 29

LIGHT BULBS

Consult an authorized HYUNDAI

Headlamp, Parking Lamp, Turn

WARNING

dealer to replace most vehicle light

Signal Lamp and Side Marker

bulbs. It is difficult to replace vehicle

•

Prior to replacing a lamp,

Type A - Standard type

light bulbs because other parts of the

vehicle must be removed before you

depress the foot brake, move

the shift lever into P

(Park)

can get to the bulb. This is especially

true for removing the headlamp

apply the parking brake, place

the Engine Start/Stop button

assembly to get to the bulb(s).

to the OFF position, and take

Removing/installing the headlamp

the key with you when leaving

assembly can result in damage to

the vehicle to avoid sudden

the vehicle.

movement of the vehicle and

to prevent possible electric

i

Information

shock.

After heavy driving rain or washing,

•

Be aware the bulbs may be

lamps could appear frosty. This condi-

hot and may burn your fin-

OAE076028

tion is caused by the temperature dif-

gers.

(1) Headlamp (Low)

ference between the lamp inside and

the outside temperature. This is simi-

(2) Headlamp (High)

lar to the condensation on your win-

(3) Turn signal lamp

dows inside your vehicle when raining

(4) Parking lamp

7

and doesn't indicate a problem with

your vehicle. If the water leaks into

(5) Side marker

the lamp bulb circuitry, have your

vehicle checked by an authorized

HYUNDAI dealer.

7-55

Maintenance

•

Always handle them carefully, and

WARNING

Parking lamp

Low beam

avoid scratches and abrasions. If

the bulbs are lit, avoid contact with

liquids.

•

Never touch the glass with bare

hands. Residual oil may cause the

bulb to overheat and burst when lit.

•

A bulb should be operated only

High beam

when installed in a headlamp.

•

If a bulb becomes damaged or

cracked, replace it immediately

OAE076030

and carefully dispose of it.

OAE076052

Headlamp and parking lamp

Halogen bulb

1. Open the hood.

• Handle halogen bulbs with

2. Disconnect the negative battery

care. Halogen bulbs contain

cable.

pressurized gas that will pro-

3. Remove the headlamp bulb cover

duce flying pieces of glass

(1) by turning it counterclockwise.

that could cause injuries if

4. Disconnect the headlamp bulb

broken.

socket-connector. (for low beam

• Wear eye protection when

and high beam)

changing a bulb. Allow the

5. Remove the bulb from the head-

bulb to cool down before han-

lamp assembly.

dling it.

6. Install a new bulb.

7-56

7. Connect the headlamp bulb sock-

5. Install a new bulb by inserting it

et-connector. (for low beam and

into the socket and rotating it until

high beam)

it locks into place.

8. Install the hbulb cover (1) by turn-

6. Install the socket into the assem-

ing it clockwise.

bly by aligning the tabs on the

socket with the slots in the assem-

bly.

i

Information

7. Push the socket into the assembly

The headlamp aiming should be

and turn the socket clockwise.

adjusted after an accident or after the

headlamp assembly is reinstalled at an

authorized HYUNDAI dealer.

OAE076031

Turn signal

1. Open the hood.

2. Disconnect the negative battery

cable.

3. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

7

the assembly.

4. Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7-57

Maintenance

Type B- HID headlamp type

WARNING

HID headlamp

Do not attempt to replace or

inspect the headlamp (XENON

bulb) due to electric shock dan-

ger. If the headlamp

(XENON

bulb) is not working, have your

vehicle checked by an author-

ized HYUNDAI Dealer.

OAEPH077075N

Side marker

OAE076029

i

Information

1. Open the hood.

(1) Headlamp (Low/High)

If your vehicle is equipped with High

2. Disconnect the negative battery

Intensity Discharge (HID) headlamps,

(2) Turn signal lamp

cable.

these headlamps contain mercury. So

(3) Parking lamp

3. Remove the socket from the

if you need to have your vehicle dis-

assembly by turning the socket

(4) Side marker

posed, you should remove the HID

counterclockwise until the tabs on

Headlamps before disposal. The

the socket align with the slots on

removed HID headlamps should be

Headlamp

the assembly.

recycled, re-used or disposed as haz-

If the light bulb does not operate,

ardous waste.

4. Remove the bulb from the socket

have the vehicle checked by an

by pulling out the bulb.

authorized HYUNDAI dealer.

5. Insert a new bulb.

7-58

i

Information

i

Information

HID lamps have superior perform-

The headlamp aiming should be

ance vs. halogen bulbs.

adjusted after an accident or after the

headlamp assembly is reinstalled at an

HID lamps are estimated by the man-

authorized HYUNDAI dealer.

ufacturer to last twice as long or

longer than halogen bulbs depending

on their frequency of use. They will

probably require replacement at some

point in the life of the vehicle. Cycling

the headlamps on and off more than

typical use will shorten HID lamps

OAE076032

life. HID lamps do not fail in the same

Turn signal lamp

manner as halogen incandescent

lamps. If a headlamp goes out after a

1. Open the hood.

period of operation but will immedi-

2. Disconnect the negative battery

ately relight when the headlamp

cable.

switch is cycled it is likely the HID

3. Remove the socket from the

lamp needs to be replaced. HID light-

assembly by turning the socket

ing components are more complex

counterclockwise until the tabs on

than conventional halogen bulbs thus

the socket align with the slots on

7

have higher replacement cost.

the assembly.

4. Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7-59

Maintenance

5. Install a new bulb by inserting it

Daytime Running Light (DRL)

into the socket and rotating it until

it locks into place.

6. Install the socket into the assem-

bly by aligning the tabs on the

socket with the slots in the assem-

bly.

7. Push the socket into the assembly

and turn the socket clockwise.

OAEPH077074N

Side marker

OAEE076030N

1. Open the hood.

Your vehicle is equipped with LED

2. Disconnect the negative battery

lamps. LED lamps do not have

cable.

replaceable bulbs. If the LED lamp

3. Remove the socket from the

does not operate, have the vehicle

assembly by turning the socket

checked by an authorized HYUNDAI

counterclockwise until the tabs on

dealer.

the socket align with the slots on

the assembly.

4. Remove the bulb from the socket

by pulling out the bulb.

5. Insert a new bulb.

7-60

Side Repeater Lamp

Rear Combination Light Bulb

Replacement

Replacement

Type A

OAE076037

Tail/Stop lamp, turn signal lamp

and side marker lamp

OAE076034

1. Open the liftgate.

OAE077035N

Your vehicle is equipped with LED

2. Open the lamp assembly retaining

lamps. LED lamps do not have

(1) Tail/Stop lamp

screw covers.

replaceable bulbs. If the LED lamp

(2) Turn signal lamp

does not operate, have the vehicle

3. Loosen the lamp assembly retain-

checked by an authorized HYUNDAI

(3) Tail lamp

ing screws with a cross-tip screw-

dealer.

(4) Back-up lamp

driver.

7

(5) Side marker

7-61

Maintenance

6. Remove the bulb from the socket

Tail/Stop lamp

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7. Insert a new bulb by inserting it

into the socket and rotating it until

it locks into place.

Turn signal lamp

8. Install the socket into the assem-

OAE076039

bly by aligning the tabs on the

OAE076038

socket with the slots in the assem-

4. Remove the rear combination

Side marker

bly. Push the socket into the

lamp assembly from the body of

assembly and turn the socket

the vehicle.

clockwise.

9. Reinstall the lamp assembly to the

body of the vehicle.

OTLA075071

5. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

7-62

Type B

Backup lamp

OAEE076025

OAE076042

Tail lamp and back-up lamp

3. Remove the socket from the

OAE076036

assembly by turning the socket

1. Open the liftgate.

(1) Tail lamp

counterclockwise until the tabs on

2. Remove the service cover using a

the socket align with the slots on

(2) Stop lamp, tail lamp and turn sig-

flat-blade screwdriver.

the assembly.

nal lamp

4. Pull the bulb out of the socket.

(3) Tail lamp

5. Insert a new bulb into the socket.

(4) Back-up lamp

6. Install the socket into the assem-

(5) Side marker

7

bly by aligning the tabs on the

socket with the slots on the

Stop lamp, tail lamp, turn signal

assembly and turning the socket

lamp and side marker

clockwise.

Your vehicle is equipped with LED

7. Reinstall the service cover.

lamps. LED lamps do not have

replaceable bulbs. If the LED lamp

does not operate, have the vehicle

checked by an authorized HYUNDAI

dealer.

7-63

Maintenance

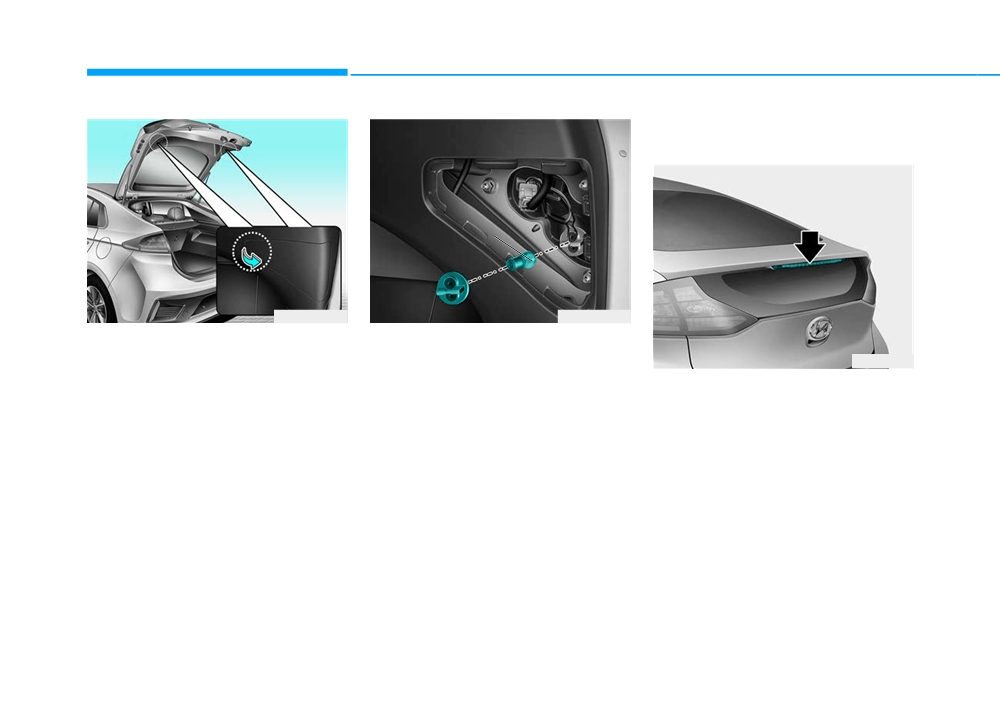

High Mounted Stop Lamp

Replacement

Backup lamp

OAEE076025

OAEE076038

Backup lamp

3. Remove the bulb by pulling it

straight out.

1. Open the liftgate.

OAE076043

4. Insert a new bulb by inserting it

2. Remove the service cover using a

1. Open the liftgate.

into the socket and rotating it until

flat-blade screwdriver.

it locks into place.

2. Gently remove the cover of the lift-

gate trim.

5. Install the socket into the assem-

bly by aligning the tabs on the

3. Remove the spoiler plug hole.

socket with the slots in the assem-

4. Disconnect the electrical connec-

bly. Push the socket into the

tor.

assembly and turn the socket

5. Loosen the mounting bolts and

clockwise.

remove the spoiler.

6. Reinstall the service cover.

6. Remove the high mounted stop

light assembly after disconnecting

the connector.

7. Reinstall a new light assembly in

the reverse order of removal.

7-64

License Plate Light Bulb

Interior Light Bulb Replacement

Replacement

Map lamp and room lamp

■ Map lamp (LED type)

■ Room lamp (LED type)

OAE076044

OAEE076026

OAEE076027

1. Using a flat-blade screwdriver,

Your vehicle is equipped with LED lamps. LED lamps do not have replace-

gently pry the lens cover from the

able bulbs. If the LED lamp does not operate, have the vehicle checked by an

lamp housing.

authorized HYUNDAI dealer.

2. Remove the bulb by pulling it

straight out.

7

3. Install a new bulb.

4. Reinstall in the reverse order.

7-65

Maintenance

Map lamp, room lamp, vanity mirror lamp and

1. Using a flat-blade screwdriver,

luggage compartment lamp

gently pry the lens from the interi-

or lamp housing.

■ Map lamp (Bulb type)

■ Vanity mirror lamp

2. Remove the bulb by pulling it

straight out.

WARNING

Prior to working on the Interior

Lights, ensure that the lamp is

off to avoid burning your fingers

or receiving an electric shock.

OAE076045

OAE076048

3. Install a new bulb into the socket.

■ Room lamp (Bulb type)

■ Luggage compartment lamp

4. Align the lens tabs with the interi-

or lamp housing notches and snap

the lens into place.

NOTICE

Use care not to dirty or damage

lens, lens tab, and plastic hous-

ings.

OAE076046

OAE076047

7-66

APPEARANCE CARE

Exterior Care

Protecting your vehicle's finish

WARNING

Exterior general caution

Washing

It is very important to follow the label

To help protect your vehicle’s finish

After washing the vehicle, test

directions when using any chemical

from rust and deterioration, wash it

the brakes while driving slowly

cleaner or polish. Read all warning

thoroughly and frequently at least

to see if they have been affected

and caution statements that appear

once a month with lukewarm or cold

by water before getting on the

on the label.

water.

road. If braking performance is

If you use your vehicle for off-road

impaired, dry the brakes by

driving, you should wash it after each

applying them lightly while

High-pressure washing

off-road trip. Pay special attention to

maintaining a slow forward

•

When using high-pressure wash-

the removal of any accumulation of

speed.

ers, make sure to maintain suffi-

salt, dirt, mud, and other foreign

cient distance from the vehicle.

materials. Make sure the drain holes

Insufficient clearance or excessive

NOTICE

in the lower edges of the doors and

pressure can lead to component

rocker panels are kept clear and

•

Do not use strong soap, chemi-

damage or water penetration.

clean.

cal detergents or hot water, and

•

Do not spray the camera, sensors

Insects, tar, tree sap, bird droppings,

do not wash the vehicle in direct

or its surrounding area directly with

industrial pollution and similar

sunlight or when the body of the

a high pressure washer. Shock

deposits can damage your vehicle’s

vehicle is warm.

applied from high pressure water

finish if not removed immediately.

•

Be careful when washing the

may cause the device to not oper-

7

Even prompt washing with plain

side windows of your vehicle.

ate normally.

water may not completely remove all

Especially, with high-pressure

•

Do not bring the nozzle tip close to

these deposits. A mild soap, safe for

water, water may leak through

boots (rubber or plastic covers)or

use on painted surfaces, should be

the windows and wet the interi-

connectors as they may be dam-

used.

or.

aged if they come into contact with

After washing, rinse the vehicle thor-

•

To prevent damage to the plastic

high pressure water.

oughly with lukewarm or cold water.

parts, do not clean with chemi-

•

Do not use any high-pressure noz-

Do not allow soap to dry on the fin-

cal solvents or strong deter-

zles, which induce either one-direct

ish.

gents.

water stream or water swirling.

7-67

Maintenance

Waxing

NOTICE

A good coat of wax provides a barri-

• Wiping dust or dirt off the body

er between your paint and environ-

with a dry cloth will scratch the

mental contamination.

finish.

Keeping a good coat of wax on your

• Do not use steel wool, abrasive

vehicle will help protect it.

cleaners, or strong detergents

Wax the vehicle when water will no

containing highly alkaline or

longer bead on the paint.

caustic agents on chrome-plat-

Always wash and dry the vehicle

ed or anodized aluminum parts.

before waxing. Use a good quality

This may result in damage to the

OAE076051

liquid or paste wax, and follow the

protective coating and cause

manufacturer's instructions. Wax all

discoloration or paint deteriora-

NOTICE

metal trim to protect it and to main-

tion.

tain its luster.

•

Water washing in the engine

compartment including high

Removing oil, tar, and similar materi-

Repairing your vehicle’s finish

pressure water washing may

als with a spot remover will usually

Deep scratches or stone chips in the

cause the failure of electrical cir-

strip the wax from the finish. Be sure

painted surface must be repaired

cuits located in the engine com-

to re-wax these areas even if the rest

promptly. Exposed metal will quickly

partment.

of the vehicle does not yet need wax-

rust and may develop into a major

ing.

•

Never allow water or other liq-

repair expense.

uids to come in contact with

electrical/electronic

compo-

NOTICE

nents inside the vehicle as this

may damage them.

If your vehicle is damaged and

requires any metal repair or

replacement, be sure the body

shop applies anti-corrosion mate-

rials to the parts repaired or

replaced.

7-68

Bright-metal maintenance

Thoroughly flush the vehicle under-

Aluminum wheel maintenance

body and wheel openings with luke-

• To remove road tar and insects,

The aluminum wheels are coated

warm or cold water once a month,

use a tar remover, not a scraper or

with a clear protective finish.

after off-road driving and at the end

other sharp object.

of each winter. Pay special attention

• To protect the surfaces of bright-

NOTICE

to these areas because it is difficult

metal parts from corrosion, apply a

to see all the mud and dirt. It will do

•

Do not use abrasive cleaner, pol-

coating of wax or chrome preser-

more harm than good to wet down

ishing compound, solvent, or

vative and rub to a high luster.

the road grime without removing it.

wire brushes on aluminum

• During winter weather or in coastal

The lower edges of doors, rocker

wheels.

areas, cover the bright metal parts

panels, and frame members have

•

Clean the wheel when it has

with a heavier coating of wax or

drain holes that should not be

cooled.

preservative. If necessary, coat the

allowed to clog with dirt; trapped

parts with non-corrosive petroleum

water in these areas can cause rust-

•

Use only a mild soap or neutral

jelly or other protective compound.

ing.

detergent, and rinse thoroughly

with water. Also, clean the

wheels after driving on salted

Underbody maintenance

WARNING

roads.

Corrosive materials used for ice and

•

Do not wash the wheels with

snow removal and dust control may

After washing the vehicle, test

high-speed car wash brushes.

collect on the underbody. If these

the brakes while driving slowly

•

Do not use any cleaners con-

materials are not removed, acceler-

to see if they have been affected

7

taining acid or alkaline deter-

ated rusting can occur on underbody

by water. If braking performance

gents.

parts such as the fuel lines, frame,

is impaired, dry the brakes by

floor pan and exhaust system, even

applying them lightly while

though they have been treated with

maintaining a slow forward

rust protection.

speed.

7-69

• When cleaning underneath the

Keep your garage dry

Interior Care

vehicle, pay particular attention to

Don't park your vehicle in a damp,

Interior general precautions

the components under the fenders

poorly ventilated garage. This cre-

and other areas that are hidden

Prevent caustic solutions such as

ates a favorable environment for cor-

from view. Do a thorough job; just

perfume and cosmetic oil, from con-

rosion. This is particularly true if you

dampening the accumulated mud

tacting the interior parts because

wash your vehicle in the garage or

rather than washing it away will

they may cause damage or discol-

drive it into the garage when it is still

accelerate corrosion rather than

oration. If they do contact the interior

wet or covered with snow, ice or

prevent it. Water under high pres-

parts, wipe them off immediately.

mud. Even a heated garage can con-

sure and steam are particularly

See the instructions for the proper

tribute to corrosion unless it is well

effective in removing accumulated

way to clean vinyl.

ventilated so moisture is dispersed.

mud and corrosive materials.

• When cleaning lower door panels,

NOTICE

Keep paint and trim in good condition

rocker panels and frame members,

• Never allow water or other liq-

be sure that drain holes are kept

Scratches or chips in the finish

uids to come in contact with

open so that moisture can escape

should be covered with "touch-up"

electrical/electronic

compo-

and not be trapped inside to accel-

paint as soon as possible to reduce

nents inside the vehicle as this

erate corrosion.

the possibility of corrosion. If bare

may damage them.

metal is showing through, the atten-

tion of a qualified body and paint

• When cleaning leather products

shop is recommended.

(steering wheel, seats etc.), use

7

neutral detergents or low alco-

Bird droppings are highly corrosive

hol content solutions. If you use

and may damage painted surfaces in

high alcohol content solutions

just a few hours. Always remove bird

or acid/alkaline detergents, the

droppings as soon as possible.

color of the leather may fade or

the surface may get stripped off.

7-71

Content   ..  27  28  29  30   ..
