Hyundai Ioniq Hybrid (2019 year). Instruction - part 30

Maintenance

5. Install a new bulb by inserting it

Daytime Running Light (DRL)

into the socket and rotating it until

it locks into place.

6. Install the socket into the assem-

bly by aligning the tabs on the

socket with the slots in the assem-

bly.

7. Push the socket into the assembly

and turn the socket clockwise.

OAEPH077074N

Side marker

OAEE076030N

1. Open the hood.

Your vehicle is equipped with LED

2. Disconnect the negative battery

lamps. LED lamps do not have

cable.

replaceable bulbs. If the LED lamp

3. Remove the socket from the

does not operate, have the vehicle

assembly by turning the socket

checked by an authorized HYUNDAI

counterclockwise until the tabs on

dealer.

the socket align with the slots on

the assembly.

4. Remove the bulb from the socket

by pulling out the bulb.

5. Insert a new bulb.

7-60

Side Repeater Lamp

Rear Combination Light Bulb

Replacement

Replacement

Type A

OAE076037

Tail/Stop lamp, turn signal lamp

and side marker lamp

OAE076034

1. Open the liftgate.

OAE077035N

Your vehicle is equipped with LED

2. Open the lamp assembly retaining

lamps. LED lamps do not have

(1) Tail/Stop lamp

screw covers.

replaceable bulbs. If the LED lamp

(2) Turn signal lamp

does not operate, have the vehicle

3. Loosen the lamp assembly retain-

checked by an authorized HYUNDAI

(3) Tail lamp

ing screws with a cross-tip screw-

dealer.

(4) Back-up lamp

driver.

7

(5) Side marker

7-61

Maintenance

6. Remove the bulb from the socket

Tail/Stop lamp

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7. Insert a new bulb by inserting it

into the socket and rotating it until

it locks into place.

Turn signal lamp

8. Install the socket into the assem-

OAE076039

bly by aligning the tabs on the

OAE076038

socket with the slots in the assem-

4. Remove the rear combination

Side marker

bly. Push the socket into the

lamp assembly from the body of

assembly and turn the socket

the vehicle.

clockwise.

9. Reinstall the lamp assembly to the

body of the vehicle.

OTLA075071

5. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

7-62

Type B

Backup lamp

OAEE076025

OAE076042

Tail lamp and back-up lamp

3. Remove the socket from the

OAE076036

assembly by turning the socket

1. Open the liftgate.

(1) Tail lamp

counterclockwise until the tabs on

2. Remove the service cover using a

the socket align with the slots on

(2) Stop lamp, tail lamp and turn sig-

flat-blade screwdriver.

the assembly.

nal lamp

4. Pull the bulb out of the socket.

(3) Tail lamp

5. Insert a new bulb into the socket.

(4) Back-up lamp

6. Install the socket into the assem-

(5) Side marker

7

bly by aligning the tabs on the

socket with the slots on the

Stop lamp, tail lamp, turn signal

assembly and turning the socket

lamp and side marker

clockwise.

Your vehicle is equipped with LED

7. Reinstall the service cover.

lamps. LED lamps do not have

replaceable bulbs. If the LED lamp

does not operate, have the vehicle

checked by an authorized HYUNDAI

dealer.

7-63

Maintenance

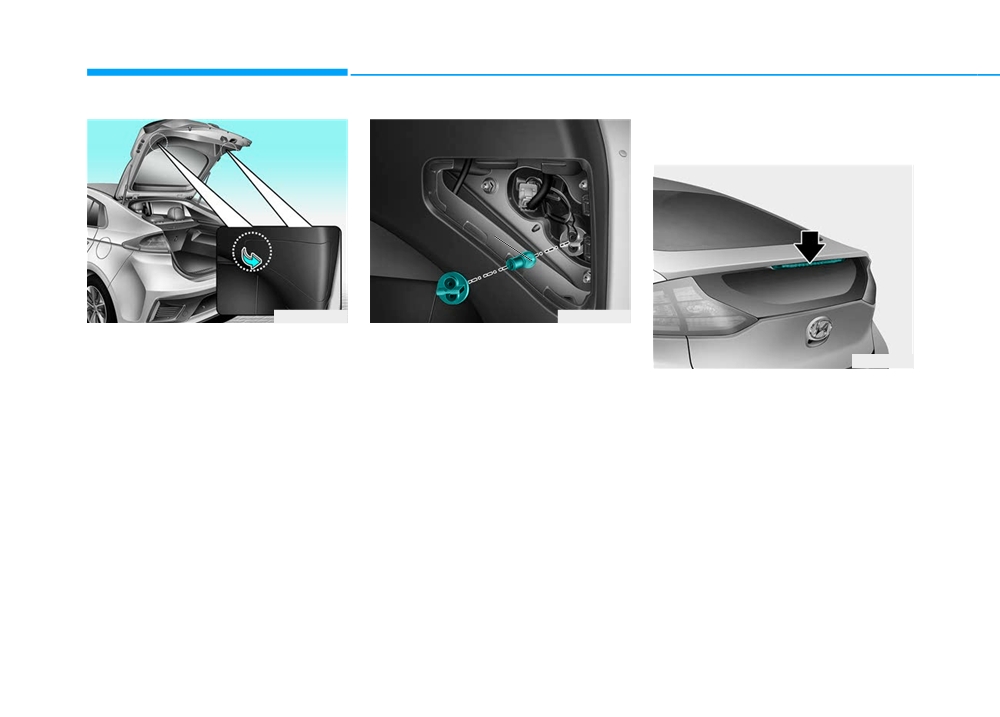

High Mounted Stop Lamp

Replacement

Backup lamp

OAEE076025

OAEE076038

Backup lamp

3. Remove the socket from the

assembly by turning the socket

1. Open the liftgate.

OAE076043

counterclockwise until the tabs on

2. Remove the service cover using a

the socket align with the slots on

1. Open the liftgate.

flat-blade screwdriver.

the assembly.

2. Gently remove the cover of the lift-

4. Remove the bulb by pulling it

gate trim.

straight out.

3. Remove the spoiler plug hole.

5. Insert a new bulb by inserting it

4. Disconnect the electrical connec-

into the socket and rotating it until

tor.

it locks into place.

5. Loosen the mounting bolts and

6. Install the socket into the assem-

remove the spoiler.

bly by aligning the tabs on the

6. Remove the high mounted stop

socket with the slots in the assem-

light assembly after disconnecting

bly. Push the socket into the

the connector.

assembly and turn the socket

7. Reinstall a new light assembly in

clockwise.

the reverse order of removal.

7. Reinstall the service cover.

7-64

License Plate Light Bulb

Interior Light Bulb Replacement

Replacement

Map lamp and room lamp

■ Map lamp (LED type)

■ Room lamp (LED type)

OAE076044

OAEE076026

OAEE076027

1. Using a flat-blade screwdriver,

Your vehicle is equipped with LED lamps. LED lamps do not have replace-

gently pry the lens cover from the

able bulbs. If the LED lamp does not operate, have the vehicle checked by an

lamp housing.

authorized HYUNDAI dealer.

2. Remove the bulb by pulling it

straight out.

7

3. Install a new bulb.

4. Reinstall in the reverse order.

7-65

Maintenance

Map lamp, room lamp, vanity mirror lamp and

1. Using a flat-blade screwdriver,

luggage compartment lamp

gently pry the lens from the interi-

or lamp housing.

■ Map lamp (Bulb type)

■ Vanity mirror lamp

2. Remove the bulb by pulling it

straight out.

WARNING

Prior to working on the Interior

Lights, ensure that the lamp is

off to avoid burning your fingers

or receiving an electric shock.

OAE076045

OAE076048

3. Install a new bulb into the socket.

■ Room lamp (Bulb type)

■ Luggage compartment lamp

4. Align the lens tabs with the interi-

or lamp housing notches and snap

the lens into place.

NOTICE

Use care not to dirty or damage

lens, lens tab, and plastic hous-

ings.

OAE076046

OAE076047

7-66

APPEARANCE CARE

Exterior Care

Protecting your vehicle's finish

WARNING

Exterior general caution

Washing

It is very important to follow the label

To help protect your vehicle’s finish

After washing the vehicle, test

directions when using any chemical

from rust and deterioration, wash it

the brakes while driving slowly

cleaner or polish. Read all warning

thoroughly and frequently at least

to see if they have been affected

and caution statements that appear

once a month with lukewarm or cold

by water before getting on the

on the label.

water.

road. If braking performance is

If you use your vehicle for off-road

impaired, dry the brakes by

driving, you should wash it after each

applying them lightly while

High-pressure washing

off-road trip. Pay special attention to

maintaining a slow forward

•

When using high-pressure wash-

the removal of any accumulation of

speed.

ers, make sure to maintain suffi-

salt, dirt, mud, and other foreign

cient distance from the vehicle.

materials. Make sure the drain holes

Insufficient clearance or excessive

NOTICE

in the lower edges of the doors and

pressure can lead to component

rocker panels are kept clear and

•

Do not use strong soap, chemi-

damage or water penetration.

clean.

cal detergents or hot water, and

•

Do not spray the camera, sensors

Insects, tar, tree sap, bird droppings,

do not wash the vehicle in direct

or its surrounding area directly with

industrial pollution and similar

sunlight or when the body of the

a high pressure washer. Shock

deposits can damage your vehicle’s

vehicle is warm.

applied from high pressure water

finish if not removed immediately.

•

Be careful when washing the

may cause the device to not oper-

7

Even prompt washing with plain

side windows of your vehicle.

ate normally.

water may not completely remove all

Especially, with high-pressure

•

Do not bring the nozzle tip close to

these deposits. A mild soap, safe for

water, water may leak through

boots (rubber or plastic covers)or

use on painted surfaces, should be

the windows and wet the interi-

connectors as they may be dam-

used.

or.

aged if they come into contact with

After washing, rinse the vehicle thor-

•

To prevent damage to the plastic

high pressure water.

oughly with lukewarm or cold water.

parts, do not clean with chemi-

•

Do not use any high-pressure noz-

Do not allow soap to dry on the fin-

cal solvents or strong deter-

zles, which induce either one-direct

ish.

gents.

water stream or water swirling.

7-67

Maintenance

Waxing

NOTICE

A good coat of wax provides a barri-

• Wiping dust or dirt off the body

er between your paint and environ-

with a dry cloth will scratch the

mental contamination.

finish.

Keeping a good coat of wax on your

• Do not use steel wool, abrasive

vehicle will help protect it.

cleaners, or strong detergents

Wax the vehicle when water will no

containing highly alkaline or

longer bead on the paint.

caustic agents on chrome-plat-

Always wash and dry the vehicle

ed or anodized aluminum parts.

before waxing. Use a good quality

This may result in damage to the

OAE076051

liquid or paste wax, and follow the

protective coating and cause

manufacturer's instructions. Wax all

discoloration or paint deteriora-

NOTICE

metal trim to protect it and to main-

tion.

tain its luster.

•

Water washing in the engine

compartment including high

Removing oil, tar, and similar materi-

Repairing your vehicle’s finish

pressure water washing may

als with a spot remover will usually

Deep scratches or stone chips in the

cause the failure of electrical cir-

strip the wax from the finish. Be sure

painted surface must be repaired

cuits located in the engine com-

to re-wax these areas even if the rest

promptly. Exposed metal will quickly

partment.

of the vehicle does not yet need wax-

rust and may develop into a major

ing.

•

Never allow water or other liq-

repair expense.

uids to come in contact with

electrical/electronic

compo-

NOTICE

nents inside the vehicle as this

may damage them.

If your vehicle is damaged and

requires any metal repair or

replacement, be sure the body

shop applies anti-corrosion mate-

rials to the parts repaired or

replaced.

7-68

Bright-metal maintenance

Thoroughly flush the vehicle under-

Aluminum wheel maintenance

body and wheel openings with luke-

• To remove road tar and insects,

The aluminum wheels are coated

warm or cold water once a month,

use a tar remover, not a scraper or

with a clear protective finish.

after off-road driving and at the end

other sharp object.

of each winter. Pay special attention

• To protect the surfaces of bright-

NOTICE

to these areas because it is difficult

metal parts from corrosion, apply a

to see all the mud and dirt. It will do

•

Do not use abrasive cleaner, pol-

coating of wax or chrome preser-

more harm than good to wet down

ishing compound, solvent, or

vative and rub to a high luster.

the road grime without removing it.

wire brushes on aluminum

• During winter weather or in coastal

The lower edges of doors, rocker

wheels.

areas, cover the bright metal parts

panels, and frame members have

•

Clean the wheel when it has

with a heavier coating of wax or

drain holes that should not be

cooled.

preservative. If necessary, coat the

allowed to clog with dirt; trapped

parts with non-corrosive petroleum

water in these areas can cause rust-

•

Use only a mild soap or neutral

jelly or other protective compound.

ing.

detergent, and rinse thoroughly

with water. Also, clean the

wheels after driving on salted

Underbody maintenance

WARNING

roads.

Corrosive materials used for ice and

•

Do not wash the wheels with

snow removal and dust control may

After washing the vehicle, test

high-speed car wash brushes.

collect on the underbody. If these

the brakes while driving slowly

•

Do not use any cleaners con-

materials are not removed, acceler-

to see if they have been affected

7

taining acid or alkaline deter-

ated rusting can occur on underbody

by water. If braking performance

gents.

parts such as the fuel lines, frame,

is impaired, dry the brakes by

floor pan and exhaust system, even

applying them lightly while

though they have been treated with

maintaining a slow forward

rust protection.

speed.

7-69

• When cleaning underneath the

Keep your garage dry

Interior Care

vehicle, pay particular attention to

Don't park your vehicle in a damp,

Interior general precautions

the components under the fenders

poorly ventilated garage. This cre-

and other areas that are hidden

Prevent caustic solutions such as

ates a favorable environment for cor-

from view. Do a thorough job; just

perfume and cosmetic oil, from con-

rosion. This is particularly true if you

dampening the accumulated mud

tacting the interior parts because

wash your vehicle in the garage or

rather than washing it away will

they may cause damage or discol-

drive it into the garage when it is still

accelerate corrosion rather than

oration. If they do contact the interior

wet or covered with snow, ice or

prevent it. Water under high pres-

parts, wipe them off immediately.

mud. Even a heated garage can con-

sure and steam are particularly

See the instructions for the proper

tribute to corrosion unless it is well

effective in removing accumulated

way to clean vinyl.

ventilated so moisture is dispersed.

mud and corrosive materials.

• When cleaning lower door panels,

NOTICE

Keep paint and trim in good condition

rocker panels and frame members,

• Never allow water or other liq-

be sure that drain holes are kept

Scratches or chips in the finish

uids to come in contact with

open so that moisture can escape

should be covered with "touch-up"

electrical/electronic

compo-

and not be trapped inside to accel-

paint as soon as possible to reduce

nents inside the vehicle as this

erate corrosion.

the possibility of corrosion. If bare

may damage them.

metal is showing through, the atten-

tion of a qualified body and paint

• When cleaning leather products

shop is recommended.

(steering wheel, seats etc.), use

7

neutral detergents or low alco-

Bird droppings are highly corrosive

hol content solutions. If you use

and may damage painted surfaces in

high alcohol content solutions

just a few hours. Always remove bird

or acid/alkaline detergents, the

droppings as soon as possible.

color of the leather may fade or

the surface may get stripped off.

7-71

Maintenance

Cleaning the upholstery and

Leather (if equipped)

NOTICE

interior trim

•

Features of seat leather

•

Wrinkles or abrasions which

Vinyl (if equipped)

- Leather is made from the outer

appear naturally from usage are

Remove dust and loose dirt from

skin of an animal, which goes

not covered by warranty.

vinyl with a whisk broom or vacuum

through a special process to be

•

Belts with metallic accessories,

cleaner. Clean vinyl surfaces with a

available for use. Since it is a nat-

zippers or keys inside the back

vinyl cleaner.

ural product, each part differs in

pocket may damage the seat

thickness or density.

fabric.

Fabric (if equipped)

Wrinkles may appear as a natural

•

Make sure not to wet the seat. It

result of stretching and shrinking

Remove dust and loose dirt from fab-

may change the nature of natu-

depending on the temperature

ric with a whisk broom or vacuum

ral leather.

and humidity.

cleaner. Clean with a mild soap solu-

•

Jeans or clothes which could

tion recommended for upholstery or

- The seat is made of stretchable

bleach may contaminate the sur-

carpets. Remove fresh spots imme-

fabric to improve comfort.

face of the seat covering fabric.

diately with a fabric spot cleaner. If

- The parts contacting the body are

fresh spots do not receive immediate

curved and the side supporting

attention, the fabric can be stained

area is high which provides driv-

and its color can be affected. Also, its

ing comfort and stability.

fire-resistant properties can be

- Wrinkles may appear naturally

reduced if the material is not proper-

from usage. It is not a fault of the

ly maintained.

products.

NOTICE

Using anything but recommended

cleaners and procedures may

affect the fabric's appearance and

fire-resistant properties.

7-72

•

Caring for the leather seats

•

Cleaning the leather seats

Cleaning the seat belt webbing

- Vacuum the seat periodically to

- Remove all contaminations instant-

Clean the belt webbing with any mild

remove dust and sand on the seat.

ly. Refer to instructions below for

soap solution recommended for

It will prevent abrasion or damage

removal of each contaminant.

cleaning upholstery or carpet. Follow

of the leather and maintain its qual-

the instructions provided with the

- Cosmetic products

(sunscreen,

ity.

soap. Do not bleach or re-dye the

foundation, etc.)

- Wipe the natural leather seat cover

webbing because this may weaken

Apply cleansing cream on a cloth

the seat belt.

often with dry or soft cloth.

and wipe the contaminated spot.

- Use of proper leather protector

Wipe off the cream with a wet cloth

may prevent abrasion of the cover

and remove water with a dry cloth.

Cleaning the interior window

and helps maintain the color. Be

glass

- Beverages (coffee, soft drink, etc.)

sure to read the instructions and

Apply a small amount of neutral

If the interior glass surfaces of the

consult a specialist when using

detergent and wipe until contami-

vehicle become fogged (that is, cov-

leather coating or protective agent.

nations do not smear.

ered with an oily, greasy or waxy

- Light colored (beige, cream beige)

film), they should be cleaned with

- Oil

leather is easily contaminated and

glass cleaner. Follow the directions

the stain is noticeable. Clean the

Remove oil instantly with

on the glass cleaner container.

seats frequently.

absorbable cloth and wipe with

stain remover used only for natu-

- Avoid wiping with wet cloth. It may

NOTICE

ral leather.

cause the surface to crack.

7

- Chewing gum

Do not scrape or scratch the

inside of the rear window. This

Harden the gum with ice and

may result in damage to the rear

remove gradually.

window defroster grid.

7-73

Canister

3. Exhaust Emission Control

Engine exhaust (carbon monox-

Fuel vapors generated inside the fuel

System

ide) precautions

tank are absorbed and stored in the

The Exhaust Emission Control

• Carbon monoxide can be present

onboard canister. When the engine is

System is a highly effective system

with other exhaust fumes. If you

running, the fuel vapors absorbed in

which controls exhaust emissions

smell exhaust fumes of any kind in

the canister are drawn into the surge

while maintaining good vehicle per-

your vehicle, drive with all the win-

tank through the purge control sole-

formance.

dows fully open. Have your vehicle

noid valve.

checked and repaired immediately.

When the engine starts or fails to

start, excessive attempts to restart

Purge Control Solenoid Valve

the engine may cause damage to the

WARNING

(PCSV)

emission system.

Engine exhaust gases contain

The purge control solenoid valve is

carbon monoxide (CO). Though

controlled by the Engine Control

colorless and odorless, it is

Module

(ECM); when the engine

dangerous and could be lethal if

coolant temperature is low during

inhaled. Follow the instructions

idling, the PCSV closes so that evap-

on this page to avoid CO poi-

orated fuel is not taken into the

soning.

engine. After the engine warms-up

during ordinary driving, the PCSV

opens to introduce evaporated fuel to

7

the engine.

7-75

Maintenance

•

Do not operate the engine in con-

Operating precautions for cat-

WARNING

fined or closed areas

(such as

alytic converters (if equipped)

garages) any more than what is

CALIFORNIA PROPOSITION 65

necessary to move the vehicle in or

WARNING

WARNING

out of the area.

Engine exhaust and a wide vari-

•

When the vehicle is stopped in an

The exhaust system and cat-

ety of automobile components

open area for more than a short

alytic converter are very hot

and parts, including compo-

time with the engine running,

during and immediately after

nents found in the interior fur-

adjust the ventilation system

(as

the engine has been running. To

nishings in a vehicle, contain or

needed) to draw outside air into the

avoid SERIOUS INJURY or

emit chemicals known to the

vehicle.

DEATH:

State of California to cause can-

•

Never sit in a parked or stopped

•

Do not park, idle, or drive the

cer and birth defects and repro-

vehicle for any extended time with

vehicle over or near flamma-

ductive harm. In addition, cer-

the engine running.

ble objects, such as grass,

tain fluids contained in vehicles

•

When the engine stalls or fails to

vegetation, paper, leaves, etc.

and certain products of compo-

start, excessive attempts to restart

A hot exhaust system can

nent wear contain or emit chem-

the engine may cause damage to

ignite flammable items under

icals known to the State of

the emission control system.

your vehicle.

California to cause cancer and

•

Keep away from the exhaust

birth defects or other reproduc-

system and catalytic convert-

tive harm.

er or you may get burned.

Also, Do not remove the heat

sink around the exhaust sys-

tem, do not seal the bottom of

the vehicle, and do not coat

the vehicle for corrosion con-

trol. It may present a fire risk

under certain conditions.

7-76

Content   ..  28  29  30  31   ..
