Hyundai i800 (2016 year). Instruction - part 9

Features of your vehicle

DEFROSTER (IF EQUIPPED)

➃ MOOD : Push the switch to turn the

mood lamp on when the

CAUTION

room lamp is off. Once the

To prevent damage to the conduc-

mood lamp is on, each time

tors bonded to the inside surface of

you press the button the

the rear window, never use sharp

colour of the light will change.

instruments or window cleaners

The mood lamp will turn off

containing abrasives to clean the

when the button is pressed

window.

again after the last colour or

when the mood lamp button

is pressed for approximately

✽ NOTICE

4 seconds or when the

If you want to defrost and defog on the

ROOM, DOOR or DIMMER

front windscreen, refer to “Windscreen

OTQ045265

button is pressed.

Defrosting and Defogging” in this sec-

Rear window defroster

➄ DIMMER : Whenever you push this

tion.

The defroster heats the window to

button when the room lamp

remove frost, fog and thin ice from the

is turned on, the brightness

rear window, whilst engine is running.

of the room lamp will

change within 3 level.

To activate the rear window defroster,

press the rear window defroster button

located in the centre facia switch panel.

The indicator on the rear window

defroster button illuminates when the

defroster is ON.

If there is heavy accumulation of snow on

the rear window, brush it off before oper-

ating the rear defroster.

The rear window defroster automatically

turns off after approximately 20 minutes

or when the ignition switch is turned off (if

equipped). To turn off the defroster, press

the rear window defroster button again.

4 74

Features of your vehicle

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)

Front climate control

■ Type A

1. Front temperature control button (knob)

2. Rear temperature control button (knob)

3. Front fan speed control knob

4. Rear fan speed control knob/

Rear climate control selection knob*

5. Front windscreen defroster button

6. Rear window defroster button

7. Mode selection button

8. Air conditioning button*

9. Air intake control button

■ Type B

* : if equipped

CAUTION

Operating the blower when the

ignition switch is in the ON posi-

tion could cause the battery to dis-

charge. Operate the blower when

the engine is running.

❈ The actual shape may differ from the illustration.

OTQ045250/OTQ045251

4 75

Features of your vehicle

■ Type C

1. Front temperature control button (knob)

2. Front fan speed control knob

3. Front windscreen defroster button

4. Rear window defroster button

5. Mode selection button

6. Air intake control button

■ Type D

7. Rear fan speed control knob*

8. Rear temperature control* and

mode selection knob*

* : if equipped

CAUTION

Operating the blower when the

ignition switch is in the ON posi-

Rear climate control (if equipped)

tion could cause the battery to dis-

charge. Operate the blower when

the engine is running.

❈ The actual shape may differ from the illustration.

OTQ045252/OTQ045253/OTQ047067

4 76

Features of your vehicle

Heating and air conditioning

1. Start the engine.

2. Set the mode to the desired position.

For improving the effectiveness of

heating and cooling;

- Heating:

- Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to the outside

(fresh) air position.

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn the

air conditioning system (if equipped)

on.

OTQ046228R

4 77

Features of your vehicle

Face-Level (B, D)

Air flow is directed toward the upper body

and face. Additionally, each outlet can be

controlled to direct the air discharged

from the outlet.

Bi-Level (B, D, C, F)

OTQ045229

Air flow is directed towards the face and

OTQ047071

the floor.

Mode selection

Instrument panel vents

The mode selection buttons control the

The outlet vents can be opened or closed

direction of the air flow through the venti-

separately using the horizontal thumb-

Floor-Level (C, F, A, D)

lation system.

wheel. To close the vent, rotate it left to

Air can be directed to the floor, dash-

the maximum position. To open the vent,

Most of the air flow is directed to the

rotate it right to the desired position.

board outlets, or windscreen.

floor, with a small amount of the air being

Also, you can adjust the direction of air

directed to the windscreen and side win-

delivery from these vents using the vent

dow defrosters.

control lever as shown.

Floor/Defrost-Level (A, C, F, D)

Most of the air flow is directed to the floor

and the windscreen with a small amount

directed to the side window defrosters.

4 78

Features of your vehicle

■ Type A

■ Type B

To change the temperature (Type A, B) :

■ Type A, B

• Press the

(red) switch to increase

temperature.

• Press the

(blue) switch to decrease

temperature.

The temperature status will be displayed

at the above switch panel as a indicator.

To change the temperature (Type C, D) :

• Turn the knob to the right for warm and

OTQ045230

hot air or left for cooler air

OTQ045232

■ Type C, D

■ Type C, D

OTQ045236

OTQ045233

Temperature control

Air intake control

The temperature control button (knob)

The air intake control is used to select

allows you to control the temperature of

the outside (fresh) air position or recircu-

the airflow in the vehicle.

lated air position.

To change the air intake control position,

press the control button.

4 79

Features of your vehicle

Type A, B

Type C, D

Recirculated air position

Recirculated air position

WARNING

With the recirculated air

With the recirculated air

•

Continue using the climate con-

position selected, air from

position selected, air from

trol system in the recirculated air

the passenger compart-

the passenger compart-

position may allow humidity to

ment will be drawn through

ment will be drawn through

increase inside the vehicle which

the heating system and

the heating system and

may fog the glass and obscure

heated or cooled according

heated or cooled according

visibility.

to the function selected.

to the function selected.

•

Do not sleep in a vehicle with the

air conditioning or heating sys-

Outside (fresh) air position

tem on. It may cause serious

Outside (fresh) air position

harm or death due to a drop in the

With the outside (fresh) air

With the outside (fresh) air

position selected, air enters

oxygen level and/or body temper-

position selected, air enters

the vehicle from outside and

ature.

the vehicle from outside and

is heated or cooled accord-

is heated or cooled accord-

•

Continue using the climate control

ing to the function selected.

ing to the function selected.

system in the recirculated air posi-

tion can cause drowsiness or

sleepiness, and loss of vehicle

✽ NOTICE

control. Set the air intake control

Prolonged operation of the heater in the

to the outside (fresh) air position

recirculated air position

(without air

as much as possible whilst driv-

conditioning selected) may cause fogging

of the windscreen and side windows and

the air within the passenger compart-

ment may become stale.

In addition, prolonged use of the air con-

ditioning with the recirculated air posi-

tion selected will result in excessively dry

air in the passenger compartment.

4 80

Features of your vehicle

■ Type A, B

OTQ045260

OTQ045234

OTQ045261

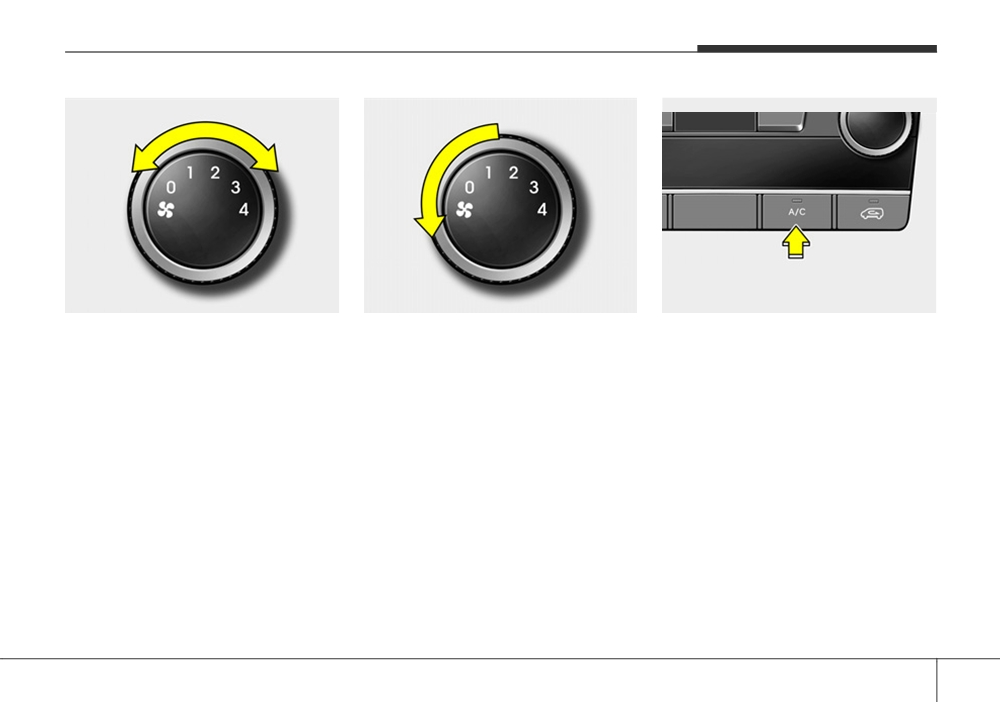

Fan speed control

To turn off the blowers

Air conditioning (if equipped)

The ignition switch must be in the ON

To turn off the blowers, turn the fan

Press the A/C button to turn the air con-

position for fan operation.

speed control knob to the "0" position.

ditioning system on (indicator light will

The fan speed control knob allows you to

illuminate). Press the button again to turn

control the fan speed of the air flowing

the air conditioning system off.

from the ventilation system. To change

the fan speed, turn the knob to the right

for higher speed or left for lower speed.

Setting the fan speed control knob to the

“0” position turns off the fan.

4 81

Features of your vehicle

In the front seat

OTQ045231

In the rear seat

OTQ047076

OTQ047077

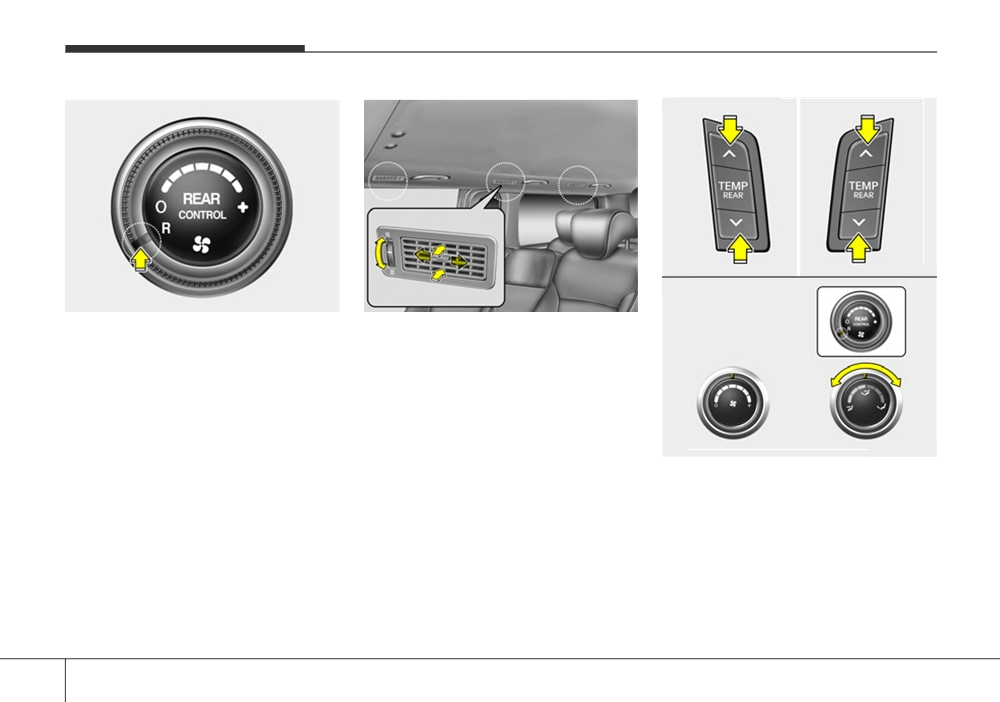

Rear heating and air conditioning

Rear vents

(Type A, B) (if equipped)

The vent can be adjusted by rotating the

thumb wheel.

The temperature, fan speed and mode of

the rear climate control system can be

controlled independently regardless of the

✽ NOTICE

front climate control system operation.

If all the vents are closed, it may cause

Turn the rear climate control selection

some noise. Always open

2 vents or

knob to the “R” and set the rear tempera-

more.

OTQ047079

ture, fan speed and mode to the desired

Rear temperature control

position.

To change the air temperature in the rear

However, the front climate control system

passenger compartment, turn the knob

should be operated together for rear air

to the right for warm and hot air or left for

conditioning;

cooler air.

1. Set the front fan speed to the desired

position.

2. Push the air conditioning button.

3. Set the rear temperature, fan speed

and mode to the desired position.

4 82

Features of your vehicle

The rear mode is selected automatically

In the front seat

System operation

by selecting the rear temperature control.

Ventilation

•

: Rear air blows from the upper

1. Set the mode to the

position.

vents on the rear side ceiling.

2. Set the air intake control to the outside

•

: Rear air blows from the upper

(fresh) air position.

vents on the rear side ceiling and

3. Set the temperature control to the

the lower vents on the floor.

desired position.

•

: Rear air blows from the lower

4. Set the fan speed control to the

vents on the floor.

desired speed.

OTQ047095

In the rear seat

Heating

1. Set the mode to the

position.

2. Set the air intake control to the outside

(fresh) air position.

3. Set the temperature control to the

desired position.

4. Set the fan speed control to the

desired speed.

5. If dehumidified heating is desired, turn

OTQ047080

the air conditioning system (if equipped)

Rear fan speed control

on.

To change the fan speed, turn the knob

• If the windscreen fogs up, set the mode

to the right for higher speed or left for

to the

position.

lower speed.

To turn off the fan, turn the knob to the 0

position.

4 83

Features of your vehicle

Operation Tips

Air conditioning (if equipped)

✽ NOTICE

•

To keep dust or unpleasant fumes from

HYUNDAI Air Conditioning Systems are

•

When using the air conditioning sys-

entering the car through the ventilation

filled with environmentally friendly

tem, monitor the temperature gauge

system, temporarily set the air intake

R-134a refrigerant.

closely whilst driving up hills or in

control to the recirculated air position.

1. Start the engine. Push the air condi-

heavy traffic when outside tempera-

Be sure to return the control to the

tioning button.

tures are high. Air conditioning sys-

fresh air position when the irritation

2. Set the mode to the

position.

tem operation may cause engine over-

has passed to keep fresh air in the

3. Set the air intake control to the outside

heating. Continue to use the blower

vehicle. This will help keep the driver

fan but turn the air conditioning sys-

air or recirculated air position.

alert and comfortable.

tem off if the temperature gauge indi-

4. Adjust the fan speed control and tem-

•

Air for the heating/cooling system is

cates engine overheating.

perature control to maintain maximum

drawn in through the grilles just ahead

•

When opening the windows in humid

comfort.

of the windscreen. Care should be

weather air conditioning may create

• When maximum cooling is desired, set

taken that these are not blocked by

water droplets inside the vehicle.

the temperature control to the extreme

leaves, snow, ice or other obstructions.

Since excessive water droplets may

left position, then set the fan speed

•

To prevent interior fog on the wind-

cause damage to electrical equipment,

control to the highest speed.

screen, set the air intake control to the

air conditioning should only be run

fresh air position and fan speed to the

with the windows closed.

desired position, turn on the air condi-

tioning system, and adjust the temper-

ature control to desired temperature.

4 84

Features of your vehicle

✽ NOTICE

✽ NOTICE

•

The following symptoms will occur

Outside air

•

Replace the filter according to the

and it is normal.

Maintenance Schedule.

- A white smoke may come out from

Recirculated

If the car is being driven in severe

the fuel-fired heater exhaust pipe

air

conditions such as dusty or rough

during operation of the heater.

roads, more frequent air conditioner

However, when an excessive black

filter inspections and changes are

smoke is discharged, the fuel-fired

required.

heater should be inspected.

•

When the air flow rate suddenly

- A “buk-buk” noise from the heater is

Blower

decreases, we recommend that the

a noise to form flame for combus-

Heater core

system be checked by a HYUNDAI

Climate control

Evaporator

tion.

air filter

authorised repairer.

core

- When the heater is operated at full

1LDA5047

load, a “Wooing” noise occurs.

Climate control air filter

- When shutting off the engine during

(if equipped)

heater operation, a

“Wing” noise

The climate control air filter installed

occurs to perform the cleaning

behind the glove box filters the dust or

process.

other pollutants that come into the vehi-

•

When refuelling, stop operation of the

cle from the outside through the heating

fuel-fired heater by shutting off the

and air conditioning system. If dust or

engine.

other pollutants accumulate in the filter

over a period of time, the air flow from the

air vents may decrease, resulting in

moisture accumulation on the inside of

the windscreen even when the outside

(fresh) air position is selected. If this hap-

pens, we recommend that the climate

control air filter be replaced by a

HYUNDAI authorised repairer.

4 86

Features of your vehicle

Checking the amount of air con-

ditioner refrigerant and compres-

WARNING

sor lubricant

Improper service may cause seri-

ous injury to the person performing

When the amount of refrigerant is low,

the service. For more detailed infor-

the performance of the air conditioning is

reduced. Overfilling also has a negative

mation, we recommend that you

impact on the air conditioning system.

contact a HYUNDAI authorised

repairer.

Therefore, we recommend that the sys-

tem be inspected by a HYUNDAI autho-

rised repairer.

✽ NOTICE

It is important when servicing the air

conditioning system that the correct

type and amount of oil and refrigerant is

used. Otherwise, damage to the com-

pressor and abnormal system operation

may occur.

4 87

Features of your vehicle

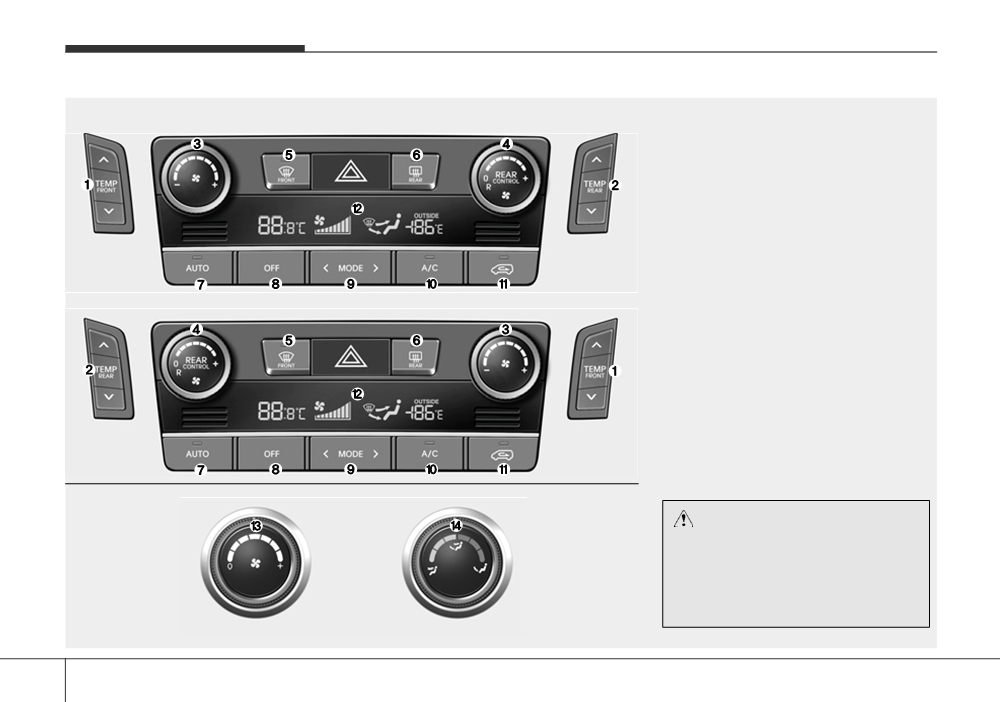

AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)

Front climate control

■ Type A

1. Front temperature control button (knob)

2. Rear temperature control button (knob)

3. Front fan speed control knob

4. Rear fan speed control knob/

Rear climate control selection knob

5. Front windscreen defroster button

6. Rear window defroster button

7. AUTO (automatic control) button

■ Type B

8. Front blower OFF button

9. Mode selection button

10. Air conditioning button

11. Air intake control button

12. A/C display

13. Rear fan speed control knob*

14. Rear temperature control* and mode

selection knob*

* : if equipped

Rear climate control (if equipped)

CAUTION

Operating the blower when the

ignition switch is in the ON posi-

tion could cause the battery to dis-

charge. Operate the blower when

the engine is running.

❈ The actual shape may differ from the illustration.

OTQ045254/OTQ045255/OTQ047067

4

88

Features of your vehicle

■ Type A

■ Type B

✽ NOTICE

•

To turn the automatic operation off,

select any button or switch of the fol-

lowing:

- Mode selection button

- Air conditioning button

- Front windscreen defroster button

(Press the button one more time to

deselect the front windscreen

defroster function. The 'AUTO' sign

will illuminate on the information

display once again.)

OTQ045239

OTQ045231

- Air intake control button

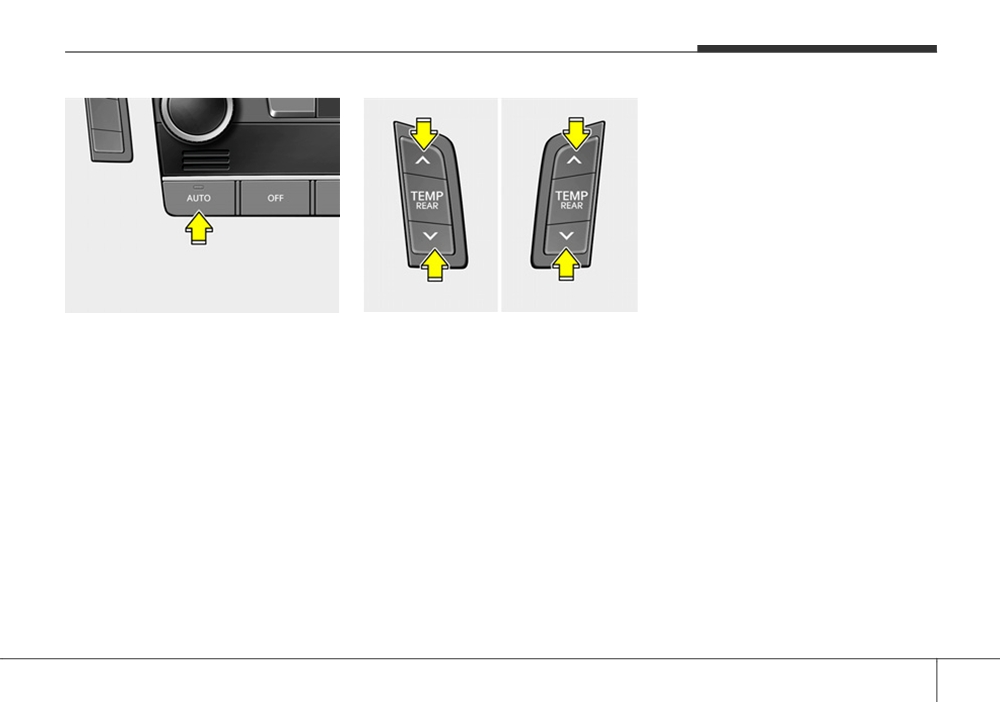

Automatic heating and air condi-

2. Set the temperature control button to

- Fan speed control switch

the desired temperature.

The selected function will be con-

tioning

trolled manually whilst other func-

1 Press the AUTO button.

tions operate automatically.

The modes, fan speeds, air intake and

•

For your convenience and to improve

air-conditioning will be controlled auto-

the effectiveness of the climate con-

matically by setting the temperature.

trol, use the AUTO button and set the

temperature to 22°C/71°F (23°C/73°F

- Except Europe).

4 89

Features of your vehicle

Manual heating and air condition-

ing

The heating and cooling system can be

controlled manually by pressing buttons

or turning knob(s) other than the AUTO

button. In this case, the system works

sequentially according to the order of

buttons or knob(s) selected.

1. Start the engine.

2. Set the mode to the desired position.

For improving the effectiveness of

heating and cooling;

OTQ046084

OTQ045263

- Heating:

✽ NOTICE

Mode selection

- Cooling:

The mode selection button controls the

Never place anything over the sensor

located on the instrument panel to

direction of the air flow through the venti-

3. Set the temperature control to the

ensure better control of the heating and

lation system.

desired position.

cooling system.

The air flow outlet port is converted as

4. Set the air intake control to the outside

follows:

(fresh) air position.

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn the

air conditioning system on.

Refer to the illustration in the “Manual cli-

Press the AUTO button in order to con-

mate control system”.

vert to full automatic control of the sys-

tem.

4 90

Content   ..  7  8  9  10   ..
