Your vehicle at a glance
INTERIOR OVERVIEW
1. Door lock/unlock button*
4-10
2. Outside rearview mirror control
switch*
4-36
3. Central door lock switch*
4-11
4. Power window switches*
4-18
5. Air vent
4-78
6. Front fog light switch*
4-67
7. Rear fog light switch*
4-67
8. Head lamp levelling device*
4-68
9. Instrument panel illumination control
knob*
4-40
10. Steering wheel tilt control*
4-33
11. Steering wheel
4-32
12. Fuse box
7-43
13. Bonnet release lever
4-22
14. Brake pedal
5-21
15. Accelerator pedal
5-7
16. Seat
3-2
17. Fuel filler lid release button
4-24
* : if equipped
❈ The actual shape may differ from the illustration.
OTQ027001R
2 2
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW

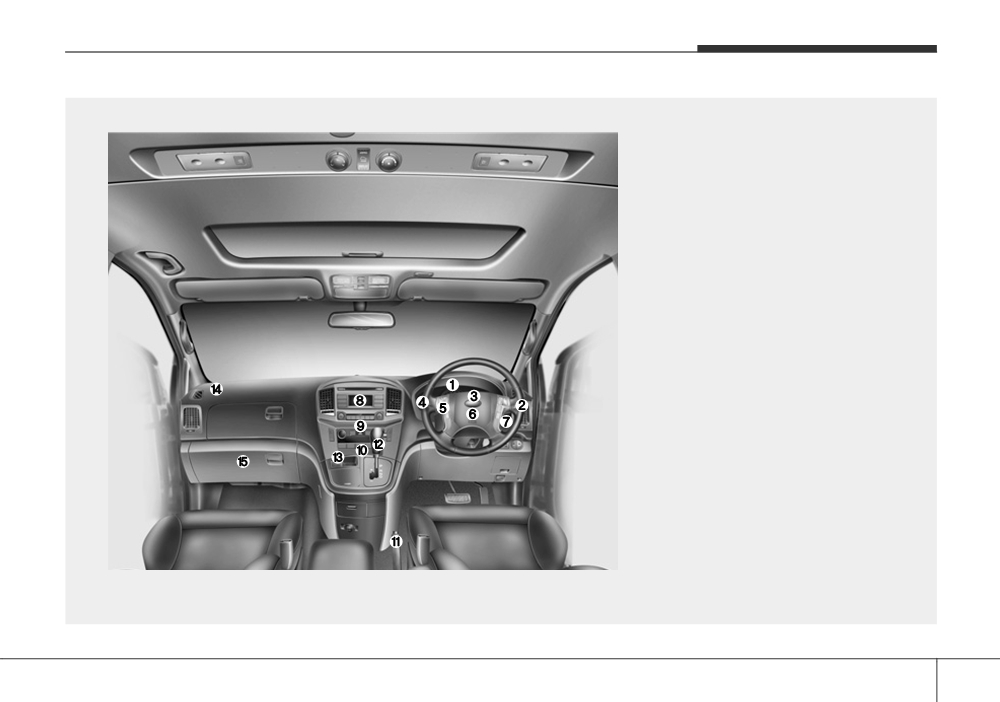

1. Instrument cluster
4-39
2. Light control / Turn signals
4-64
3. Horn
4-34
4. Wiper/Washer
4-69
5. Steering wheel audio controls*
4-114
6. Driver’s front air bag*
3-45
7. Ignition switch
5-5
8. Audio*
4-113
9. Hazard warning flasher
switch
4-63, 6-2
10. Climate control system*
4-75, 4-88
11. Parking brake
5-20
12. Shift lever
5-13, 5-10
13. AUX, USB*
4-115
14. Passenger’s front air bag*
3-45
15. Glove box
4-104
* : if equipped
❈ The actual shape may differ from the illustration.
OTQ025002R
2 3
Your vehicle at a glance

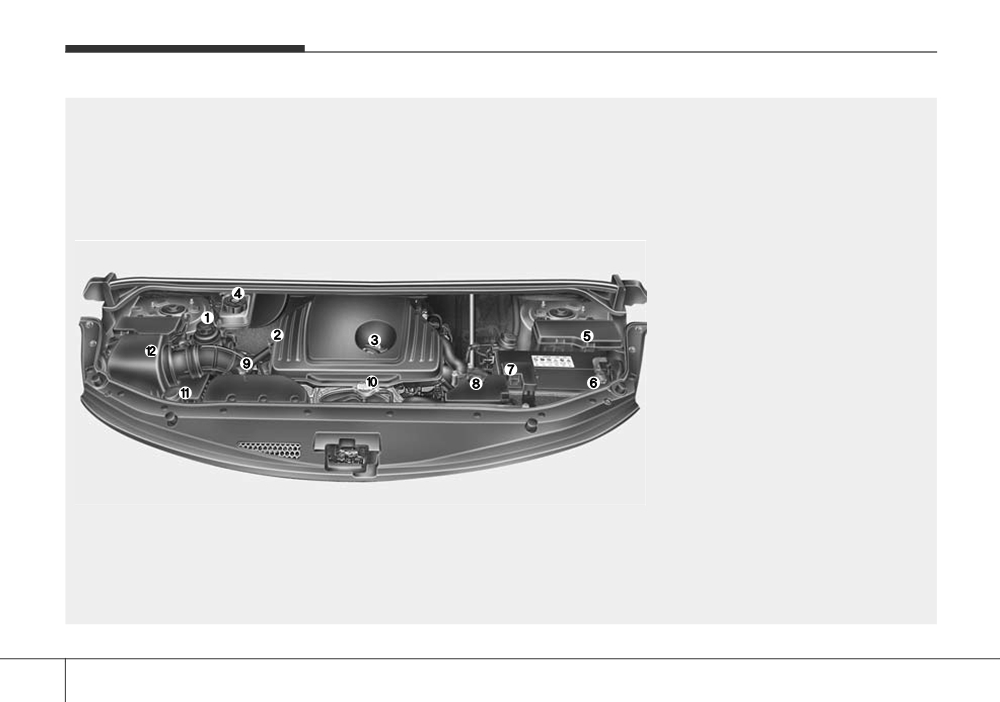

ENGINE COMPARTMENT
1. Power steering fluid reservoir
7-19
2. Automatic transmission fluid
dipstick*
7-20
3. Engine oil filler cap
7-13
4. Brake fluid reservoir
7-18
5. Fuse box
7-45
6. Negative battery terminal
7-30
7. Positive battery terminal
7-30
8. Engine coolant reservoir
7-15
9. Engine oil dipstick
7-13
10. Radiator cap
7-16
11. Windscreen washer fluid reservoir..7-22
12. Air cleaner
7-24
* : if equipped
* The actual engine room in the vehicle may differ from the illustration.
OTQ027003R
2 4
Seats / 3-2
Seat belts / 3-16
Child restraint system / 3-29
Air bag - supplemental restraint system / 3-41
Safety features of your vehicle
3
Safety features of your vehicle

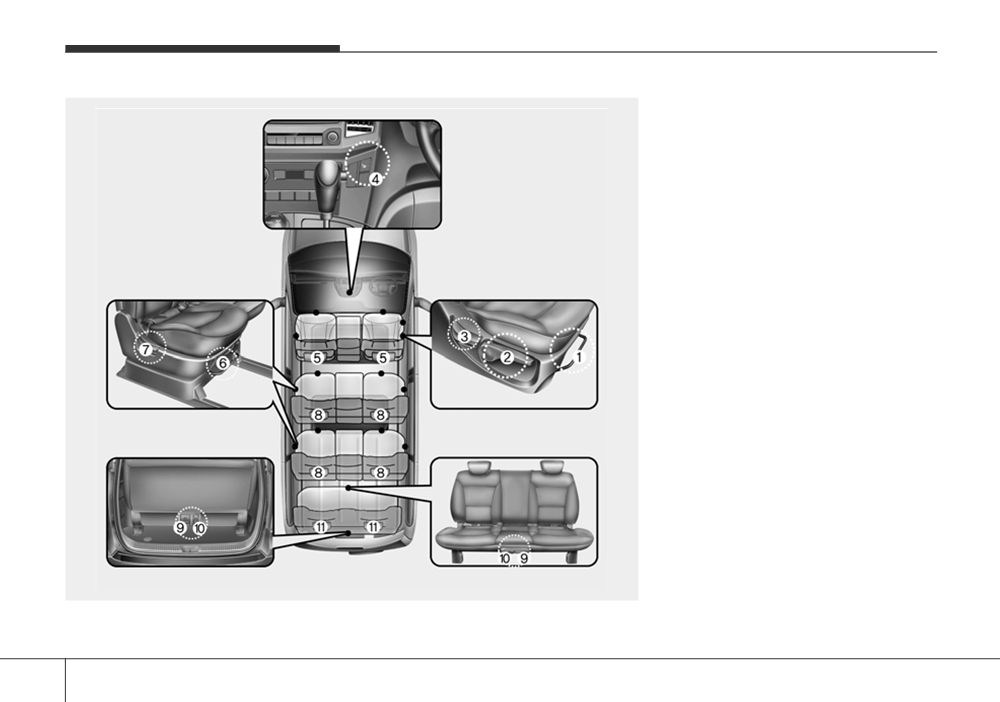

SEATS
Front seat
(1) Fore/aft seat slide adjustment lever
(2) Seatback recline lever
(3) Seat cushion height adjuster
(Driver’s seat)*
(4) Seat warmer (Driver’s seat)*
(5) Head restraint

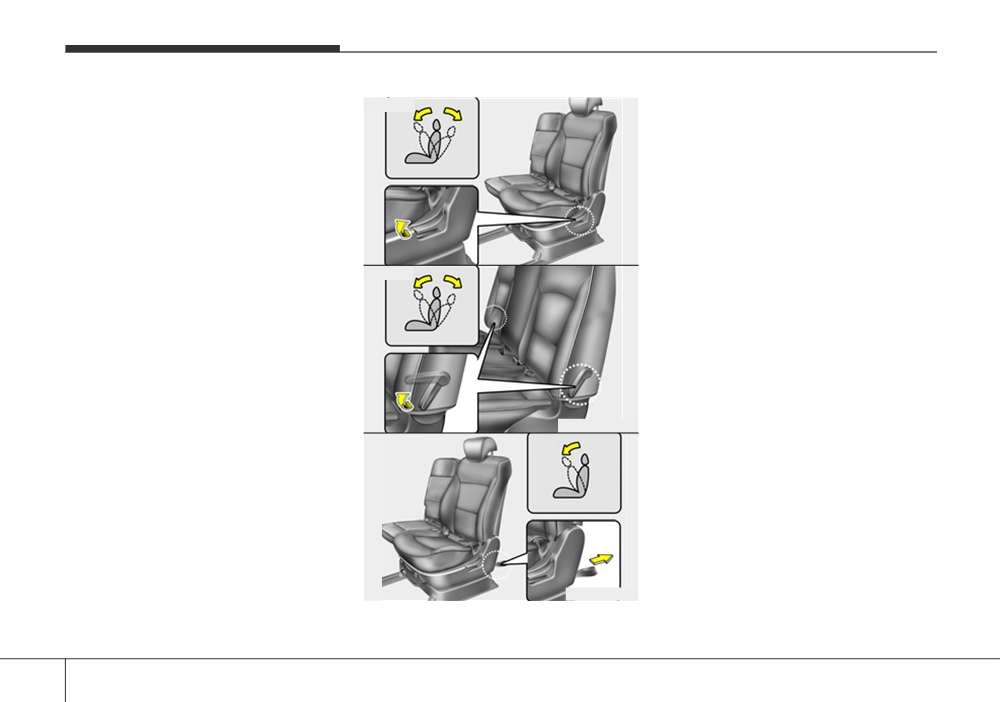

2nd row seat* / 3rd row seat*
(6) Fore/aft seat slide adjustment lever
(7) Seatback recline lever
(8) Head restraint
4th row seat*
(9) Fore/aft seat slide adjustment lever
(10) Folding seat cushion release lever
(11) Head restraint
*: if equipped
OTQ035001R
The actual seats in the vehicle may differ from the illustration.
3 2
Safety features of your vehicle
WARNING - Loose objects
WARNING - Driver respon-
WARNING - Driver’s seat
Loose objects in the driver’s foot
sibility for passengers
• Never attempt to adjust the seat
area could interfere with the opera-
Riding in a vehicle with the seat-
whilst the vehicle is moving. This
tion of the foot pedals, possibly
back reclined could lead to serious
could result in loss of control,
causing an accident. Do not place
or fatal injury in an accident. If a
and an accident causing death,
anything under the front seats.
seat is reclined during an accident,
serious injury, or property dam-
the occupant’s hips may slide
age.
under the lap portion of the seat
• Do not allow anything to interfere
belt applying great force to the
with the normal position of the
WARNING - Uprighting
unprotected abdomen. Serious or
seatback. Storing items against a
seat
fatal internal injuries could result.
seatback or in any other way
When you return the seatback to its
The driver must advise the front
interfering with proper locking of
upright position, hold the seatback
passenger to keep the seatback in
a seatback could result in serious
and return it slowly and be sure
an upright position whenever the
or fatal injury in a sudden stop or
there are no other occupants
vehicle is in motion.
collision.
around the seat. If the seatback is
• Always drive and ride with your
returned without being held and
seatback upright and the lap por-
controlled, the back of the seat
WARNING
tion of the seat belt snug and low
could spring forward resulting in
across the hips. This is the best
Do not use a sitting cushion that
accidental injury to a person struck
position to protect you in case of
reduces friction between the seat
by the seatback.
an accident.
and passenger. The passenger's
hips may slide under the lap por-
• In order to avoid unnecessary
tion of the seat belt during an acci-
and perhaps severe air bag
dent or a sudden stop. Serious or
injuries, always sit as far back as
fatal internal injuries could result
possible from the steering wheel
because the seat belt can't operate
whilst maintaining comfortable
normally.
control of the vehicle. We recom-
mend that your chest be at least
10 inches (250 mm) away from
the steering wheel.
3 3
Safety features of your vehicle
(Continued)
WARNING - Rear seatbacks
WARNING
• To avoid the possibility of burns,
•
The rear seatback must be
•
Use extreme caution so that
do not remove the carpet in the
securely latched. If not, passen-
hands or other objects are not
cargo area. Emission control
gers and objects could be thrown
caught in the seat mechanisms
devices beneath this floor gener-
forward resulting in serious
whilst the seat is moving.
ate high temperatures.
injury or death in the event of a
•
Do not put a cigarette lighter on
sudden stop or collision.
the floor or seat. When you oper-
•
Luggage and other cargo should
ate the seat, gas may gush out of
be laid flat in the cargo area. If
WARNING
the lighter and cause fire.
objects are large, heavy, or must
After adjusting the seat, always
•
If there are occupants in the rear
be piled, they must be secured.
check that it is securely locked into
seats, be careful whilst adjusting
Under no circumstances should
place by attempting to move the
the front seat position.
cargo be piled higher than the
seat forward or backwards without
•
Use extreme caution when pick-
seatbacks. Failure to follow these
using the fore/aft adjuster. Sudden
ing small objects trapped under
warnings could result in serious
or unexpected movement of the dri-
the seats or between the seat and
injury or death in the event of a
ver's seat could cause you to lose
the centre console. Your hands
sudden stop, collision or rollover.
control of the vehicle resulting in
might be cut or injured by the
•
No passenger should ride in the
an accident.
sharp edges of the seats mecha-
cargo area or sit or lie on folded
nism.
seatbacks whilst the vehicle is
moving. All passengers must be
properly seated in seats and
restrained properly whilst riding.
•
When resetting the seatback to
the upright position, make sure it
is securely latched by pushing it
forward and backward.
(Continued)
3 4
Safety features of your vehicle
OTQ037002/H
OTQ037003/H
OTQ037004/H

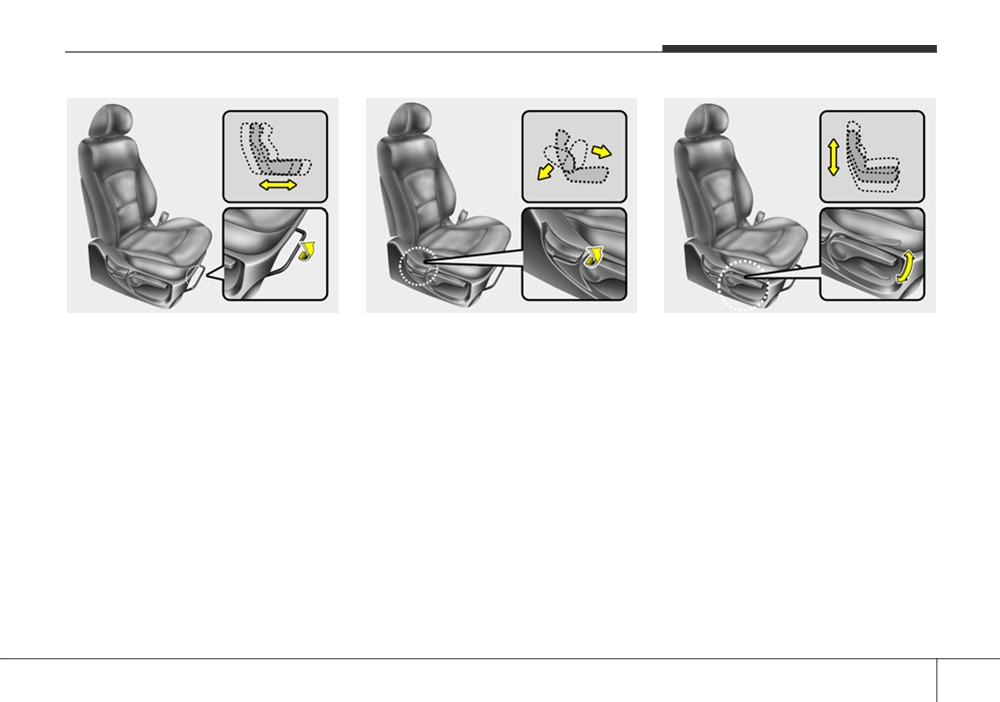

Front seat adjustment
Seatback angle
Seat cushion height (for driver’s seat)
Forward and backward
To recline the seatback:
To change the height of the seat cushion,
1. Lean forward slightly and lift up on the
push the lever that is located on the out-
To move the seat forward or backward:
seatback recline lever located on the
side of the seat cushion upwards or
1. Pull the seat slide adjustment lever
outside of the seat at the rear.
downwards.
under the front edge of the seat cush-
2. Carefully lean back on the seat and
• To lower the seat cushion, push the
ion up and hold it.
adjust the seatback of the seat to the
lever down several times.
2. Slide the seat to the position you
position you desire.
• To raise the seat cushion, pull the lever
desire.
3. Release the lever and make sure the
up several times.
3. Release the lever and make sure the
seatback is locked in place. (The lever
seat is locked in place.
MUST return to its original position for
Adjust the seat before driving, and make
the seatback to lock.)
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
3 5
Safety features of your vehicle
• Each time you press the switch, the
temperature setting of the seat will
CAUTION
change as follows :
•
When cleaning the seats, do not
use an organic solvent such as
OFF→HIGH(
)→MIDDLE(
)→LOW(
)
thinner, benzene, alcohol and
petrol. Doing so may damage the
surface of the heater or seats.
• The seat warmer defaults to the OFF
•
To prevent overheating the seat
position whenever the ignition switch is
warmer, do not place anything on
turned on.
the seats that insulates against
heat, such as blankets, cushions
✽ NOTICE
or seat covers whilst the seat
OTQ045243R
With the seat warmer switch in ON
warmer is in operation.
position, the heating system in the seat
•
Do not place heavy or sharp
Seat warmer
turns off or on automatically depending
objects on seats equipped with
(Driver’s seat, if equipped)
on the seat temperature.
seat warmer. Damage to the seat
The seat warmer is provided to warm the
warming components could
front seats during cold weather. With the
occur.
ignition switch in the ON position, push
•
Do not change the seat cover. It
either of the switches to warm the driver's
may damage the seat warmer or
seat or the front passenger's seat.
airventilation system.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
"OFF" position.
3 6
Safety features of your vehicle
WARNING - Seat warmer
WARNING
burns
•
For maximum effectiveness in
Passengers should use extreme
case of an accident, the head
caution when using seat warmers
restraint should be adjusted so
due to the possibility of excess
the middle of the head restraint is
heating or burns. The seat warmer
at the same height of the centre
may cause burns even at low tem-
of gravity of an occupant's head.
peratures, especially if used for
Generally, the centre of gravity of
long periods of time.
most people's head is similar
In particular, the driver must exer-
with the height of the top of their
cise extreme care for the following
eyes. Also, adjust the head
OTQC031161E
restraint as close to your head as
types of passengers:
possible. For this reason, the use
1. Infants, children, elderly or hand-
Head restraint
of a cushion that holds the body
icapped persons, or hospital out-
The driver's and front passenger's seats
away from the seatback is not
patients
are equipped with a head restraint for the
recommended.
2. Persons with sensitive skin or
occupant's safety and comfort.
•
Do not operate the vehicle with
those that burn easily
The head restraint not only provides
the head restraints removed as
3. Fatigued individuals
comfort for the driver and front passen-
severe injury to the occupants
4. Intoxicated individuals
ger, but also helps to protect the head
may occur in the event of an acci-
and neck in the event of a collision.
5. Individuals taking medication
dent. Head restraints may provide
that can cause drowsiness or
protection against neck injuries
sleepiness
(sleeping pills, cold
when properly adjusted.
tablets, etc.)
•
Do not adjust the head restraint
position of the driver's seat
whilst the vehicle is in motion.
3 7
Safety features of your vehicle
OFD037037
OYFH034205
OTQ033200
Adjusting the height up and down
Removal
To raise the head restraint, pull it up to
CAUTION
To remove the head restraint:
the desired position
(1). To lower the
If you recline the seatback towards
1. Recline the seatback
(2) with the
head restraint, push and hold the release
the front with the head restraint and
recline lever (1).
button (2) on the head restraint support
seat cushion raised, the head
2. Raise head restraint as far as it can go.
and lower the head restraint to the
restraint may come in contact with
3. Press the head restraint release button
desired position (3).
the sunvisor or other parts of the
(3) whilst pulling the head restraint up
vehicle.
(4).
WARNING
NEVER allow anyone to ride in a
seat with the head restraint
removed.
3 8
Safety features of your vehicle
■ Type A
OTQ037011
■ Type B
OTQ033201
OTQ037036
Reinstall
Seatback pocket (if equipped)
To reinstall the head restraint :
The seatback pocket is provided on the
1. Put the head restraint poles (2) into the
back of the front passenger’s and driver’s
holes whilst pressing the release but-
seatbacks.
ton (1).
2. Recline the seatback
(4) with the
recline lever (3).
WARNING - Seatback
3. Adjust the head restraint to the appro-
pockets
priate height.
OTQ037011G
Do not put heavy or sharp objects
in the seatback pockets. In an acci-
Rear seat adjustment
dent they could come loose from
WARNING
Forward and backward
the pocket and injure vehicle occu-
Always make sure the head
(2nd and 3rd row, if equipped)
pants.
restraint locks into position after
To move the seat forward or backward:
reinstalling and adjusting it proper-
1. Pull up the seat slide adjustment lever
ly.
under the front edge of the seat cush-
ion and hold it.
3 9
Safety features of your vehicle
2. Slide the seat to the position you
■ Type A
To recline the seatback:
desire.
1. Pull or pull up the seatback recline
3. Release the lever and make sure the
lever.
seat is locked in place.
2. Carefully lean back the seat and adjust
Adjust the seat before driving, and make
the seatback to the position you
sure the seat is locked securely by trying
desire.
to move forward and backward without
3. Release the lever and make sure the
using the lever. If the seat moves, it is not
seatback is locked in place. (The lever
locked properly.
MUST return to its original position for
OTQ037012
the seatback to lock.)
■ Type B
OTQ037012G
■ Type C
OTQ037015
Seatback angle (if equipped)
3 10
Safety features of your vehicle
WARNING
CAUTION
•
For maximum effectiveness in
When there is no occupant in the
case of an accident, the head
rear seats, adjust the height of the
restraint should be adjusted so
head restraint to the lowest posi-
the middle of the head restraint is
tion. The rear seat head restraint can
at the same height of the centre
reduce the visibility of the rear area.
of gravity of an occupant's head.
Generally, the centre of gravity of
most people's head is similar
with the height of the top of their
eyes. Also, adjust the head
OTQC031161F
restraint as close to your head as
possible. The use of a cushion
Head restraint
that holds the body away from
The rear seats are equipped with head
the seatback is not recommend-
restraints in the outboard seating posi-
ed.
tions (except centre seating position) for
•
Do not operate the vehicle with
the occupant's safety and comfort.
the head restraints removed as
The head restraint not only provides com-
severe injury to an occupant may
fort for passengers, but also helps to pro-
occur in the event of an accident.
tect the head and neck in the event of a
Head restraints may provide pro-
collision.
tection against severe neck
injuries when properly adjusted.
3 11
Safety features of your vehicle
OHM038017
OHM038018N
OTQ037031
Adjusting the height up and down
Removal
Centre seat folding (if equipped)
To raise the head restraint, pull it up to
To remove the head restraint, raise it as
1. Stow the rear seat belt in the pocket to
the desired position
(1). To lower the
far as it can go then press the release
prevent the seat belt from being dam-
head restraint, push and hold the release
button (1) whilst pulling upward (2).
aged.
button (2) on the head restraint support
To reinstall the head restraint, put the
2. Pull the release knob and fold the
and lower the head restraint to the
head restraint poles (3) into the holes
seatback forward.
desired position (3).
whilst pressing the release button
(1).
3. Fold up the seat.
Then adjust it to the appropriate height.
WARNING
Make sure the head restraint locks
in position after adjusting it to
properly protect the occupants.
3 12
Safety features of your vehicle
Folding the rear seat
WARNING - Uprighting
CAUTION - Damaging rear
(4th row seat, if equipped)
seat
seat belt buckles
The rear seat cushion may be folded to
When you return the seatback to its
When you fold the rear (2nd and/or
facilitate carrying long items or to
upright position, hold the seatback
3rd row) seatback, insert the buckle
increase the luggage capacity of the
and return it slowly. If the seatback
in the pocket between the rear seat-
vehicle.
is returned without holding it, the
back and cushion. Doing so can
back of the seat could spring for-
prevent the buckle from being dam-
aged by the rear seatback.
WARNING
ward resulting in injury caused by
being struck by the seatback.
The purpose of the fold rear seat is
to allow you to carry longer objects
that could not be accommodated in
CAUTION - Rear seat belts
the cargo area.
When returning the rear (2nd and/or
Never allow passengers to sit on a
3rd row) seatbacks to the upright
improper position (ex : top of the
position, remember to return the
folded seat, floor etc.) whilst the car
rear shoulder belts to their proper
is moving as this is not a proper
position. Routing the seat belt web-
seating position and no seat belts
bing through the rear seat belt
are available for use. This could
guides will help keep the belts from
result in serious injury or death in
being trapped behind or under the
case of an accident or sudden stop.
seats.
Objects carried on the cargo area
should not extend higher than the
top of the front seatbacks. Doing
this could allow cargo to slide for-
ward and cause injury or damage
during sudden stops.
3 13
|
|
|
