Convenient features of your vehicle
Turn signals and lane change
One-touch turn signal function
Rear fog lamp
signals
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7
times.
You can activate/deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from
the User Settings mode on the LCD
display. For more details, refer to
"LCD Display" in this chapter.
OTLE045285
OTLE045284
To turn on the rear fog lamp:
To signal a turn, push down on the
Position the light switch in the head-
lever for a left turn or up for a right
lamp position, and then turn the light
turn in position (A). To signal a lane
switch (1) to the rear fog lamp position.
change, move the turn signal lever
slightly and hold it in position (B).The
lever will return to the OFF position
To turn the rear fog lamps off, do one
of the following:
when released or when the turn is
completed.
• Turn off the headlamp switch.
If an indicator stays on and does not
• Turn the light switch to the rear fog
flash or if it flashes abnormally, one of
lamp position again.
the turn signal bulbs may be burned
out and will require replacement.
3-84
Battery saver function
Headlamp delay function
NOTICE
The purpose of this feature is to pre-
If you place the ignition switch to the
If the driver gets out of the vehicle
vent the battery from being dis-
ACC or OFF position with the head-
through other doors (except dri-
charged. The system automatically
lamps ON, the headlamps (and/or
ver's door), the battery saver func-
turns off the position lamp when the
position lamps) remain on for about 5
tion does not operate and the
driver turns the engine off and opens
minutes. However, with the engine off if
headlamp delay function does not
the driver-side door.
the driver’s door is opened and closed,
turn off automatically. Therefore, It
the headlamps (and/or position lamps)
3
With this feature, the position lamps
causes the battery to be dis-
will turn off automatically if the driver
are turned off after 15 seconds.
charged. In this case, make sure to
parks on the side of road at night.
The headlamps
(and/or position
turn off the lamp before getting out
lamps) can be turned off by pressing
If necessary, to keep the lamps on
of the vehicle.
the lock button on the remote key or
when the engine is turned off, perform
smart key twice or turning the light
the following:
switch to the OFF or AUTO position.
1) Open the driver-side door.
However, if you turn the light switch
2) Turn the position lamps OFF and
to the AUTO position when it is dark
ON again using the light switch on
outside, the headlamps will not be
the steering column.
turned off.
You can activate or deactivate the
Headlamp Delay function from the
User Settings mode on the LCD dis-
play. For more details, refer to
"LCD Display" in this chapter.
3-85
Convenient features of your vehicle
Daytime running light (DRL)
Headlamp leveling device
Static bending light
(if equipped)
It automatically adjusts the head-
(if equipped)
The Daytime Running Lights (DRL)
lamp beam level according to the
While driving a corner, for greater
can make it easier for others to see
number of passengers and loading
visibility and safety, either the left or
the front of your vehicle during the
weight in the luggage area.
right side static bending light will turn
day, especially after dawn and before
It also adjusts to the appropriate head-
on automatically. The static bending
sunset.
lamp beam level for various situations.
light will turn on when one of the fol-
The DRL system will turn the dedi-
lowing conditions occur.
cated lamp OFF when:
WARNING
• Vehicle speed is less than 10 km/h
1. The headlamps or front fog lights
(6 mph) and steering wheel angle
are in the ON position.
If the function does not work
is turned approximately 80 degrees
properly, we recommend that
with the low beam on.
2. The position light switch is in the
the system be inspected by an
ON position.
• Vehicle speed is between 10 km/h
authorized HYUNDAI dealer. Do
(6 mph) to 90 km/h (56 mph) and
3. The engine is turned off.
not attempt to inspect or
steering wheel angle is turned
replace the wiring yourself.
approximately 35 degrees with the
low beam on.
• When the vehicle is in reverse with
one of the conditions above satis-
fied, the light opposite to the direc-
tion the steering wheel is steered
will turn on.
3-86
Welcome system (if equipped)
Door handle lamp (if equipped)
Interior lamp
Welcome light (if equipped)
When all the doors (and tailgate) are
When the interior lamp switch is in
closed and locked, the door handle
the DOOR position and all doors (and
lamp will come on for about 15 sec-
tailgate) are closed and locked, the
onds if any of the below is performed.
room lamp will come on for 30 sec-
onds if any of the below is performed.
• When the door unlock button is
pressed on the remote key or
• When the door unlock button is
smart key.
pressed on the remote key or
3
smart key.
• When the button of the outside
door handle is pressed with the
• When the button of the outside
smart key in possession.
door handle is pressed with the
smart key in possession.
Headlamp and position lamp
At this time, if you press the door lock
OPDEN047051
When the headlamp (lamp switch in
or unlock button, the room lamp will
Puddle lamp (if equipped)
the headlamp or AUTO position) is on
turn off immediately.
and all doors (and tailgate) are locked
When all the doors (and tailgate) are
and closed, the position lamp and
closed and locked, the puddle lamp
headlamp will come on for 15 seconds
will come on for about 15 seconds if
when the door unlock button is
any of the below is performed.
pressed on the remote key or smart
• When the door unlock button is
key.
pressed on the remote key or
At this time, if you press the door lock
smart key.
or unlock button, the position lamp and
• When the button of the outside
headlamp will turn off immediately.
door handle is pressed with the
smart key in possession.
You can activate or deactivate the
Welcome Light from the User
Settings mode on the LCD display.
For more details, refer to "LCD
Display" in this chapter.
3-87
Convenient features of your vehicle
Interior lights
Front lamps
Front room lamp
NOTICE
:
Do not use the interior lights for
Press the button to turn ON the
extended periods when the engine
room lamp for the front/rear seats.
is turned off otherwise the battery
:
will discharge.
Press the button to turn OFF the
room lamp for the front/rear seats.
WARNING
Front door lamp (
)
Do not use the interior lights
when driving in the dark.The inte-
rior lights may obscure your view
The room lamp for the front/rear
OPDE046041
and cause an accident.
seats is automatically turned ON for
(1) Front Map Lamp
approximately 30 seconds, when a
(2) Front Room Lamp
door is opened.
Interior lamp AUTO cut
(3) Front Door Lamp
The room lamp for the front/rear
The interior lamps will automatically
seats is automatically turned ON for
go off approximately 20 minutes after
approximately 15 seconds, when the
Front map lamp
the engine is turned off and the
remote key (smart key) unlocks the
doors are closed. If a door is opened,
Press the map lamp lens (1) to turn
doors. The room lamp fades out,
the lamp will go off 40 minutes after
ON the map lamp. Re-press the map
when the ignition switch is placed to
the engine is turned off. If the doors
lamp lens to turn OFF the map lamp.
the ON position in 15 seconds. The
are locked and the vehicle enters the
room lamp remains ON up to 20 min-
armed stage of the theft alarm sys-
utes, when a door is opened with the
tem, the lamps will go off five sec-
ignition switch in the either the ACC
onds later.
or OFF position.
3-88
Rear lamps
NOTICE
Luggage compartment lamp
■ Type A
Do not leave the lamp switches on
for an extended period of time
when the engine is turned off.
3
OAD045407
■ Type B
OPDEN047042
The luggage compartment lamp
comes on when the tailgate is
opened.
NOTICE
The luggage compartment lamp
comes on as long as the tailgate is
open. To prevent unnecessary
OPD046406
charging system drain, close the
Rear room lamp switch :
tailgate securely after using the
tailgate.
Press this button to turn the room
lamp on and off.
3-89
Convenient features of your vehicle
Vanity mirror lamp (if equipped)
Puddle lamp (if equipped)
Escort light
When the ignition switch is in the
OFF position and the driver's door is
opened, the puddle lamp will come
on for 30 seconds. If the driver's door
is closed within the 30 seconds, the
puddle lamp will turn off after 15 sec-
onds. If the driver's door is closed
and locked, the puddle lamp will turn
off immediately.
The Puddle Lamp Escort Light will
turn on only the first time the driver's
door is opened after the engine is
OPD046043
OLF044259
turned off.
Push the switch to turn the light on or
Welcome light
off.
When all doors (and tailgate) are
: The lamp will turn on if this
closed and locked, the puddle lamp
button is pressed.
will come on for 15 seconds if the
: The lamp will turn off if this
door is unlocked by the smart key or
button is pressed.
outside door handle button.
For more details, refer to "Welcome
NOTICE
System" in this chapter.
Always have the switch in the off
position when the vanity mirror
lamp is not in use. If the sunvisor
is closed without the lamp off, it
may discharge the battery or dam-
age the sunvisor.
3-90
WIPERS AND WASHERS
Windshield wipers
Front windshield wiper/washer
Operates as follows when the igni-
A : Wiper speed control (front)
tion switch is turned ON.
·
- Single wipe
: For a single wiping cycle, move
· O
- Off
the lever down and release it.
· --- - Intermittent wipe
The wipers will operate continu-
ously if the lever is held in this
AUTO* - Auto control wipe
3
position.
· 1 - Low wiper speed
O : Wiper is not in operation
· 2
- High wiper speed
--- : Wiper operates intermittently at
the same wiping intervals. Use
B : Intermittent control wipe time
this mode in light rain or mist. To
adjustment
vary the speed setting, turn the
speed control knob.
Rear windshield wiper/washer
C : Wash with brief wipes (front)
1 : Normal wiper speed
(pull lever towards you)
2 : Fast wiper speed
D : Rear wiper control*
i
Information
· 2 - High wiper speed
If there is heavy accumulation of snow
· 1 - Low wiper speed
or ice on the windshield, defrost the
· O
- Off
windshield for about 10 minutes, or until
the snow and/or ice is removed before
E : Wash with brief wipes (rear)
using the windshield wipers to ensure
(push lever away from you)
proper operation.
* : if equipped
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.
OPDE046058/OPDE046060
3-91
Convenient features of your vehicle
AUTO (Automatic) control
NOTICE
WARNING
(if equipped)
When washing the vehicle, set the
To avoid personal injury from the
wiper switch in the O position to
windshield wipers, when the
stop the auto wiper operation. The
engine is running and the wind-
wiper may operate and be damaged
shield wiper switch is placed in
if the switch is set in the AUTO
the AUTO mode:
mode while washing the vehicle.
Do not touch the upper end of
Do not remove the sensor cover
the windshield glass facing the
located on the upper end of the
rain sensor.
passenger side windshield glass.
Do not wipe the upper end of
Damage to system parts could
the windshield glass with a
occur and may not be covered by
damp or wet cloth.
your vehicle warranty.
OPDE046061
Do not put pressure on the
windshield glass.
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The more it rains, the faster the wiper
operates.
When the rain stops, the wiper stops.
To vary the speed setting, turn the
speed control knob (1).
If the wiper switch is set in AUTO
mode when the ignition switch is in
the ON position, the wiper will oper-
ate once to perform a self-check of
the system. Set the wiper to OFF
position when the wiper is not in use.
3-92
Windshield washers
Front windshield wiper service
WARNING
position
When the outside temperature is
below freezing, ALWAYS warm the
windshield using the defroster to
prevent the washer fluid from
freezing on the windshield and
3
obscuring your vision which
could result in an accident and
serious injury or death.
NOTICE
OPDE046062
To prevent possible damage to
OPDE076027
In the O position, pull the lever gently
the washer pump, do not operate
This vehicle has a "hidden" wiper
toward you to spray washer fluid on
the washer when the fluid reser-
design which means that the wipers
the windshield and to run the wipers
voir is empty.
cannot be lifted when they are in
1-3 cycles. The spray and wiper oper-
To prevent possible damage to
their bottom resting position.
ation will continue until you release
the wipers or windshield, do not
1. Within 20 seconds of turning off the
the lever.
operate the wipers when the wind-
engine, move the wiper lever down
If the washer does not work, you may
shield is dry.
and hold it to the
position for
need to add washer fluid to the washer
To prevent damage to the wiper
about 2 seconds until the wipers
fluid reservoir.
arms and other components, do
move to the top wipe position.
not attempt to move the wipers
2. At this time you can lift the wipers
manually.
off the windshield.
To prevent possible damage to
3. Gently put the wipers back down
the wipers and washer system,
onto the windshield.
use anti-freezing washer fluids in
4. Turn the wipers to any ON position
the winter season or cold weather.
to return the wipers to the bottom
resting position.
3-93
Convenient features of your vehicle
Rear window wiper and washer
Auto rear wiper (if equipped)
switch (if equipped)
The rear wiper will operate while the
vehicle is in reverse with the front
wiper ON by selecting the function on
the LCD display.
Go to ‘User Settings Convenience
Auto Rear Wiper (reverse)’.
OTLE045168
Push the lever away from you to
spray rear washer fluid and to run the
OTLE045167
rear wipers
1~3 cycles. The spray
The rear window wiper and washer
and wiper operation will continue until
switch is located at the end of the
you release the lever. (if equipped)
wiper and washer switch lever.
Turn the switch to the desired posi-
tion to operate the rear wiper and
washer.
2 - High wiper speed
1 - Low wiper speed
O - Off
3-94
DRIVER ASSIST SYSTEM
Rear view camera (if equipped)
This is a supplemental system that
WARNING
shows behind the vehicle through
the mirror or navigation display while
Never rely solely on the rear
backing-up.
camera display when backing-
up.
WARNING
ALWAYS look around your
vehicle to make sure there are
The rear camera display is not a
3
no objects or obstacles before
safety device. It only serves to
moving the vehicle in any
assist the driver in identifying
direction to prevent a collision.
objects directly behind the mid-
dle of the vehicle. The camera
Always pay close attention
does NOT cover the complete
when the vehicle is driven
OPDEN047424
area behind the vehicle.
close to objects, particularly
pedestrians, and especially
children.
OPDEN047402
The Rear View Camera will activate
when the engine is running and the
shift lever is in the R (Reverse) posi-
tion.
3-95
Convenient features of your vehicle
NOTICE
Rear parking assist system
WARNING
(if equipped)
• Do not spray the camera or its
surrounding area directly with a
ALWAYS look around your vehi-
high pressure washer. Shock
cle to make sure there are not
applied from high pressure
any objects or obstacles before
water may cause the device to
moving the vehicle in any direc-
not operate normally.
tion to prevent a collision.
• Do not use any cleanser con-
Always pay close attention
taining acid or alkaline deter-
when the vehicle is driven close
gents when cleaning the lens.
to objects, particularly pedestri-
Use only a mild soap or neutral
ans, and especially children.
detergent, and rinse thoroughly
Be aware that some objects
with water.
Sensors
may not be visible on the
OPDEN047400
screen or be detected by the
i
Information
The Rear Parking Assist System
sensors, due to the objects
assists the driver during reverse
distance, size or material, all of
Always keep the camera lens clean. The
movement of the vehicle by chiming
which can limit the effective-
camera may not work normally if the
if any object is sensed within the dis-
ness of the sensor.
lens is covered with dirt, water or snow.
tance of 120 cm (50 inches) behind
the vehicle.
This system is a supplemental sys-
tem that senses objects within the
range and location of the sensors, it
cannot detect objects in other areas
where sensors are not installed.
3-96
Operation of the Rear Parking
Types of warning sound and indicator
Assist System
Types of warning sound
Indicator
Operating condition
• This system will activate when
When an object is 120 cm to 60 cm (47 in. to 24 in.) from the rear
backing up with the ignition switch
bumper : Buzzer beeps intermittently.
in the ON position. However, if vehi-
cle speed exceeds 5 km/h (3 mph),
the system may not detect objects.
3
When an object is 60 cm to 30 cm (24 in. to 12 in.) from the rear
• If vehicle speed exceeds 10 km/h (6
bumper : Buzzer beeps more frequently.
mph), the system will not warn you
even though objects are detected.
• When more than two objects are
When an object is within 30 cm (12 in.) of the rear bumper :
sensed at the same time, the clos-
Buzzer beeps continuously.
est one will be recognized first.
NOTICE
• The indicator may differ from the illustration depending on objects or
sensors status. If the indicator blinks, we recommend that you have
your vehicle checked by an authorized HYUNDAI dealer.
• If the audible warning does not sound or if the buzzer sounds intermit-
tently when shifting into R (Reverse) position, this may indicate a mal-
function with the Parking Assist System. If this occurs, we recommend
that you have your vehicle checked by an authorized HYUNDAI dealer as
soon as possible.
3-97
Convenient features of your vehicle
To turn off the Rear Parking
Non-operational conditions of
Detecting range may decrease when:
Assist System (if equipped)
Parking Assist System
Outside air temperature is extreme-
The Rear Parking Assist System
ly hot or cold.
may not operate normally when:
Undetectable objects smaller than
• Moisture is frozen to the sensor.
1 m (40 inches) and narrower than
14 cm (6 inches) in diameter.
• Sensor is covered with foreign mat-
ter, such as snow or water, or the
sensor cover is blocked.
There is a possibility of the Rear
Parking Assist System malfunction
when:
Driving on uneven road surfaces
such as unpaved roads, gravel,
OPDEN047429
bumps, or gradient.

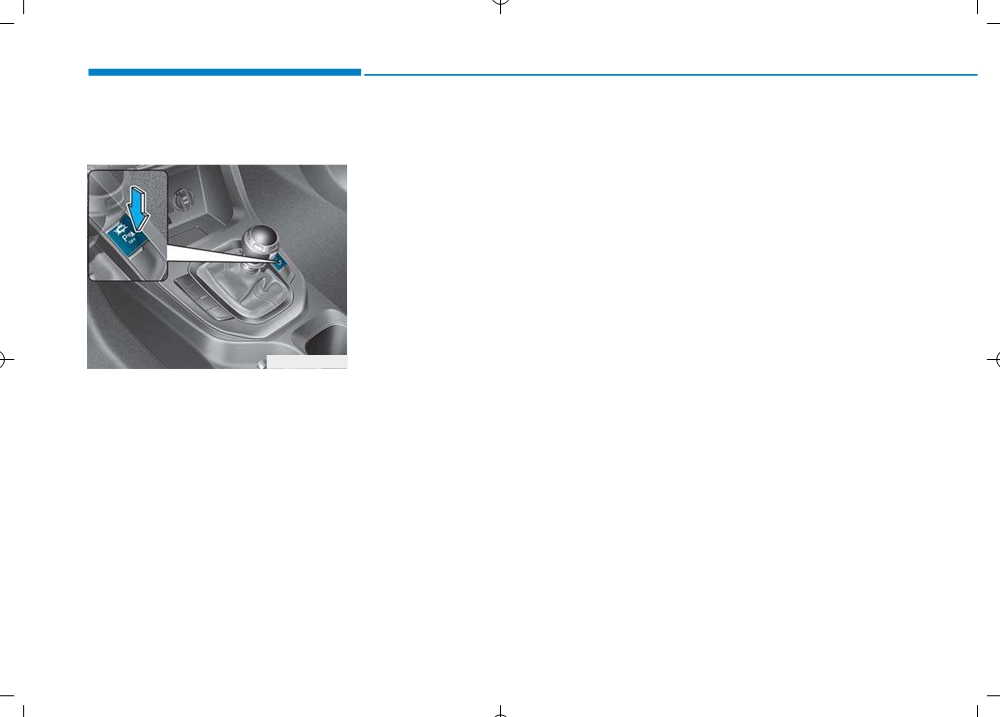

Push the button to turn off the Rear
Objects generating excessive noise
Parking Assist System. The indicator
such as vehicle horns, loud motor-
light on the button will turn on.
cycle engines, or truck air brakes
can interfere with the sensor.
Heavy rain or water spray is present.
Wireless transmitters or mobile
phones are present near the sensor.
The sensor is covered with snow.
Any non-factory equipment or acces-
sories have been installed, or if the
vehicle bumper height or sensor
installation has been modified.
3-98
The following objects may not be
Rear parking assist system pre-
Do not spray the sensors or its sur-
recognized by the sensor:
cautions
rounding area directly with a high
pressure washer. Shock applied
• Sharp or slim objects such as
The rear parking assist system may
from high pressure water may cause
ropes, chains or small poles.
not sound consistently depending on
the device to not operate normally.
• Objects, which tend to absorb sen-
the speed and shapes of the objects
sor frequency such as clothes,
detected.
spongy material or snow.
The rear parking assist system may
malfunction if the vehicle bumper
3
height or sensor installation has
WARNING
been modified or damaged. Any
non-factory installed equipment or
Your new vehicle warranty does
accessories may also interfere with
not cover any accidents or dam-
the sensor performance.
age to the vehicle or injuries to
its occupants related to a Rear
The sensor may not recognize
Parking Assist System. Always
objects less than 30 cm (11 in.) from
drive safely and cautiously.
the sensor, or it may sense an incor-
rect distance. Use caution.
When the sensor is frozen or stained
with snow, dirt, or water, the sensor
may be inoperative until the stains
are removed using a soft cloth.
Do not push, scratch or strike the
sensor with any hard objects that
could damage the surface of the
sensor. Sensor damage could occur.
3-99
Convenient features of your vehicle
Parking assist system
This system is a supplemental sys-
Operation of the Parking Assist
(if equipped)
tem that senses objects within the
System
range and location of the sensors, it
■ Front sensor
cannot detect objects in other areas
where sensors are not installed.
WARNING
ALWAYS look around your vehi-
cle to make sure there are no
objects or obstacles before
moving the vehicle in any direc-
Sensors
tion to prevent a collision.
OPDEN047401
■ Rear sensor
Always pay close attention
OPDEN047403
when the vehicle is driven close
to objects, particularly pedestri-
Operating condition
ans, and especially children.
• This system will activate when the
Parking Assist System button is
Be aware that some objects
may not be visible on the
pressed with the engine running.
screen or be detected by the
sensors, due to the objects
distance, size or material, all of
Sensor
which can limit the effective-
OPDEN047400
ness of the sensor.
The Parking Assist System assists
the driver during movement of the
vehicle by chiming if any object is
sensed within the distance of 100 cm
(39 inches) in front and 120 cm (47
inches) behind the vehicle.
3-100















Content   ..  8  9  10  11   ..
