Hyundai i30 N (2018 year). Instruction

Convenient features of your vehicle

THEFT-ALARM SYSTEM

This system helps to protect your

Once the security system is set, open-

vehicle and valuables. The horn will

ing any door, the tailgate, or the hood

sound and the hazard warning lights

without using the remote key or smart

will blink continuously if any of the

key will cause the alarm to activate.

following occur:

The Theft Alarm System will not set if

- A door is opened without using the

the hood, the tailgate, or any door is

remote key or smart key.

not fully closed. If the system will not

set, check the hood, the tailgate, or

- The tailgate is opened without

the doors are fully closed.

using the remote key or smart key.

- The engine hood is opened.

Do not attempt to alter this system or

add other devices to it.

The alarm continues for 30 seconds,

OJC040170

then the system resets. To turn off

the alarm, unlock the doors with the

Information

remote key or smart key.

•

Do not lock the doors until all pas-

Vehicles equipped with a theft alarm

The Theft Alarm System automati-

sengers have left the vehicle. If the

system will have a label attached to

cally sets 30 seconds after you lock

remaining passenger leaves the

the vehicle with the following words:

the doors and the tailgate. For the

vehicle when the system is armed,

1. WARNING

system to activate, you must lock the

the alarm will be activated.

2. SECURITY SYSTEM

doors and the tailgate from outside

•

If the vehicle is not disarmed with

the vehicle with the remote key or

the remote key or smart key, open

smart key or by pressing the button

the doors by using the mechanical

on the outside of the door handles

key and place the ignition switch in

with the smart key in your posses-

the ON position (for remote key) or

sion.

start the engine (for smart key) and

The hazard warning lights will blink

wait for 30 seconds.

once to indicate the system is

•

When the system is disarmed but a

armed.

door or tailgate is not opened within 30

seconds, the system will be rearmed.

3-16

DRIVER POSITION MEMORY SYSTEM (IF EQUIPPED)

Recalling memory positions

Information

1. Place the ignition switch or the

• If the battery is disconnected, the

Engine Start/Stop button in the

memory settings will be erased.

ON position.

• If the Driver Position Memory

2. Press the desired memory button

System does not operate normally,

(1 or

2). The system will beep

we recommend that you have the

once, then the driver’s seat posi-

system checked by an authorized

tion, outside rearview mirror and

HYUNDAI dealer.

instrument panel illumination will

automatically adjust to the stored

Storing memory positions

position.

OPDE046010

1. Place the ignition switch or the

3. "Driver 1(or 2) settings is applied"

The Driver Position Memory System

Engine Start/Stop button in the

will appear on the LCD display.

is provided to store and recall the fol-

ON position.

lowing memory settings with a sim-

2. Adjust the driver's seat position,

ple button operation.

outside rearview mirror position

- Driver's seat position

and instrument panel illumination

- Outside rearview mirror position

intensity to the desired position.

- Instrument panel illumination intensity

3. Press the SET button. The system

will beep once and notify you

"Press button to save settings"on

WARNING

the LCD display.

Never attempt to operate the driv-

4. Press one of the memory buttons

er position memory system while

(1 or 2) within 4 seconds. The sys-

the vehicle is moving.

tem will beep twice when the mem-

This could result in loss of con-

ory has been successfully stored.

trol, and an accident causing

5. "Driver 1 (or 2) settings saved" will

death, serious injury, or property

appear on the LCD display.

damage.

3-17

Convenient features of your vehicle

Easy access function

Information

CAUTION

(if equipped)

•

While recalling the "1" memory

position, pressing the SET or 1 but-

The system will move the driver's

Driver should be cautious when

ton temporarily stops the adjust-

seat automatically as follows:

using this function to assure no

ment of the recalled memory posi-

•

Without smart key system

injury to passenger or child on

tion. Pressing the 2 button recalls

the back seat. In case of emer-

- It will move the driver’s seat rear-

the "2" memory position.

gency the driver has to stop

ward when the ignition key is

movement of front seat (when

•

While recalling the "2" memory

removed and the driver’s door is

easy access feature is activat-

position, pressing the SET or 2 but-

opened.

ed) by pressing SET button or

ton temporarily stops the adjust-

- It will move the driver’s seat forward

any of the driver seat control

ment of the recalled memory posi-

when the ignition key is inserted.

switches.

tion. Pressing the 1 button recalls

•

With smart key system

the "1" memory position.

- It will move the driver’s seat rear-

•

While recalling the stored positions,

ward when the Engine Start/Stop

pressing one of the control buttons

button is in the OFF position and

for the driver's seat, outside

the driver’s door is opened.

rearview mirror, or instrument

panel illumination will cause the

- It will move the driver’s seat for-

ward when the vehicle is turned

movement of that component to stop

and move in the direction that the

ON or the driver’s door is closed

with the smart key with you.

control button is pressed.

You can activate or deactivate the

Easy Access Function from the User

Settings mode on the LCD display.

For more details, refer to "LCD

Display" in this chapter.

3-18

STEERING WHEEL

Electric power steering (EPS)

Information

NOTICE

The system assists you with steering

The following symptoms may occur

the vehicle. If the engine is off or if

•

If the Electric Power Steering

during normal vehicle operation:

System does not operate nor-

the power steering system becomes

mally, the warning light (

) will

•

The steering effort may be high

inoperative, the vehicle may still be

illuminate or blink on the instru-

immediately after placing the igni-

steered, but it will require increased

ment cluster. The steering wheel

tion switch button in the ON posi-

steering effort.

may become difficult to control

tion.

Also, the steering effort becomes

or operate. Take your vehicle to

This happens as the system per-

heavier as the vehicle’s speed

an authorized HYUNDAI dealer

forms the EPS system diagnostics.

increases and becomes lighter as

and have the system checked as

When the diagnostics are complet-

the vehicle’s speed decreases for

soon as possible.

ed, the steering wheel will return to

better control of the steering wheel.

•

When abnormality is detected in

its normal condition.

Should you notice any change in the

the electric power steering sys-

•

A click noise may be heard from the

effort required to steer during normal

tem, to prevent a deadly acci-

EPS relay after the ignition switch is

vehicle operation, we recommend

dent, the steering assist function

placed in the ON or LOCK/OFF

that the system be checked by an

will stop. At this time, the warn-

position.

authorized HYUNDAI dealer.

ing light turns on or blinks on

•

Motor noise may be heard when the

the cluster. The steering wheel

vehicle is at a stop or at a low driv-

may become difficult to control

ing speed.

or operate. Have your vehicle

•

When you operate the steering

checked immediately, after mov-

wheel in low temperatures, abnor-

ing the vehicle to a safe zone.

mal noise may occur. If the temper-

ature rises, the noise will disappear.

This is a normal condition.

(Continued)

3-19

Convenient features of your vehicle

(Continued)

Tilt steering / Telescopic steering

•

When the vehicle is stationary, if

Adjust the steering wheel so it points

you turn the steering wheel all the

toward your chest, not toward your

way to the left or right continuously,

face. Make sure you can see the

the steering effort increases. This is

instrument cluster warning lights and

not a system malfunction. As time

gauges. After adjusting, push the

passes, the steering wheel effort will

steering wheel both up and down to

return to its normal condition.

be certain it is locked in position.

Always adjust the position of the

steering wheel before driving.

OPDEN047012

WARNING

To change the steering wheel angle

and height:

Never adjust the steering wheel

while driving. You may lose

1. Pull down the lock-release lever (1).

steering control and cause

2. Adjust the steering wheel to the

severe personal injury, death or

desired angle (2) and distance for-

accidents.

ward/back (3).

3. Pull up the lock-release lever to

lock the steering wheel in place.

Information

After adjustment, sometimes the lock-

release lever may not lock the steering

wheel.

It is not a malfunction. This occurs when

two gears are not engaged correctly. In

this case, adjust the steering wheel again

and then lock the steering wheel.

3-20

Heated steering wheel

Horn

Information

(if equipped)

The heated steering wheel will turn off

automatically approximately 30 min-

utes after the heated steering wheel is

turned on.

When the engine is turned off during

the engine and the heated steering

wheel is on, the timer function of heat-

ed steering wheel will be reset.

To reuse heated steering wheel, press

button again.

OPDEN047014

NOTICE

OPDEN047013

To sound the horn, press the area

Do not install any cover or acces-

When the ignition switch is in the ON

indicated by the horn symbol on your

sory on the steering wheel. This

position or when the engine is running,

steering wheel. The horn will operate

cover or accessory could cause

press the heated steering wheel but-

only when this area is pressed.

damage to the heated steering

ton to warm the steering wheel. The

wheel system.

indicator on the button will illuminate.

NOTICE

To turn the heated steering wheel off,

Do not strike the horn severely to

press the button again. The indicator

operate it, or hit it with your fist.

on the button will turn off.

Do not press on the horn with a

sharp-pointed object.

3-21

Convenient features of your vehicle

MIRRORS

Inside rearview mirror

Electric Chromic Mirror (ECM)

WARNING

Before you start driving, adjust the

The electric rearview mirror automati-

rearview mirror to the center on the

cally controls the glare from the head-

NEVER adjust the mirror while

view through the rear window.

lamp of the vehicle behind you in

driving. This may cause loss of

nighttime or low light driving condi-

vehicle control resulting in an

tions.

accident.

WARNING

When the engine is running, the

glare is automatically controlled by

Make sure your line of sight is

NOTICE

the sensor mounted in the rearview

not obstructed. Do not place

mirror. The sensor detects the light

objects in the rear seat, cargo

When cleaning the mirror, use a

level around the vehicle, and auto-

paper towel or similar material

area, or behind the rear head-

matically adjusts to control the head-

rests which could interfere with

dampened with glass cleaner. Do

lamp glare from vehicles behind you.

not spray glass cleaner directly on

your vision through the rear

window.

the mirror as that may cause the

Whenever the shift lever is placed in

liquid cleaner to enter the mirror

R (Reverse), the mirror will automat-

housing.

ically go to the brightest setting in

order to improve the driver’s view

WARNING

behind the vehicle.

To prevent serious injury during

an accident or deployment of

the air bag, do not modify the

rearview mirror and do not

install a wide mirror.

3-22

Outside rearview mirror

WARNING

•

The right outside rearview mir-

ror is convex. In some coun-

tries, the left outside rearview

mirror is also convex. Objects

seen in the mirror are closer

Indicator

than they appear.

•

Use your interior rearview

mirror or turn your head and

look to determine the actual

OAD045010

distance of following vehicles

To operate the electric rearview

OPD046016

when changing lanes.

mirror:

Be sure to adjust mirror angles

• Press the ON/OFF button (1) to

before driving.

turn the automatic dimming func-

WARNING

tion off. The mirror indicator light

Your vehicle is equipped with both

will turn off.

left-hand and right-hand outside

Do not adjust or fold the outside

rearview mirrors.

Press the ON/OFF button (1) to

rearview mirrors while driving.

turn the automatic dimming func-

The mirror can be adjusted remotely

This may cause loss of vehicle

tion on. The mirror indicator light

with the remote switch.

control resulting in an accident.

will illuminate.

The mirror heads can be folded to

• The mirror defaults to the ON posi-

prevent damage during an automatic

tion whenever the ignition switch is

car wash or when passing through a

in the ON position.

narrow street.

3-23

Convenient features of your vehicle

NOTICE

Adjusting the rearview mirrors

NOTICE

•

Do not scrape ice off the mirror

•

The mirrors stop moving when

face; this may damage the sur-

they reach the maximum adjust-

face of the glass.

ing angles, but the motor contin-

ues to operate while the switch

•

If the mirror is jammed with ice,

do not adjust the mirror by

is pressed. Do not press the

switch longer than necessary,

force. Use an approved spray

de-icer (not radiator antifreeze)

the motor may be damaged.

spray, or a sponge or soft cloth

•

Do not attempt to adjust the out-

with very warm water, or move

side rearview mirror by hand

the vehicle to a warm place and

otherwise the motor may be

allow the ice to melt.

damaged.

OPDE046017

1. Press either the L (left side) or R

(right side) button (1) to select the

rearview mirror you would like to

adjust.

2. Use the mirror adjustment control

(2) to position the selected mirror

up, down, left or right.

3. After adjustment, put the button

into neutral

(center) position to

prevent inadvertent adjustment.

3-24

Folding the outside rearview

NOTICE

mirror

The electric type outside rearview

mirror operates even though the

ignition switch is in the OFF posi-

tion. However, to prevent unnec-

essary battery discharge, do not

adjust the mirrors longer than

necessary while the engine is not

running.

NOTICE

OPDE046019

Electric type

Do not fold the electric type out-

side rearview mirror by hand.

OPD046018

Left : The mirror will unfold.

could cause motor failure.

Right : The mirror will fold.

Manual type

Center (AUTO) : The mirror will fold

To fold the outside rearview mirror,

or unfold automatically as follows:

grasp the housing of the mirror and

then fold it toward the rear of the

• Without smart key system

vehicle.

- The mirror will fold or unfold when

the door is locked or unlocked by

the remote key.

• With smart key system

- The mirror will fold or unfold when

the door is locked or unlocked by

the smart key.

- The mirror will fold or unfold when

the door is locked or unlocked by

the button on the outside door

handle.

3-25

Convenient features of your vehicle

Reverse parking aid function

The position of the outside rearview

(if equipped)

mirror switch (1) determines whether

or not the mirrors will move:

Left/Right : When either the L (Left) or

R (Right) switch is select-

ed, both outside rearview

mirrors will move.

Neutral : When neither switch is select-

ed, the outside rearview mir-

rors will not move.

The outside rearview mirrors will

automatically revert to their original

positions if any of the following occur:

• The ignition switch is placed to

OPDEN047423

either the LOCK/OFF position or

When you move the shift lever to the

the ACC position.

R (Reverse) position, the outside

• The shift lever is moved to any

rearview mirror(s) will rotate down-

position except R (Reverse).

wards to aid with driving in reverse.

• The outside rearview mirror switch

is not selected.

3-26

Convenient features of your vehicle

The ignition switch must be in the ON

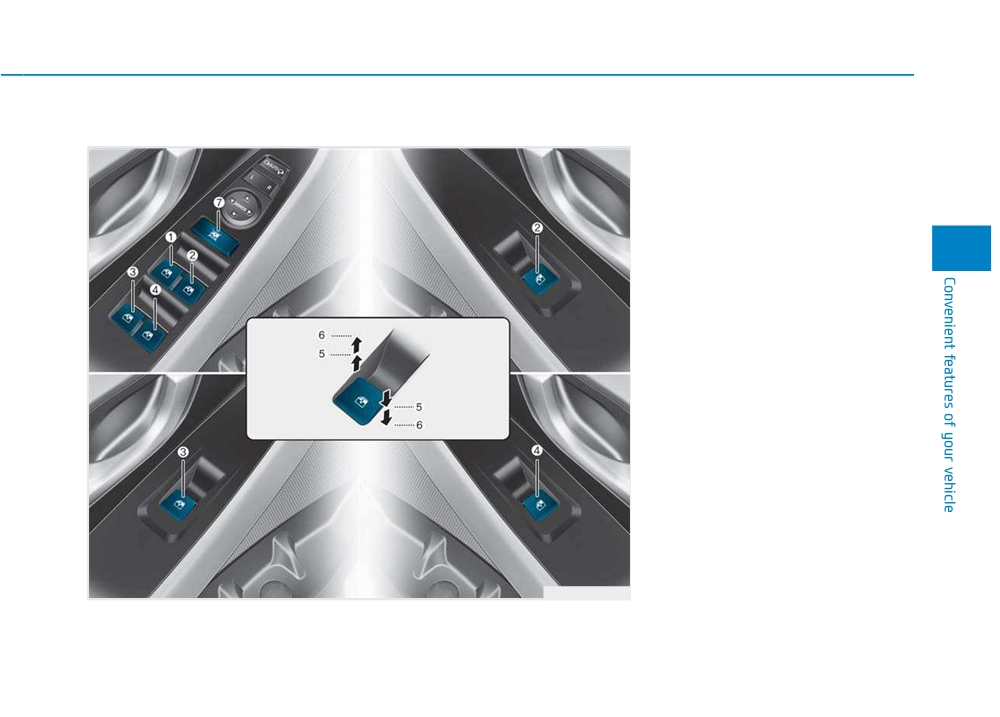

Window opening and closing

Information

position to be able to raise or lower

the windows. Each door has a Power

•

In cold and wet climates, power win-

Window switch to control that door's

dows may not work properly due to

window. The driver has a Power

freezing conditions.

Window Lock switch which can block

•

While driving with the rear windows

the operation of passenger windows.

down or with the sunroof

(if

The power windows will operate for

equipped) opened

(or partially

approximately 30 seconds after the

opened), your vehicle may demon-

ignition switch is placed in the ACC

strate a wind buffeting or pulsation

or OFF position. However, if the front

noise. This noise is normal and can

doors are opened, the Power

be reduced or eliminated by taking

Windows cannot be operated even

the following actions. If the noise

within the 30 second period.

occurs with one or both of the rear

OPDEN047020

windows down, partially lower both

To open:

front windows approximately 2.5 cm.

WARNING

Press the window switch down to the

If you experience the noise with the

first detent position (5). Release the

sunroof open, slightly close the sun-

To avoid serious injury or death,

switch when you want the window to

roof.

do not extend your head, arms

stop.

or body outside the windows

while driving.

To close:

Pull the window switch up to the first

detent position (5). Release the win-

dow switch when you want the win-

dow to stop.

3-28

Auto up/down window

To reset the power windows

Automatic reverse

Pressing or pulling up the power win-

If the power windows do not operate

dow switch momentarily to the sec-

normally, the automatic power win-

ond detent position

(6) completely

dow system must be reset as follows:

lowers or lifts the window even when

1. Place the ignition switch to the ON

the switch is released. To stop the

position.

window at the desired position while

2. Close the window and continue

the window is in operation, pull up or

pulling up on the power window

press down and release the switch.

switch for at least one second.

If the power windows do not operate

properly after resetting, it is recom-

mended that the system be checked

by an authorized HYUNDAI dealer.

OLF044032

If a window senses any obstacle

while it is closing automatically, it will

WARNING

stop and lower approximately 30 cm

(12 inches) to allow the object to be

The automatic reverse feature

doesn’t activate while resetting

cleared.

the power window system. Make

If the window detects the resistance

sure body parts or other objects

while the power window switch is

are safely out of the way before

pulled up continuously, the window

closing the windows to avoid

will stop upward movement then

injuries or vehicle damage.

lower approximately 2.5 cm (1 inch).

If the power window switch is pulled

up continuously again within 5 sec-

onds after the window is lowered by

the automatic window reverse fea-

ture, the automatic window reverse

will not operate.

3-29

Convenient features of your vehicle

Power window lock switch

Information

WARNING

The automatic reverse feature is only

active when the “Auto Up” feature is

Do not allow children to play

used by fully pulling up the switch to

with the power windows. Keep

the second detent.

the driver’s door power window

lock switch in the LOCK posi-

tion. Serious injury or death can

WARNING

result from unintentional win-

dow operation by a child.

Make sure body parts or other

objects are safely out of the way

before closing the windows to

NOTICE

avoid injuries or vehicle damage.

OPDEN047023

•

To prevent possible damage to

Objects less than 4 mm (0.16

inch) in diameter caught between

The driver can disable the power

the power window system, do

the window glass and the upper

window switches on the rear passen-

not open or close two windows

window channel may not be

gers' doors by pressing the power

or more at the same time. This

detected by the automatic reverse

window lock switch.

will also ensure the longevity of

window and the window will not

the fuse.

When the power window lock switch

stop and reverse direction.

•

Never try to operate the main

is pressed:

switch on the driver's door and

• The driver's master control can

the individual door window

NOTICE

operate all the power windows.

switch in opposite directions at

• The front passenger's control can

the same time. If this is done, the

Do not install any accessories on

operate the front passenger's

window will stop and cannot be

the windows. The automatic

power window.

opened or closed.

reverse feature may not operate.

• The rear passenger's control can-

not operate the rear passengers'

power window.

3-30

Remote window closing

Information

WARNING

function (if equipped)

•

The remote window closing function

•

NEVER leave the keys in your

may abruptly stop, when you move

vehicle with unsupervised

away from your vehicle during the

children, when the engine is

operation. Stay in close proximity of

running.

your vehicle, while monitoring the

•

NEVER leave any child unat-

window movement.

tended in the vehicle. Even

•

One of the windows may stop oper-

very young children may inad-

ating, when the window is interrupt-

vertently cause the vehicle to

ed by certain force. However, the

move, entangle themselves in

other windows will keep operating.

the windows, or otherwise

Thus, you should make sure that all

injure themselves or others.

windows are closed, and that the

OPD047044L

hazard warning lights blink 3 times.

•

Always double check to make

sure all arms, hands, head

You can still control the window

and other obstructions are

movement with the engine turned off

safely out of the way before

by pressing the door lock button (1)

closing a window.

for more than 3 seconds. The window

•

Do not allow children to play

moves (up), as long as you press the

with the power windows. Keep

door lock button. The window move-

the driver’s door power window

ment stops, when you release the

lock switch in the LOCK posi-

door lock button. The hazard warning

tion

(pressed). Serious injury

lights blink 3 times, when the window

can result from unintentional

is completely closed.

window operation by the child.

•

Do not extend your head,

arms or body outside the win-

dows while driving.

3-31

Convenient features of your vehicle

PANORAMA SUNROOF (IF EQUIPPED)

If your vehicle is equipped with a

Information

WARNING

sunroof, you can slide or tilt your

sunroof with the sunroof control lever

• In cold and wet climates, the sun-

roof may not work properly due to

•

Never adjust the sunroof or

located on the overhead console.

freezing conditions.

sunshade while driving. This

could result in loss of control

• After the vehicle is washed or in a

and an accident that may

rainstorm, be sure to wipe off any

cause death, serious injury, or

water that is on the sunroof before

property damage.

operating it.

•

Make sure heads, other body

parts or objects are out of the

NOTICE

way before using the sunroof.

•

Do not continue to move the sun-

•

Do not leave the engine run-

roof control lever after the sun-

ning and the key in your vehi-

roof is fully opened, closed, or

cle with unsupervised children.

tilted. Damage to the motor or

Unattended children could

OPD046024

system components could occur.

operate the sunroof, which

The ignition switch must be in the ON

•

Make sure the sunroof is closed

could result in serious injury.

position before you can open or

fully when leaving your vehicle.

•

The panorama sunroof is

close the sunroof.

If the sunroof is open, rain or

made of glass, subject to

The sunroof can be operated for

snow may leak through the sun-

break in case of accident.

approximately 30 seconds after the

roof and wet the interior as well

Passengers without the appro-

ignition key is removed or turned to

as allow theft.

priate protection(e.g. seat belt,

the ACC or LOCK(or OFF) position.

CRS, etc.) on may project out

However, if the front door is opened,

through the broken glasses

the sunroof cannot be operated even

and get seriously injured or

within 30 seconds.

even result in death.

•

Do not sit on the top of the

vehicle. It may cause injuries

or vehicle damage.

3-32

Hyundai i30 N (2018 year). Instruction - part 6
