Hyundai i10 (2016 year). Instruction - part 14

Driving your vehicle

CAUTION

When using tire chains:

•

Wrong size chains or improperly

installed chains can damage your

vehicle's brake lines, suspension,

body and wheels.

•

Use SAE “S” class or wire chains.

•

If you hear noise caused by

chains contacting the body,

retighten the chain to prevent

contact with the vehicle body.

•

To prevent body damage, retight-

en the chains after driving 0.5~1.0

km (0.3~0.6 miles).

•

Do not use tire chains on vehicles

equipped with aluminum wheels.

If unavoidable, use a wire type

chain.

•

Use wire chains less than 15 mm

(0.59 in) wide to prevent damage

to the chain’s connection.

5 39

Driving your vehicle

VEHICLE WEIGHT

Two labels on your driver’s door sill show

GAW (Gross Axle Weight)

Overloading

how much weight your vehicle was

This is the total weight placed on each

designed to carry: the Tire and Loading

axle (front and rear) - including vehicle

Information Label and the Certification

curb weight and all payload.

WARNING

Label.

The Gross Axle Weight Rating

Before loading your vehicle, familiarize

GAWR (Gross Axle Weight Rating)

(GAWR) and the Gross Vehicle

yourself with the following terms for

This is the maximum allowable weight

Weight Rating

(GVWR) for your

determining your vehicle's weight ratings,

that can be carried by a single axle (front

vehicle are on the Certification

from the vehicle's specifications and the

or rear). These numbers are shown on

Label attached to the driver's (or

Certification Label:

the Certification Label. The total load on

front passenger’s) door. Exceeding

each axle must never exceed its GAWR.

these ratings can cause an acci-

Base Curb Weight

dent or vehicle damage. You can

This is the weight of the vehicle including

GVW (Gross Vehicle Weight)

calculate the weight of your load by

a full tank of fuel and all standard equip-

weighing the items

(and people)

This is the Base Curb Weight plus actual

ment. It does not include passengers,

before putting them in the vehicle.

Cargo Weight plus passengers weight.

cargo, or optional equipment.

Be careful not to overload your

vehicle.

GVWR (Gross Vehicle Weight Rating)

Vehicle Curb Weight

This is the maximum allowable weight of

This is the weight of your new vehicle

the fully loaded vehicle

(including all

when you picked it up from your dealer

options, equipment, passengers and

plus any aftermarket equipment.

cargo). The GVWR is shown on the

Certification Label located on the driver’s

Cargo Weight

door sill.

This figure includes all weight added to

the Base Curb Weight, including cargo

and optional equipment.

5 40

What to do in an emergency

ROAD WARNING

IN CASE OF AN EMERGENCY

WHILE DRIVING

It should be used whenever emergency

repairs are being made or when the vehi-

If the engine stalls at a crossroad

cle is stopped near the edge of a road-

or crossing

way.

• If the engine stalls at a crossroad or

To turn the hazard warning flasher on or

crossing, set the shift lever in the N

off, press the hazard warning flasher but-

(Neutral) position and then push the

ton with the ignition switch in any posi-

vehicle to a safe place.

tion. The button is located in the center

• If your vehicle has a manual transaxle

console switch panel. All turn signal

not equipped with a ignition lock

lights will flash simultaneously.

switch, the vehicle can move forward

by shifting to the 2(second) or 3(third)

•

The hazard warning flasher operates

gear and then turning the starter with-

OBA043027L

whether your vehicle is running or not.

out depressing the clutch pedal.

Hazard warning flasher

•

The turn signals do not work when the

hazard flasher is on.

The hazard warning flasher serves as a

If you have a flat tire while driving

warning to other drivers to exercise

If a tire goes flat while you are driving:

extreme caution when approaching,

1. Take your foot off the accelerator pedal

overtaking, or passing your vehicle.

and let the vehicle slow down while

driving straight ahead. Do not apply the

brakes immediately or attempt to pull

off the road as this may cause a loss of

control. When the vehicle has slowed

to such a speed that it is safe to do so,

brake carefully and pull off the road.

Drive off the road as far as possible

and park on a firm level ground. If you

are on a divided highway, do not park

in the median area between the two

traffic lanes.

6 2

What to do in an emergency

IF THE ENGINE DOES NOT START

2. When the vehicle is stopped, turn on

If the engine doesn't turn over or

If the engine turns over normally

your hazard warning flasher, set the

turns over slowly

but does not start

parking brake and put the transaxle in

1. If your vehicle has an automatic

1. Check the fuel level.

P (automatic transaxle) or reverse

transaxle, be sure the shift lever is in N

2. With the ignition switch in the LOCK/

(manual transaxle).

(Neutral) or P (Park) and the emer-

OFF position, check all connectors at

3. Have all passengers get out of the

gency brake is set.

the ignition coils and spark plugs.

vehicle. Be sure they all get out on the

2. Check the battery connections to be

Reconnect any that may be discon-

side of the vehicle that is away from

sure they are clean and tight.

nected or loose.

traffic.

3. Turn on the interior light. If the light

3. Check the fuel line in the engine com-

4. When changing a flat tire, follow the

dims or goes out when you operate the

partment.

instruction provided later in this chap-

starter, the battery is discharged.

4. If the engine still does not start, we rec-

ter.

4. Check the starter connections to be

ommend that you call an authorized

sure they are securely tightened.

HYUNDAI dealer.

If the engine stalls while driving

5. Do not push or pull the vehicle to start

1. Reduce your speed gradually, keeping

it. See instructions for "Jump starting".

a straight line. Move cautiously off the

road to a safe place.

WARNING

2. Turn on your hazard warning flasher.

If the engine will not start, do not

3. Try to start the engine again. Try to

push or pull the vehicle to start it.

start the engine again. If your vehicle

This could result in a collision or

will not start, we recommend that you

cause other damage. In addition,

consult an authorized HYUNDAI deal-

push or pull starting may cause the

er.

catalytic converter to overload and

create a fire.

6 3

What to do in an emergency

JUMP STARTING

Jump starting can be dangerous if done

(Continued)

incorrectly. Follow the jump starting pro-

WARNING

If acid gets into your eyes, flush

cedure in this section to avoid serious

To prevent SERIOUS INJURY or

your eyes with clean water for at

injury or damage to your vehicle. If in

DEATH to you or bystanders,

least 15 minutes and get immediate

doubt about how to properly jump start

always follow these precautions

medical attention. If acid gets on

your vehicle, we strongly recommend

when working near or handling the

your skin, thoroughly wash the

that you have a service technician or tow-

battery:

area. If you feel pain or a burning

ing service do it for you.

Always read and follow

sensation, get medical attention

instructions carefully when

immediately.

handling a battery.

•

When lifting a plastic-cased bat-

Wear eye protection

tery, excessive pressure on the

designed to protect the

case may cause battery acid to

eyes from acid splashes.

leak. Lift with a battery carrier or

Keep all flames, sparks, or

with your hands on opposite cor-

smoking materials away

ners.

from the battery.

•

Do not attempt to jump start your

Hydrogen is always present

vehicle if your battery is frozen.

in battery cells, is highly

•

NEVER attempt to recharge the

combustible, and may

battery when the vehicle’s battery

explode if ignited.

cables are connected to the bat-

Keep batteries out of reach

tery.

of children.

•

The electrical ignition system

works with high voltage. NEVER

Batteries contain sulfuric

touch these components with the

acid which is highly corro-

engine running or when the igni-

sive. Do not allow acid to

tion switch is in the ON position.

contact your eyes, skin or

clothing.

(Continued)

6 4

What to do in an emergency

Jump starting procedure

Jumper Cables

CAUTION

1. Position the vehicles close enough that

To prevent damage to your vehicle:

the jumper cables will reach, but do not

• Only use a 12-volt power supply

allow the vehicles to touch.

(battery or jumper system) to

2. Avoid fans or any moving parts in the

jump start your vehicle.

engine compartment at all times, even

• Do not attempt to jump start your

when the vehicles are turned off.

(-)

(+)

vehicle by push-starting.

3. Turn off all electrical devices such as

(-)

radios, lights, air conditioning, etc. Put

Jumper Terminal

the vehicles in P (Park, for automatic

(+)

✽ NOTICE

transaxle vehicle) or neutral (for manu-

An inappropriately disposed

al transaxle vehicle), and set the park-

Booster Battery

OLMB063002/Q

battery can be harmful to the

ing brakes. Turn both vehicles OFF.

environment and human health.

4. Connect the jumper cables in the exact

Dispose the battery according

sequence shown in the illustration.

to your local law(s) or regula-

First connect one jumper cable to the

tion.

red, positive

(+) jumper terminal of

your vehicle (1).

5. Connect the other end of the jumper

cable to the red, positive

(+)

battery/jumper terminal of the assisting

vehicle (2).

6. Connect the second jumper cable to

the black, negative (-) battery/chassis

ground of the assisting vehicle (3).

6 5

What to do in an emergency

IF THE ENGINE OVERHEATS

If your temperature gauge indicates over-

6. If you cannot find the cause of the

heating, you will experience a loss of

WARNING

overheating, wait until the engine tem-

power, or hear loud pinging or knocking

perature has returned to normal. Then,

While the engine is running, keep

sound, the engine will probably be too

if coolant has been lost, carefully add

hair, hands and clothing away from

hot. If this happens, you should:

coolant to the reservoir to bring the

moving parts such as the fan and

drive belts to prevent injury.

fluid level in the reservoir up to the

1. Pull the vehicle off the road and stop

halfway mark.

as soon as it is safe to do so.

7. Proceed with caution, keeping alert for

2. Place the shift lever in P (automatic

5. If the water pump drive belt is broken

further signs of overheating. If over-

or engine coolant is leaking out, stop

heating happens again, we recom-

transaxle) or Neutral

(manual

transaxle) and set the parking brake. If

the engine immediately and we recom-

mend that you call an authorized

the air conditioning is on, turn it off.

mend that you call an authorized

HYUNDAI dealer.

HYUNDAI dealer.

3. If engine coolant is running out under

the vehicle or steam is coming out

CAUTION

from the hood, stop the engine. Do not

WARNING

Serious loss of coolant indicates

open the hood until the coolant has

there is a leak in the cooling system

Do not remove the radiator cap

stopped running or the steaming has

and we recommend that the system

when the engine is hot. This can

stopped. If there is no visible loss of

be checked by an authorized

allow coolant to be blown out of the

engine coolant and no steam, leave

opening and cause serious burns.

HYUNDAI dealer.

the engine running and check to be

sure the engine cooling fan is operat-

ing. If the fan is not running, turn the

engine off.

4. Check to see if the water pump drive

belt is missing. If it is not missing,

check to see that it is tight. If the drive

belt seems to be satisfactory, check

for coolant leakage from the radiator,

hoses or under the vehicle. (If the air

conditioning had been in use, it is nor-

mal for cold water to be draining from it

when you stop).

6 7

What to do in an emergency

IF YOU HAVE A FLAT TIRE

The spare tire, jack, jack handle,

Jacking instructions

wheel lug nut wrench are stored in

The jack is provided for emergency

the luggage compartment.

tire changing only.

Pull up the floor cover of the luggage

To prevent the jack from “rattling”

compartment to reach the jack

while the vehicle is in motion, store it

behind the spare tire.

properly.

Follow jacking instructions to reduce

the possibility of personal injury.

OBA063014

OBA063001L

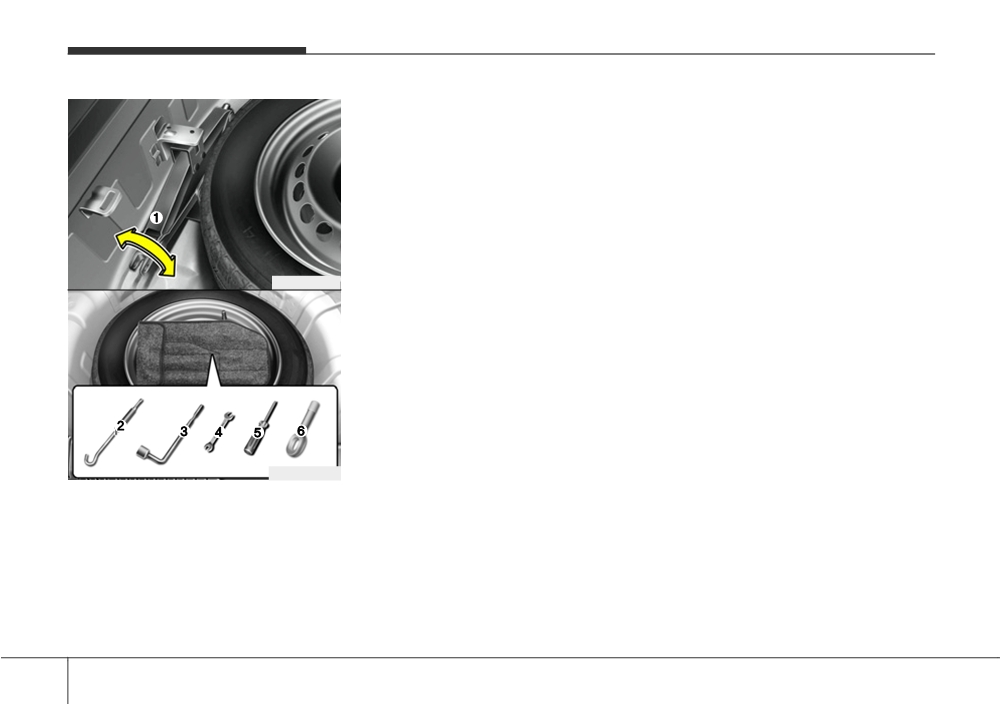

Jack and tools

(1) Jack

(2) Jack handle

(3) Wheel lug nut wrench

(4) Spanner

(5) Screw driver

(6) Towing hook

6 8

What to do in an emergency

(Continued)

WARNING - Changing tires

•

The vehicle can easily roll off

•

Never attempt vehicle repairs

the jack causing serious

in the traffic lanes of a public

injury or death. No person

road or highway.

should place any portion of

•

Always move the vehicle com-

their body under a vehicle that

pletely off the road and onto

is supported only by a jack;

the shoulder before trying to

use vehicle support stands.

change a tire. The jack should

•

Do not start or run the engine

be used on firm level ground.

while the vehicle is on the

If you cannot find a firm level

jack.

place off the road, call a tow-

OBA063002

ing service company for

•

Do not allow anyone to remain

Removing and storing the spare

in the vehicle while it is on the

assistance.

tire

jack.

•

Be sure to use the correct

Turn the tire hold-down wing bolt

•

Make sure any children pres-

front and rear jacking posi-

counterclockwise.

tions on the vehicle; never

ent are in a secure place away

from the road and from the

Store the tire in the reverse order of

use the bumpers or any other

removal.

part of the vehicle for jack

vehicle to be raised with the

jack.

To prevent the spare tire and tools

support.

from “rattling” while the vehicle is in

(Continued)

motion, store them properly.

6 9

What to do in an emergency

■ 5 Door

WARNING - Changing a tire

•

To prevent vehicle movement

while changing a tire, always

set the parking brake fully,

and always block the wheel

diagonally opposite the wheel

being changed.

•

We recommend that the

wheels of the vehicle be

OBA063003

chocked, and that no person

■4 Door

OED066033

remain in a vehicle that is

being jacked.

Changing tires

1.Park on a level surface and apply

the parking brake firmly.

2.Shift the shift lever into R

(Reverse) for manual transaxle or

P (Park) for automatic transaxle.

3.Activate the hazard warning flash-

er.

OBA064003R

4.Remove the wheel lug nut wrench,

jack, jack handle, and spare tire

from the vehicle.

5.Block both the front and rear of the

tire diagonally opposite of the tire

you are changing.

6 10

What to do in an emergency

OBA063004

OBA063005

OBA063006

6.Loosen the wheel lug nuts counter-

7.Place the jack at the front or rear

8.Insert the jack handle into the jack

clockwise one turn each, but do

jacking position closest to the tire

and turn it clockwise, raising the

not remove any lug nut until the tire

you are changing. Place the jack at

vehicle until the tire clears the

has been raised off the ground.

the designated locations under the

ground. Before removing the wheel

frame. The jacking positions are

lug nuts, make sure the vehicle is

plates welded to the frame with two

stable and that there is no chance

tabs and a raised dot to index with

for movement or slippage.

the jack.

WARNING - Jack location

To reduce the possibility of

injury, be sure to use only the

jack provided with the vehicle

and in the correct jack position;

never use any other part of the

vehicle for jack support.

6 11

What to do in an emergency

Wheel nut tightening torque:

CAUTION

Steel wheel & aluminium alloy wheel:

Your vehicle has metric threads

9~11 kg.m (65~79 lb.ft)

on the wheel studs and nuts.

Make certain during wheel

If you have a tire gauge, remove the

removal that the same nuts that

valve cap and check the air pressure.

were removed are reinstalled -

If the pressure is lower than recom-

or, if replaced, that nuts with

mended, drive slowly to the nearest

metric threads and the same

service station and inflate to the cor-

chamfer configuration are used.

rect pressure. If it is too high, adjust

Installation of a non-metric

it until it is correct. Always reinstall

thread nut on a metric stud or

OBA063007

the valve cap after checking or

vice-versa will not secure the

12. Position the wrench as shown in

adjusting the tire pressure. If the cap

wheel to the hub properly and

the drawing and tighten the

is not replaced, air may leak from the

will damage the stud so that it

wheel lug nuts. Be sure the sock-

tire. If you lose a valve cap, buy

must be replaced.

et is seated completely over the

another and install it as soon as pos-

Note that most lug nuts do not

nut. Do not stand on the wrench

sible.

have metric threads. Be sure to

handle or use an extension pipe

After you have changed the wheels,

use extreme care in checking

over the wrench handle. Go

always secure the flat tire in its place

for thread style before installing

around the wheel tightening

and return the jack and tools to their

aftermarket lug nuts or wheels.

every nut following the numerical

proper storage locations.

sequence shown in the image

If in doubt, we recommend that

until they are all tight. Double-

you consult an authorized

check each lug nut until they are

HYUNDAI dealer.

tight. After changing wheels, we

recommend that the system be

checked by an authorized

HYUNDAI dealer.

6 13

What to do in an emergency

WARNING - Wheel studs

If the studs are damaged, they

may lose their ability to retain

the wheel. This could lead to the

loss of the wheel and a collision

resulting in serious injuries.

WARNING - Inadequate

spare tire pressure

Check the inflation pressures as

soon as possible after installing

the spare tire. Adjust it to the

specified pressure, if necessary.

Refer to “Tires and wheels” in

chapter 8.

6 14

What to do in an emergency

TOWING

If any of the loaded wheels or suspen-

sion components are damaged or the

vehicle is being towed with the front

wheels on the ground, use a towing dolly

under the front wheels.

When being towed by a commercial tow

truck and wheel dollies are not used, the

front of the vehicle should always be lift-

ed, not the rear.

OPA067016

dolly

OPA067015

Towing service

If emergency towing is necessary, we

OPA067017

recommend having it done by an author-

ized HYUNDAI dealer or a commercial

tow-truck service. Proper lifting and tow-

CAUTION

ing procedures are necessary to prevent

• Do not tow the vehicle backwards

damage to the vehicle. The use of wheel

with the front wheels on the

dollies or flatbed is recommended.

ground as this may cause dam-

For trailer towing guidelines information,

age to the vehicle.

refer to “Trailer towing” in chapter 5.

• Do not tow with sling-type equip-

It is acceptable to tow the vehicle with the

ment. Use wheel lift or flatbed

rear wheels on the ground (without dol-

equipment.

lies) and the front wheels off the ground.

6 15

Content   ..  12  13  14  15   ..
