Features of your vehicle

• To lock a door, push the door lock but-

■ Left-hand drive

ton (1) to the “Lock” position. If the door

WARNING - Door lock mal-

is locked properly, the red mark (2) on

function

the door lock button will not be visible.

If a power door lock ever fails to

• To open a door, pull the door handle

function while you are in the vehi-

(3) outward.

cle, try one or more of the following

• Pushing the driver's (or passenger’s)

techniques to exit:

door lock button (1) to the "Lock" or

• Operate the door unlock feature

"Unlock" position will lock or unlock all

repeatedly

(both electronic and

vehicle doors. (if equipped with central

manual) while simultaneously

door lock system)

pulling on the door handle.

OBA043030L

• The driver’s

(or passenger’s) doors

• Operate the other door locks and

■ Right-hand drive

cannot be locked if any door (or tail-

handles, front and rear.

gate/trunk) is opened. (if equipped)

• Lower a front window and use the

key to unlock the door from out-

✽ NOTICE

side.

The central door lock system will operate

only when all doors and tailgate/trunk are

closed.

OBA043030R

With the central door lock switch

(if equipped)

• When pushing down on the front por-

tion (1) of the switch, all vehicle doors

will lock.

4 18

Features of your vehicle

• When pushing down on the rear por-

tion (2) of the switch, all vehicle doors

WARNING - Doors

WARNING - Unlocked

will unlock.

•

The doors should always be fully

vehicles

• If the key is in the ignition switch and

closed and locked while the vehi-

Leaving your vehicle unlocked can

front door is opened, the doors will not

cle is in motion to prevent acci-

invite theft or possible harm to you

lock even though the front portion (1)

dental opening of the door.

or others from someone hiding in

of central door lock switch is pressed.

Locked doors will also discour-

your vehicle while you are gone.

• If the smart key is in the vehicle and a

age potential intruders when the

Always remove the ignition key,

door is opened, the doors will not lock

vehicle stops or slows.

engage the parking brake, close all

even though the front portion(1) of cen-

•

Be careful when opening doors

windows and lock all doors when

tral door lock switch is pressed.

and watch for vehicles, motorcy-

leaving your vehicle unattended.

cles, bicycles or pedestrians

approaching the vehicle in the

✽ NOTICE

path of the door. Opening a door

If the doors are locked with the remote

WARNING - Unattended

when something is approaching

key or smart key, the doors cannot be

children

can cause damage or injury.

unlocked with the central door lock/

An enclosed vehicle can become

unlock switch. (if equipped)

extremely hot, causing death or

severe injury to unattended chil-

dren or animals who cannot escape

the vehicle. Furthermore, children

might operate features of the vehi-

cle that could injure them, or they

could encounter other harm, possi-

bly from someone gaining entry to

the vehicle. Never leave children or

animals unattended in your vehicle.

4 19

Features of your vehicle

Impact sensing door unlock sys-

3. Close the rear door.

tem (if equipped)

To open the rear door, pull the outside

door handle (2).

All doors will automatically unlock when

an impact causes the air bags to deploy.

Even though the doors may be unlocked,

the rear door will not open by pulling the

inner door handle until the rear door child

Speed sensing door lock system

safety lock is unlocked.

(if equipped)

All doors will be automatically locked

after the vehicle speed exceeds 15 km/h.

WARNING - Rear door

And all doors will be automatically

locks

unlocked when you turn the engine off or

If children accidentally open the

when you remove the ignition key.

(if

OIA043005

rear doors while the vehicle is in

equipped)

motion, they could fall out and be

Child-protector rear door lock

severely injured or killed. To pre-

The child safety lock is provided to help

vent children from opening the rear

prevent children from accidentally open-

doors from the inside, the rear door

ing the rear doors from inside the vehicle.

safety locks should be used when-

The rear door safety locks should be used

ever children are in the vehicle.

whenever children are in the vehicle.

1. Open the rear door.

2. Insert a key (or screwdriver) into the

hole (1) and turn it to the lock position

located on the rear edge of the door.

When the child safety lock is in the lock

position, the rear door will not open

even though the inner door handle is

pulled.

4 20

Features of your vehicle

TRUNK

With the trunk lid release lever

To open the trunk from inside the vehicle,

pull up the trunk lid release lever.

Once the trunk is opened and then

closed, the trunk is locked automatically.

✽ NOTICE

In cold and wet climates, door lock and

door mechanisms may not work proper-

ly due to freezing conditions.

OBA044253

OBA044254

Opening the trunk

With the transmitter or smart key

WARNING

The trunk swings upward. Make

With the key

• To open the trunk, press the trunk

unlock button for more than 1 second

sure no objects or people are near

To open the trunk, insert the key and turn

the rear of the vehicle when open-

on the transmitter.

it clockwise.

ing the trunk.

• To open the trunk, press the trunk

unlock button for more than 1 second

on the smart key or press the button

(1) on the trunk handle with the smart

CAUTION

key in your possession.

Make certain that you close the

trunk before driving your vehicle.

Possible damage may occur to the

trunk lift cylinders and attached

hardware if the trunk is not closed

prior to driving.

4 21

Features of your vehicle

Closing the trunk

To close, lower the trunk lid, then press

down on it until it locks. To be sure the

trunk lid is securely fastened, always

check by trying to pull it up again.

WARNING

The trunk lid should be always kept

completely closed while the vehicle

is in motion. If it is left open or ajar,

poisonous exhaust gases may

enter the car and serious illness or

death may result.

WARNING

No one should be allowed to occu-

py the trunk at any time. The trunk

is a very dangerous location in the

event of a crash.

4 22

Features of your vehicle

TAILGATE

✽ NOTICE

Closing the tailgate

The central door lock system will oper-

To close the tailgate, lower and push

ate only when all doors and tailgate are

down the tailgate firmly. Make sure that

closed.

the tailgate is securely latched.

✽ NOTICE

WARNING - Exhaust

In cold and wet climates, door lock and

fumes

door mechanisms may not work proper-

If you drive with the tailgate

ly due to freezing conditions.

opened, you will draw dangerous

exhaust fumes into your vehicle

which can cause serious injury or

OBA043013L

WARNING

death to vehicle occupants.

Opening the tailgate

Make sure no objects or people are

If you must drive with the tailgate

near the rear of the vehicle when

opened, keep the air vents and all

• The tailgate is locked or unlocked by

opening the tailgate.

windows open so that additional

turning the key to the "Lock" or

outside air comes into the vehicle.

"Unlock" position. (if equipped)

• The tailgate is locked or unlocked

CAUTION

when all doors are locked or unlocked

with the remote key, smart key or cen-

Make certain that you close the tail-

WARNING - Rear cargo

tral door lock/unlock switch.

gate before driving your vehicle.

area

• If unlocked, the tailgate can be opened

Possible damage may occur to the

Occupants should never ride in the

tailgate lift cylinders and attaching

by pulling up the handle.

rear cargo area where no restraints

hardware if the tailgate is not

are available. To avoid injury in the

closed prior to driving.

event of an accident or sudden

stops, occupants should always be

properly restrained.

4 23

Features of your vehicle

WINDOWS

■ Left-hand drive - Type A

■ Left-hand drive - Type B

OBA043014L

OBA043004L

(1) Driver’s door power window switch*

✽ NOTICE

(2) Front passenger’s door power window switch*

In cold and wet climates, power windows may not work prop-

(3) Rear door (left) power window switch*

erly due to freezing conditions.

(4) Rear door (right) power window switch*

(5) Window opening and closing

(6) Automatic power window up*/down*

(7) Power window lock button*

*: if equipped

4 24

Features of your vehicle

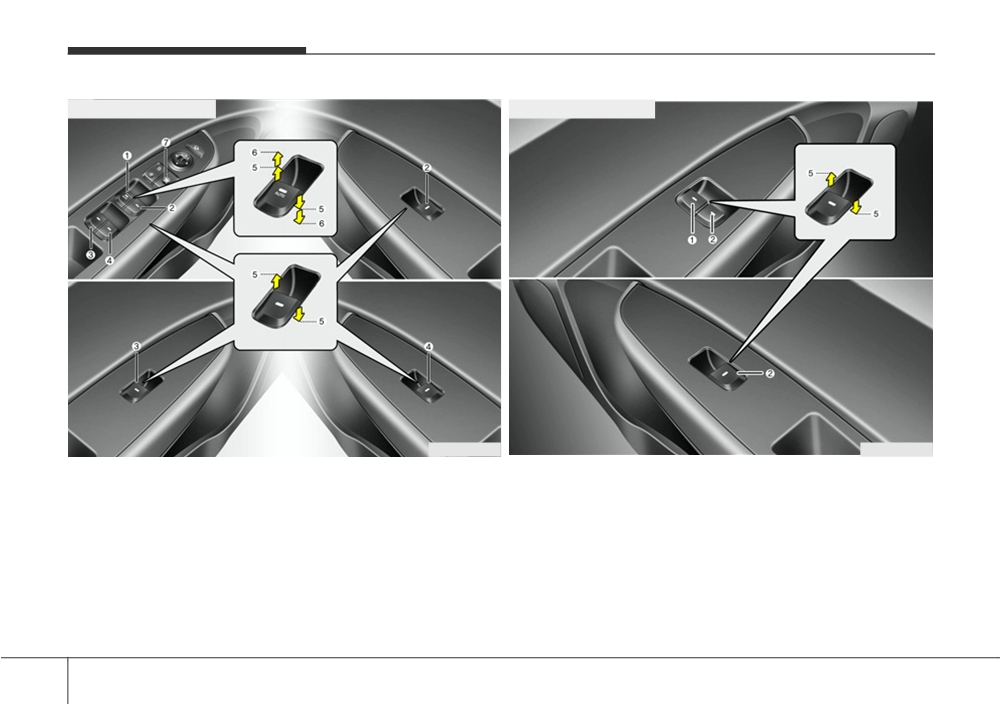

■ Right-hand drive - Type A

■ Right-hand drive - Type B

OBA043014R

OBA043004

1) Driver’s door power window switch*

✽ NOTICE

(2) Front passenger’s door power window switch*

In cold and wet climates, power windows may not work prop-

(3) Rear door (left) power window switch*

erly due to freezing conditions.

(4) Rear door (right) power window switch*

(5) Window opening and closing

(6) Automatic power window up*/down*

(7) Power window lock button*

*: if equipped

4 25

Features of your vehicle

Power windows

The ignition switch must be in the ON posi-

tion for power windows to operate. Each

door has a power window switch that con-

trols the door’s window. The driver has a

power window lock button which can block

the operation of rear passenger windows.

The power windows can be operated for

approximately 30 seconds after the igni-

tion key is removed or turned to the ACC

or LOCK position. However, if the front

doors are opened, the power windows

OBA043015L

OBA043016L

cannot be operated even within the 30

seconds period.

Window opening and closing

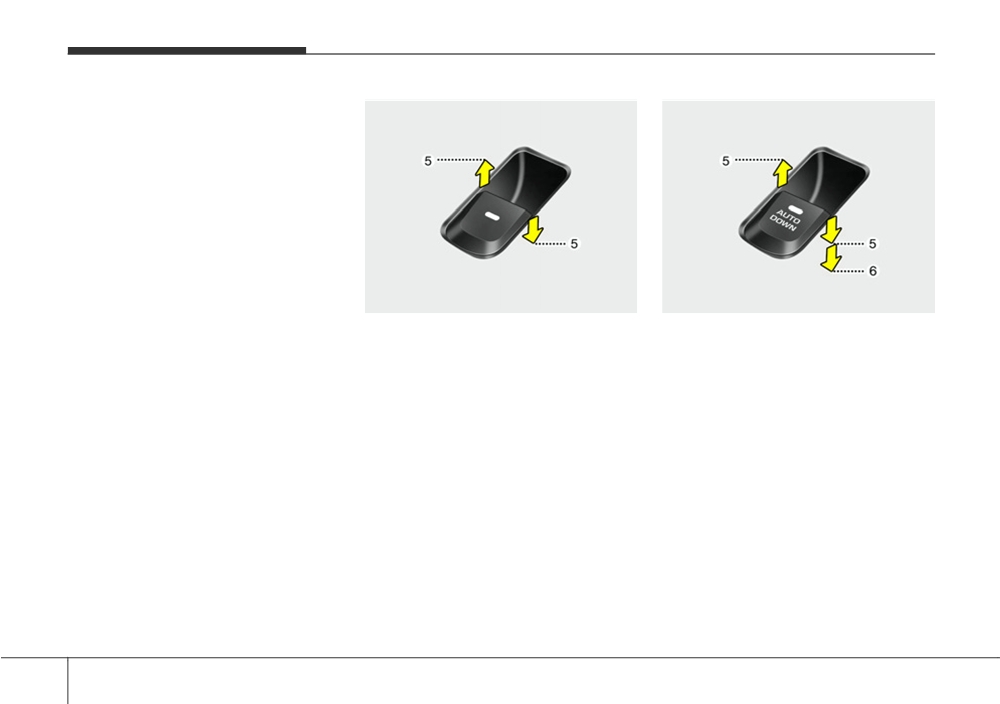

Auto down window (if equipped)

(if equipped)

(Driver’s window)

The driver’s door has a master power

Pressing the power window switch

window switch that controls all the win-

momentarily to the second detent posi-

dows in the vehicle.

tion (6) completely lowers the driver’s win-

To open or close a window, press down

dow even when the switch is released. To

or pull up the front portion of the corre-

stop the window at the desired position

sponding switch to the first detent posi-

while the window is in operation, pull up

tion (5).

and release the switch to the opposite

direction of the window movement.

4 26

Features of your vehicle

To reset the power windows

If the power window does not operate

normally, the automatic power window

system must be reset as follows:

1. Turn the ignition switch to the ON posi-

tion.

2. Close the driver’s window and contin-

ue pulling up the driver’s power win-

dow switch for at least 1 second after

the window is completely closed.

OBA043017L

OUN026013

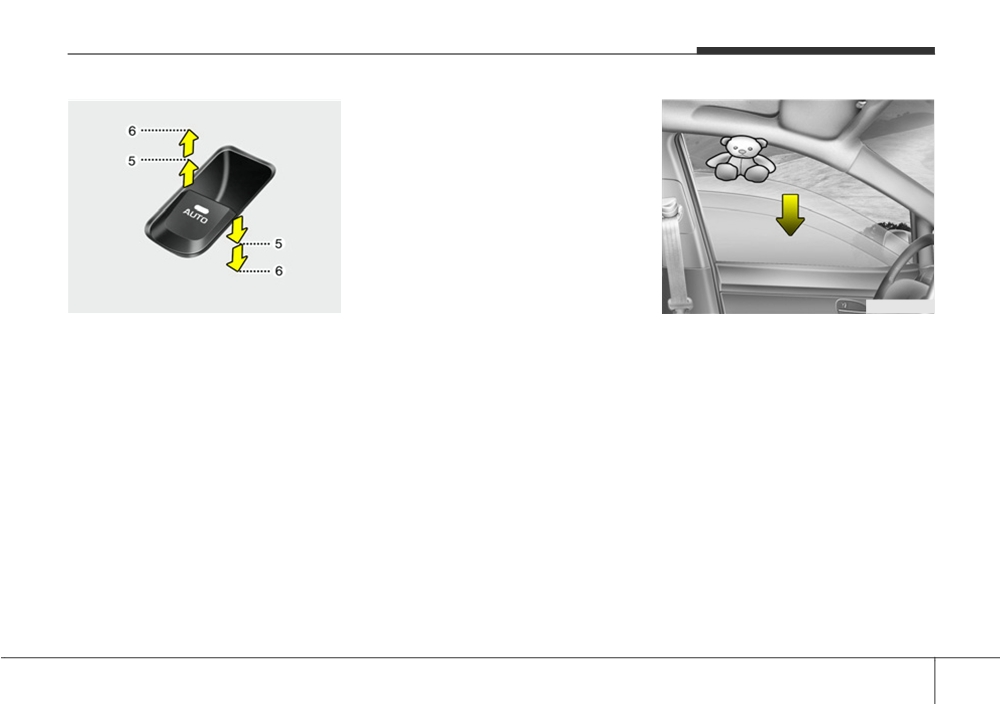

Auto up/down window (if equipped)

Automatic reversal (if equipped)

(Driver's window)

If the upward movement of the window is

Pressing or pulling up the power window

blocked by an object or part of the body,

switch momentarily to the second detent

the window will detect the resistance and

position (6) completely lowers or lifts the

will stop upward movement. The window

window even when the switch is

will then lower approximately 30 cm (11.8

released. To stop the window at the

in.) to allow the object to be cleared.

desired position while the window is in

If the window detects the resistance

operation, pull up or press down and

while the power window switch is pulled

release the switch.

up continuously, the window will stop

upward movement then lower approxi-

mately 2.5 cm (1 in.). And if the power

window switch is pulled up continuously

again within 5 seconds after the window

is lowered by the automatic window

reversal feature, the automatic window

reversal will not operate.

4 27

Features of your vehicle

✽ NOTICE

■ Left-hand drive

When the power window lock button is in

The automatic reverse feature for the

the LOCK position (pressed), the driver’s

master control cannot operate the rear

driver’s window is only active when the

passenger door power windows.

“auto up” feature is used by fully

pulling up the switch.

CAUTION

•

To prevent possible damage to

WARNING

the power window system, do not

Always check for obstructions

open or close two windows or

before raising any window to avoid

more at the same time. This will

injuries or vehicle damage. If an

OBA043018L

also ensure the longevity of the

object less than 4 mm (0.16 in.) in

■ Right-hand drive

fuse.

diameter is caught between the

•

Never try to operate the main

window glass and the upper win-

switch on the driver's door and

dow channel, the automatic reverse

the individual door window

window may not detect the resist-

switch in opposite directions at

ance and will not stop and reverse

the same time. If this is done, the

direction.

window will stop and cannot be

opened or closed.

OBA043018R

Power window lock button

The driver can disable the power window

switches on the rear passenger doors by

pressing the power window lock button

located on the driver’s door to the LOCK

position (pressed).

4 28

Features of your vehicle

WARNING - Windows

•

NEVER leave the ignition key in

the vehicle.

•

NEVER leave any child unattend-

ed in the vehicle. Even very

young children may inadvertently

cause the vehicle to move, entan-

gle themselves in the windows,

or otherwise injure themselves or

others.

•

Always double check to make sure

OBA043009

all arms, hands, head and other

obstructions are safely out of the

Manual windows (if equipped)

way before closing a window.

To raise or lower the window, turn the

•

Do not allow children to play with

window regulator handle clockwise or

the power windows. Keep the dri-

counterclockwise.

ver’s door power window lock

button in the LOCK position

(pressed). Serious injury can

WARNING

result from unintentional window

When opening or closing the win-

operation by the child.

dows, make sure your passenger's

•

Do not extend face or arms out-

arms, hands and body are safely

side the window while driving.

out of the way.

4 29

Features of your vehicle

HOOD

■ Left-hand drive

OBA043005L

■ Right-hand drive

OBA043019L

OBA043020L

3. Go to the front of the vehicle, raise the

4. Pull out the support rod from the hood.

hood slightly, push the secondary latch

5. Hold the hood opened with the support

(1) inside of the hood center and lift

rod.

the hood (2).

WARNING - Hot parts

Grasp the support rod in the area

wrapped in plastic. The plastic will

help prevent you from being burned

OBA043005

by hot metal when the engine is hot.

Opening the hood

1. Park the vehicle and set the parking

brake.

2. Pull the release lever to unlatch the

hood. The hood should pop open

slightly.

4 30

Features of your vehicle

Closing the hood

1. Before closing the hood, check the fol-

WARNING

lowing:

•

Before closing the hood, ensure

• All filler caps in the engine compart-

that all obstructions are removed

from the hood opening. Closing

ment must be correctly installed.

the hood with an obstruction

• Gloves, rags or any other com-

present in the hood opening may

bustible material must be removed

result in property damage or

from the engine compartment.

severe personal injury.

2. Return the support rod to its clip to pre-

•

Always double check to be sure

vent it from rattling.

that the hood is firmly latched

3. Lower the hood until it is about 30 cm (1

before driving away. If it is not

ft.) above the closed position and let it

latched, the hood could fly open

drop. Make sure that it locks into place.

while the vehicle is being driven,

causing a total loss of visibility,

which might result in an accident.

•

Do not move the vehicle with the

hood raised. The view will be

blocked and the hood could fall

or be damaged.

4 31

Features of your vehicle

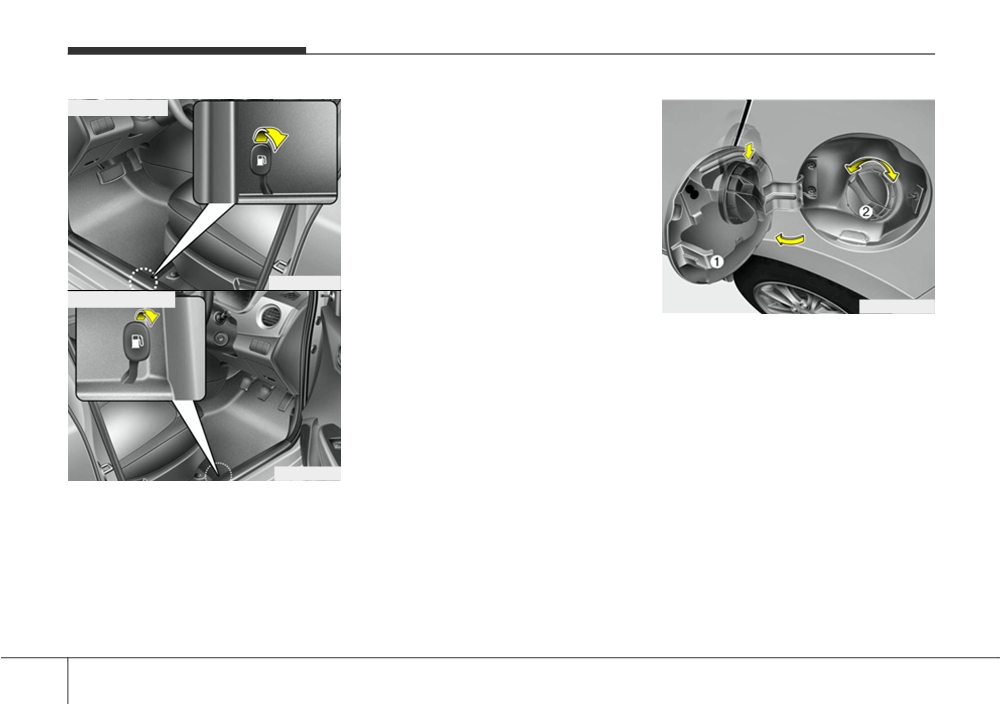

FUEL FILLER LID

■ Left-hand drive

✽ NOTICE

If the fuel filler lid does not open because

ice has formed around it, tap lightly or

push on the lid to break the ice and

release the lid. Do not pry on the lid. If

necessary, spray around the lid with an

approved de-icer fluid (do not use radia-

tor anti-freeze) or move the vehicle to a

warm place and allow the ice to melt.

OBA043006L

■ Right-hand drive

OBA043021L

1. Stop the engine.

2. To open the fuel filler lid, pull the fuel

filler lid opener up.

3. Pull open the fuel filler lid (1).

4. To remove the cap (2), turn the fuel

filler cap counterclockwise.

5. Refuel as needed.

OBA043006

Opening the fuel filler lid

The fuel filler lid must be opened from

inside the vehicle by pulling up the fuel

filler lid opener.

4 32

Features of your vehicle

(Continued)

(Continued)

CAUTION

Use only approved portable plas-

•

If a fire breaks out during refuel-

•

Make sure to refuel with unleaded

tic fuel containers designed to

ing, leave the vicinity of the vehi-

(or leaded for some countries)

carry and store gasoline.

cle, and immediately contact the

fuel only. (Gasoline engine only)

•

Do not use cellular phones while

manager of the gas station and

•

If the fuel filler cap requires

refueling. Electric current and/or

then contact the local fire depart-

replacement, we recommend that

electronic interference from cel-

ment. Follow any safety instruc-

you use parts for replacement

lular phones can potentially

tions they provide.

from an authorized HYUNDAI

ignite fuel vapors causing a fire.

dealer. An incorrect fuel filler cap

•

When refueling, always shut the

can result in a serious malfunc-

engine off. Sparks produced by

tion of the fuel system or emis-

electrical components related to

sion control system.

the engine can ignite fuel vapors

•

Do not spill fuel on the exterior

causing a fire. Once refueling is

surfaces of the vehicle. Any type

complete, check to make sure the

of fuel spilled on painted surfaces

filler cap and filler door are

may damage the paint.

securely closed, before starting

•

After refueling, make sure the fuel

the engine.

cap is installed securely to pre-

•

DO NOT use matches or a lighter

vent fuel spillage in the event of

and DO NOT SMOKE or leave a lit

an accident.

cigarette in your vehicle while at

a gas station especially during

refueling. Automotive fuel is

highly flammable and can, when

ignited, result in fire.

(Continued)

4 34

Content   ..  3  4  5  6   ..
