Hyundai Grand Santa Fe (2016 year). Instruction - part 38





Maintenance
Temperature -A, B & C
Low aspect ratio tire
WARNING - Tire
(if equipped)
The temperature grades are A (the
highest), B and C representing the
temperature
Low aspect ratio tires, whose aspect
tire’s resistance to the generation of
The temperature grade for this
ratio is lower than 50, are provided
heat and its ability to dissipate heat
tire is established for a tire that
for sporty looks.
when tested under controlled condi-
is properly inflated and not
Because the low aspect ratio tires
tions on a specified indoor laboratory
overloaded. Excessive speed,
are optimized for handling and brak-
test wheel.
underinflation, or excessive
ing, it may be more uncomfortable to
loading, either separately or in
Sustained high temperature can
ride in and there is more noise com-
cause the material of the tire to
combination, can cause heat
pare with normal tires.
build-up and possible sudden
degenerate and reduce tire life, and
excessive temperature can lead to
tire failure. This can cause loss
of vehicle control and serious
sudden tire failure. Grades B and A
represent higher levels of perform-
injury or death.
ance on the laboratory test wheel
than the minimum required by the
law.
7 61
Maintenance
CAUTION
CAUTION
Because the sidewall of the low
It is not easy to recognize the
aspect ratio tire is shorter than
tire damage with your own
the normal, the wheel and tire of
eyes. But if there is the slight-
the low aspect ratio tire is easi-
est hint of tire damage, even
er to be damaged. So, follow the
though you cannot see the tire
instructions below.
damage with your own eyes,
have the tire checked or
- When driving on a rough road
replaced because the tire
or off road, drive cautiously
damage may cause air leak-
because tires and wheels may
age from the tire.
be damaged. And after driving,
inspect tires and wheels.
If the tire is damaged by driv-
- When passing over a pothole,
ing on a rough road, off road,
pothole, manhole, or curb
speed bump, manhole, or curb
stone, drive slowly so that the
stone, it will not be covered by
the warranty.
tires and wheels are not dam-
aged.
You can find out the tire infor-
mation on the tire sidewall.
- If the tire is impacted, we rec-
ommend that you inspect the
tire condition or contact an
authorized HYUNDAI dealer.
- To prevent damage to the tire,
inspect the tire condition and
pressure every 3,000km.
7 62
Maintenance
FUSES
■ Blade type
A vehicle’s electrical system is pro-
tected from electrical overload dam-
WARNING - Fuse
age by fuses.
replacement
This vehicle has 2 (or 3) fuse panels,
Never replace a fuse with any-
Normal
Blown
one located in the driver’s side panel
thing but another fuse of the
bolster, the other in the engine com-
same rating.
■ Cartridge type
partment near the battery.
A higher capacity fuse could
If any of your vehicle’s lights, acces-
cause damage and possibly a
sories, or controls do not work, check
fire.
the appropriate circuit fuse. If a fuse
Never install a wire or alu-
has blown, the element inside the
minum foil instead of the prop-
fuse will be melted.
er fuse - even as a temporary
Normal
Blown
If the electrical system does not
repair. It may cause extensive
■ Multi fuse
work, first check the driver’s side
wiring damage and a possible
fuse panel.
fire.
Before replacing a blown fuse, dis-
connect the negative battery cable.
CAUTION
Always replace a blown fuse with
Normal
Blown
one of the same rating.
Do not use a screwdriver or any
other metal object to remove
■ BFT
If the replacement fuse blows, this
fuses because it may cause a
indicates an electrical problem. Avoid
short circuit and damage the
using the system involved and imme-
system.
diately consult an authorized
HYUNDAI dealer.
Three kinds of fuses are used: blade
NOTICE
Normal
Blown
type for lower amperage rating, car-
The actual fuse/relay panel label
tridge type, and multi fuse for higher
OLM079051N
may differ from equipped items.
amperage ratings.
7 63
Maintenance
Inner panel fuse replacement
CAUTION
When replacing a blown fuse
or relay with a new one, make
sure the new fuse or relay fits
tightly into the clips. The
incomplete fastening fuse or
relay may cause the vehicle
wiring and electric systems
damage and a possible fire.
Do not remove fuses, relays
and terminals fastened with
ODM072018
bolts or nuts. The fuses, relays
3. Pull the suspected fuse straight
ODM072017
and terminals may be fas-
out. Use the removal tool provided
tened incompletely, and it may
1. Turn the ignition switch and all
in the engine compartment fuse
cause a possible fire. If fuses,
other switches off.
panel.
relays and terminals fastened
2. Open the fuse panel cover.
4. Check the removed fuse; replace it
with bolts or nuts are blown,
if it is blown.
we recommend that you con-
sult an authorized HYUNDAI
5. Push in a new fuse of the same
dealer.
rating, and make sure it fits tightly
in the clips.
Do not input any other objects
except fuses or relays into
If it fits loosely, we recommend that
fuse/relay terminals such as a
you consult an authorized HYUNDAI
driver or wiring. It may cause
dealer.
contact failure and system
If you do not have a spare, use a
malfunction.
fuse of the same rating from a circuit
you may not need for operating the
vehicle, such as the cigar lighter
fuse.
7 64
Maintenance
If the headlights or other electrical
Fuse switch
Engine compartment panel fuse
components do not work and the
replacement
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced.
ODM072027
ODM072019
Diesel only
Always, put the Fuse switch at the
ON position.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly.
CAUTION
ODM072028
Always place the fuse switch in
the ON position while driving
1. Turn the ignition switch and all
the vehicle.
other switches off.
2. Remove the fuse box cover by
pressing the tap and pulling up.
7 65
Maintenance
3. Check the removed fuse; replace it
Multi fuse
Main fuse
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, we rec-
ommend that you consult an
authorized HYUNDAI dealer.
CAUTION
After checking the fuse box in
the engine compartment,
ONCNMC2033
ONCDMC2037
securely install the fuse box
If the multi fuse is blown, it must be
If the main fuse is blown, it must be
cover. If not, electrical failures
removed as follows:
removed as follows:
may occur from water leaking
1. Disconnect the negative battery
1. Disconnect the negative battery
in.
cable.
cable.
2. Remove the bolts shown in the
2. Remove the nuts shown in the pic-
picture above.
ture above.
3. Replace the fuse with a new one
of the same rating.
3. Replace the fuse with a new one
4. Reinstall in the reverse order of
of the same rating.
removal.
4. Reinstall in the reverse order of
removal.
NOTICE
If the multi fuse is blown, we recom-
mend that you consult an authorized
HYUNDAI dealer.
7 66
Maintenance

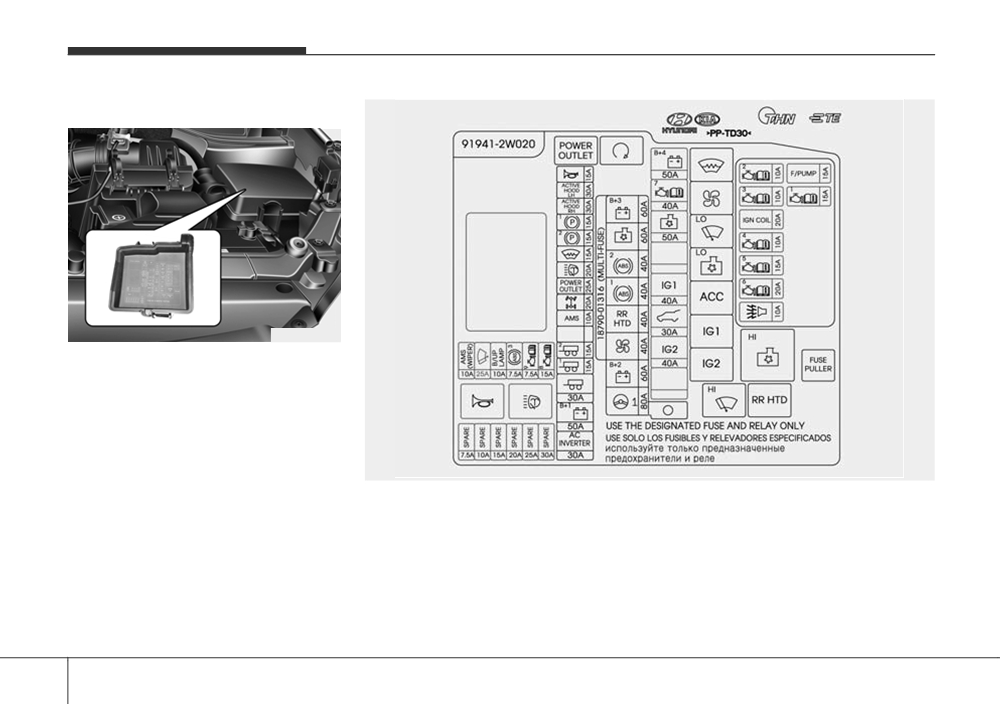

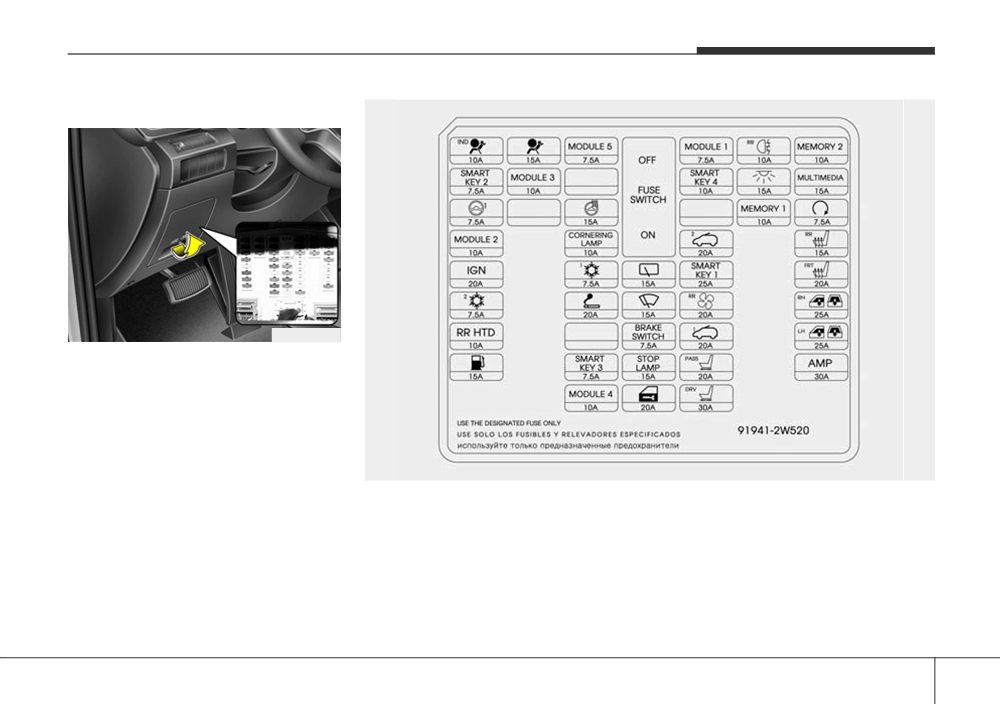

Fuse/Relay panel description
ODM072017
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
NOTICE
Not all fuse panel descriptions in
ODMEMC2014
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
7 67
Maintenance
Description
Symbol
Fuse rating
Protected Component
A/BAG IND
10A
Instrument Cluster
A/BAG
15A
SRS Control Module, A/C Control Module
Rain Sensor, Sunroof, Smart Key Control Module, BCM, Parking Guide System, AC,
MODULE 5
7.5A
Inverter Module, Rear Blower Relay, Rear Seat Warmer LH/RH, Driver/Passenger
Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module
Sport Mode Switch, Key Solenoid, Console Switch LH/RH, Front Console Switch,
MODULE 1
7.5A
Rear Power Window Switch LH/RH, RR_BLOWER SW
REAR FOG LAMP
10A
ICM Relay Box (Rear Fog Lamp Relay)
BCM, Tire Pressure Monitoring Module, Driver IMS Module, Driver/Passenger Door
MEMORY 2
10A
Module, Auto Light & Photo Sensor, Data Link Connector, A/C Control Module,
Instrument Cluster
SMART KEY 2
7.5A
Smart Key Control Module, Immobilizer Module
BCM, Instrument Cluster, Tire Pressure Monitoring Module, AMP, Smart Parking Assist
Control Module, Electro Chromic Mirror, Lane Departure Warning Module, Steering
Angle Sensor, Audio, A/C Control Module, A/V & Navigation Head Unit, 4WD ECM
ATM Shift Lever Indicator, Rear Parking Assist Sensor LH/RH, Rear Seat Warmer
MODULE 3
10A
LH/RH, Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat
Warmer Module, Driver IMS Module, Console Switch LH/RH, Rear Console Switch,
Rear Parking Assist Sensor (Center) LH/RH, Driver/Passenger Door Module, Electric
Parking Brake Module
SMART KEY 4
10A
Start/Stop Button Switch, Immobilizer Module
7 68
Maintenance
Description
Symbol
Fuse rating
Protected Component
Cargo Lamp, Vanity Lamp LH/RH, Overhead Console Lamp Center Room Lamp,
INTERIOR LAMP
15A
Personal Lamp LH/RH
MULTI MEDIA
MULTI MEDIA
15A
Audio, A/V & Navigation Head Unit, Digital Clock
MDPS
7.5A
MDPS Unit
HANDLE HTD
15A
Steering Wheel Switch
MEMORY 1
10A
RF Receiver, Ignition Key Ill. & Door Warning Switch
W/O IMMO. & Smart Key : ICM Relay Box (Burglar Alarm Relay)
START
7.5A
With IMMO./Smart Key : ECM/PCM, Transaxle Range Switch,
Smart Key Control Module, E/R Fuse & Relay Box (RLY. 2)
Adaptive Front Lighting Module, Crash Pad Switch, Glow Relay Unit (DSL),
Multipurpose Check Connector, Head Lamp LH/RH, Head Lamp Leveling Device
MODULE 2
10A
Actuator LH/RH, Auto Head Lamp Leveling Device Module, Stop Lamp Switch, Diesel
Box (RLY. 1)(DSL)
SUNROOF 2
20A
Sunroof
S/HEATER RR
15A
Rear Seat Warmer LH/RH
IGN
20A
E/R Fuse & Relay Box (Fuse - F36, F37, F38)
7 69
Maintenance
Description
Symbol
Fuse rating
Protected Component
E/R Fuse & Relay Box (RLY. 4/14), A/C Control Module
A/CON 1
7.5A
Cluster Ionizer, Diesel Box (RLY. 3/4)
WIPER RR
15A
Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch
SMART KEY 1
25A
Smart Key Control Module
Driver/Passenger Climate Control Seat Control Module
S/HEATER FRT
20A
Driver/Passenger Seat Warmer Module
A/CON 2
7.5A
A/C Control Module
C/LIGHTER
20A
Front Power Outlet & Cigarette Lighter, Luggage Power Outlet
WIPER FRT
15A
Multifunction Switch, E/R Fuse & Relay Box (RLY. 9/11)
RR BLOWER
20A
ICM Relay Box (Rear Blower Relay)
Passenger Safety Power Window Module Passenger Door Module,
P/WDW RH
25A
Rear Power Window Switch RH Rear Safety Power Window Module RH
RR DEFOGGER
10A
A/C Control Module
BRAKE SWITCH
7.5A
Smart Key Control Module, Stop Lamp Switch
SUNROOF 1
20A
Sunroof
7 70
Maintenance
Description
Symbol
Fuse rating
Protected Component
Driver Safety Power Window Module Driver Door Module, Rear Power Window Switch
P/WDW LH
25A
LH Rear Safety Power Window Module LH
FUEL LID
15A
Fuel Fillar Door Switch
SMART KEY 3
7.5A
Smart Key Control Module
STOP LAMP
STOP LAMP
15A
Stop Signal Electronic Module
P/SEAT PASS
20A
Passenger Seat Manual Switch
AMP
30A
AMP
Audio, A/V & Navigation Head Unit, Parking Guide System
MODULE 4
10A
Digital Clock, BCM, Overhead Console Lamp, AMP
Power Outside Mirror Switch, E/R Fuse & Relay Box (RLY. 1)
DR LOCK
20A
Door Lock/Unlock Relay, Tail Gate Relay
Driver IMS Module, Driver Seat Manual Switch
P/SEAT DRV
30A
Driver Lumbar Support Switch
7 71
Maintenance
Engine compartment fuse panel
ODM072050
ODMEMC2015
7 72
Maintenance
Relay NO.
Symbol
Relay Name
Relay Type
E30
POWER OUTLET RELAY
ISO MICRO
E31
START RELAY
ISO MICRO
E32
FRONT DEICER RELAY
ISO MICRO
E33
BLOWER RELAY
ISO MICRO
E34
WIPER (LO) RELAY
ISO MICRO
E35
COOLING FAN (LO) RELAY
ISO MICRO
E36
ACC RELAY
ISO MICRO
E37
IG1 RELAY
ISO MICRO
E38
IG2 RELAY
ISO MICRO
E39
COOLING FAN (HI) RELAY
ISO MINI
E40
WIPER (HI) RELAY
ISO MICRO
E41
REAR DEFOGGER RELAY
ISO MICRO
E42
HORN RELAY
ISO MICRO
E43
HEAD LAMP WASHER RELAY
ISO MICRO
7 73
Maintenance
Description
Symbol
Fuse rating
Protected Component
MDPS
80A
MDPS Unit
Smart Junction Box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), Fuse -
B+2
60A
F31/F36/F41/F45)
BLOWER
40A
RLY. 4 (Blower Relay)
RR HTD
40A
RLY. 12 (Rear Defogger Relay)
MULTI
FUSE
ABS1
40A
ABS Control Module, ESC Control Module, Multipurpose Check Connector
ABS2
40A
ABS Control Module, ESC Control Module
Except Europe - RLY. 6 (Cooling Fan (LO) Relay), RLY. 10 (Cooling Fan (HI)
C/FAN
60A
Relay)
B+3
60A
Smart Junction Box (Fuse - F4/F5/F10/F21/F26, Leak Current Autocut Device)
Smart Junction Box (IPS 3 (4CH), IPS 4 (2CH), IPS 6 (2CH), Fuse -
B+4
50A
F35/F38/F40/F44)
EMS
40A
EMS Box
Except Europe - RLY. 6 (Cooling Fan (LO) Relay), RLY. 10 (Cooling Fan (HI)
FUSE
C/FAN
50A
Relay)
IG1
40A
Ignition Switch (W/O Smart Key), RLY. 7/8 (ACC/IG1 Relay, With Smart Key)
IG2
40A
Ignition Switch (W/O Smart Key), RLY. 2 (Start Relay)/RLY. 9 (IG2 Relay)
TRAILER
30A
Trailer Lamp & Power Outlet
7 74
Maintenance
Description
Symbol
Fuse rating
Protected Component
B+1
50A
Smart Junction Box (Fuse - F22/F27/F32/F37/F42)
AC INVERTER
30A
AC Inverter Module
HORN
15A
RLY. 13 (Horn Relay)
ACTIVE HOOD LH
30A
-
ACTIVE HOOD RH
30A
-
EPB1
15A
Electric Parking Brake Module
FUSE
EPB2
15A
Electric Parking Brake Module
DEICER
15A
RLY. 3 (Front Deicer Relay)
H/LP WASHER
20A
RLY. 14 (Head Lamp Washer Relay)
P/OUTLET
25A
RLY. 1 (Power Outlet Relay)
4WD
20A
4WD ECM
AMS
10A
Battery Sensor
TRAILER 2
15A
Trailer Lamp & Power Outlet, IDB module
7 75
Maintenance
Description
Symbol
Fuse rating
Protected Component
TRAILER 1
15A
Trailer Lamp & Power Outlet
WIPER
10A
BCM, PCM/ECM
WIPER FRT
25A
RLY. 5 (Wiper (LO) Relay), Front Wiper Motor
M/T - Back-Up Lamp Switch, A/T - Rear Combination Lamp (IN) LH/RH,
B/UP LAMP
10A
Electro Chromic Mirror, Trailer Lamp & Power Outlet, Audio, A/V & Navigation
Head Unit
ABS3
7.5A
ABS Control Module, ESC Control Module
FUSE
SENSOR5
7.5A
PCM/ECM, Mass Air Flow Sensor
TCU
15A
TCM (DSL), Transaxle Range Switch
F/PUMP
15A
Fuel Pump Relay
G4KE/G4KJ/G6DF : PCM
ECU1
15A
D4HA/D4HB (VGT Regular Engine Pack) : TCM (A/T)
ECU2
10A
D4HA/D4HB : Electronic VGT Actuator
G6DF : PCM, Injector #1/#2/#3/#4/#5/#6, Fuel Pump Relay
SENSOR3
10A
D4HA/D4HB (VGT Regular Engine Pack) : Lambda Sensor, Stop Lamp Switch
7 76
Maintenance
Description
Symbol
Fuse rating
Protected Component
G6DF : Condenser #1/#2, Ignition Coil #1/#2/#3/#4/#5/#6
IGN COIL
20A
D4HA/D4HB : ECM
G6DF : PCM, Oil Control Valve #1/#2/#3/#4, Variable Intake Solenoid Valve
#1/#2, Purge Control Solenoid Valve
D4HA/D4HB (VGT Regular Engine Pack) : EGR Cooling Bypass Solenoid
SENSOR2
10A
Valve, Lower Power EGR Valve, Crankshaft
Position Sensor, Fuel Pump Relay, E/R Fuse &
Relay Box (RLY. 6/10)
FUSE
G6DF : PCM, Oxygen Sensor #1/#2/#3/#4, E/R Fuse & Relay Box (RLY. 6/10)
SENSOR1
15A
D4HA/D4HB (VGT Regular Engine Pack) : Oil Level Sensor, Fuel Pressure
Regulating Valve, Rail Pressure Regulating Valve
SENSOR4
20A
G4KE/G4KJ : PCM
B/ALARM
10A
Burglar Alarm Horn Relay
7 77















Content   ..  36  37  38  39   ..
