Hyundai Grand Santa Fe (2016 year). Instruction - part 34

What to do in an emergency

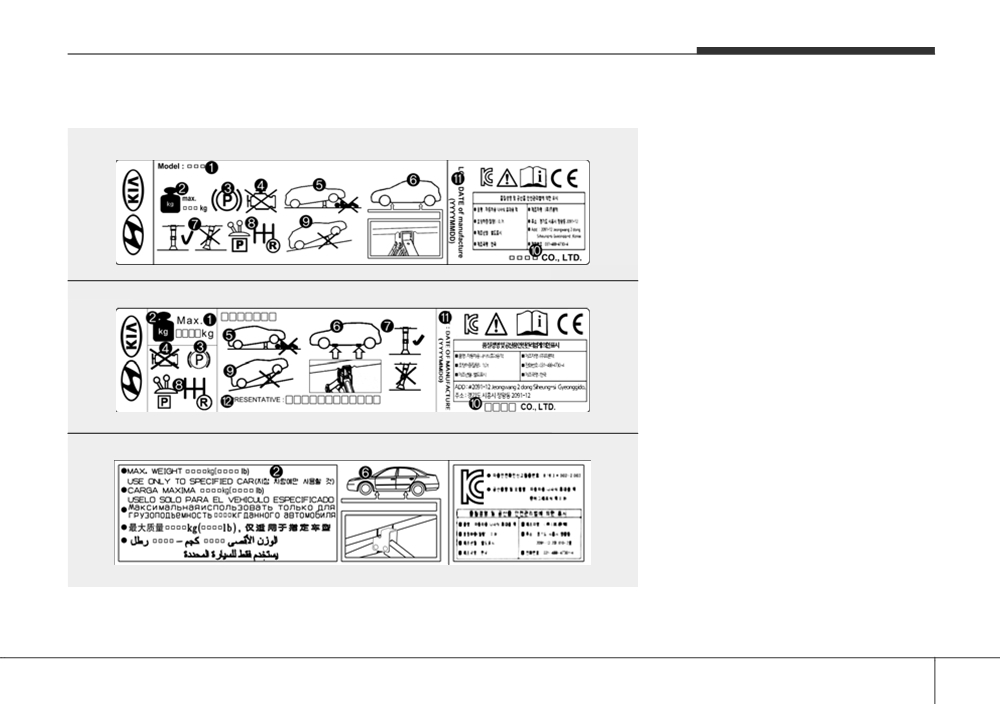

Jack label

1. Model Name

2. Maximum allowable load

■ Example

• Type A

3. When using the jack, set your

parking brake.

4. When using the jack, stop the

engine.

5. Do not get under a vehicle that is

supported by a jack.

OHYK064001

6. The designated locations under

• Type B

the frame

7. When supporting the vehicle, the

base plate of jack must be vertical

under the lifting point.

8. Shift into Reverse gear on vehicles

with manual transaxle or move the

shift lever to the P position on

OHYK064005

vehicles with automatic transaxle.

• Type C

9. The jack should be used on firm

level ground.

10. Jack manufacture

11. Production date

12. Representative company and

address

OHYK064002

❈ The actual Jack label in the vehicle may differ from the illustration.

For more detailed specifications, refer to the label attached to the jack.

6 29

What to do in an emergency

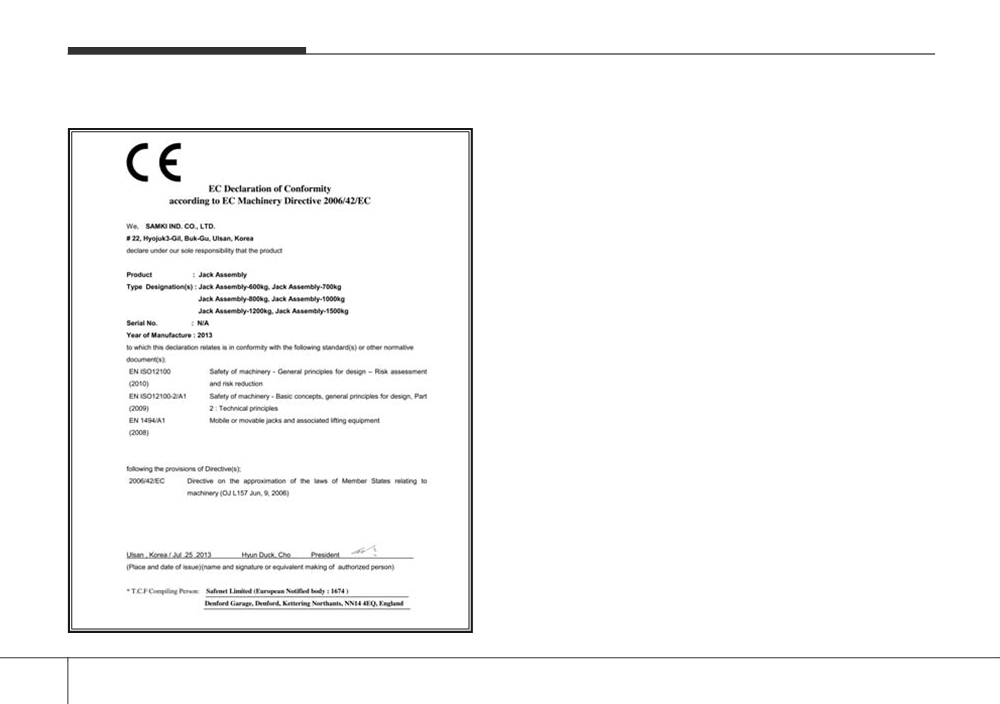

EC Declaration of Conformity for Jack

JACKDOC14S

6 30

What to do in an emergency

TOWING

Towing service

On 4WD vehicles, your vehicle must

be towed with a wheel lift and dollies

WARNING - if equipped

or flatbed equipment with all the

with rollover

wheels off the ground.

sensor

If your vehicle is equipped with

CAUTION

side and curtain air bag, set the

ignition switch to OFF or ACC

The 4WD vehicle should never

position when the vehicle is

be towed with the wheels on the

being towed.

ground. This can cause serious

damage to the transaxle or the

The side and curtain air bag

4WD system.

may deploy when the ignition is

dolly

ON, and the rollover sensor

detects the situation as a

On 2WD vehicles, it is acceptable to

rollover.

tow the vehicle with the rear wheels

on the ground (without dollies) and

dolly

the front wheels off the ground.

OXM069028

If any of the loaded wheels or sus-

pension components are damaged

If emergency towing is necessary,

or the vehicle is being towed with the

we recommend having it done by an

front wheels on the ground, use a

authorized HYUNDAI dealer or a

towing dolly under the front wheels.

commercial tow-truck service.

When being towed by a commercial

Proper lifting and towing procedures

tow truck and wheel dollies are not

are necessary to prevent damage to

used, the front of the vehicle should

the vehicle. The use of wheel dollies

always be lifted, not the rear.

or flatbed is recommended.

For trailer towing guidelines informa-

tion, refer to “Trailer towing” in sec-

tion 5.

6 31

What to do in an emergency

When towing your vehicle in an

Removable towing hook

emergency without wheel dollies :

(if equipped)

1.Set the ignition switch in the ACC

■ Front

position.

2.Place the transaxle shift lever in N

(Neutral).

3.Release the parking brake.

OUN046030

CAUTION

Failure to place the transaxle

shift lever in N

(Neutral) may

ONCDEM2005

cause internal damage to the

■ Rear

transaxle.

OCM054034

CAUTION

• Do not tow the vehicle back-

wards with the front wheels on

ONCNEM2006

the ground as this may cause

1.Open the tailgate, and remove the

damage to the vehicle.

towing hook from the tool case.

• Do not tow with sling-type

2.Remove the hole cover pressing

equipment. Use wheel lift or

the lower part of the cover on the

flatbed equipment.

bumper.

6 32

What to do in an emergency

3.Install the towing hook by turning it

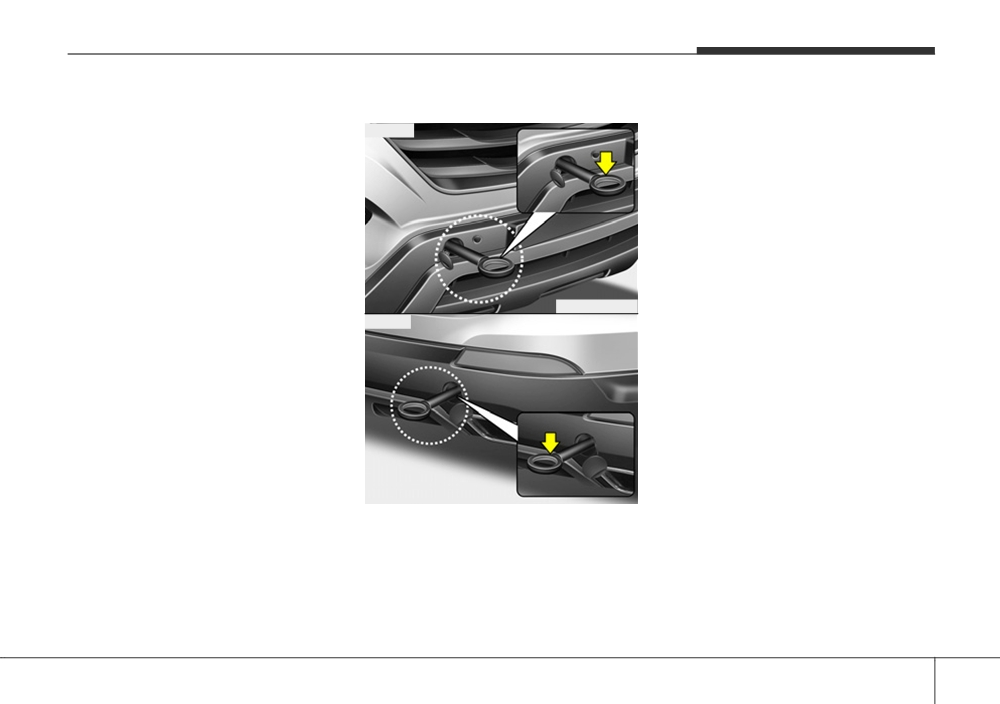

Emergency towing

If towing service is not available in an

clockwise into the hole until it is

■ Front

emergency, your vehicle may be

fully secured.

temporarily towed using a cable or

chain secured to the emergency tow-

4.Remove the towing hook and

ing hook under the front (or rear) of

install the cover after use.

the vehicle. Use extreme caution

when towing the vehicle. A driver

must be in the vehicle to steer it and

operate the brakes.

Towing in this manner may be done

only on hard-surfaced roads for a

ONCDEM2007

short distance and at low speed.

■ Rear

Also, the wheels, axles, power train,

steering and brakes must all be in

good condition.

• Do not use the towing hooks to pull

a vehicle out of mud, sand or other

conditions from which the vehicle

cannot be driven out under its own

power.

• Avoid towing a vehicle heavier than

the vehicle doing the towing.

ONCNEM2008

• The drivers of both vehicles should

If towing is necessary, we recom-

communicate with each other fre-

mend you to have it done by an

quently.

authorized HYUNDAI dealer or a

commercial tow truck service.

6 33

What to do in an emergency

CAUTION

WARNING

• Attach a towing strap to the

Use extreme caution when tow-

tow hook.

ing the vehicle.

• Using a portion of the vehicle

• Avoid sudden starts or erratic

other than the tow hooks for

driving maneuvers which

towing may damage the body

would place excessive stress

of your vehicle.

on the emergency towing

• Use only a cable or chain

hook and towing cable or

specifically intended for use

chain. The hook and towing

in towing vehicles. Securely

cable or chain may break and

fasten the cable or chain to

cause serious injury or dam-

OXM069009

the towing hook provided.

age.

•

Use a towing strap less than 5 m

•

If the disabled vehicle is

(16 feet) long. Attach a white or red

unable to be moved, do not

cloth

(about

30 cm (12 inches)

•

Before emergency towing, check

forcibly continue the towing.

wide) in the middle of the strap for

that the hook is not broken or dam-

easy visibility.

We recommend that you con-

aged.

tact an authorized HYUNDAI

•

Drive carefully so that the towing

•

Fasten the towing cable or chain

dealer or a commercial tow

strap is not loosened during tow-

securely to the hook.

truck service for assistance.

ing.

•

Do not jerk the hook. Apply steady

•

Tow the vehicle as straight

and even force.

ahead as possible.

•

To avoid damaging the hook, do

•

Keep away from the vehicle

not pull from the side or at a verti-

during towing.

cal angle. Always pull straight

ahead.

6 34

What to do in an emergency

Emergency towing precautions

CAUTION - Automatic

•

Turn the ignition switch to ACC so

transaxle

the steering wheel isn’t locked.

•

If the car is being towed with

•

Place the transaxle shift lever in N

all four wheels on the ground,

(Neutral).

it can be towed only from the

•

Release the parking brake.

front. Be sure that the

•

Press the brake pedal with more

transaxle is in neutral. Be sure

force than normal since you will

the steering is unlocked by

have reduced brake performance.

placing the ignition switch in

•

More steering effort will be

the ACC position. A driver

must be in the towed vehicle

required because the power steer-

ing system will be disabled.

to operate the steering and

brakes.

•

If you are driving down a long hill,

the brakes may overheat and brake

•

To avoid serious damage to

performance will be reduced. Stop

the automatic transaxle, limit

often and let the brakes cool off.

the vehicle speed to 15 km/h

(10 mph) and drive less than

1.5 km (1 mile) when towing.

•

Before towing, check the auto-

matic transaxle for fluid leaks

under your vehicle. If the auto-

matic transaxle fluid is leak-

ing, flatbed equipment or a

towing dolly must be used.

6 35

Maintenance

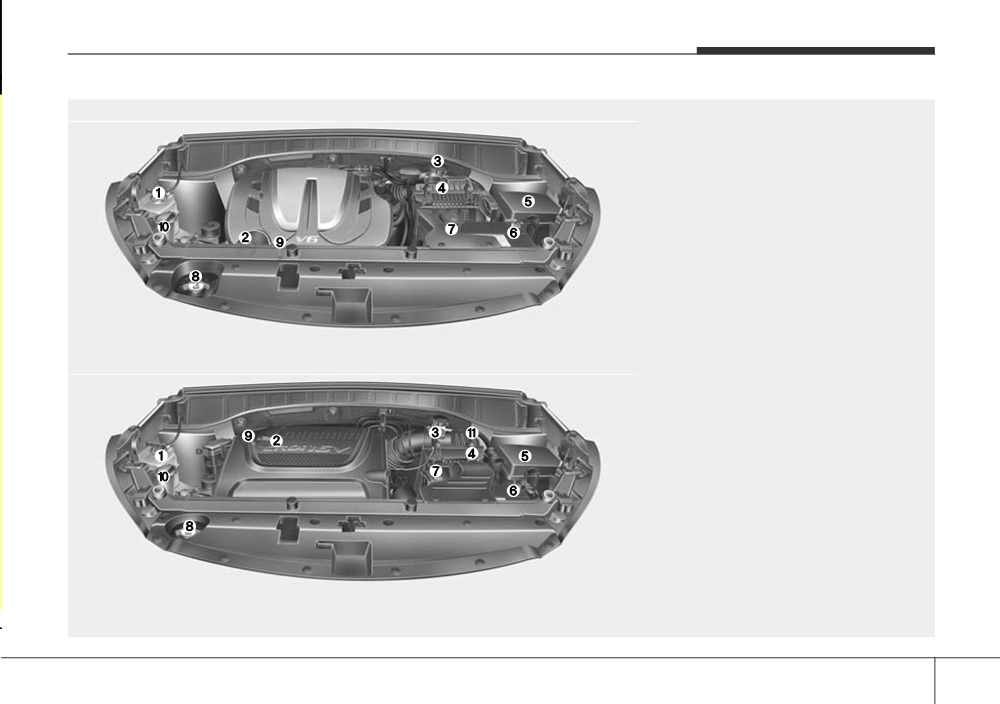

ENGINE COMPARTMENT

■ Gasoline Engine (Lambda II 3.3L) - MPI

1. Engine coolant reservoir

2. Engine oil filler cap

3. Brake fluid reservoir

4. Air cleaner

5. Fuse box

6. Negative battery terminal

7. Positive battery terminal

■ Diesel Engine (R2.2)

8. Radiator cap

9. Engine oil dipstick

10. Windshield washer fluid reservoir

11. Fuel filter (if equipped)

* The actual engine room in the vehicle may differ from the illustration.

ONCEMC3212/ODM012005

7 3

Maintenance

Engine compartment precau-

(Continued)

WARNING -

tions (Diesel engine)

These can become entangled

Maintenance work

•

The piezo injector operates at high

in moving parts and result in

•

Performing maintenance work

voltage

(maximum

200v).

injury. Therefore, if you must

on a vehicle can be danger-

Therefore, the following accidents

run the engine while working

ous. You can be seriously

may occur.

under the hood, make certain

injured while performing some

that you remove all jewelry

- Direct contact with the injector or

maintenance procedures. If

(especially rings, bracelets,

injector wiring may cause electric

you lack sufficient knowledge

watches, and necklaces) and

shock or damage your muscle or

and experience or the proper

all neckties, scarves, and sim-

nerve system.

tools and equipment to do the

ilar loose clothing before get-

work, we recommend that the

- The electromagnetic wave from

ting near the engine or cool-

system be servied by an

the operating injector may cause

ing fans.

authorized HYUNDAI dealer.

the artificial heart pacemaker to

malfunction.

•

Working under the hood with

•

Follow the safety tips provided

the engine running is danger-

ous. It becomes even more

below, when you are checking the

engine room while the engine is

dangerous when you wear

jewelry or loose clothing.

running.

- Do not touch the injector, injector

(Continued)

wirings, and the engine computer

while the engine is running.

- Do not remove the injector con-

nector while the engine is run-

ning.

- People using pacemakers must

not go near the engine while the

engine is starting or running.

7 5

Maintenance

OWNER MAINTENANCE

The following lists are vehicle checks

Owner maintenance schedule

While operating your vehicle:

and inspections that should be per-

When you stop for fuel:

•

Note any changes in the sound of

formed at the frequencies indicated

the exhaust or any smell of

to help ensure safe, dependable

• Check the engine oil level.

exhaust fumes in the vehicle.

operation of your vehicle.

• Check coolant level in coolant

•

Check for vibrations in the steering

If you have any question, we recom-

reservoir.

wheel. Notice any increased steer-

mend that you consult an authorized

• Check the windshield washer fluid

ing effort or looseness in the steer-

HYUNDAI dealer.

level.

ing wheel, or change in its straight-

These Owner Maintenance Checks

• Look for low or under-inflated tires.

ahead position.

are generally not covered by war-

•

Notice if your vehicle constantly

ranties and you may be charged for

turns slightly or “pulls” to one side

WARNING

labor, parts and lubricants used.

when traveling on smooth, level

Be careful when checking your

road.

engine coolant level when the

•

When stopping, listen and check

engine is hot. Scalding hot

for unusual sounds, pulling to one

coolant and steam may blow

side, increased brake pedal travel

out under pressure. This could

or “hard-to-push” brake pedal.

cause burns or other serious

injury.

•

If any slipping or changes in the

operation of your transaxle occurs,

check the transaxle fluid level.

•

Check automatic transaxle P

(Park) function.

7 7

Content   ..  32  33  34  35   ..
